Wedge Capsule Mold

Wedge Capsule Mold

    • Wedge Capsule Mold
    • Wedge Capsule Mold
    • Wedge Capsule Mold
    • Wedge Capsule Mold
  • Wedge Capsule Mold

    Product Details:

    Place of Origin: China,Beijing
    Brand Name: Kunyou
    Certification: CE,ISO9001
    Model Number: Ø 150X250

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: stardand cages
    Delivery Time: 7-10 days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 10 Pairs per week
    Contact Now
    Detailed Product Description
    Material: Al Matrial2: Cu
    Wedge: Water Heating&electric Heating Wedge2: Al For Paintball
    Wedge Material: Cu Size: As Requirement
    High Light:

    Capsule Mould


    Soft Capsule Mold



    Large Capsule Mold / Softgel Die Roll For Making OB / OV Shape With CE



    Quick Detail


    Product Name

    Large Die roll for softgel and paintball



    Place of Origin

    Beijing, China(Main land)


    Aluminium alloy

    Die roll Speed

    0~5 rpm





    Product Description


    The soft capsules die roll are widely used in softgel making machines for softgel making enterprises and pharmaceutical enterprises. It can make various types of softgel and according to customers’ requirements.


    S406 Soft capsule die roll is used for S406 Soft capusle making machine which is suitalble for medium scale production. The raw material of die roll is imported aircraft grade aluminium alloy which has very good strength and tension. Its tension degree can get to 570 MPa and 150 Brinell hardness.


    Using the imported aircraft grade aluminium alloy can significantly prolong the life of dies.

    Besides, users can largely reduce the using cost because there are usually four times to repair during its life cycle.


    After processing these dies roll, technologists will make special surface treatment technology so as to further improve the mold surface hardness and corrosion resistance.


    In designing softgel die rolls, we strongly absorbed much experience from home and abroad to make better die rolls which can reduce the leakage and net rate and improve the stability of the soft capsule and paintball production.


    Wedge Capsule Mold 0




    It’s widely used for softgel and paintball making enterprises and pharmaceutical enterprises, including cosmetic manufacturing company and health products manufacturing company and nutrition foods manufacturing.

    1)Any color available

    2)Patent registered

    3)Special Die Roll installed

    4)Slot die / metering station

    5)New gel ribbon working system




    Ø 150X250

    Die roll diameter(mm)


    Die roll length(mm)


    Die roll speed


    Plunger Qty.


    Machine Overall Dimension


    Machine Weight(kg)


    Machine Power(kw)



    PLC.touch screen


    Competitive Advantage


    1. Widely used for softgel and paintball making enterprises and pharmaceutical enterprises

    2. The raw material is imported aircraft grade aluminium alloy
    3. Various types of softgel and round paintball
    4. product: Metal: Aluminium, copper
    5. Make different die roll according to customers’ requirements
    6. Softgel Capsules Making machine for laborotary and small scale production
    Soft capsule die roll, softgel mold, softgel die  roller and paintball die roll, paintball mold.
    Welcome to inquire!

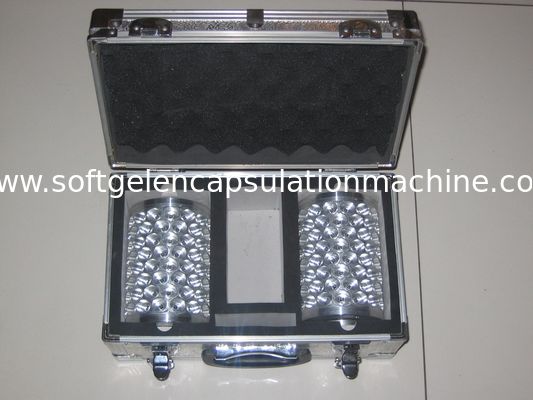

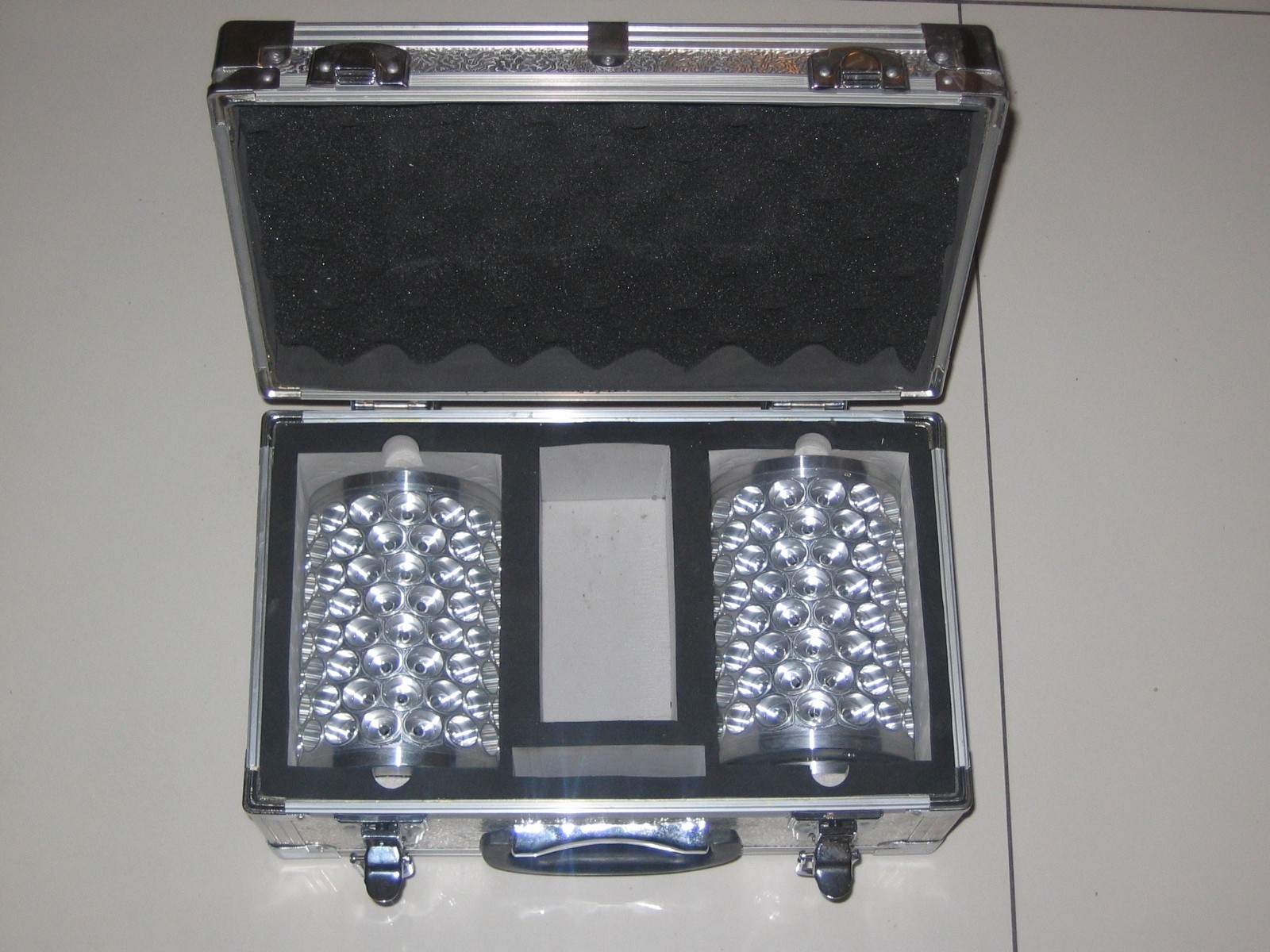

    Wedge Capsule Mold 1Wedge Capsule Mold 2


    Al wedge for paintball
