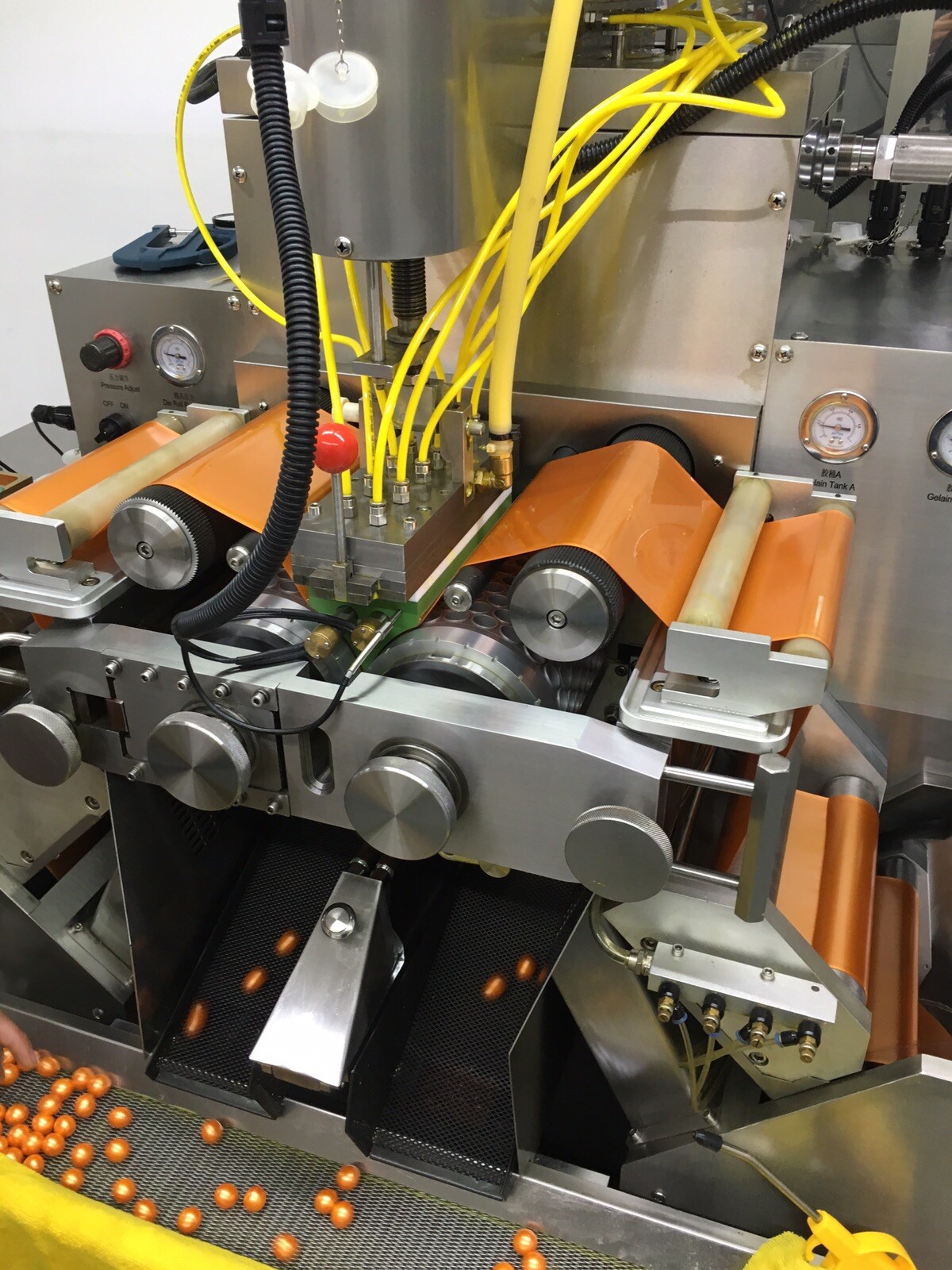

Paintball Making Encapsulation Machine

Paintball Making Encapsulation Machine

  • Paintball Making Encapsulation Machine
  • Paintball Making Encapsulation Machine
  • Paintball Making Encapsulation Machine
Paintball Making Encapsulation Machine
Product Details:
Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: S406PB
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Delivery Time: 20-60 days
Payment Terms: T/T, L/C
Supply Ability: 30 Set/Sets Per Year
Contact Now
Detailed Product Description
Application: Paintball Production State: New
Control: Full Automatic Power: 16.5Kw
Material: SUS304 Capacity: 30000/H
After-sales Service Provided: Field Installation,commissioning And Training
High Light:

Paintball Manufacturing Machine

,

Paintball Making Encapsulation Machine





Tournament Grade Paintball Encapsulation Machine With PID Temperature Control





Quick Detail



Product Name

Paintball Making Machine

Paintball Filling Machine

Material

304 SUS

Port

FOB Tianjin

Power Consumption

7kw

Scale

Medium Scale Production

Capacity

18000pcs/hour



Product Description



Our company is the first in China to export paintball equipment to North America which is capable of making tournament grade paintball, still the biggest paintball machine maker in China. Compared with the softgel machine, the paintball making need better machine accuracy, the drive transmission system is also percisionly improved. The ancillay are also modified correspondingly. The hopper and spreader box adopt level switch, making the level control more precise. Besides, the injection wedge, spreader box and hopper adopt the design of precise PID temperature control . The micro lubrication system largely reduce the consumption of paraffin oil.


S406 paintball Encapsulation Machine considers the need and the biggest benefits of customers as start point, combining advantages of foreign equipment and requirements of customers. S406 Paintball Encapsulation Machine’s die roll is 152 mm long. The die roll’s rotation rate can be regulated within 0 to 5 rpm, so users can choose the most appropriate speed according to different materials and process parameters. S406 Paintball Encapsulation Machine improves the bearing spindle supporting way of die roll, thus making the spindle more accuracy and much easier to repair. In addition, the machine further improves the machining precision. More helical gears are used in the process of gear moving, which improve the gear coincidence degree and transmission stability. The split structure of cooling fan reduces the thermal effect to the pressure pill. Besides, gelatin barrel is added with wheel which can be moved more conveniently and easily. The machine is provided with stirring or insulation optional hopper, using ground automatic feeding method. The paintball machine’s oil roller is made of stainless steel material, so it’s more in line with the requirements of GMP.

Specification


Model

S406PB

Die roll diameter

Ф103mm

Die roll length

152mm

Die roll speed

0~5rpm

Plunger numbers

10

dimension

880X640X1900mm

weight

900kg

Power consumption

7 kw

Control mode

PLC+HMI Switch/buttons

Output rate

18000pcs/hour




Competitive Advantages


1. Good stability
2. Adjustable rotation rate during 0-7rpm
3. Easy to operate and clean, conforming to GMP
4. Compact and beautiful
5. It can be assembled or disassembled with single hand
6. Big air flow
7. Reduce the oil consumption
8. The cable plug has good waterproof and oil proof function
9. High technical loading capacity
10. Easy to move and operate
11. Drum design to prevent gelatin wrinkling and sideship
12. Professional PID temperature control technology is adopted on the machine, temperature of injector can be adjusted accurately. Improves ratio of finished products of paintball.



Paintball Making Equipment, Paintball Manufacturing Line, Various Model Die Roll For Soft capsule and Paintball and All kinds of spare parts for softgel making machine and paintball making machine. Professional Technicians and years of operation, welcome to inquire!


Paintball Making Encapsulation Machine 0

Paintball Making Encapsulation Machine 1
Paintball Making Encapsulation Machine 2
