Vegetable Soft Gelatin Drying Machine Encapsulation Tumbler Dryer With cooling convyer

China Vegetable Soft Gelatin Drying Machine Encapsulation Tumbler Dryer With cooling convyer supplier
Vegetable Soft Gelatin Drying Machine Encapsulation Tumbler Dryer With cooling convyer supplier Vegetable Soft Gelatin Drying Machine Encapsulation Tumbler Dryer With cooling convyer supplier Vegetable Soft Gelatin Drying Machine Encapsulation Tumbler Dryer With cooling convyer supplier Vegetable Soft Gelatin Drying Machine Encapsulation Tumbler Dryer With cooling convyer supplier Vegetable Soft Gelatin Drying Machine Encapsulation Tumbler Dryer With cooling convyer supplier Vegetable Soft Gelatin Drying Machine Encapsulation Tumbler Dryer With cooling convyer supplier

Large Image :  Vegetable Soft Gelatin Drying Machine Encapsulation Tumbler Dryer With cooling convyer

Product Details:

Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: TD-2,TD-3

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Delivery Time: 30-65 days
Payment Terms: T/T, L/C
Supply Ability: 30 Set/Sets Per Year
Contact Now
Detailed Product Description
Material: SS304/316 Size: 4.64.7.10.12 Inch
Servo Motor: Avaliable Technion Instalation: Avaliable
Warantee: 2 Year Useage: Capsule And Paintball





Vegetable Gelatin Softgel Drying Machine For 30kg / h




Specification of Tumble Dryer


Model TD-2
Basket diameter(mm) 580
Basket length(mm) 900
Weight(ton) 1.5t
Drying fan(kw) 0.32
Motor Power(kw) 0.4
Basket per section

2





Vegetable Soft Gelatin Drying Machine Encapsulation Tumbler Dryer With cooling convyer



Product Description

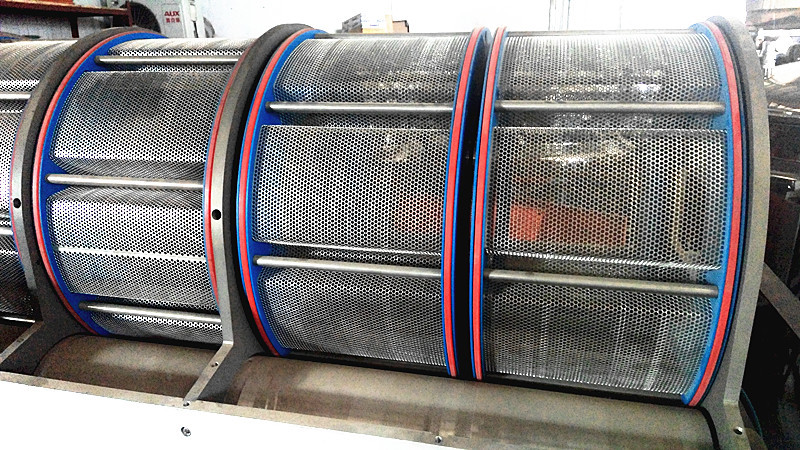

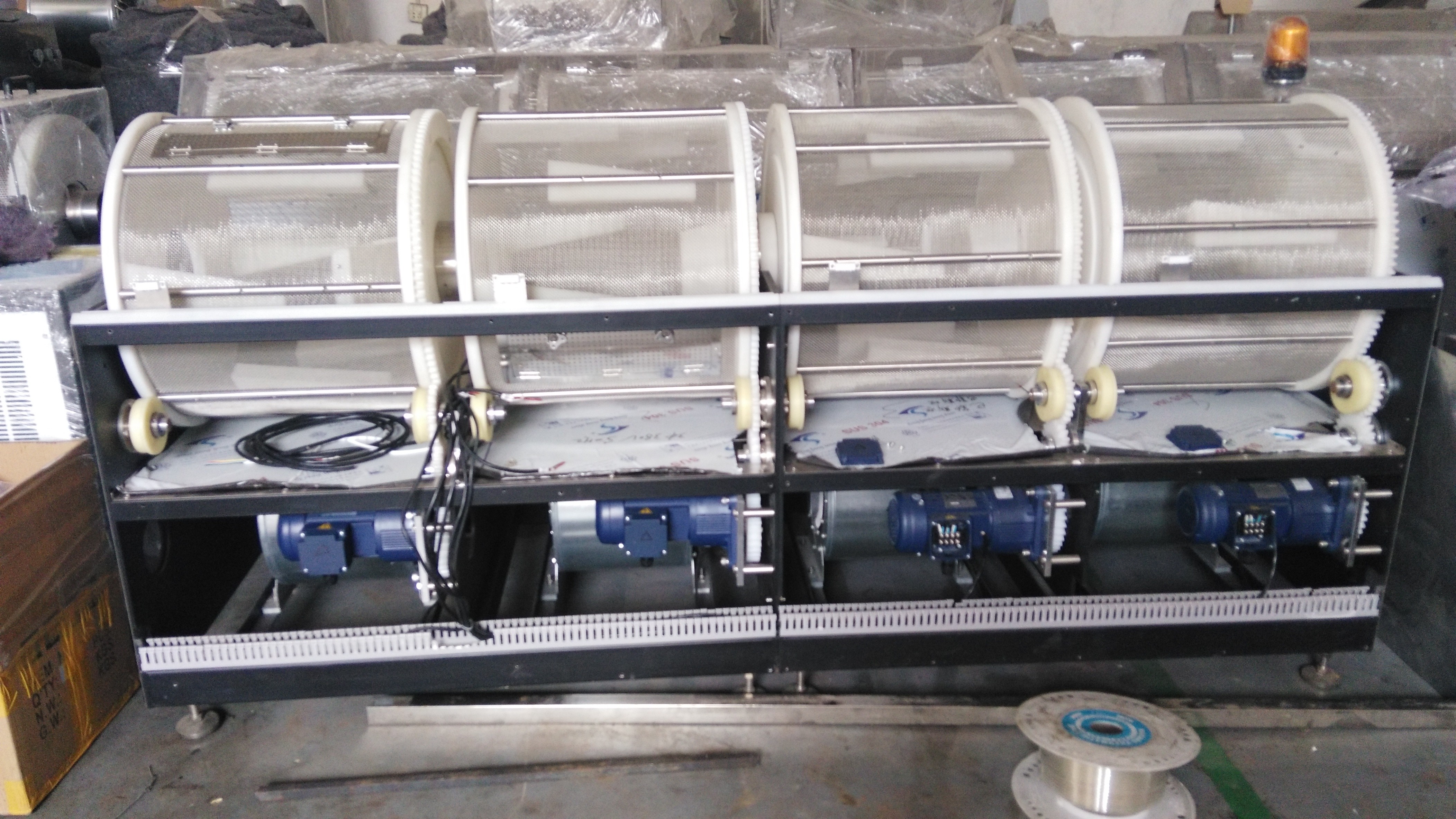

TD-2 tumbler dryer is auto matic control by PLC touch screen ,each basket size is 580*900mm, with one fans underside, the capacity is about 30 kg/h. The fan volum is 3500cubic meters per hour.

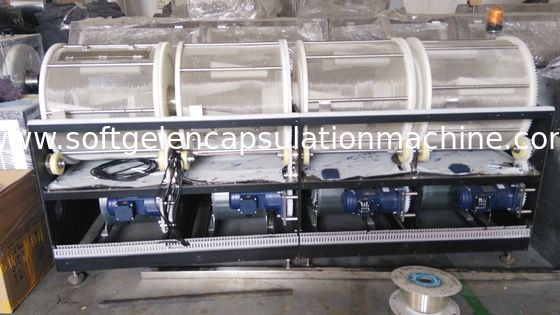

Usually 4 baskets enough for the 10 inch encapsulation machine.

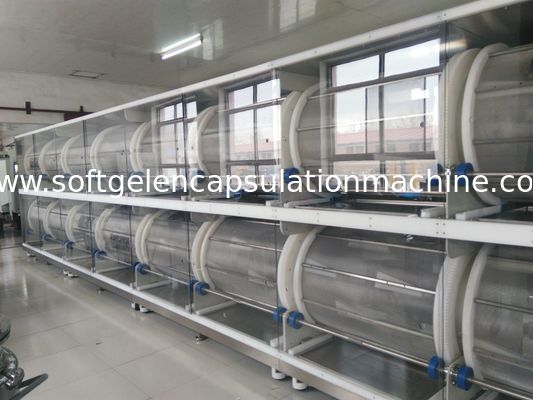

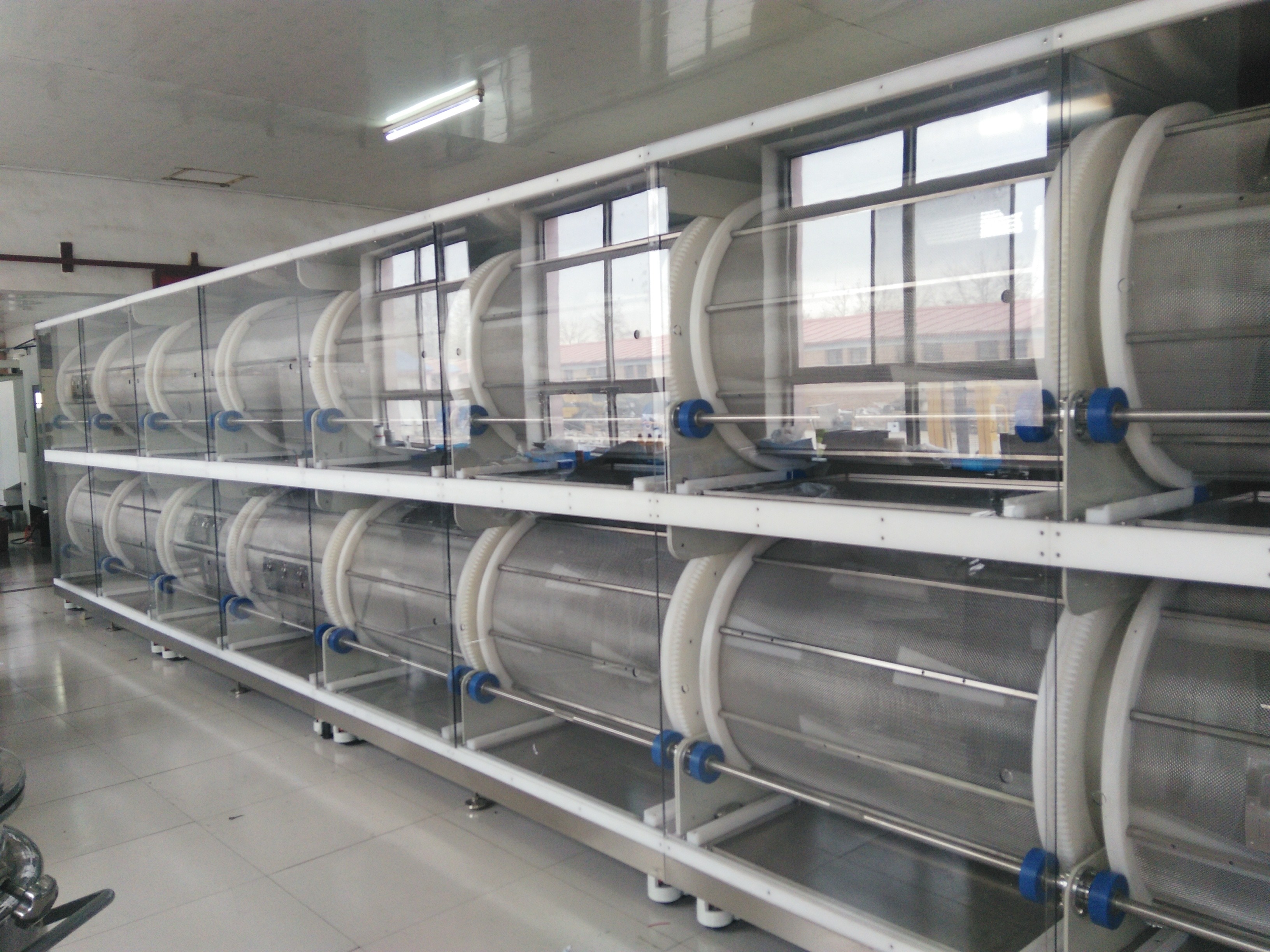

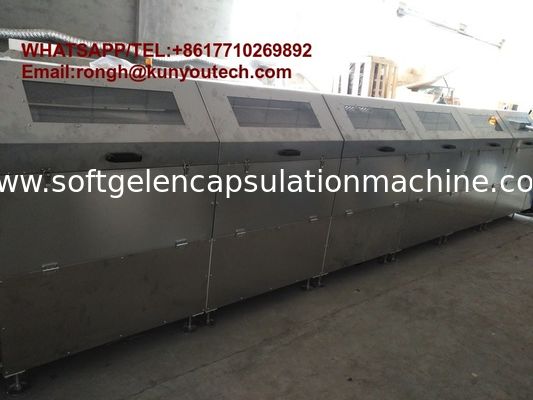

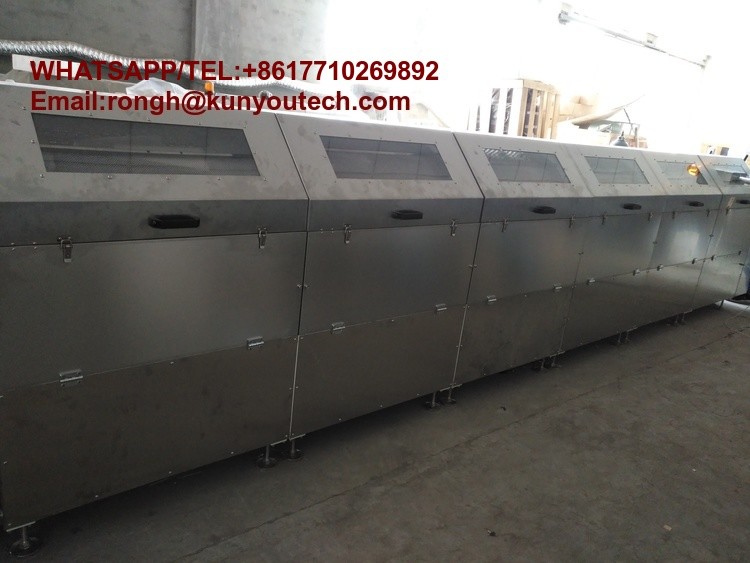

The dryer can be with PC/SS cover, can be with lift device, can be with 2 layer design as required.

Vegetable Soft Gelatin Drying Machine Encapsulation Tumbler Dryer With cooling convyer
Specifically speaking, it has the following characteristics:

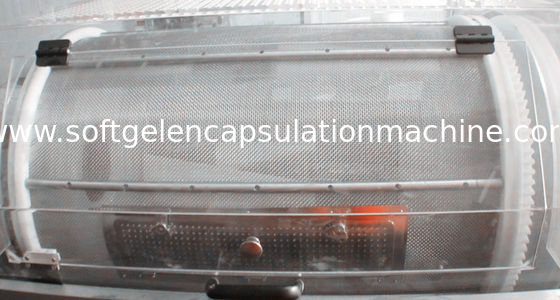

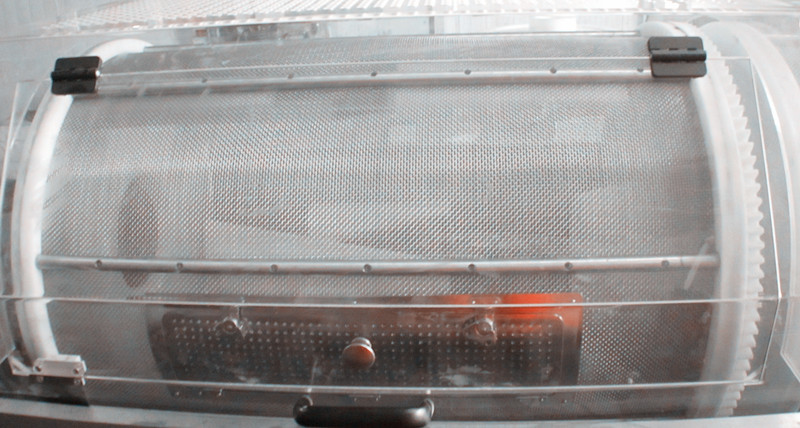

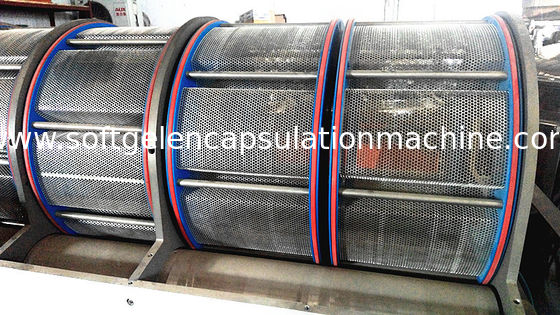

Material of cover: porous stainless steel
capacity :30kg /h
effcient fan power,each 3600cubic meter/h
Precision temperature control

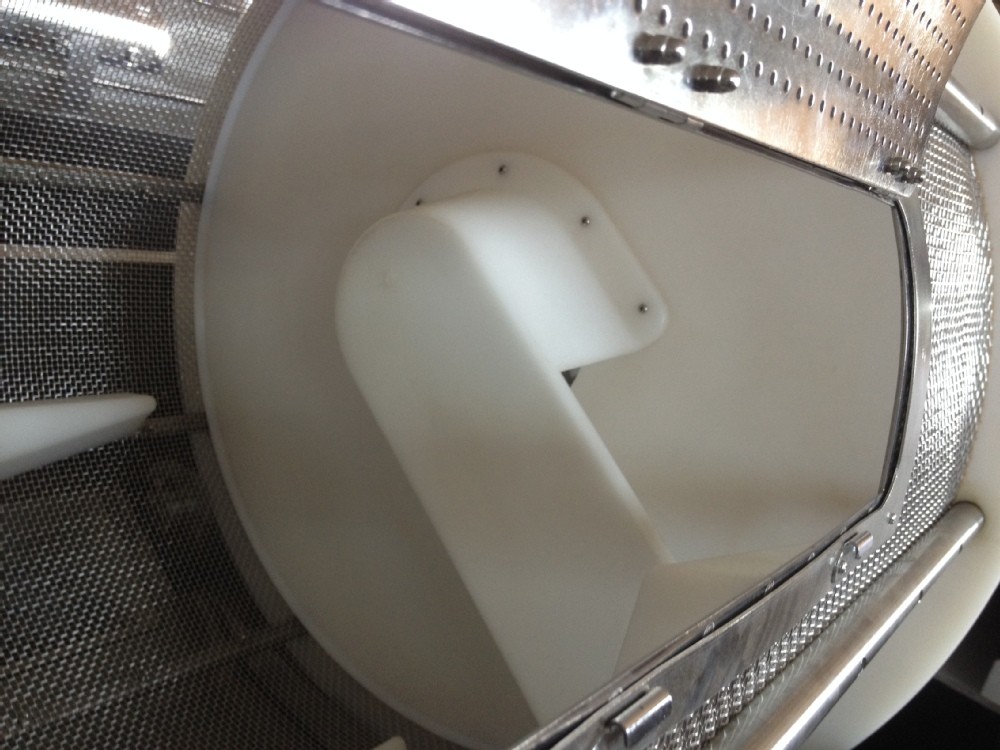

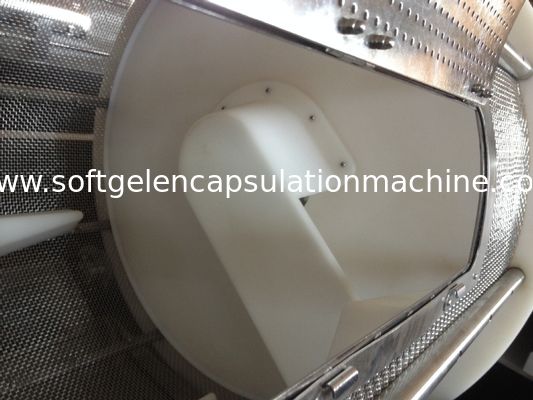

All lead block and the dischage outlet made by special mold, capsule will not stack
Pneumatic lift up.
Material can be SS304/316
With trolly not easy movable
PLC operation
Discharge alarming light 12 seconds befor dischage
2 direction rotate, with speed 51rpm



Application

It’s mainly for softgel making enterprises and pharmaceutical enterprises and universities.


Detail


Vegetable Soft Gelatin Drying Machine Encapsulation Tumbler Dryer With cooling convyer



                            Vegetable Soft Gelatin Drying Machine Encapsulation Tumbler Dryer With cooling convyer
