12 Inch Automatic Vgel Encapsulation Machine For Vegetable starch Soft gelatin Capsules filling

China 12 Inch Automatic Vgel Encapsulation Machine For Vegetable starch Soft gelatin Capsules filling supplier
12 Inch Automatic Vgel Encapsulation Machine For Vegetable starch Soft gelatin Capsules filling supplier 12 Inch Automatic Vgel Encapsulation Machine For Vegetable starch Soft gelatin Capsules filling supplier 12 Inch Automatic Vgel Encapsulation Machine For Vegetable starch Soft gelatin Capsules filling supplier 12 Inch Automatic Vgel Encapsulation Machine For Vegetable starch Soft gelatin Capsules filling supplier

Large Image :  12 Inch Automatic Vgel Encapsulation Machine For Vegetable starch Soft gelatin Capsules filling

Product Details:

Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: S610

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Delivery Time: 30-60 days
Payment Terms: T/T, L/C
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Material: SS304/316 Capacity: 30000 Per Hour For Paintball
Capacity2: 100,000 Capsule For 8oval Size Technion Installation: Avaliable
Die Roll: Manufacture By Us Brand: Kunyou





12" inch or 10 inch Automatic Paintball Encapsulation Machine For Making Pharmaceutical Softgel / Capsule



Quick Detail



Dimension(mm)

2250×900×2300mm

Power consumption

7kw

Pump type

10 plungers

Dosage Tolerance

± 2%

Advantage

With economic price and lower using cost

Packing Material

Gelatin



Product Description



S403 Softgel Automatic Encapsulation Machine is specially designed for R&D department of laboratories and pharmaceutical factories. The softgel manufacturing line is mainly including the main machine(Encapsulation System), Gelatin melting  and service tank, Mixing tank and then drying system.

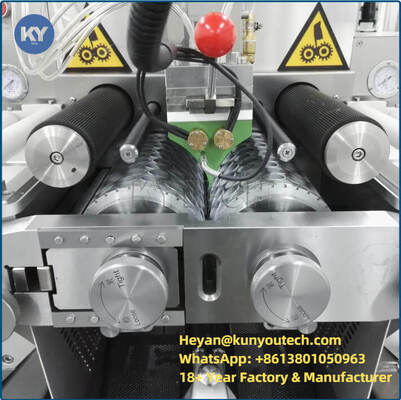

12 Inch Automatic Vgel Encapsulation Machine For Vegetable starch Soft gelatin Capsules filling



Gelatin Melting



Water bath type gelatin tank is a special equipment for melting gelatin and production process. The gelatin melting tank has the advantage of compact structure, stable transmission and stable running performance. The mixing/stirring process is operated through connecting loop coupling and is composed of plurality of split agitator with stable transmission and better homogenization effect. The whole body of the tank is made of stainless steel. The body include three layers, including the tank liner, heating jacket and heat preservation layer. Heating the inner of the tank with the circulation hot water, it will be featured by fast heating, good thermal insulation performance, improving the quality of gelatin, accelerating the gelatin melting and shorten the melting time. The liner is closed totally with very good vacuum performance. The feeding mouth is convenient o assemble and repair. The whole tank is very smooth and bright with features of convenient cleaning, anti-corrosion and anti-acid, etc. Gelatin melting tank adopts stainless steel construction for its whole body. During its working process, the machine will suck moisture from inside of the tank, leaving the vacuum. All these are in accordance with the requirement of GMP. So the gelatin melting tank is an ideal equipment for the soft capsule pharmaceutical line.







Drying System



TD-2 Soft Capsule (Softgel) and paintball Tumble dryer is used to predry and initial shaping of soft capsule (softgel) and paintballs. Each section can be of variable frequency of speed regulation. There should be two tumble dryers at least, we call it one group. In other words, your making machine should be equipped with one group of tumble dryer(two sections) at least. Each section is equipped with an independent fan to make softgels and paintballs distribute evenly, thus making the drying effect much better. Each dryer can be easily removed and easy to clean, it’s more in line with the requirements of GMP. Each dryer is equipped with electrostatic guiding device and safety production device. The operator can conveniently make the dryer stop just in the tumble dryer position. TD2 has advanced structure and stable material, making its drying effect much better than other models of domestic and Korean machine.

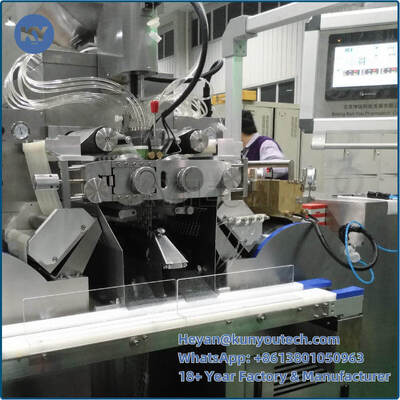

12 Inch Automatic Vgel Encapsulation Machine For Vegetable starch Soft gelatin Capsules filling



Application



1. TD-2 Soft Capsule (Softgel) and paintball Tumble dryer is used to predry and initial shaping of soft capsule (softgel) and paintballs.

2. It’s for pharmaceutical enterprises, health care products, cosmetics and paintball production.


Specification of Main machine



Model

S403

Die roll size

Ф80X100mm

Die roll speed

0~5rpm

Overall dimension

1250×400×2300mm

weight

600kg

Power supply

380V/240V,50/60HZ

Power of the main motor

1.1kw

Power of the main machine

3kw



Capacity



S610  Softgel Encapsulation Machine

Shape

Capsules/hour

2r/min

3r/min

4r/min

5#OV

48000

72900

90200

8#OV

44400

68100

94800

10#OV

32640

48960

68280

11#OB

30000

41800

56400

16#OB

28040

14160

13680

20#OB

25480

36720

49960

24#OB

24120

37180

48240

Paintball

30000









Competitive Advantage



Competitive Advantage



1. PLC operation
2. Improve the efficiency of production largely
3. Adjustable rotation rate during 0-7rpm
4. Compact and beautiful
5. It can be assembled or disassembled with single hand
6. Reduce the oil consumption
7. Adjustable separately or automatically
8. The control system has a counting function to make operators get the number of pills clearly
9. Store and apply operating data
10. Lengthen the life of die roll by using pneumatic
11. Reminding and diagnosing faults function
12. Can realize the function of statistical statements and printing
13. More safety
14. The cable plug has good waterproof and oil proof function




Specification of Gelatin Melting Tank




 Model

450L

600L

800L

1000L

 Capacity(L)

650

900

1120

1370

 Melting gelatin(L)

100-450

150-600

200-800

300-1000

 Heating area(M2)

3.2

4

4.8

5.5

 Max degree of Vacuum(Mpa)

0.09

0.09

0.09

0.09

 Max Temperature(℃)

-100

-100

-100

-100

 Motor Power (KW)

4

5.5

7.5

7.5

 Stirring speed (r/min)

50

50

50

50

 Dimension (mm)

Φ1210X1880

Φ1310X1980

Φ1410X2080

Φ1510X2130


12 Inch Automatic Vgel Encapsulation Machine For Vegetable starch Soft gelatin Capsules filling



Specification of Tumble Dryer



Model

TD-2

Basket diameter(mm)

580

Basket length(mm)

900

Weight(ton)

1.5t

Drying fan(kw)

0.32

Motor Power(kw)

0.4

Basket per section

2


Beijing Kun You Pharmatech Co., Ltd sells the softgel manufacturing line, including drying machine and gelatin melting. And we can also sell the gelatin tank and tumble dryer seperately.Welcome to inquire!
