600L Gelatin Reactor Three Layers Of Water Bath Heating to 130 degree

600L Gelatin Reactor Three Layers Of Water Bath Heating to 130 degree

    • 600L Gelatin Reactor Three Layers Of Water Bath Heating to 130 degree
    • 600L Gelatin Reactor Three Layers Of Water Bath Heating to 130 degree
    • 600L Gelatin Reactor Three Layers Of Water Bath Heating to 130 degree
    • 600L Gelatin Reactor Three Layers Of Water Bath Heating to 130 degree
    • 600L Gelatin Reactor Three Layers Of Water Bath Heating to 130 degree
  • 600L Gelatin Reactor Three Layers Of Water Bath Heating to 130 degree

    Product Details:

    Place of Origin: China,Beijing
    Brand Name: Kunyou
    Certification: CE,ISO9001
    Model Number: 650L

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: Wood cages
    Delivery Time: 30 days
    Payment Terms: T/T, L/C
    Supply Ability: 30 Set/Sets Per month
    Contact Now
    Detailed Product Description
    Material: SS Size: 100-1500Liters
    Service: Vaaliable Heating: Oil Or Water
    Certificate: CE Warantee: 1 Year Free
    High Light:

    melting tanks

    ,

    stainless steel tanks



    SUS Gelatin Melting Tank / Three Layers Of Water Bath Heating / 600L



    600L gelatin melting tank is a 3 layers with water bath type tank ,which material is SS304, with diameter 1000mm/ 1200mm, height 1950mm, wall 5mm, 5mm insulation heating jacket, peel for temperature conservation is 2mm, three phase 220V 60Hz,

    Vacuum degree in the tank: -0.09Mpa

    The working pressure inside the tank: less than -0.09Mpa

    Jacket working pressure: atmospheric pressure

    Working temperature in the tank: -99 C at normal temperature

    The height of the supporting foot seat of the tank to the outlet valve is 660mm



    Quick Detail



    Product Name

    Gelatin Melting Tank

    Heating type

    Water-bath heating

    Application

    Paintball /Soft capsule manufacturers

    Model

    650L

    Material

    304 SUS

    Capacity

    600L



    Product Description



    The Series of gelatin reactor is the essential equipment in gelatin preparation.

    The Capacity is from 450L, to 1000L


    Main technical data

    Vacuum degree in the vessel: 0.02-0.09 Mpa.
    Working pressure in the vessel: 0.03-0.05 Mpa.
    Examining Pressure in the vessel: 0.Gelatin Melting Tan3-0.4 Mpa.
    Working pressure in the jacket: 0.03-0.098 Mpa
    Working temperature in tank: 50-100 °C
    Conveyor granule: 30 CP
    Sealing parts and ring can used more than 3,000 hours continuously.
    Insulating layer use super-fine glass cotton.
    Inner vessel and insulation layer (covered layer) of the Tank, those sections exposed to raw material are made of 1Cr18Ni9Ti stainless steel.


    Application



    It’s mainly for softgel making and paintball making enterprises. Besides, the cosmetic manufacturer also needs this to make cosmetics, such as bath beads. And health products manufacturers also need this to make different softgels for the different needs.



    600L Gelatin Reactor Three Layers Of Water Bath Heating to 130 degree 0

    Specification



     Model

    650L

     Capacity(L)

    650

     Melting gelatin(L)

    100-450

     Heating area(M2)

    3.2

     Max degree of Vacuum(Mpa)

    0.09

     Max Temperature(℃)

    -100

     Motor Power (KW)

    4

     Stirring speed (r/min)

    50

     Dimension (mm)

    Φ1210X1880

    600L Gelatin Reactor Three Layers Of Water Bath Heating to 130 degree 1

    Competitive Advantage



    1. Stainless steel construction, multi-layer stirrer.

    2. Soft capsule gelatin melting tank, heated by circulated hot water.
    3. Water sealed vacuum pump is adopted.
    4. Designed with three stainless steel interlayer it, helps for accurate control of the temperature of medicine liquid.
    5. Typically designed paddle ensure agitating quickly and mixing uniformly.
    6.It’s convenient in installation and cleaning.

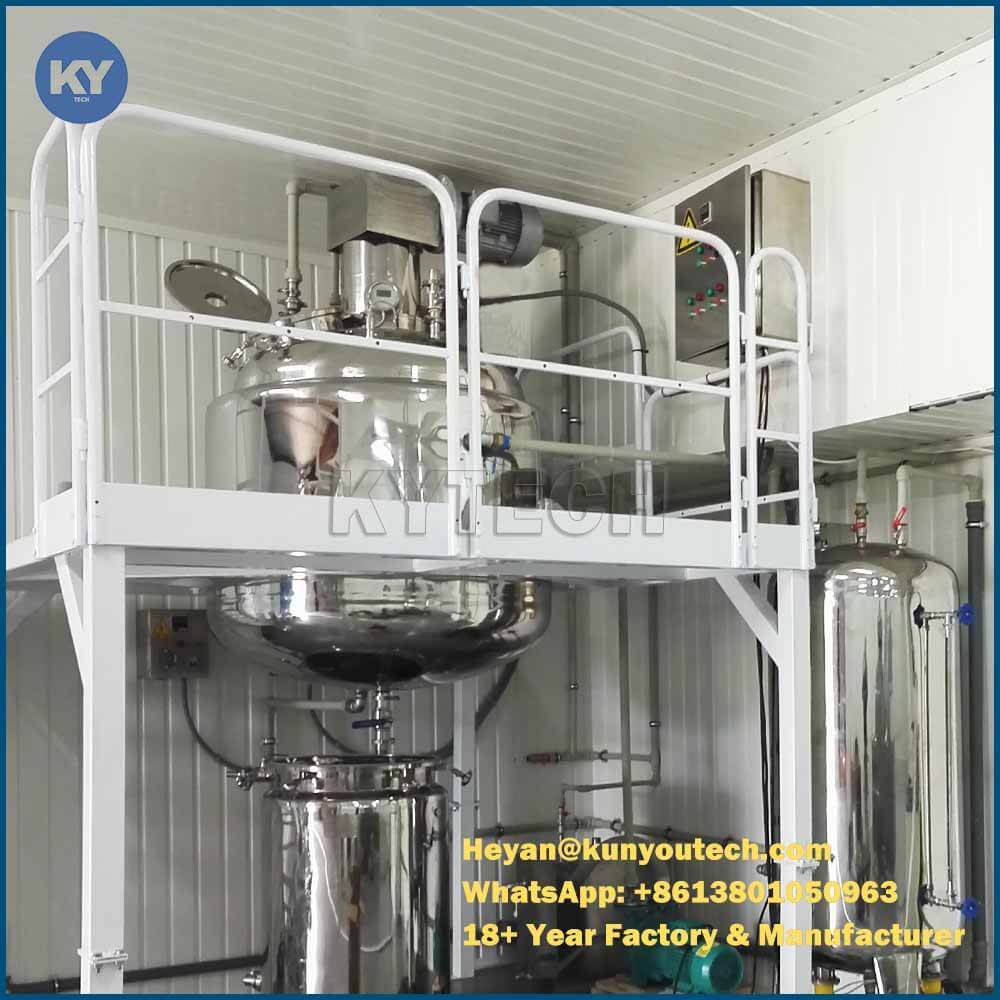

    7.With Platform Avaliable
    8. Factory Layout design free
    9. Various type avaliable on platform or movable on the floor
    10. Fuction choose such as jacket, vacuum, Pressure bear as your need.

    Softgel Gelatin Melting Tank, Gelatin Service Tank, Paintball Gelatin Melting Tank

    600L Gelatin Reactor Three Layers Of Water Bath Heating to 130 degree 2
