Big Capacity Air Flow Capsule Tumbler Dryer Plc Control For Softgel / Paintball

Big Capacity Air Flow Capsule Tumbler Dryer Plc Control For Softgel / Paintball

    • Big Capacity Air Flow Capsule Tumbler Dryer Plc Control For Softgel / Paintball
    • Big Capacity Air Flow Capsule Tumbler Dryer Plc Control For Softgel / Paintball
    • Big Capacity Air Flow Capsule Tumbler Dryer Plc Control For Softgel / Paintball
    • Big Capacity Air Flow Capsule Tumbler Dryer Plc Control For Softgel / Paintball
  • Big Capacity Air Flow Capsule Tumbler Dryer Plc Control For Softgel / Paintball

    Product Details:

    Place of Origin: China,Beijing
    Brand Name: Kunyou
    Certification: CE,ISO9001
    Model Number: TD-3

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: Wood cages
    Delivery Time: 30-60 days
    Payment Terms: T/T, L/C
    Contact Now
    Detailed Product Description
    Material: SS316 Size Dia: 900
    Size Length: 1010 Control: PLC
    Brand: Kunyou Dry Material: Air
    High Light:

    softgel tumbler dryer

    ,

    soft gelatin tumbler dryer

    Double Layers Big Air flow Encapsulation Tumbler Dryer With Hydraulic lift syetem





    Quick Detail



    Product Name

     Softgel Tumble Drying Machine/ Tumble Dryer

    Power consumption

    0.75kw

    Drying fan Motor(KW)

    0.55KW

    Basket per section

    1

    Application

    Drying softgel/paintball or pills or fish oils,etc

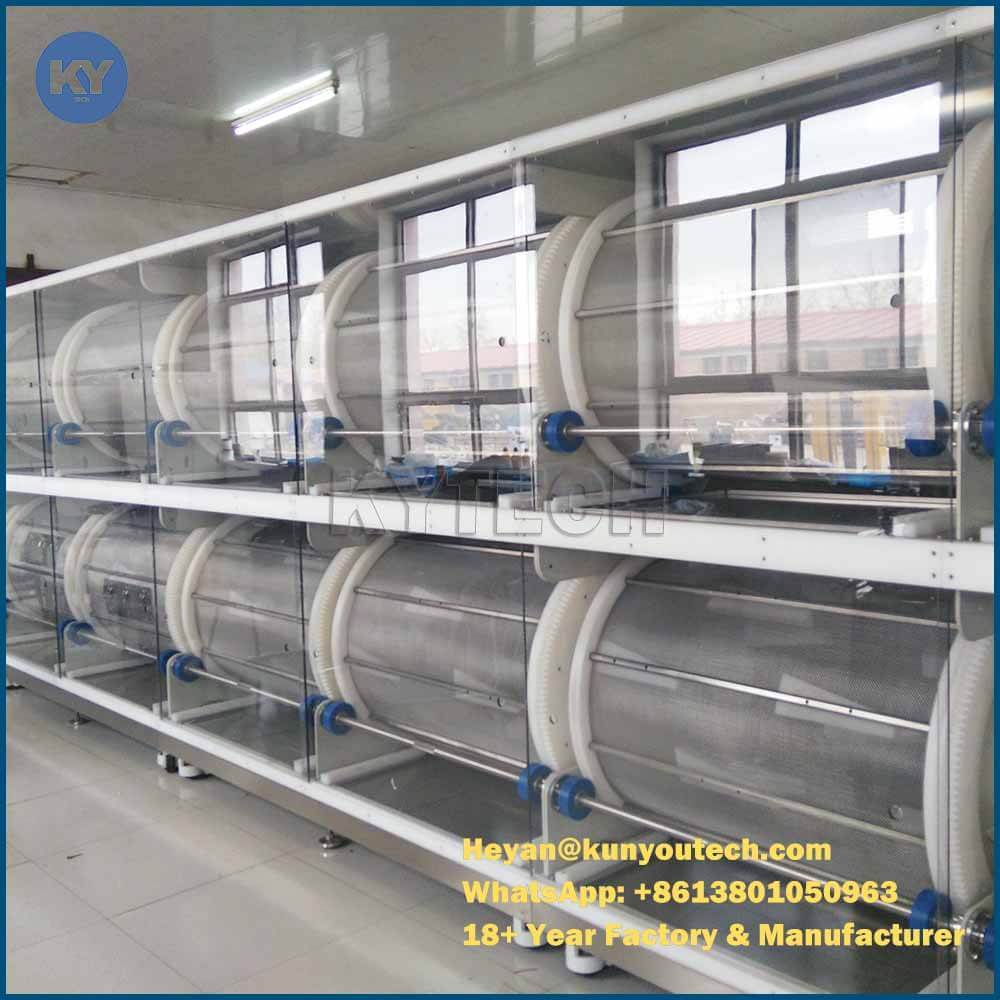

    Big Capacity Air Flow Capsule Tumbler Dryer Plc Control For Softgel / Paintball 0



    Product Description



    TD-3 Soft Capsule (Softgel) and paintball Tumble dryer is used to predry and initial shaping of soft capsule (softgel) and paintballs. TD-3 Soft Capsule (Softgel) and paintball Tumble dryer is the largest domestic drying tumble currently. Each section is provided with two large air blowers. The organic glass cover of TD-3 Soft Capsule (Softgel) and paintball Tumble dryer can be opened with safety protection. The standard configuration is 8 sections. Each section is equipped with an independent fan to make softgels and paintballs distribute evenly, thus making the drying effect much better. Each dryer can be easily removed and easy to clean, so it’s more in line with the requirements of GMP. Each dryer is equipped with electrostatic guiding device and safety production device. The operator can conveniently make the dryer stop just in the tumble dryer position.

    Application



    1. TD-3 Soft Capsule (Softgel) and paintball Tumble dryer is used to predry and initial shaping of soft capsule (softgel) and paintballs.
    2. It’s for pharmaceutical enterprises, health care products, cosmetics and paintball production line.


    Specification


    Model

    TD-3

    Basket diameter(mm)

    730

    Basket length(mm)

    1010

    Weight (ton)

    2ton

    Drying fan(kw)

    0.55

    Motor Power(kw)

    0.75

    Basket per section

    1



    Competitive Advantage



    1. The largest domestic drying tumbler druer.

    2. Two large air blowers in each cage

    3. Each cage can regulate speed separately

    4. Safety protection device in the rotate of the basket and the material discharge.

    5.Guide block and discharge place is made of plastic by mole casting ,capsule will not stack .

    6.Net polished in ineer and outer face.

    7.Touch screen can be control by PLC of main machine or the tumbler dryer seperately.

    8.2 layer design, space saving ,with lift fork for the basket dischage.

    9.Cover can be steel and PC.

    10.size can be as your requirement.



    drying tumbler for soft capsule, drying tumbler for paintballs, soft capsule dryer, paintball dryer, paintball drying machine, soft capsule /softgel drying machine

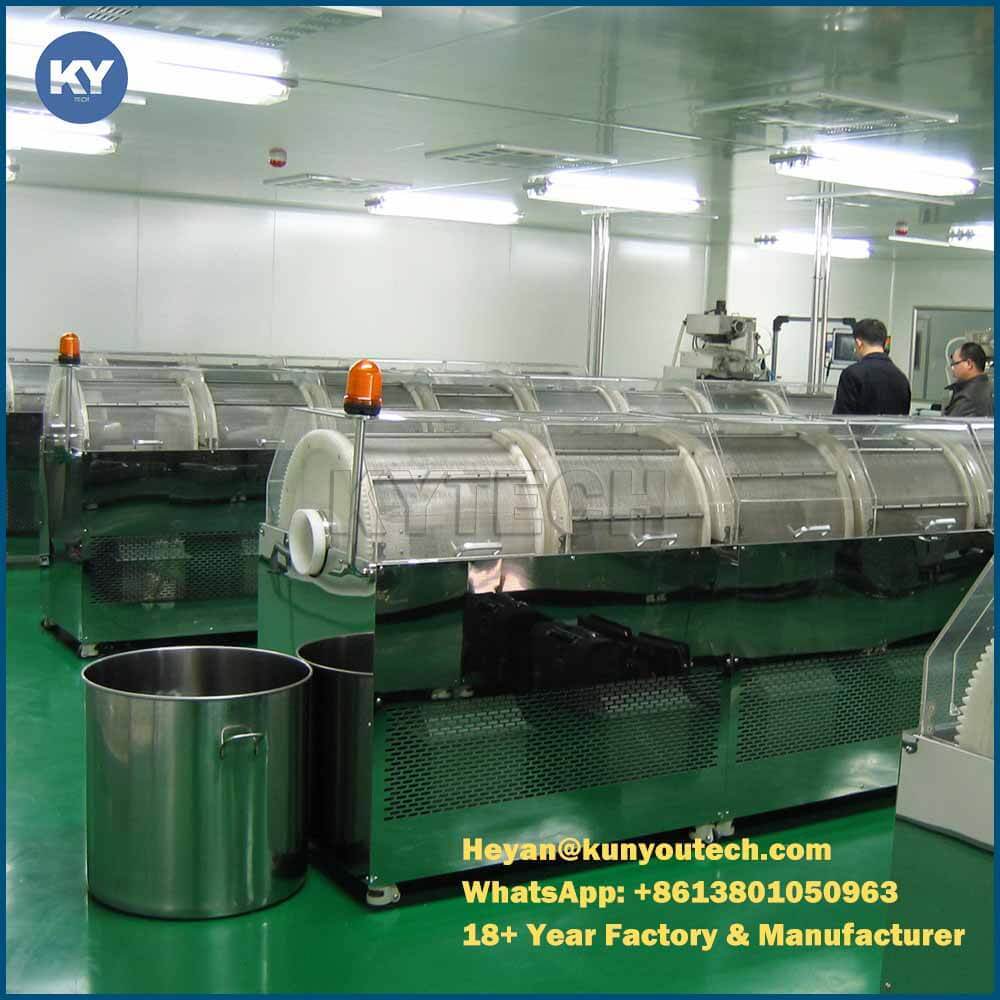

    Big Capacity Air Flow Capsule Tumbler Dryer Plc Control For Softgel / Paintball 1
    Contact us

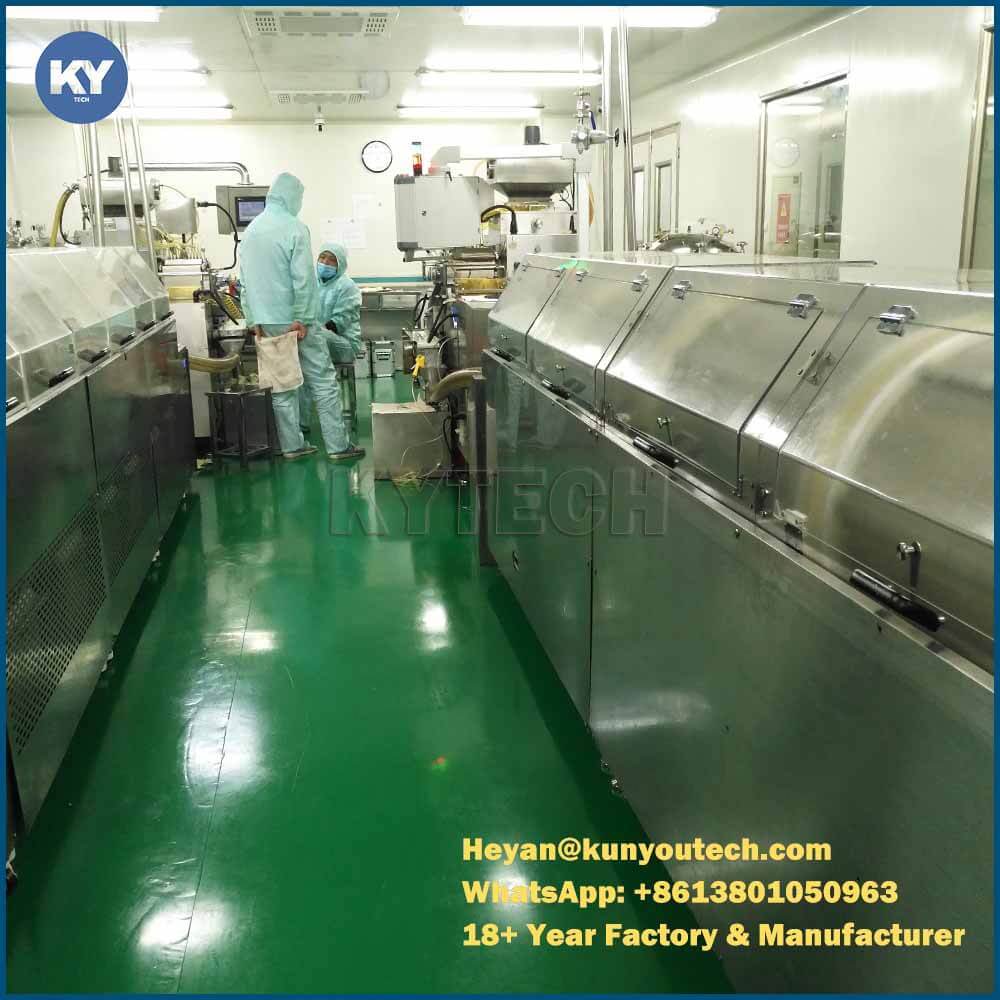

    Big Capacity Air Flow Capsule Tumbler Dryer Plc Control For Softgel / Paintball 2
