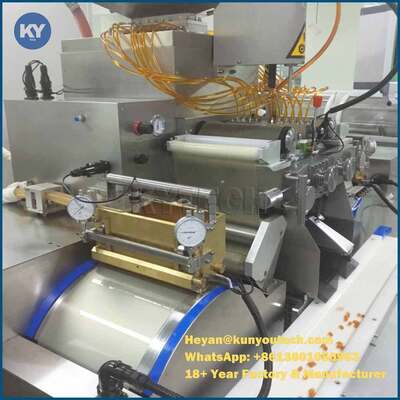

10 Inch Big Scale Fish Oil Softgel Capsule Machine / Encapsulation Machine S610

10 Inch Big Scale Fish Oil Softgel Capsule Machine / Encapsulation Machine S610

    • 10 Inch Big Scale Fish Oil Softgel Capsule Machine / Encapsulation Machine S610
    • 10 Inch Big Scale Fish Oil Softgel Capsule Machine / Encapsulation Machine S610
    • 10 Inch Big Scale Fish Oil Softgel Capsule Machine / Encapsulation Machine S610
    • 10 Inch Big Scale Fish Oil Softgel Capsule Machine / Encapsulation Machine S610
  • 10 Inch Big Scale Fish Oil Softgel Capsule Machine / Encapsulation Machine S610

    Product Details:

    Place of Origin: China,Beijing
    Brand Name: Kunyou
    Certification: CE,ISO9001
    Model Number: S610

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 100,000-30,000USD
    Packaging Details: Wood cages
    Delivery Time: 30-60 days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 10 sets Per month
    Contact Now
    Detailed Product Description
    Name: Capsule Filling Machine Capacity: 120,000 Capsules Per Hour@4rpm
    Die Roll: 150*250mm Power: 13.5
    Type: Softgel Encapsulation Material: SUS304/316L
    Voltage: Can Be Customized Guarantee Period: 1 Year
    High Light:

    capsule filling equipment

    ,

    automatic capsule machine

    Big Scale Fish Oil Softgel Capsule Machine / Encapsulation Machine S610



    Product Application


    Soft Capsule Encapsulation Machine Product Description

    Fish oil / Vitamin large scale soft capsule encapsulation machine’s mechanical parts adopt independent single adjustable lubrication, reducing mechanical wear and prolonging the time without any mistakes. The drug pump can run together with the capsule mould automatically and synchronously, it’s very convenient to adjust the spraying time.

    And the control system has faults diagnosis function. It can realize remote diagnosis after the upgrade.

    The cage can be disassembled without moving dryer. It’s easy to clean. There are material receiving discs under the roll cage, making S610 large softgel making machine more in line with the requirements of GMP.

    S610 roll type soft capsule automatic production line is used to press and inject the oil liquid, suspension liquid or paste quantitatively and encapsulated them in the gelatin, then producing different sizes and different shapes of the sealing softgels. The production line is mainly composed of main machine, tumbler dryer, fill material system and pneumatic theroms plastic barrels, etc.

    Specifically speaking, it has the following characteristics:

    Capsule brushes are driven by independent motor to prevent the gelatin stuck into the die roll cavity.

    Separate lubrication system for medicine pump and die roll assembly.

    Water cooled drum also have air blowers

    PLC and touch screen control with self-trouble diagnostic.

    High accuracy medicine pump. The diameter tolerance of the 20 plungers are less than 0.005mm.

    Fish Oil Vitamin Large Scale Soft Capsule Encapsulation Machine

    Our softgel making machine not only can produce soft capsule, such as fish oil, vitamin, but also can produce bath beads for cosmetic.


    Fish Oil Vitamin Large Scale Soft Capsule Encapsulation Machine

    SPECIFICATIONS FOR S610 Softgel Capsule Machine
    S610

    Model
    Power
    13.5KW

    Die roll size

    150×250mm


    Capacity
    12000capsule
    8#OV@4rpm

    Main performance parameters
    Main performance parameters
    Overall dimension

    2050×1200×1850

    Travel speed (max. & min.)
    rpm
    0-7
    Weight
    1900
    kg
    Control mode







    Max plunging volume per stroke
    2ml

    Plungers Number
    20

    Control
    PLC+Touch Screen

    10 Inch Big Scale Fish Oil Softgel Capsule Machine / Encapsulation Machine S610 0




    Main Features

    1) Simple structure in linear type ,easy in installation and maintation.

    2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

    3) High pressure double crank to control the die opening and closing.

    4) Running in a high automatization and intellectualization,no pollution

    5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

    Certifications




    Detailed Images

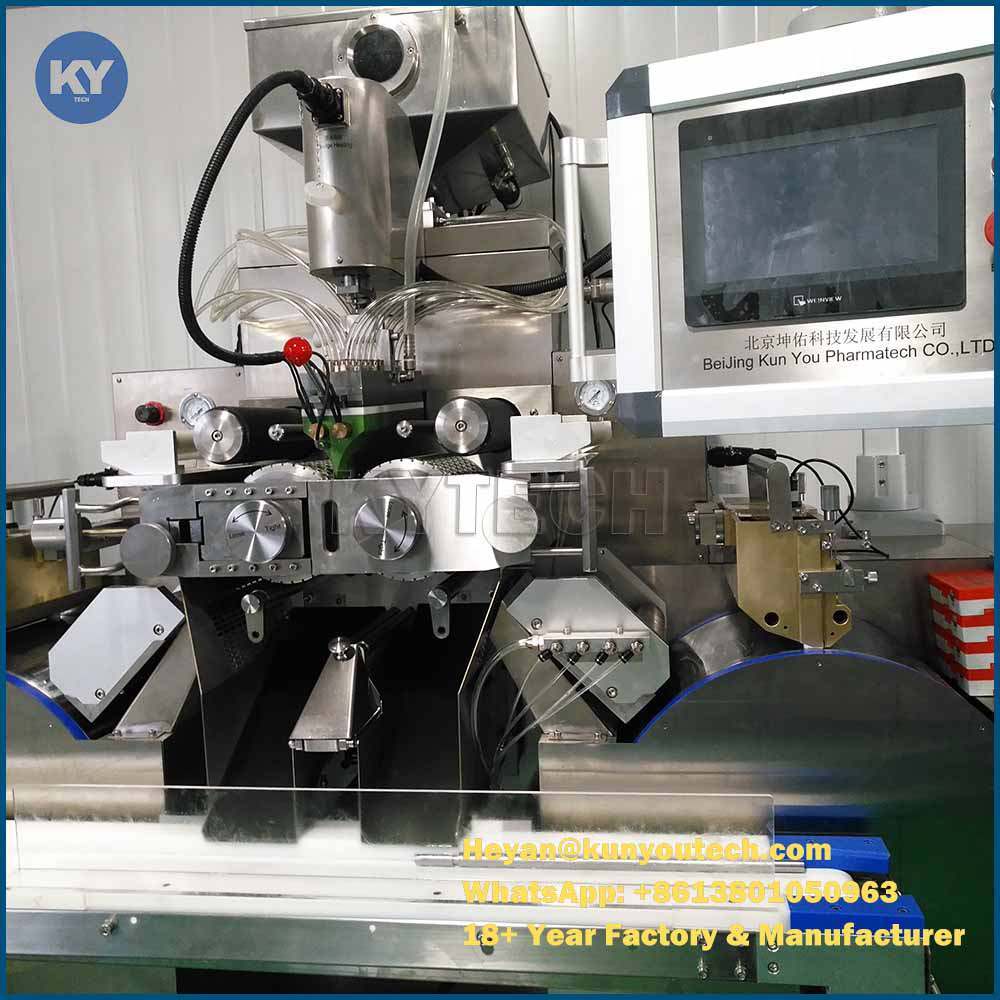

    10 Inch Big Scale Fish Oil Softgel Capsule Machine / Encapsulation Machine S610 1

    Machine Parts

    Name:Micro Lubrication





    Machine Parts

    PU Conveyor

    Can change easiler


    Machine Parts

    Name: SS316 Hopper

    Double Layer ,can be desiger as your requirement

    Main Features

    Name: Pump
    Can be with Ti and other material coating ,As your requirement

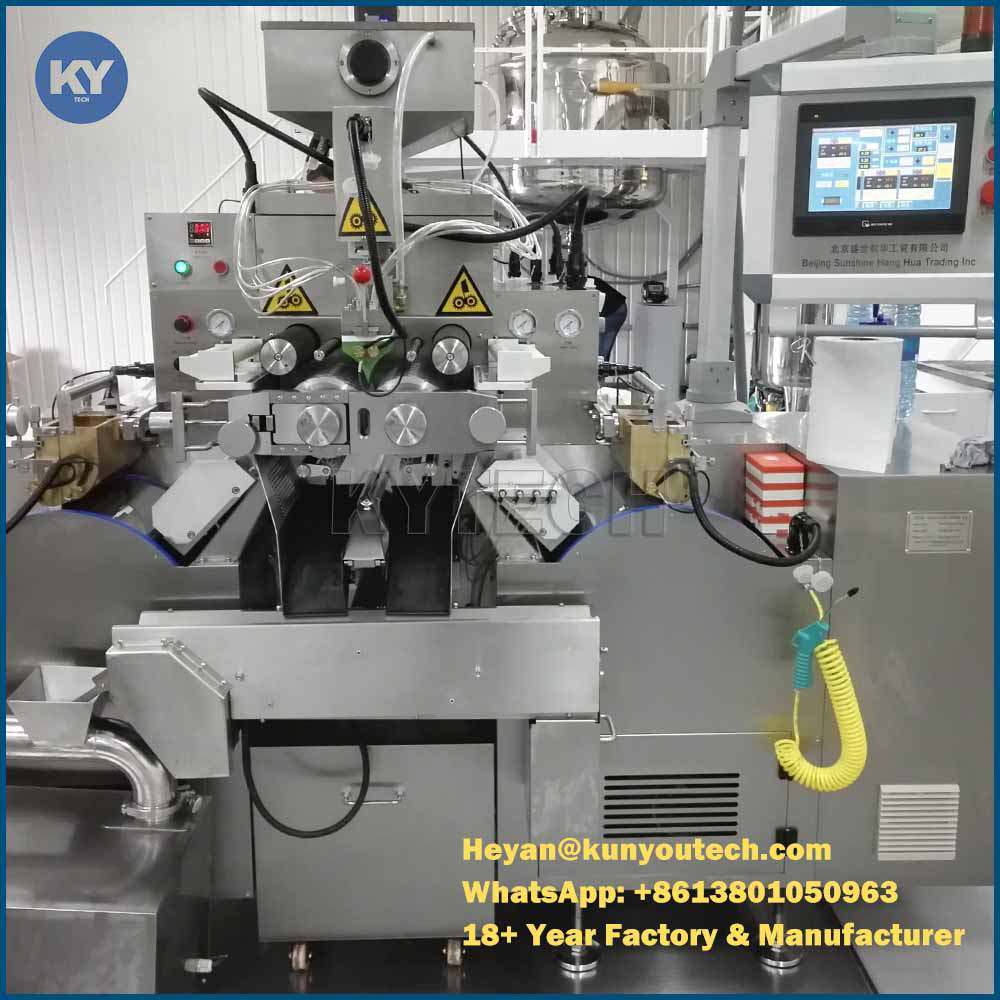

    10 Inch Big Scale Fish Oil Softgel Capsule Machine / Encapsulation Machine S610 2
    Our Service

    Formula supplying
    Factoy layout design
    Spare parts manufacture

    Pre-Sales Service

    * Inquiry and consulting support.

    * View our Factory.

    After-Sales Service

    * Training how to instal the machine, training how to use the machine.

    * Engineers available to service machinery overseas.

    Packing & Delivery
    10 Inch Big Scale Fish Oil Softgel Capsule Machine / Encapsulation Machine S610 3
    Packaging
    Size
     Total about 45 cubic meters the wholes production line
    Weight
    7T



    Packaging Details
    The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
