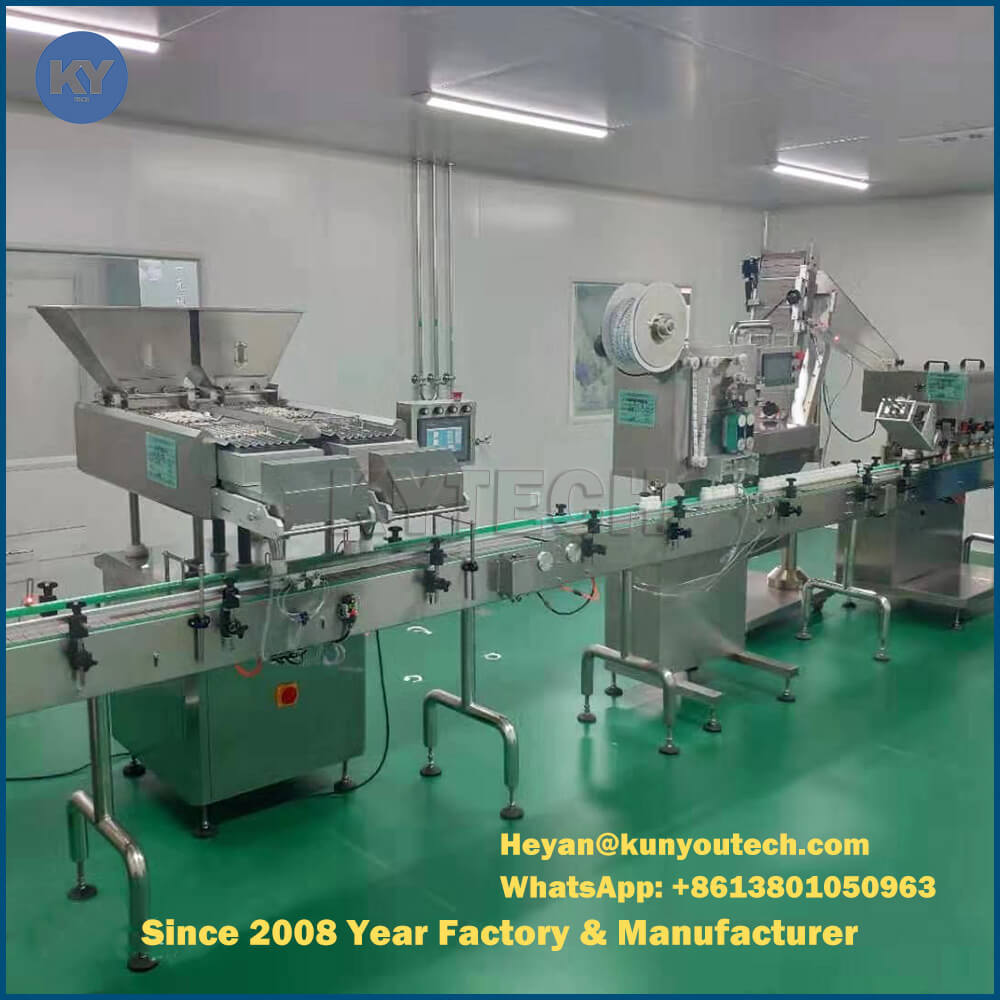

Tablet Capsule Automatic Filling Machine Multi Vibration Plate Bottle Packaging

Tablet Capsule Automatic Filling Machine Multi Vibration Plate Bottle Packaging

    • Tablet Capsule Automatic Filling Machine Multi Vibration Plate Bottle Packaging
    • Tablet Capsule Automatic Filling Machine Multi Vibration Plate Bottle Packaging
    • Tablet Capsule Automatic Filling Machine Multi Vibration Plate Bottle Packaging
    • Tablet Capsule Automatic Filling Machine Multi Vibration Plate Bottle Packaging
  • Tablet Capsule Automatic Filling Machine Multi Vibration Plate Bottle Packaging

    Product Details:

    Place of Origin: China
    Brand Name: Kunyou
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: 35000USD
    Packaging Details: Wooden cages
    Delivery Time: 35days
    Payment Terms: L/C, T/T
    Supply Ability: 30 set per month
    Contact Now
    Detailed Product Description
    Application: Medical Packaging Material: Bottle
    Certification: CE,ISO9001 Automatic Grade: Automatic
    Warranty: 1 Year Function: Wrapping,Filling,Labeling
    Product Name: Nut Bolt Screw Hardware Multi Vibration Plate Counting Packing Machine Packing Speed: 40-230bags/min
    Material: SS304
    High Light:

    automatic filling machine

    ,

    capsule inspection machine

    FULLY Automatic High - Speed bottle packing counting machine motor over load protection









    Accurate Counting Medical Bottle Pills Tablets Capsule Counting Filling Cap Machine

      capacity (b/m) bottle (ml) Voltage/frequency Tower Air pressure Size(mm) Weight(kg)
    Unscramble bottle machine 120 15–150 AC220V /50-60 Hz 300W 0.3–0.5 Mpa 1065*1600*1260 300
    Swing several pieces filling machine 120 15–150 AC220V/50Hz 1.5kW 0.3–0.5 Mpa 2000*800*1600 600
    Desiccant filling machine 120 15–150 AC220V/50Hz 260 Reel packaging materials (inner hole diameter/width) 300-350mm 1600*900*1600 300
    Capping machine 120 15–150 AC220V/50Hz 1.5KW Cap diameter 19-65mm 2600*700*1950 600
    Aluminum foil sealing machine 180 15–150 AC220V/50Hz 2KW Cap diameter15-60mm 400*700*1150 85
    Labeling machine 150

    15-250



    AC220V/50Hz 2KW bottle height 30-150mm

    label length 25-240

    label width 25-70

    300

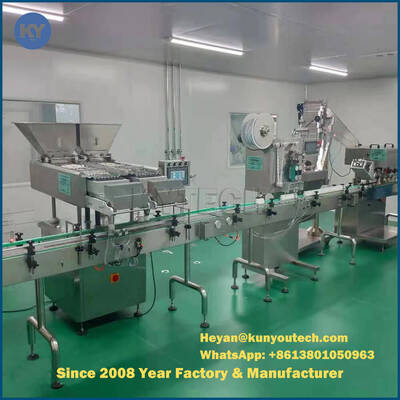

    Tablet Capsule Automatic Filling Machine Multi Vibration Plate Bottle Packaging 1

    Tablet Capsule Automatic Filling Machine Multi Vibration Plate Bottle Packaging 2

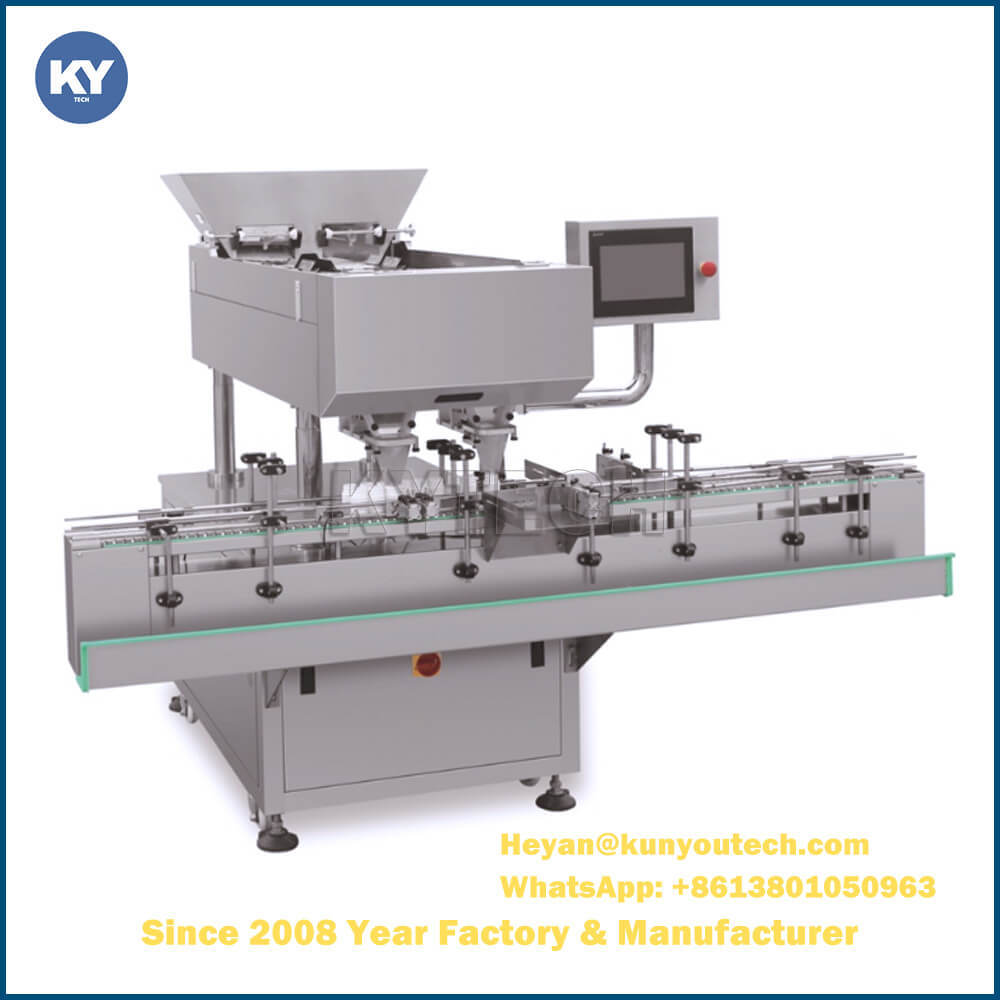

    electronic counting machine:SL-30/60

    Put medicine into the top silo When it is working, adjusting the vibration feeder let the medicine in the silo gradually along with the vibration slot ,turning into the continuous strip line and drop into the landing, and then drop into the detection channel one by one.

    It is adopted photoelectric effect theory, input the signal generated of the falling down for the medicine by using infrared ray dynamic scanning sensor into the high performance microprocessor (DSP).Counting function realized through electronic and mechanical coordination.

    SL-30 equip with 8 channels of medicine falling into one outlet,SL-60 equip with 2 SET 8 channels of medicine falling into two separate outlet,SL-120 equip with 3 SET 8 channels of medicine falling into three separate outlet, let the filling set numbers medicine into the bottle.

    Technical data



    NO of channels (SL-30)8 channels
    Max produce speed 100/bottle, 10-40bottles/min
    Tablet's specifications diameter: 2.5-12mm, length:3-24mm
    Bottle’s diameter 20-100mm
    Height of bottle 40-240mm
    Input power 220V 50Hz
    Capacity 1.1Kw
    Air supply 0.3m³/mi
    Outer dimension

    (1600x1200x1750mm)

    length of conveyor: 1700mm

    Weight 300kg

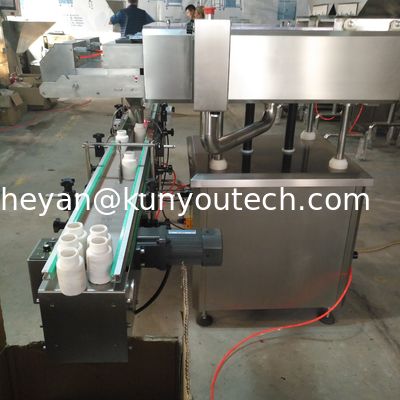

    Tablet Capsule Automatic Filling Machine Multi Vibration Plate Bottle Packaging 3

    Features:

    2.1 Usage: suitable for soft capsules/ softgel, hard capsules, tablets, special-shaped tablets and other solid tablets.

    2.2 According with the GMP standard, the part contact with medicine adopt AISI 304,306 stainless steel.

    2.3 Fastening structure, electrical control parts are sealed, avoiding drug powder affects the working life of electrical components.

    2.4 Automatic detection,when no bottle or bottle fall down automatically shutdown.

    2.5 Infrared scanning electric eye with function of automatic filling, and limit alarm and shutdown.

    2.6 The Matrix type electric arrangement design make sure the detection channel open wide,which is also suitable for small size pills counting. Some counting machine from other factory have gap between the infrared receiving terminals, those gaps may cause the counting is not accurate.

    2.7 60/120 machine adopts the automatic lifting system, other machine lifting by hand.



    Feeding mechanism:

    The original is casting vibration plate, While it is vibration plate instead of sliding in new design. It is much Faster, better stability. Using linear vibrating disc electromagnetic oscillation,so the vibration amplitude can be adjusted. With Higher speed to guarantee that the separating grains faster.

    With DC vibrator, Capsule vibration is much stable, It can make the grain (including irregular tablets) move smoothly. Grain sliding orbits adopts two layers of ladder type and lengthened track, grain layer by layer walk down, The distance between grain and grain will be larger thus can avoid them overlaps.

    Counting device

    It is with full set of original pneumatic components, especially using the electromagnetic valve island integration, to ensure the accuracy of bottling.Special valve cylinder, and solenoid valve control group and other supporting parts, all sealed, avoid drug dusts affect the use of electrical components, prolongs the service life, not easy to damage.

    Specially designing suction device

    Two vacuum cleaner designing, dust suction holes (groove) on the left tail vibrator of as well as the begining of the tail which powder in it to collection and sucked out by a vacuum cleaner.

    The vacuum tube according to aerodynamic principles of scientific design, can reduce the influence of dust.

    By controlling the size and position of the wind inlet, air inlet, air volume, the dust is effectively sucked.



    Our Services

    We can make various shape and size softgel mould or paintball die roll according to your requirements. Usually it will take about 6-7 days to make a new set of mould. One set of mould includes one pair of die roller, one injection wedge, one distribute plate and one timing gear. We make the mould with imported grade aircraft alloy. It's very durable.

    We also provide the maintain service for you.
