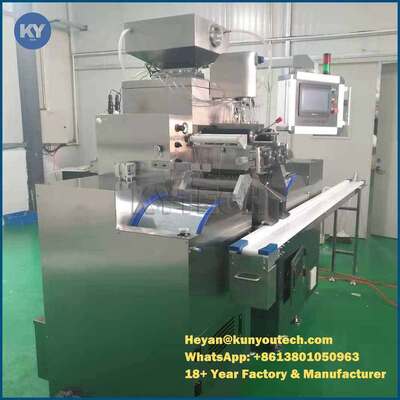

10 Inch Soft Gelatin Automatic Capsule Machine Starch Raw Material For Food

10 Inch Soft Gelatin Automatic Capsule Machine Starch Raw Material For Food

  • 10 Inch Soft Gelatin Automatic Capsule Machine Starch Raw Material For Food
  • 10 Inch Soft Gelatin Automatic Capsule Machine Starch Raw Material For Food
  • 10 Inch Soft Gelatin Automatic Capsule Machine Starch Raw Material For Food
10 Inch Soft Gelatin Automatic Capsule Machine Starch Raw Material For Food
Product Details:
Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: S610
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Delivery Time: 30-90 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30 Set/Sets
Contact Now
Detailed Product Description
Material: SS304/316 Service: Installation Avaliable
Warrantee: 1 Year Free Factory: Yes
Spare Parts: Avaliable Model: KY
High Light:

soft gelatin encapsulation machine

,

automatic capsule machine

 Pharmaceutical Softgel Encapsulaton Machine For Making Fish Oil / 120000 Pcs / H Max

Quick Detail


Product Name

softgel automatic machine

Driven Type

Electric

Brand Name

KUN YOU

Material

Stainless Steel

Application

Food , Pharmaceutical,softgel making machine

Capsule shape

OV, OB,etc



Production Description

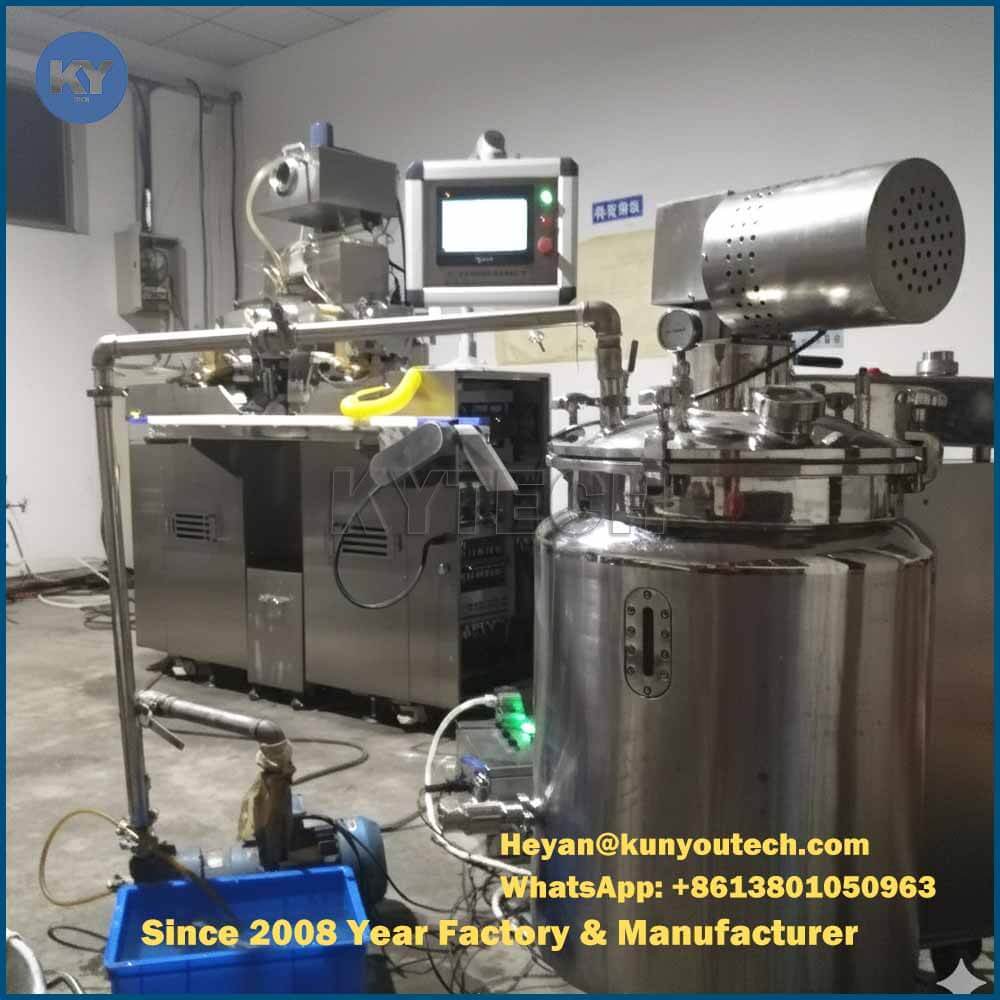

Our company is a professional supplier for softgel making machine and paintball making machine. Our softgel making machine is divided into three models, small model, medium model and large model. For small scale softgel production, our S403 R&D softgel making machine maybe fit for your requirements, it can produce about 20000 pcs softgels per hour. And S406 Softgel Encapsulation Machine is suitable for medium scale production, its production rate can get to 40000 pcs softgels per hour. The largest model, S610 Softgel Encapsulation Machine  can produce 120000 pcs softgels per hour. We provide the whole line of softgel making, including the gelatin melting system, fill material system, softgel encapsulation machine and softgel drying machine. All the machine is made of high quality stainless steel and spare parts from famous brands. And we adopt the gelatin ribbon micro lubrication system.



Applications:
It’s mainly for softgel and paintball making enterprises and pharmaceutical enterprises, especially for R&D department of laboratories, pharmaceutical factories in the universities and plant health products and Research Institutes.It also can suitable for cosmetic manufactures, such as bath beads and Collagen capsule.


Specification


Model

S403

S406

S407

S610

Die roll diameter(mm)

80

103

103

150

Die roll length(mm)

100

152

172

250

Die roll speed

0-5

0-5

0-7

0-5

Plunger Qty.

6

10

12

20

Dimension

1450×600×1350

880×640×1900

800×2200×2000

2050×1200×1850

Weight(kg)

600

900

1200

1900

Power(kw)

2kw

7kw

13kw

20kw

control

PLC.touch screen


10 Inch Soft Gelatin Automatic Capsule Machine Starch Raw Material For Food 0

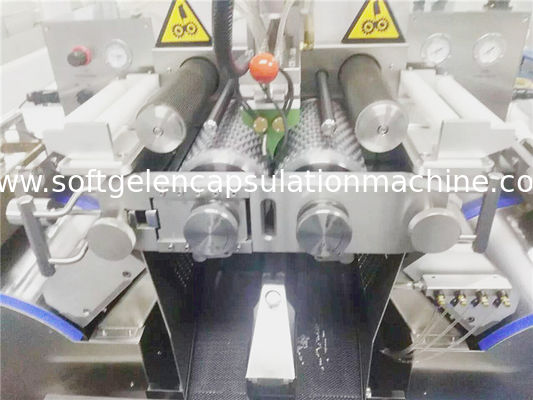

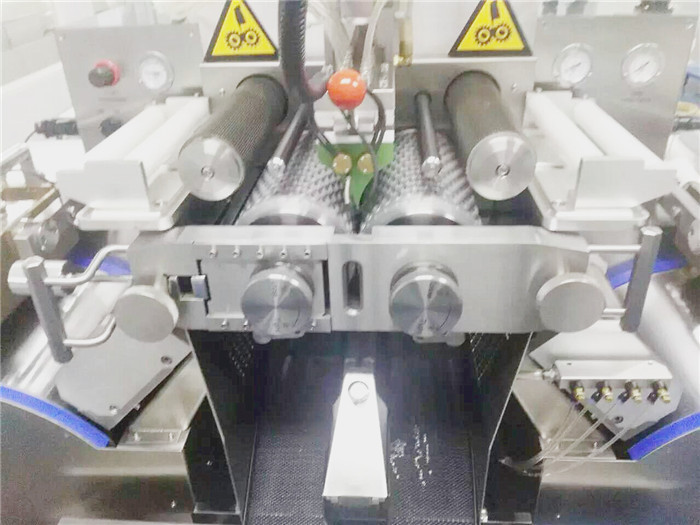

Detail;
 10 Inch Soft Gelatin Automatic Capsule Machine Starch Raw Material For Food 1


10 Inch Soft Gelatin Automatic Capsule Machine Starch Raw Material For Food 2
Softgel making machine,Soft capsule making machine,Soft capsule encapsulation machine,Softgel machine,Soft capsule manufacturing machine





What is the specifications of Automatic softgel encapsulation machine ?



1)According to client's sepcial requirements, provides the special design such as oxgency pretection;



2)So many optional devices for clients to choose from R&D to big scale production.



3)Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch and electric control system, the man-machine interface is friendly.



4)Frequency conversion adjusts the speed: this machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production.



5)Automatic checking: with servo motor ,the machine can run at 7rpm



6)Safty device: Machine stop at abnormal air pressure, heater disconnection alarm.



7)Main shaft parallelism is in 0.02mm



8)The die roll adjust and changment with clitch control ,save gelatin and time, easily operate



8)Use the Germany bearing; .



9)The shaft of the 2 rollers for die roll deviation is in 1.5%.



10)With Worm gear, the gear and shaft adopt special material with high accurary and long service life



11) Medicine hopper adopts thermial insulation design



12) Local language input in machine avaliable.

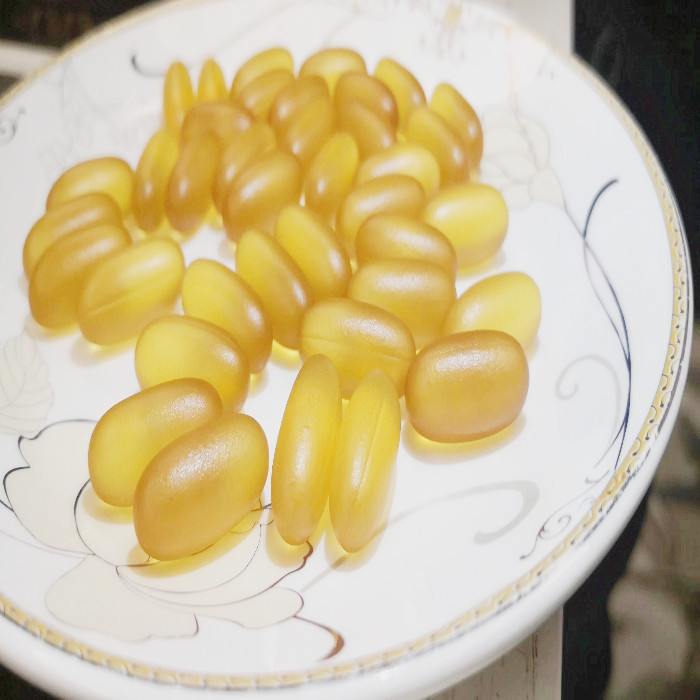

Product samples.

10 Inch Soft Gelatin Automatic Capsule Machine Starch Raw Material For Food 3

Softgel capsule with starch material





Shipment by sea by veneer boxes
