Vegetable Gelatin Softgel Encapsulation Machine On Hydroxypropyl Starch Material

China Vegetable Gelatin Softgel Encapsulation Machine On Hydroxypropyl Starch Material supplier
Vegetable Gelatin Softgel Encapsulation Machine On Hydroxypropyl Starch Material supplier Vegetable Gelatin Softgel Encapsulation Machine On Hydroxypropyl Starch Material supplier Vegetable Gelatin Softgel Encapsulation Machine On Hydroxypropyl Starch Material supplier Vegetable Gelatin Softgel Encapsulation Machine On Hydroxypropyl Starch Material supplier Vegetable Gelatin Softgel Encapsulation Machine On Hydroxypropyl Starch Material supplier

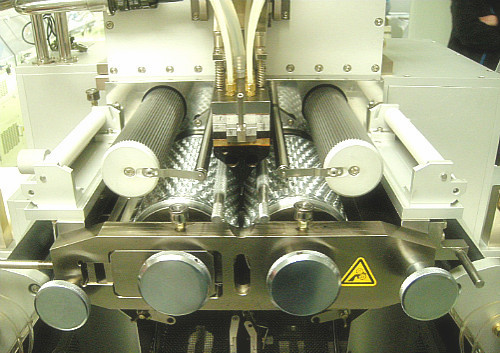

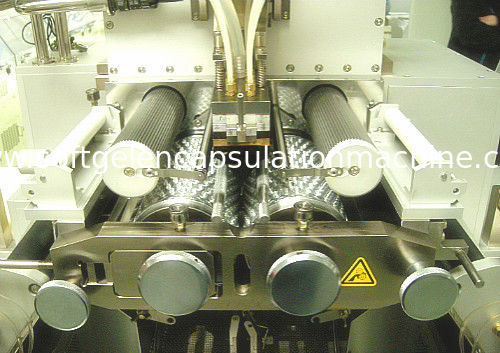

Large Image :  Vegetable Gelatin Softgel Encapsulation Machine On Hydroxypropyl Starch Material

Product Details:

Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: S610

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 35000-85000USD per set
Packaging Details: Wood cages
Delivery Time: 60-80 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 30 Set/Sets Per Year
Contact Now
Detailed Product Description
Material: Non Animal Gel Origin: China,beijing
Machine Material: SS316 Capacity: R&D-80000per Hour
Use: Capsule Like Canabis Oil Payment: Any Kind
Brand: Kunyou/Sunshine

Vegetable Gelatin Softgel Encapsulation Machine On Hydroxypropyl Starch Material



Non animal Softgel Encapsulation Machine For 50000 - 70000 Capsules / H

Vegetable Gelatin Softgel Encapsulation Machine For 50000 - 70000 Capsules / H




Quick Detail



Product Name

Soft capsule Filling Machine

Power consumption

13 kw

Control Mode

PLC+Touch screen

Plunger Numbers

12

Dimension

880X2200X2000mm

Dosage deviation

< ±2%









Product Description



S610 Softgel Encapsulation Machine is  combines advantages of foreign equipment and requirements of customers,considering the needs and the biggest benefits of customers as start point The die roll’s rotation rate can be regulated within 0 to 7 rpm, so users can choose the most proper rotation rate according to data of different material and techniques. Drying cycle is controlled by PLC unified, so users can regulate the cycle time conveniently. The tumbler dryer is designed with a device to remind operators to prepare well when discharging. S610 can realize the function of statistical statements and printing. The machine drive system’s lubrication pump is droved by motor alone, which greatly improves the lubrication performance when main equipment operating at a very slow speed. At the same time, it can reduce machine vibration, prolong machine overhaul time and save investment for users.


Specifically speaking, it has the following characteristics:

Dosage deviation:< ±2%
Material of oil roller: porous stainless steel
Parallel degree of main shaft of the die rolls:<0.02mm
Micro gelatin ribbon oil lubrication
Precision temperature control for injection wedge, spreader box and chilled water.
The running parameters can be stored and recalled with a finger tip touch if necessary.
Pneumatic wedge lift up.
Pneumatic left die shaft movement.

Application

It’s mainly for softgel making enterprises and pharmaceutical enterprises and universities.

Specification



Model

S610

Die roll

Ф150X250mm

Die roll speed

0~7rpm

Plunger numbers

12

Overall dimension

880X2200X1850mm

weight

1200kg

Power consumption

 13kw

Control mode

PLC+Touch Screen

Output rate

8#OV 100000-120000 pcs/hour



Competitive Advantage



1. PLC operation
2. Improve the efficiency of production largely
3. Adjustable rotation rate during 0-7rpm
4. Compact and beautiful
5. It can be assembled or disassembled with single hand
6. Reduce the oil consumption
7. Adjustable separately or automatically
8. The control system has a counting function to make operators get the number of pills clearly
9. Store and apply operating data
10. Lengthen the life of die roll by using pneumatic
11. Reminding and diagnosing faults function
12. Can realize the function of statistical statements and printing
13. More safety
14. The cable plug has good waterproof and oil proof function

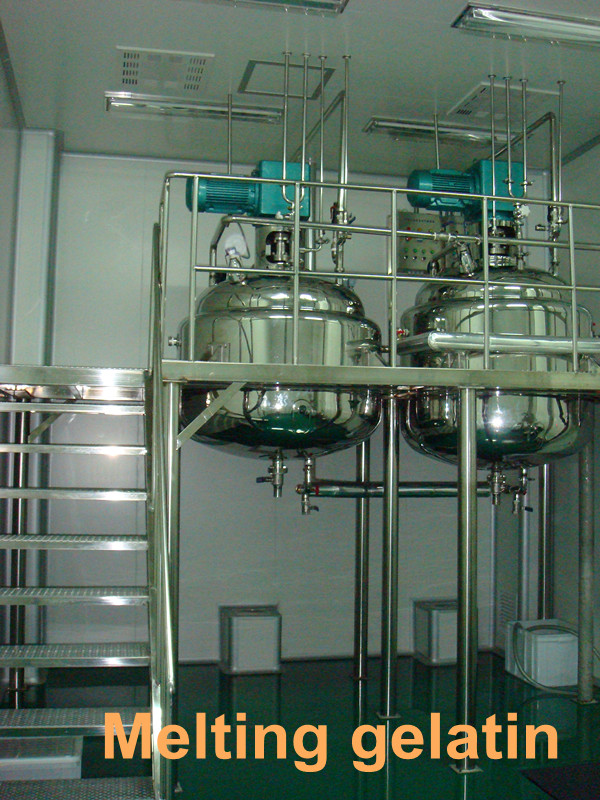

Soft capsule/softgel making machine, paintball making machine, Tumble drying machine, gelatin melting tank
Vegetable Gelatin Softgel Encapsulation Machine On Hydroxypropyl Starch Material

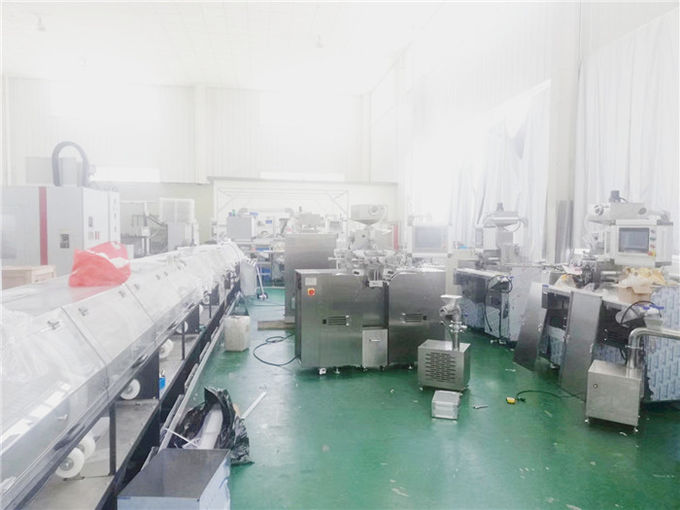

Workplace

   Vegetable Gelatin Softgel Encapsulation Machine On Hydroxypropyl Starch Material
Vegetable Softgel Encapsulation Machine, High stable Speed 3.5RPM on Hydroxypropyl Starch material

Vegan vegetable softgel encapsulation machine, by over 30 years experience softgel encapsulation machine manufacturer, when making the vegetable softgel with main ingredient of sodium alginate for softgel skin, any normal softgel encapsulation machine currently for gelatin softgel can work well for sodium alginate vegetable softgel encapsualtion; while when making vegetable softgel with main ingredient of hydroxypropyl starch for softgel skin, its softgel encapsulation machine is much different than normal.


The vegeable softgel encaspualtion machine from us, is using the hydroxypropyl starch as main ingredient of the softgel skin, structure of its many sides has to be improved, but improved at its main machine mostly, even though, the appearance of main machine comparing vegetable type and gelatin type, they are the same.


Stable Speed 3.5RPM

This is proved stable speed by our test and our users's actual manufacturing, its on die roll 6"x10" with stable speed 3.5RPM and by using softgel skin main ingredient of hydroxypropyl starch, whose cost is only around one fifth of raw material sodium alginate from America. Definitely hydroxypropyl starch must be the best choice of vegetable softgel capsule.

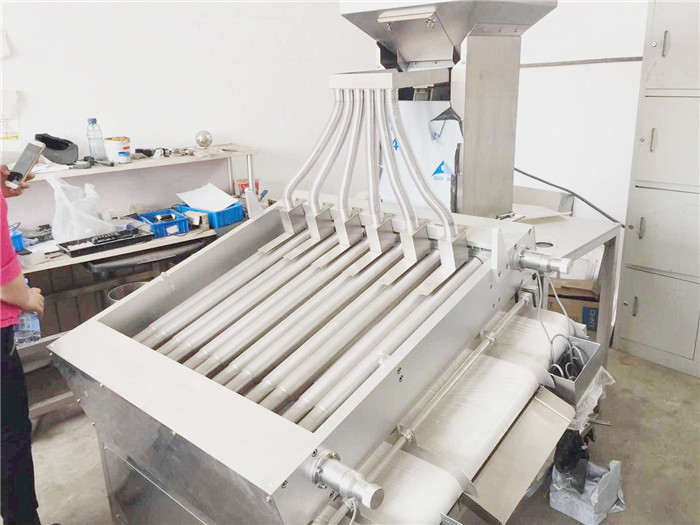

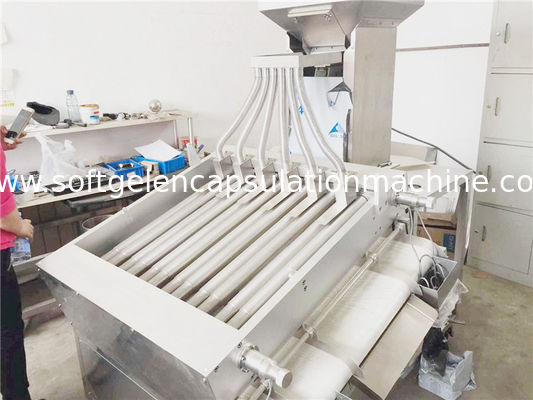

Drying of Vegetable softgel

Drying of our vegetable softgel encapsulated, no need to have special equipment before entering into the drying tumbler, save cost and save room space, but the drying process and parameters is designed suitable well for the hydroxypropyl starch softgel skin drying, which has much different feature than the gelatin softgel skin.

Key of Vegetable Softgel encapsualtion

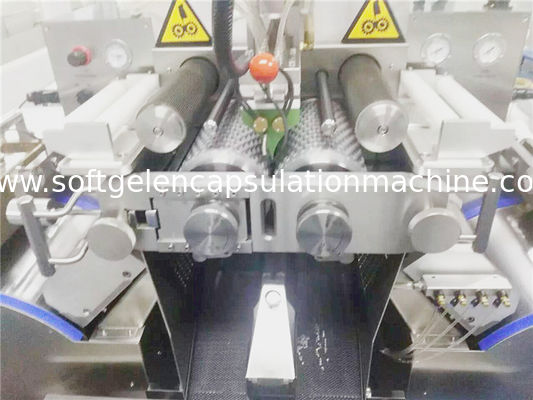

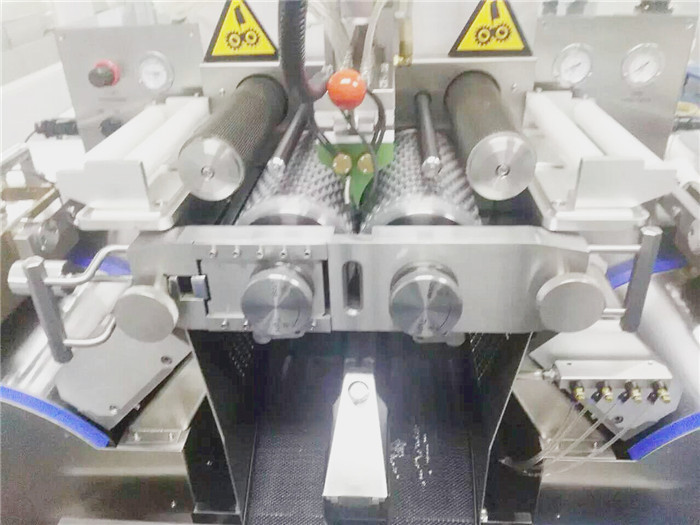

Currently there are different marketing points for each softgel machine manufacturer in the market, definitely they are good. While from the user pratitical angle saying, the key of vegetable softgel encapsulation is the softgel skin technology, instead of the drying etc., with good technological on softgel skin, center to realize the good encapsulation vegetable softgel is the die roll tooling, our vegetable softgel die roll tooling is different with normal, it can easily have vegetable softgel well encapsulated with beautiful appearance and high output.


It adopts patent technology machine head tooling main axis bearing block structure, largely extend the average no-malfunction time.

It adopts patent injection wedge and feeding system, making equipment performance largely increased.

Its special softgel die roll tooling design especially good for vegetable softgel, making the stability much much better than any else.

Drying system specially design for vegetable softgel, so its very good for hydroxypropyl starch vegetable softgel drying.


Vegan softgel encapsulation machine, we are supplying the whole line, with full equipment from A to Z, education of personnel and technical support, local installation, commissioning and training, plant layout design, standard operation process, formulas, process production design...to make sure you can encapsulate the good vegan softgel capsules in your daily operation.

All fill contents are available for our vegetarian softgel encapsulation machine line to produce the good veggie softgel, only except the lecithin veggie softgel right now which is under further R&D. Typical example formulas that we have been doing its commissioning and manufactured by our machine users are as below, for more complete reference.

Algae oil DHA vegan softgel

CLA vegan softgel

Fish oil vegan softgel

Vitamin E vegan softgel

Flaxseed oil vegan softgel

Krill oil vegan softgel

Cannabis vegan softgel
Vegetable Gelatin Softgel Encapsulation Machine On Hydroxypropyl Starch Material
