100L Vegan Gelatin Stainless Steel Tank With Stirring Function And Vacuum Pump

Certification
Good quality Paintball Encapsulation Machine for sales
Good quality Paintball Encapsulation Machine for sales
I'm Online Chat Now

100L Vegan Gelatin Stainless Steel Tank With Stirring Function And Vacuum Pump

China 100L Vegan Gelatin Stainless Steel Tank With Stirring Function And Vacuum Pump supplier
100L Vegan Gelatin Stainless Steel Tank With Stirring Function And Vacuum Pump supplier 100L Vegan Gelatin Stainless Steel Tank With Stirring Function And Vacuum Pump supplier 100L Vegan Gelatin Stainless Steel Tank With Stirring Function And Vacuum Pump supplier 100L Vegan Gelatin Stainless Steel Tank With Stirring Function And Vacuum Pump supplier 100L Vegan Gelatin Stainless Steel Tank With Stirring Function And Vacuum Pump supplier

Large Image :  100L Vegan Gelatin Stainless Steel Tank With Stirring Function And Vacuum Pump

Product Details:

Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: GMT105

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Delivery Time: 30 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30 Set/Sets Per month
Contact Now
Detailed Product Description
Material: SUS304/316 Color: Silver
After-sales Service Provided: Video Technical Support Application: For Soft Gelatin Encapsulation Machine
Capacity: 50-10000L State: New
Name: Industrial Jacketed Pressure Gelatin Melting Tank With Stirrer Warranty: 1 Year
Function: Multifunction Power Of Stirring Motor: 11kw

100L Gelatin Melting Tank and Storage Tank with Stirring function and Vacuum Pump



Features:



1. Gelatin melting tank and Service/Storage tank combined

2. Stable Transmission

3. Good at keeping Temerature

4. Material SUS304/SS316 , compliance with GMP standard

5. Mult fuction paddle

6. Water or oil base jacket for tempreture conservation

7. Hydrlic lift and down for the cover, electric avaliable for Big tank.

8. Accurarcy temp sensor for the inside temp.

9. Mirror polish for the outside and insde. meet the requirement pharmaceutical using.

10. Seprate or the intergrated electric control box

11. For vegan material avaliable.

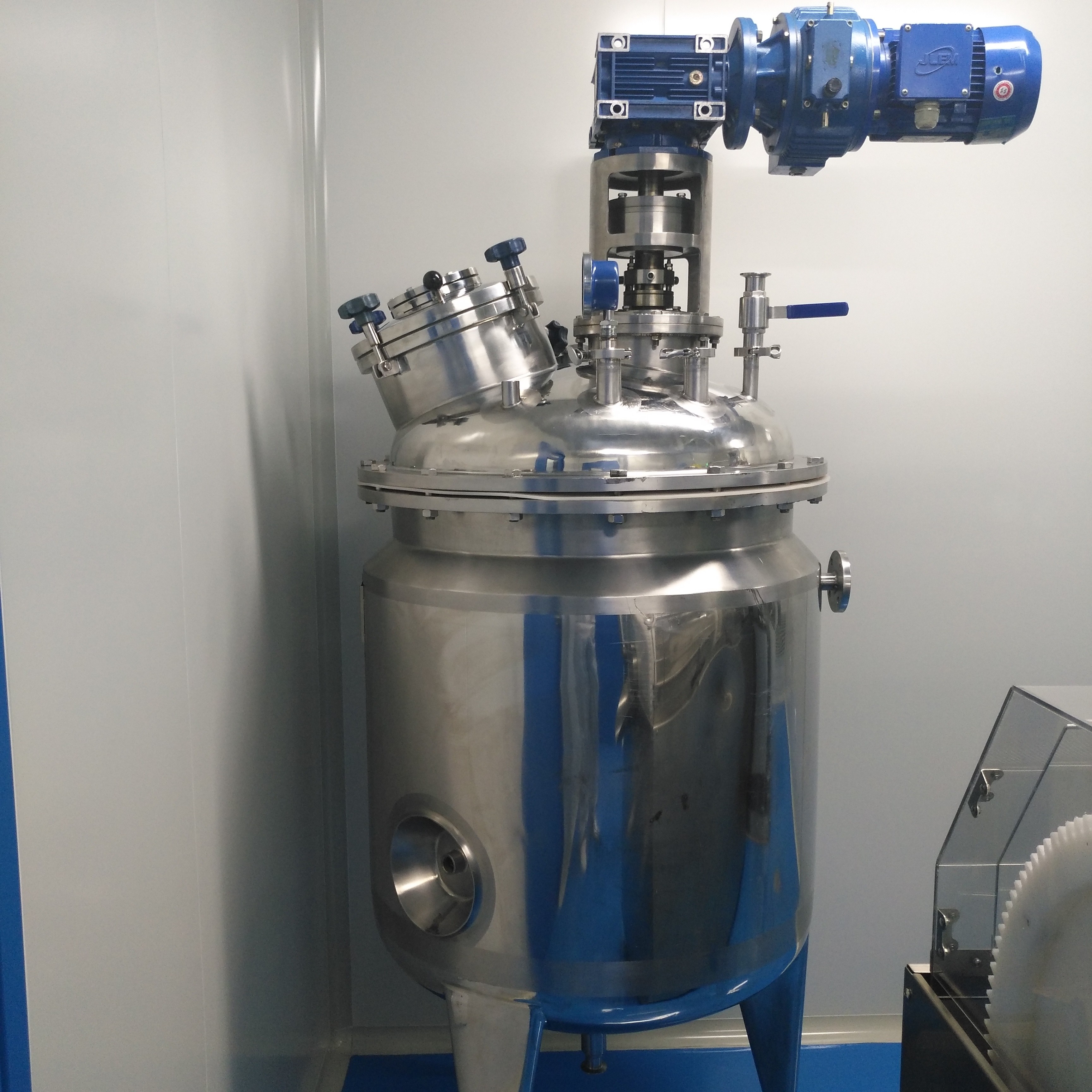

100L Vegan Gelatin Stainless Steel Tank With Stirring Function And Vacuum Pump

Quick Detail



Product Name

Gelatin Melting and Service Tank

Brand Name

KUN YOU

Application

Paintball /Soft capsule manufacturers

Model

GMT105

Material

304 SUS

Capacity

100L



Product Description



Water bath type gelatin tank is a special equipment for melting gelatin and production process. The gelatin melting tank has the advantage of compact structure, stable transmission and stable running performance. The mixing/stirring process is operated through connecting loop coupling and is composed of plurality of split agitator with stable transmission and better homogenization effect. The whole body of the tank is made of stainless steel. The body include three layers, including the tank liner, heating jacket and heat preservation layer. Heating the inner of the tank with the circulation hot water, it will be featured by fast heating, good thermal insulation performance, improving the quality of gelatin, accelerating the gelatin melting and shorten the melting time. The liner is closed totally with very good vacuum performance. The feeding mouth is convenient o assemble and repair. The whole tank is very smooth and bright with features of convenient cleaning, anti-corrosion and anti-acid, etc. Gelatin melting tank adopts stainless steel construction for its whole body. During its working process, the machine will suck moisture from inside of the tank, leaving the vacuum. All these are in accordance with the requirement of GMP. So the gelatin melting tank is an ideal equipment for the soft capsule pharmaceutical line.

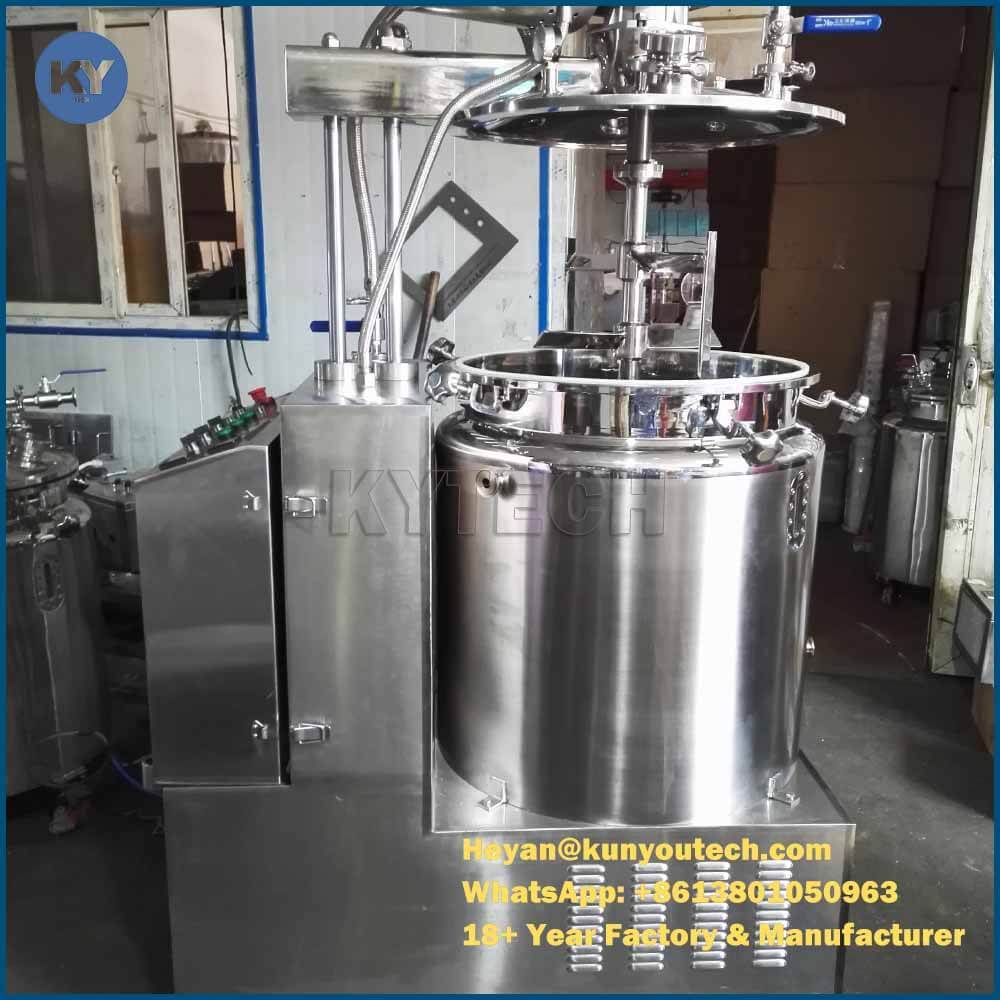

100L Vegan Gelatin Stainless Steel Tank With Stirring Function And Vacuum Pump

Application



It’s mainly for softgel making and paintball making enterprises. Besides, the cosmetic manufacturer also needs this to make cosmetics, such as bath beads. And health products manufacturers also need this to make different softgels for the different needs.



Specification



 Model

GMT105

 Capacity(L)

100

 Melting gelatin(L)

20-80

 Heating power(KW)

2KW-4KW

 Max degree of Vacuum (Mpa)

0.09

 Max Temperature(℃)

-100

 Motor Power (KW)

0.75

 Stirring speed (r/min)

21.6 rpm

 Dimension (mm)

Φ750x1400



Competitive Advantage



1. Stainless steel construction, multi-layer stirrer.

2. Soft capsule gelatin melting tank, heated by circulated hot water.
3. Water sealed vacuum pump is adopted.
4. Designed with three stainless steel interlayer it, helps for accurate control of the temperature of medicine liquid.
5. Typically designed paddle ensure agitating quickly and mixing uniformly.
6.It’s convenient in installation and cleaning.


Softgel Gelatin Melting Tank, Gelatin Service Tank, Paintball Gelatin Melting Tank

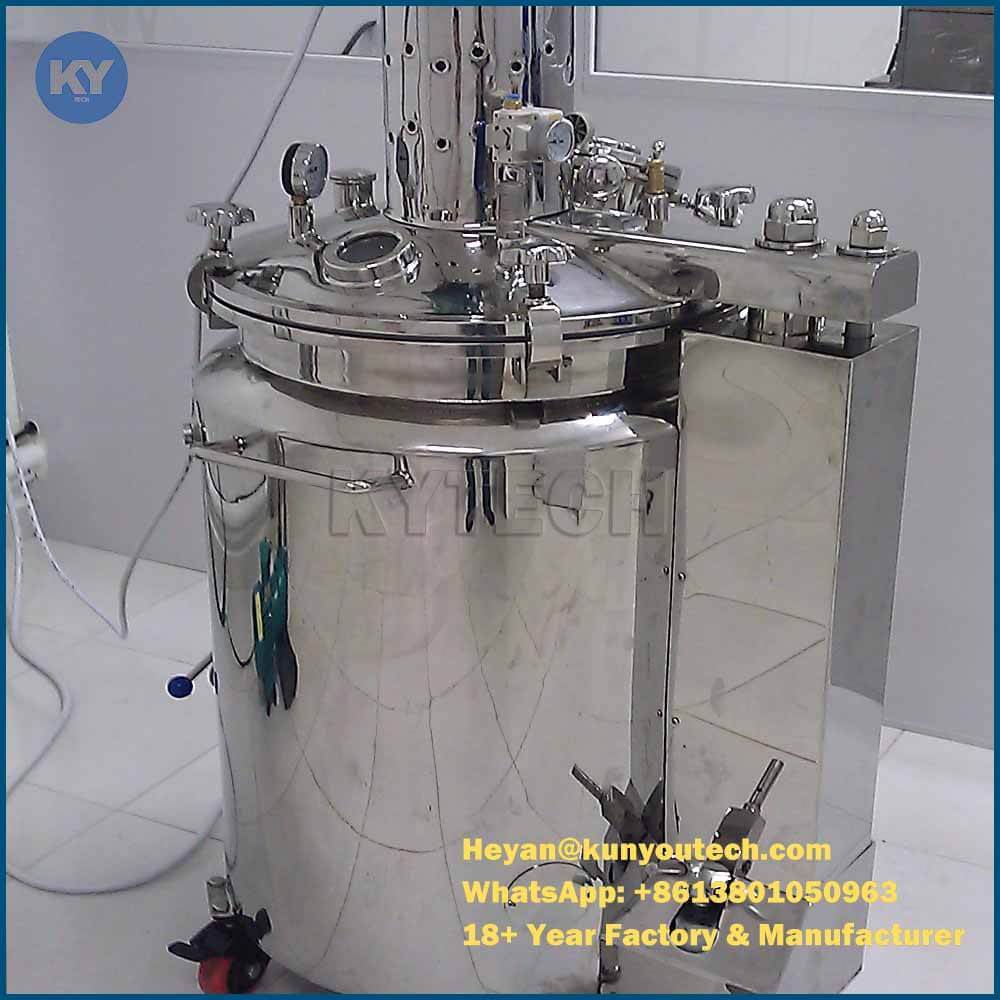

100L Vegan Gelatin Stainless Steel Tank With Stirring Function And Vacuum Pump

Advantage Description



a) The GMT105 is manufactured and examined in compliance with JB2880-81



b) . Standard of Welded steel Normal Pressure Container’. Vacuum degree in the vessel: 0.02-0.09 Mpa.



c) Working pressure in the vessel: 0.03-0.05 Mpa.



d) Examining Pressure in the vessel: 0.3-0.4 Mpa.



e) Working pressure in the jacket: 0.03-0.098 Mpa



f) Working temperature in tank: 50-100 ℃



g) Conveyor granule: 30 CP



h) Sealing parts and ring can used more than 3,000 hours continuous



i) Insulating layer use super-fine glass cotton.



j) Inner vessel and insulation layer (covered layer) of the tank, those sections exposed to raw material are made Of 1Cr18Ni9Ti stainless steel.



k) The GMT and all stainless steel parts are well-polished
