Home ProductsAutomatic Vgel Encapsulation Machine

Large Capacity Automatic Vgel Encapsulation Machine With Aluminum Cover

Certification
Good quality Paintball Encapsulation Machine for sales
Good quality Paintball Encapsulation Machine for sales
I'm Online Chat Now

Large Capacity Automatic Vgel Encapsulation Machine With Aluminum Cover

China Large Capacity Automatic Vgel Encapsulation Machine With Aluminum Cover supplier
Large Capacity Automatic Vgel Encapsulation Machine With Aluminum Cover supplier Large Capacity Automatic Vgel Encapsulation Machine With Aluminum Cover supplier Large Capacity Automatic Vgel Encapsulation Machine With Aluminum Cover supplier

Large Image :  Large Capacity Automatic Vgel Encapsulation Machine With Aluminum Cover

Product Details:

Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: S610

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Delivery Time: 30-60 days
Payment Terms: T/T, L/C, Western Union
Contact Now
Detailed Product Description
After-sales Service Provided: Engineers Available To Service Machinery Overseas Capacity: 100,000/h
Material: 304/316L Stainless Steel Product Name: Softgel Encapsulation CAPSULE
Certification: ISO CE Function: Soft Gelatin Encapsulation
Origin: China Rolling Mold Speed: 0-5rpm



Largest Automatic Softgel Encapsulation Machine with Aluminum Cover , 20 / 24 Pluners




Quick Detail


Product Name

 Softgel Making Equipment

Power consumption

20 kw

Capacity

120000 Capsules / hour

Model Number

S610

Application

Pharmaceutical line, health products

Pump Type

20/24 pluners


Product Description


The softgel manufacturing line includes Gelatin melting, Making softgel and drying system.


Gelatin Melting System:



Water bath type gelatin tank is a special equipment for melting gelatin and production process. The gelatin melting tank has the advantage of compact structure, stable transmission and stable running performance. The mixing/stirring process is operated through connecting loop coupling and is composed of plurality of split agitator with stable transmission and better homogenization effect. The whole body of the tank is made of stainless steel. The body include three layers, including the tank liner, heating jacket and heat preservation layer. Heating the inner of the tank with the circulation hot water, it will be featured by fast heating, good thermal insulation performance, improving the quality of gelatin, accelerating the gelatin melting and shorten the melting time. The liner is closed totally with very good vacuum performance. The feeding mouth is convenient o assemble and repair. The whole tank is very smooth and bright with features of convenient cleaning, anti-corrosion and anti-acid, etc. Gelatin melting tank adopts stainless steel construction for its whole body. During its working process, the machine will suck moisture from inside of the tank, leaving the vacuum. All these are in accordance with the requirement of GMP. So the gelatin melting tank is an ideal equipment for the soft capsule pharmaceutical line.

Large Capacity Automatic Vgel Encapsulation Machine With Aluminum Cover

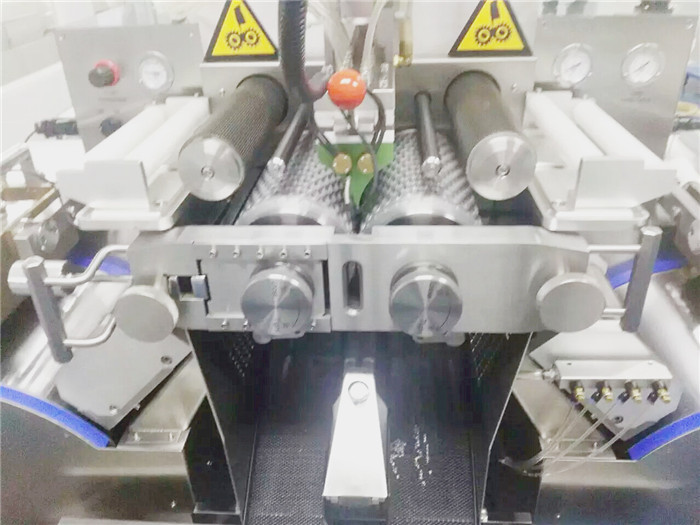

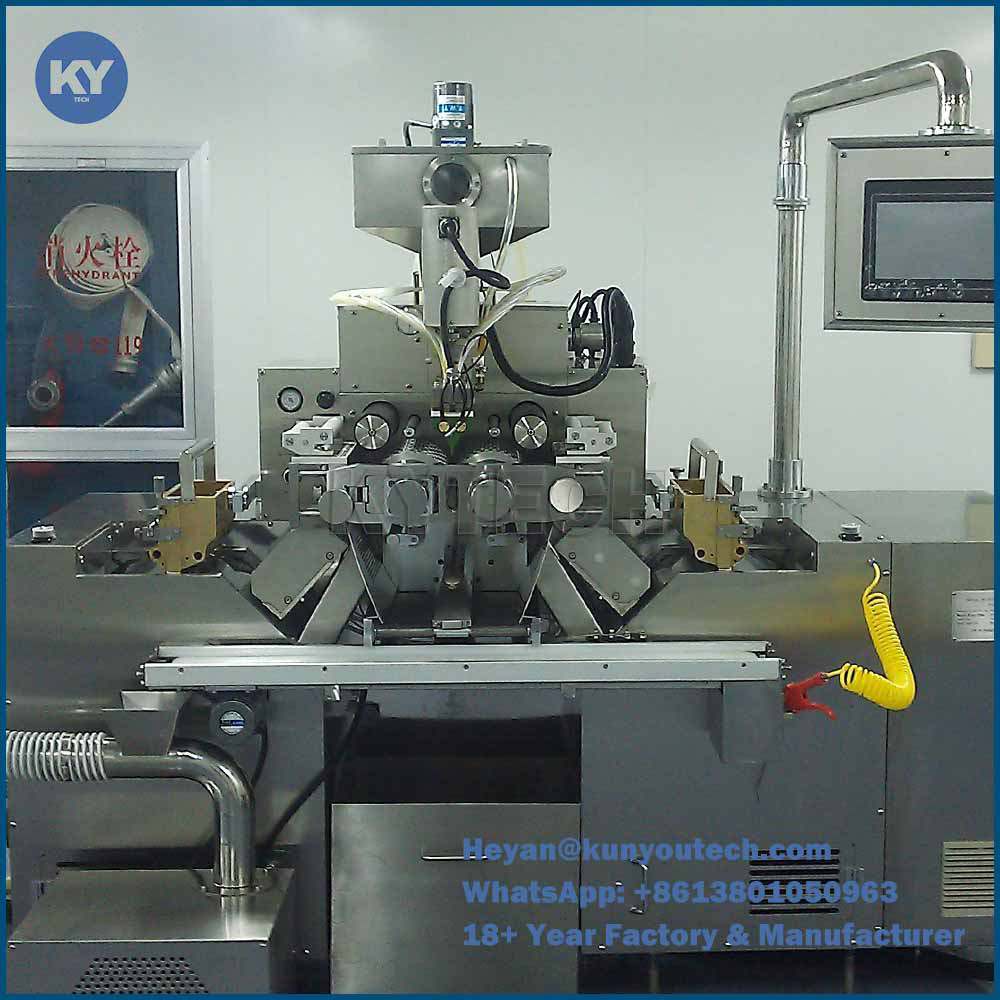

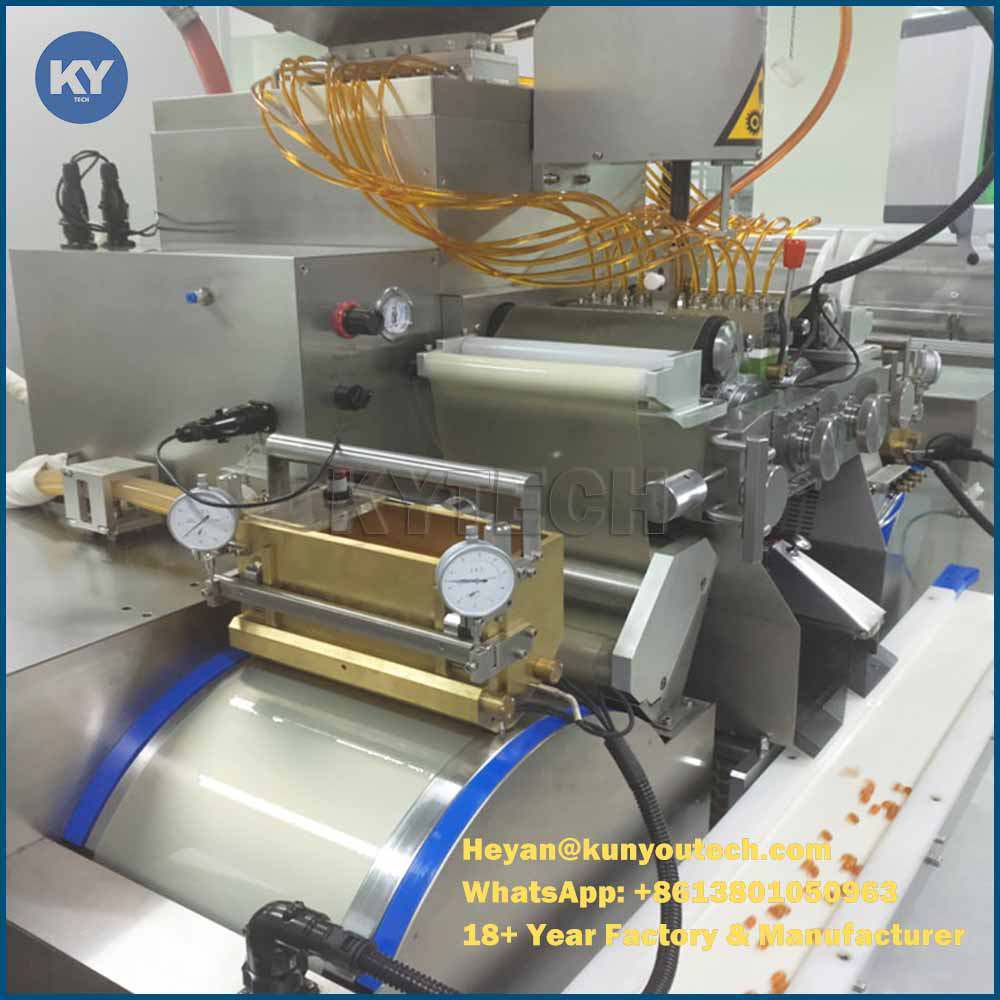

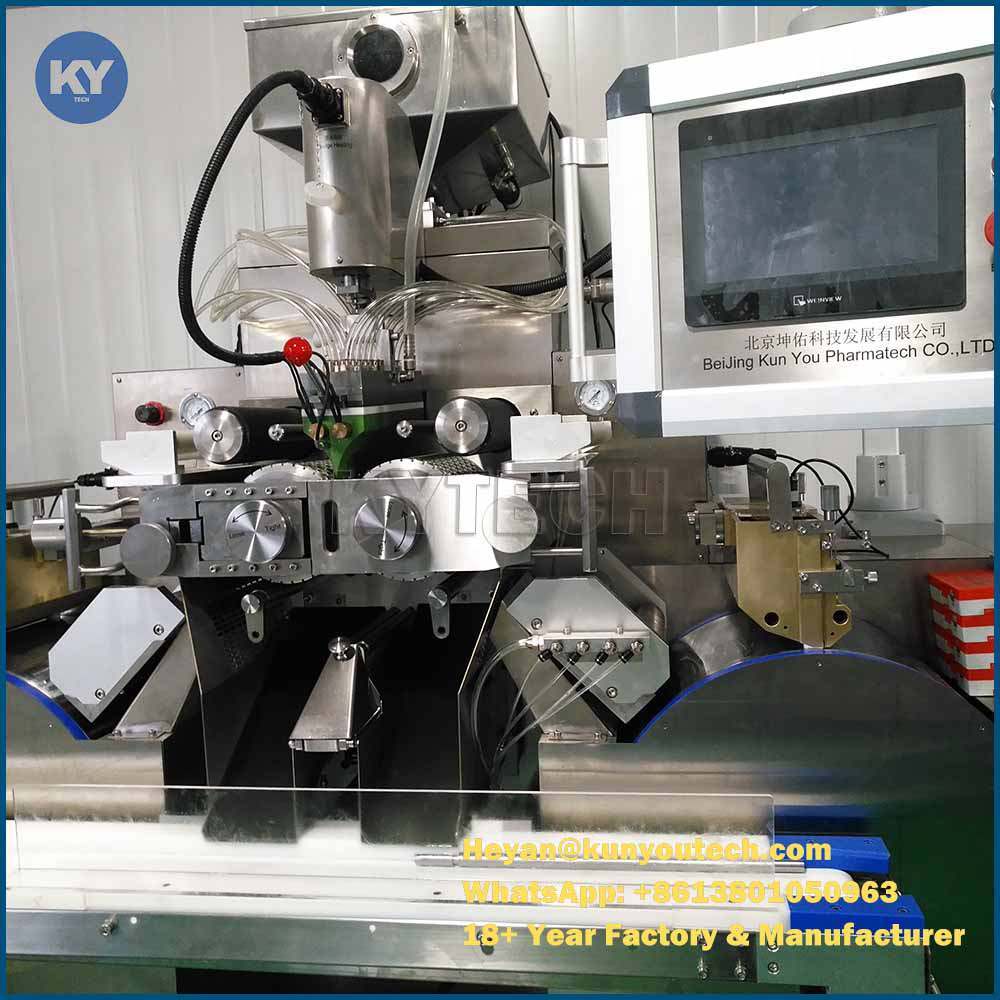

Softgel making system:



S610 roll type soft capsule’s key parts of the machine select Germany precision bearings. The whole machine’s mechanical parts adopt independent single adjustable lubrication, reducing mechanical wear and prolonging the time without any mistakes. The drug pump can run together with the die roll automatically and synchronously, it’s very convenient to adjust the spraying time.



Model

S610

Die roll size

150×250mm

Die roll speed

0~5rpm

Max plunging volume per stroke

0~2ml

Plunger numbers

20/24

Overall dimension

2050×1200×1850

Weight of main machine

1900kg

Power consumption

13.5kw

Control mode

PLC+Touch Screen

output

8#OV115,440 pcs/hour


Large Capacity Automatic Vgel Encapsulation Machine With Aluminum Cover

Drying system:



TD-3 Soft Capsule (Softgel) and paintball Tumble dryer is used to predry and initial shaping of soft capsule (softgel) and paintballs. TD-3 Soft Capsule (Softgel) and paintball Tumble dryer is the largest domestic drying tumble currently. Each section is provided with two large air blowers. The organic glass cover of TD-3 Soft Capsule (Softgel) and paintball Tumble dryer can be opened with safety protection. The standard configuration is 8 sections. Each section is equipped with an independent fan to make softgels and paintballs distribute evenly, thus making the drying effect much better. Each dryer can be easily removed and easy to clean, so it’s more in line with the requirements of GMP. Each dryer is equipped with electrostatic guiding device and safety production device. The operator can conveniently make the dryer stop just in the tumble dryer position.


Model

TD-3

Basket diameter(mm)

730

Basket length(mm)

1010

Weight (ton)

2ton

Drying fan(kw)

0.55

Motor Power(kw)

0.75

Basket per section

1




Competitive Advantage


1. The largest domestic drying tumble


2. Two large air blowers in each cage


3. Each cage can regulate speed separately


4. Safety protection device



Large Capacity Automatic Vgel Encapsulation Machine With Aluminum Cover


drying tumbler for soft capsule, drying tumbler for paintballs, soft capsule dryer, paintball dryer, paintball drying machine, soft capsule /softgel drying machine


Large Capacity Automatic Vgel Encapsulation Machine With Aluminum Cover
