| Place of Origin: | China,Beijing |
| Brand Name: | Kunyou |
| Certification: | CE,ISO9001 |
| Model Number: | S407 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Wood cages |
| Delivery Time: | 6 weeks |
| Payment Terms: | T/T， L/C, Western Union |
| Supply Ability: | 1000 sets per year |
| Application: | Soft Gelatin Encapsulation Making | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Warranty: | More Than 5 Years | Capacity: | 44000-50000 Capsules/h(8# Oval |
| Name: | Capsule Printer | Product Name: | Small Automatic Micro Fish Oil Paintball Softgel Encapsulation Machine |
| Pharma Gel: | Cosmetic | Speed: | 3.5 RPM (5RPM Option) |
| High Light: | soft gelatin encapsulation machine,automatic capsule machine |
||

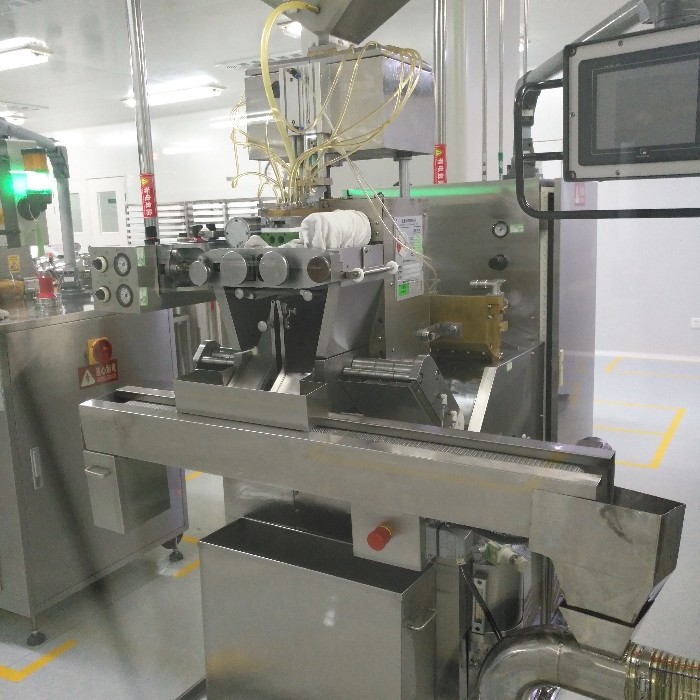

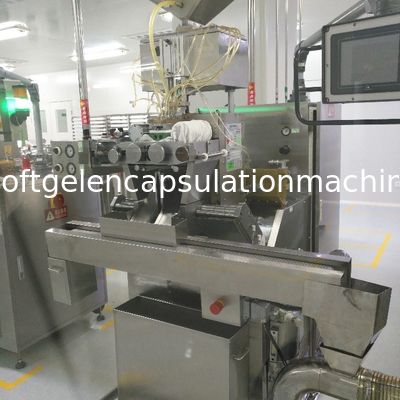

S407 softgel capsule machine paintball encapsulation making
Product Description
S407 Softgel Encapsulation Machine is developed based on Model S406 softgel encapsulation machine. The die roll length is 20mm longer. It combines advantages of foreign equipment and requirements of customers,considering the needs and the biggest benefits of customers as start point.There are following features besides S406’s. S407 adopts PLC operation, making operation more convenient. The die roll’s rotation rate can be regulated within 0 to 7 rpm, so users can choose the most proper rotation rate according to data of different material and techniques. Drying cycle is controlled by PLC unified, so users can regulate the cycle time conveniently. The tumbler dryer is designed with a device to remind operators to prepare well when discharging. S407 can realize the function of statistical statements and printing. The machine drive system’s lubrication pump is droved by motor alone, which greatly improves the lubrication performance when main equipment operating at a very slow speed. At the same time, it can reduce machine vibration, prolong machine overhaul time and save investment for users.
Specification
| Model | S407 |
| Die roll diameter | Ф103mm |
| Die roll length | 172mm |
| Die roll speed | 0~5rpm |
| Plunger numbers | 10 |
| Dosage tolerance | + 2% |
| dimension | 880X640X1900mm |
| weight | 900kg |
| Power consumption | 7 kw |
| Control mode | PLC+HMI Switch/buttons |
| Output rate |
8#OV 43470 pcs/hour |
FAQ
Q1:Are you factory or trading company?
A: We are factory and manufacture.
Q2: Where is your factory located? How can I visit your factory?
A: We are located in Beijing, you can fly to Beijing airport or Nanyuan airport. Wecan pick you up from the airport or your hotel. Welcome to visit us!
Q3:How to place my order?
A: Just contact us via TraderManager, E-mail, Skype or telephone to confirm the product, make the deposit then we will start to manufacture.
Q4 : What is the payment term?
A: 30% T/T deposit and 70% T/T balance payment before shipping.
Q5:How long is the delivery time?
A: About 35- 40 working days.
