| Place of Origin: | China,Beijing |
| Brand Name: | Kunyou |
| Certification: | CE,ISO9001 |
| Model Number: | S610 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Wood cages |
| Delivery Time: | 30-90 days |
| Payment Terms: | T/T， L/C, Western Union, |
| Supply Ability: | 30 Set/Sets |
| Application: | Softgel Manufacturing | Type: | Softgel Encapsulation |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Warranty: | 1 Year |
| Dimension: | 1208*2450mm | Function: | Making Soft Capsule |
| Speed: | 3.5RPM (5RPM Option) | Name: | 3.5RPM Small Start Fish Oil 12000pcs/H Softgel Machine |
| High Light: | 12000pcs/h softgel machine,fish oil softgel machine,3.5RPM Softgel Machine |
||
Pharmaceutical Softgel Encapsulaton Machine For Making Fish Oil / 120000 Pcs / H Max
Quick Detail
|
Product Name |
softgel automatic machine |
Driven Type |
Electric |
|
Brand Name |
KUN YOU |
Material |
Stainless Steel |
|
Application |
Food, pharmaceutical,softgel making machine |
Capsule shape |
OV, OB,etc |
Production Description
Our company is a professional supplier for softgel making machine and paintball making machine. Our softgel making machine is divided into three models, small model, medium model and large model. For small scale softgel production, our S403 R&D softgel making machine maybe fit for your requirements, it can produce about 20000 pcs softgels per hour. And S406 Softgel Encapsulation Machine is suitable for medium scale production, its production rate can get to 40000 pcs softgels per hour. The largest model, S610 Softgel Encapsulation Machine can produce 120000 pcs softgels per hour. We provide the whole line of softgel making, including the gelatin melting system, fill material system, softgel encapsulation machine and softgel drying machine. All the machine is made of high quality stainless steel and spare parts from famous brands. And we adopt the gelatin ribbon micro lubrication system.
Applications:
It’s mainly for softgel and paintball making enterprises and pharmaceutical enterprises, especially for R&D department of laboratories, pharmaceutical factories in the universities and plant health products and Research Institutes.It also can suitable for cosmetic manufactures, such as bath beads and Collagen capsule.
Specification
|
Model |
S403 |
S406 |
S407 |
S610 |
|
Die roll diameter(mm) |
80 |
103 |
103 |
150 |
|
Die roll length(mm) |
100 |
152 |
172 |
250 |
|
Die roll speed |
0-5 |
0-5 |
0-7 |
0-5 |
|
Plunger Qty. |
6 |
10 |
12 |
20 |
|
Dimension |
1450×600×1350 |
880×640×1900 |
800×2200×2000 |
2050×1200×1850 |
|
Weight(kg) |
600 |
900 |
1200 |
1900 |
|
Power(kw) |
2kw |
7kw |
13kw |
20kw |
|
control |
PLC.touch screen |
|||
Competitive Advantage:
1. Small size, low energy consumption
2. Easy to operate and clean
3. High precision,die roll shaft precision in 0.02mm.
4. Small load difference
5. Gelatin ribbon micro lubrication system
6. Important parts use aviation grade high wear-resisting material
7. Vegl design ,both works for the animal gel.
Softgel making machine,Soft capsule making machine,Soft capsule encapsulation machine,Softgel machine,Soft capsule manufacturing machine,Softgel manufacturing machine,Softgel making equipment
1. One of the earliest manufacturers in China to deeply study the soft capsule mould
2. The first manufacturer in China to sell products and services to the inventors of soft capsule machines
3. The only domestic manufacturer with a single order of up to 20 production lines
4. The first domestic manufacturer of soft capsule machines capable of producing high wear resistance pumps
5. The only can provide FDA certified soft capsule machine full set of verification documents manufacturers in Domestic
6. Suppliers of soft capsule machines with high degree of internationalization in China

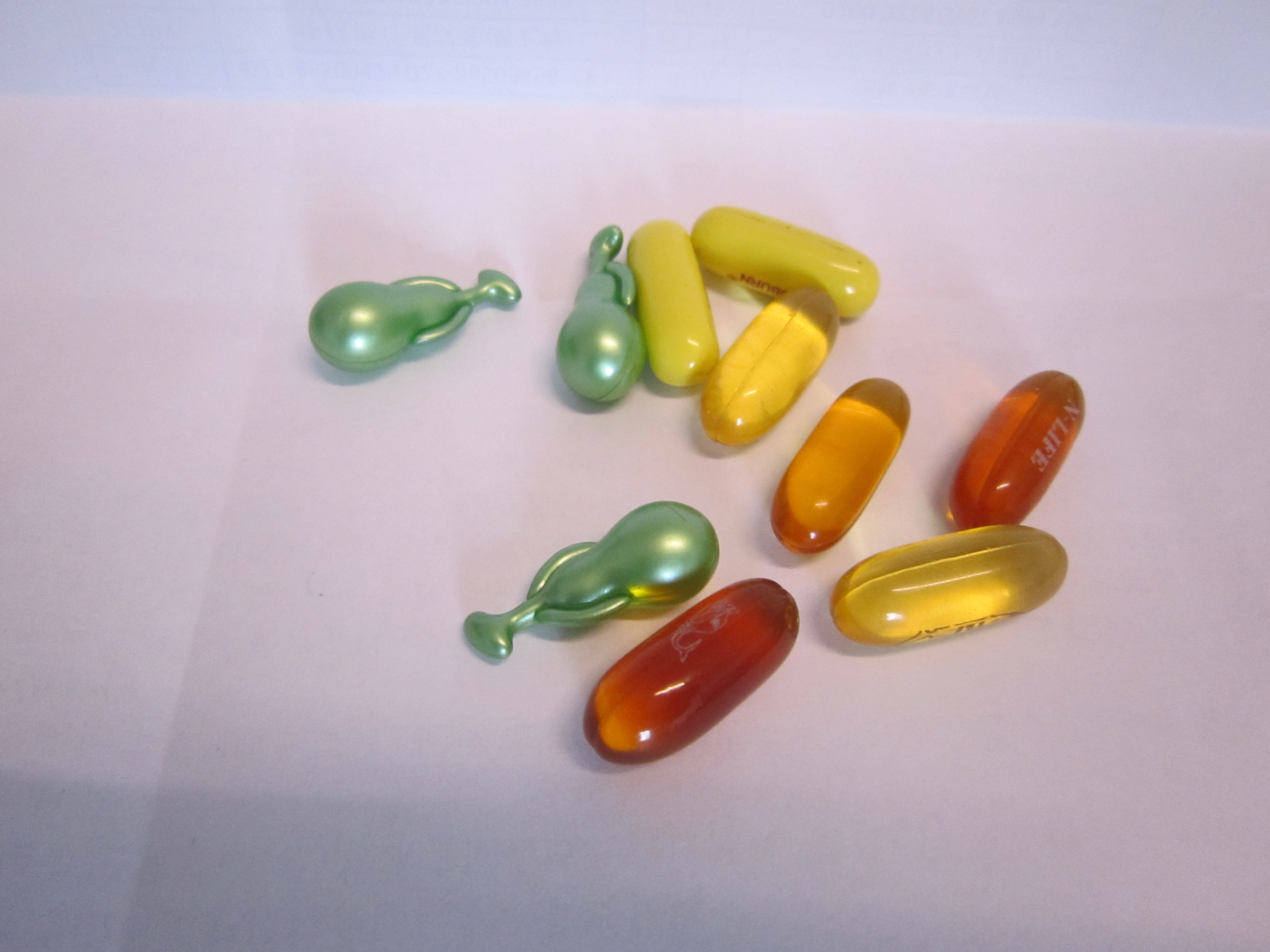

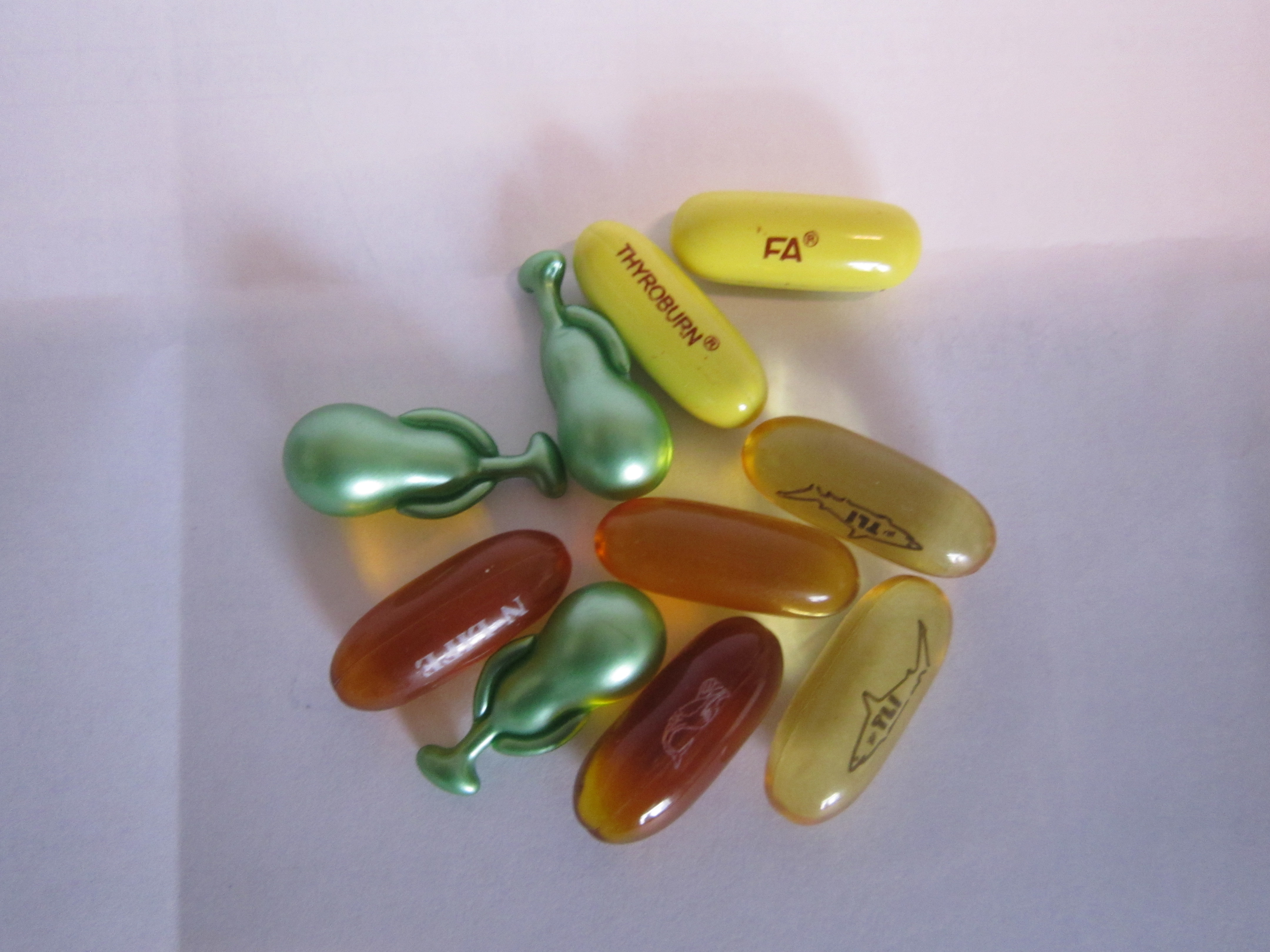

Veg capsule sample
