High Efficiency Capsule Filling Machine / Paintball Making Machine / Low Noise

China High Efficiency Capsule Filling Machine / Paintball Making Machine / Low Noise supplier
High Efficiency Capsule Filling Machine / Paintball Making Machine / Low Noise supplier High Efficiency Capsule Filling Machine / Paintball Making Machine / Low Noise supplier High Efficiency Capsule Filling Machine / Paintball Making Machine / Low Noise supplier High Efficiency Capsule Filling Machine / Paintball Making Machine / Low Noise supplier

Large Image :  High Efficiency Capsule Filling Machine / Paintball Making Machine / Low Noise

Product Details:

Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: S610PB

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Delivery Time: 30-90 days
Payment Terms: T/T, L/C
Supply Ability: 15 Set/Sets per year
Contact Now
Detailed Product Description





Full Automatic Capsule Filling Machine / Paintball Making Machine / Low Noise





Quick Detail



Product Name

Paintball Making Machine

Control Mode

PLC

Port

FOB Tianjin

Power Consumption

 20 kw

Scale

Large Scale Production

Capacity

32000pcs/hour



Product Description



Our machine have exported to more than 20 countries, such as America, Canada, Brazil, Iran and India, etc. What we supply not only is the paintball/ soft capsule manufacturing line, but also supply the factory design and after-sale service.

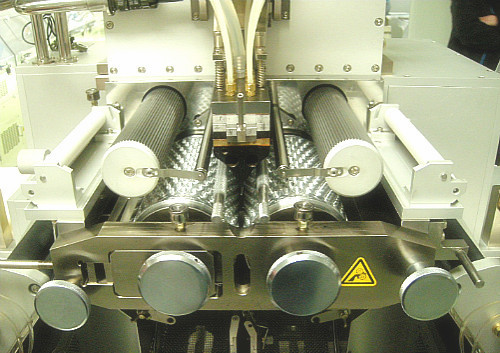

S610PB Paintball Encapsulation Machine’s components are mainly from Germany. The whole machine’s mechanical parts adopt independent single adjustable lubrication, reducing mechanical wear and prolonging the time without any mistakes. There are two ways which use the cantilever to operate, large size touch screen and switch button to choose from. The control system has faults diagnosis function. It can realize remote diagnosis after the upgrade. New 8 type amorphous drying roll cage is featured by variable frequency speed regulation and more reasonable structure. The cage can be disassembled without moving dryer. It’s easy to clean. There are material receiving discs under the roll cage, making S610 more in line with the requirements of GMP.



Specification



Model

S610PB

Die roll size

150×250mm

Die roll speed

0~5rpm

Max plunging volume per stroke

0~2ml

Plunger numbers

20/24

Overall dimension

2050×1200×1850

Weight of main machine

1900kg

Power consumption

20 kw

Control mode

PLC+Touch Screen



Competitive Advantage



1. Improve the efficiency of production largely

2. Compact and beautiful

3. Reduce the oil consumption

4. Save money for users

5. Low noise, run more smoothly

6. PLC

7 The cable plug has good waterproof and oil proof function

8. High technical loading capacity

9. High precision

10. Easy to move and operate

11. Drum design to prevent gelatin wrinkling and sideship

12. Professional PID temperature control technology is adopted on the machine, temperature of injector can be adjusted accurately. Improves ratio of finished products of paintball.



Paintball making machine and softgel making machine and all kinds of spare parts for both machine.
