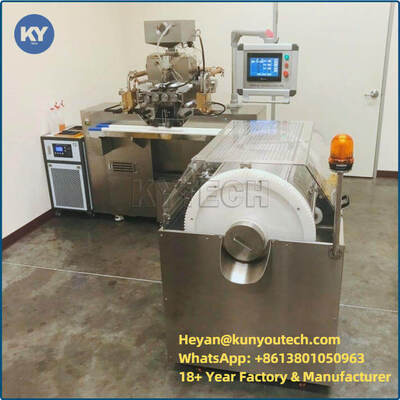

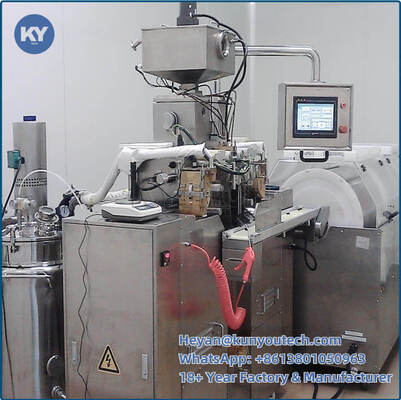

Small And R&D Scale Softgel Encapsulation Machine Equipment For Making Soft Capsule 380V / 240V

Certification
Good quality Paintball Encapsulation Machine for sales
Good quality Paintball Encapsulation Machine for sales
I'm Online Chat Now

Small And R&D Scale Softgel Encapsulation Machine Equipment For Making Soft Capsule 380V / 240V

China Small And R&D Scale Softgel Encapsulation Machine Equipment For Making Soft Capsule 380V / 240V supplier
Small And R&D Scale Softgel Encapsulation Machine Equipment For Making Soft Capsule 380V / 240V supplier Small And R&D Scale Softgel Encapsulation Machine Equipment For Making Soft Capsule 380V / 240V supplier

Large Image :  Small And R&D Scale Softgel Encapsulation Machine Equipment For Making Soft Capsule 380V / 240V

Product Details:

Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: S403

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Delivery Time: 60 days
Payment Terms: T/T, L/C
Supply Ability: 30 Set/Sets
Contact Now
Detailed Product Description





Small And R&D Scale Softgel Encapsulation Machine Equipment For Making Soft Capsule 380V / 240V





Quick Detail



Product Name

Automatic Softgel/Capsule Making Machine

Driven Type

Electric

Capacity

22800 pcs/hour, 4r/min

Material

Stinless Steel

Application

Food, pharmaceutical, making softgel/capsule

Capsule shape

OV, OB,etc





Production Description



S403 R&D type softgel making machine/soft capsule making machine is an experimental soft capsule machine designed especially for R&D department of laboratories, pharmaceutical factories in the universities and plant health products and Research Institutes.



Specifically speaking, it has the following characteristics:


Pneumatic die press system, pneumatic wedge up and down, independent driven capsule stripper.
Important parts use aviation grade high wear-resisting material
Main shaft run out and parellelism within 0.02mm
All bearing use well know brand
Medicine pump dosing deviation less than 1.5%
Worm gear, gear and shaft adopt special material with high accuracy and long service life
Gelatin ribbon micro lubrication system
Main shaft, mangle roller, colling drum driven by independent motor, speed controlled via frequency inverter.
Precision PID temperature control of the medicine hopper, injection wedge and spreader box.
Medicine hopper adopts thermal insulation design.
PLC and touch screen control, with functions of failure diagnosis.

Small And R&D Scale Softgel Encapsulation Machine Equipment For Making Soft Capsule 380V / 240V



Applications:


It’s mainly for softgel and paintball making enterprises and pharmaceutical enterprises, especially for R&D department of laboratories, pharmaceutical factories in the universities and plant health products and Research Institutes.It also can suitable for cosmetic manufactures, such as bath beads and Collagen capsule.



Specification



Model

S403

Die roll size

Ф80X100mm

Die roll speed

0~5rpm

Overall dimension

1250×400×2300mm

weight

600kg

Power supply

380V/240V,50/60HZ

Power of the main motor

1.1kw

Power of the main machine

3kw





S403 R&D softgel encapsulation machine

Shape

Capsules/hour

2r/min

3r/min

4r/min

5#OV

12600

18900

25200

8#OV

11400

17100

22800

10#OV

8640

12960

17280

11#OB

7200

10800

14400

16#OB

6840

10260

13680

20#OB

6480

9720

12960

24#OB

6120

9180

12240

Paintball

7200

10800

14400

6#round

14280

21420

28560









































Competitive Advantage:



1. Small size, low energy consumption

2. Easy to operate and clean

3. High precision

4. Small load difference

5. Gelatin ribbon micro lubrication system

6. Important parts use aviation grade high wear-resisting material
