MediumSoft Capsule Encapsulation Machinery With Adjustable Rotation Rate

China MediumSoft Capsule  Encapsulation Machinery With Adjustable Rotation Rate supplier
MediumSoft Capsule  Encapsulation Machinery With Adjustable Rotation Rate supplier MediumSoft Capsule  Encapsulation Machinery With Adjustable Rotation Rate supplier MediumSoft Capsule  Encapsulation Machinery With Adjustable Rotation Rate supplier MediumSoft Capsule  Encapsulation Machinery With Adjustable Rotation Rate supplier MediumSoft Capsule  Encapsulation Machinery With Adjustable Rotation Rate supplier MediumSoft Capsule  Encapsulation Machinery With Adjustable Rotation Rate supplier

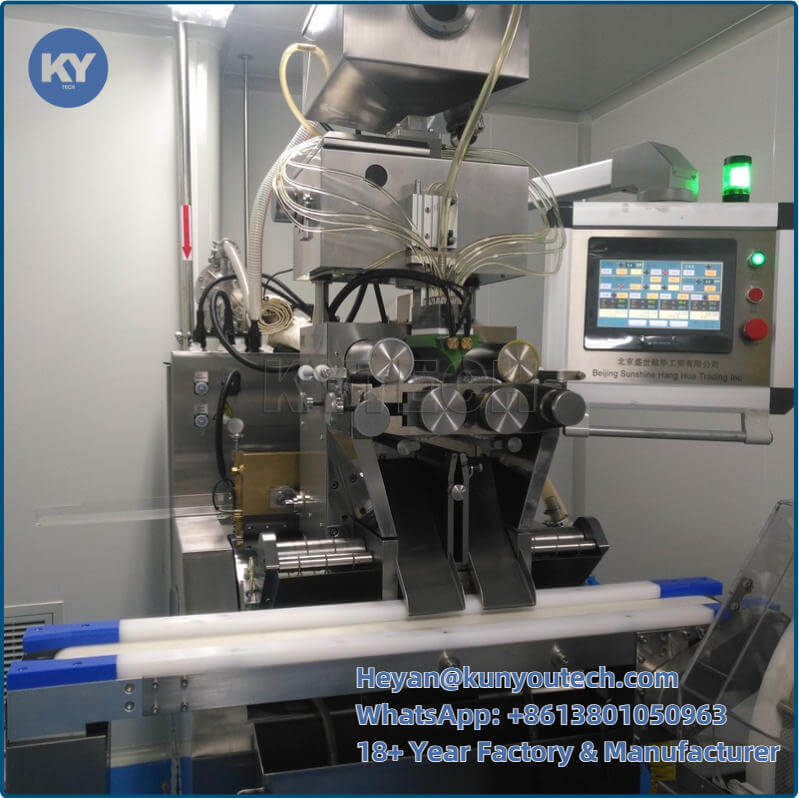

Large Image :  MediumSoft Capsule Encapsulation Machinery With Adjustable Rotation Rate

Product Details:

Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: S406

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Delivery Time: 40 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30 Set/Sets
Contact Now
Detailed Product Description
Application: Soft Capsule Encapsulation Type: Softgel Encapsulation Machine
After-sales Service Provided: Engineers Available To Service Machinery Overseas Capacity: 15000-21000grain/hour
Material: 304/316L Stainless Steel Certification: ISO CE
Warranty: 1 Year State: New





High Productivity Soft Capsule  Encapsulation Machinery With Adjustable Rotation Rate





Quick Detail



Die roll (mm)

 Ф103mmX152mm

Electrical Control

Inverter,Button and switches

Pump type

10 plungers

Dosage Tolerance

±2%

Gelatin Ribbon Lub

Micro Lubrication

Power Consumption

7KW

MediumSoft Capsule  Encapsulation Machinery With Adjustable Rotation Rate

Product Description



S406 Softgel Encapsulation Machine’s die roll is 152 mm long. The die roll’s rotation rate can be regulated within 0 to 5 rpm, so users can choose the most appropriate speed according to different materials and process parameters. S406 Softgel Encapsulation Machine improves the bearing spindle supporting way of die roll, thus making the spindle more accuracy and much easier to repair. In addition, the machine further improves the machining precision. More helical gears are used in the process of gear moving, which improve the gear coincidence degree and transmission stability. The spilt structure of cooling fan reduces the thermal effect to the pressure pill. The machine is provided with stirring or insulation optional hopper, using ground automatic feeding method. The soft capsule machine’s oil roller is made of stainless steel material, so it’s more in line with the requirements of GMP.

The Softgel Manufacturing line  mainly includes three parts: Main Encapsulation machine, Gelatin melting system and Drying system.

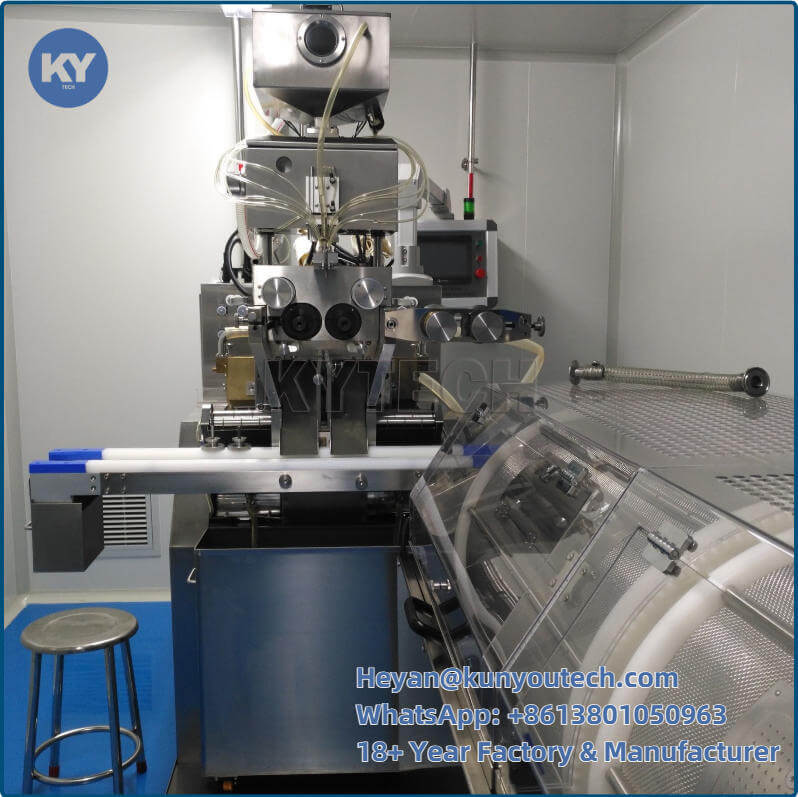

MediumSoft Capsule  Encapsulation Machinery With Adjustable Rotation Rate

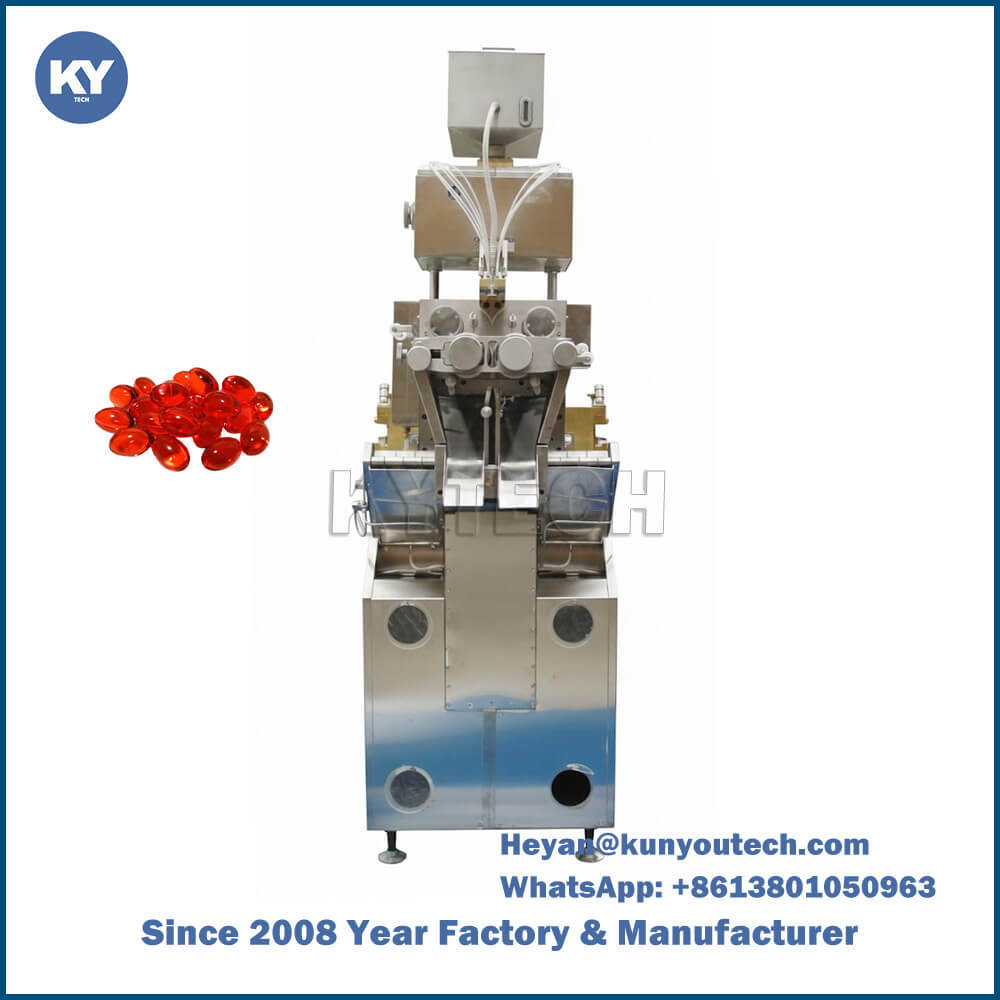

MediumSoft Capsule  Encapsulation Machinery With Adjustable Rotation Rate

MediumSoft Capsule  Encapsulation Machinery With Adjustable Rotation Rate



Specification of the Main Encapsulation Machine



Model

S406

Die roll diameter

Ф103mm

Die roll length

152mm

Die roll speed

0~5rpm

Plunger numbers

10

Dosage tolerance

± 2%

dimension

880X640X1900mm

weight

900kg

Power consumption

 7 kw

Control mode

PLC+HMI Switch/buttons

Output rate

8#OV 43470 pcs/hour





Competitve Advantages



1. Good stability

2. Adjustable rotation rate during 0-5rpm

3. Easy to operate and clean, conforming to GMP

4. Compact and beautiful

5. It can be assembled or disassembled with single hand

6. Big air flow

7. Reduce the oil consumption

8. The cable plug has good waterproof and oil proof function

9. High technical loading capacity

10. High precision

11. Easy to move and operate

12. Drum design to prevent gelatin wrinkling and sideship



The specification of the gelatin melting tank



 Model

450L

600L

800L

1000L

 Capacity(L)

650

900

1120

1370

 Melting gelatin(L)

100-450

150-600

200-800

300-1000

 Heating area(M2)

3.2

4

4.8

5.5

 Max degree of Vacuum(Mpa)

0.09

0.09

0.09

0.09

 Max Temperature(℃)

-100

-100

-100

-100

 Motor Power (KW)

4

5.5

7.5

7.5

 Stirring speed (r/min)

50

50

50

50

 Dimension (mm)

Φ1210X1880

Φ1310X1980

Φ1410X2080

Φ1510X2130



The specification of the Tumble drying machine



Model

TD-0

TD-1

TD-2

TD-3

TD-4

Basket diameter(mm)

420

580

580

730

526

Basket length(mm)

620

600

900

1010

282

Drying fan(kw)

0.25

0.32

0.32

0.55

2

Motor Power(kw)

0.2

0.4

0.4

0.75

1.5

Basket per section

1

2

2

1

6



Soft capsule encapsulation machine, Softgel making machine, Soft capsuel Full Automatic Machine, Paintball Encapsulation machine, Paintball  making machine
