Mini Softgel Making Machine For Cosmetic And food Industry

Certification
Good quality Paintball Encapsulation Machine for sales
Good quality Paintball Encapsulation Machine for sales
I'm Online Chat Now

Mini Softgel Making Machine For Cosmetic And food Industry

China Mini Softgel Making Machine For Cosmetic And food Industry supplier
Mini Softgel Making Machine For Cosmetic And food Industry supplier Mini Softgel Making Machine For Cosmetic And food Industry supplier Mini Softgel Making Machine For Cosmetic And food Industry supplier Mini Softgel Making Machine For Cosmetic And food Industry supplier

Large Image :  Mini Softgel Making Machine For Cosmetic And food Industry

Product Details:

Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: S403

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Delivery Time: 30-90 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30 Set/Sets
Contact Now
Detailed Product Description
Application: Softgel Capsule Making Machine After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,commissioning And Training,Field Maintenance And Repair Service
Power: 11Kw Function: Softgel Capsule Encapsulation
Usage: Pharmacy Packaging Material: Gelatin
Product Name: Softgel Encapsulating Machine





Stinless Steel Mini Softgel Making Machine For Cosmetic And food Industry







Quick Detail



Overall Dimension

1250×400×2300mm

Driven Type

Electric

vegetable gelatin

availiable

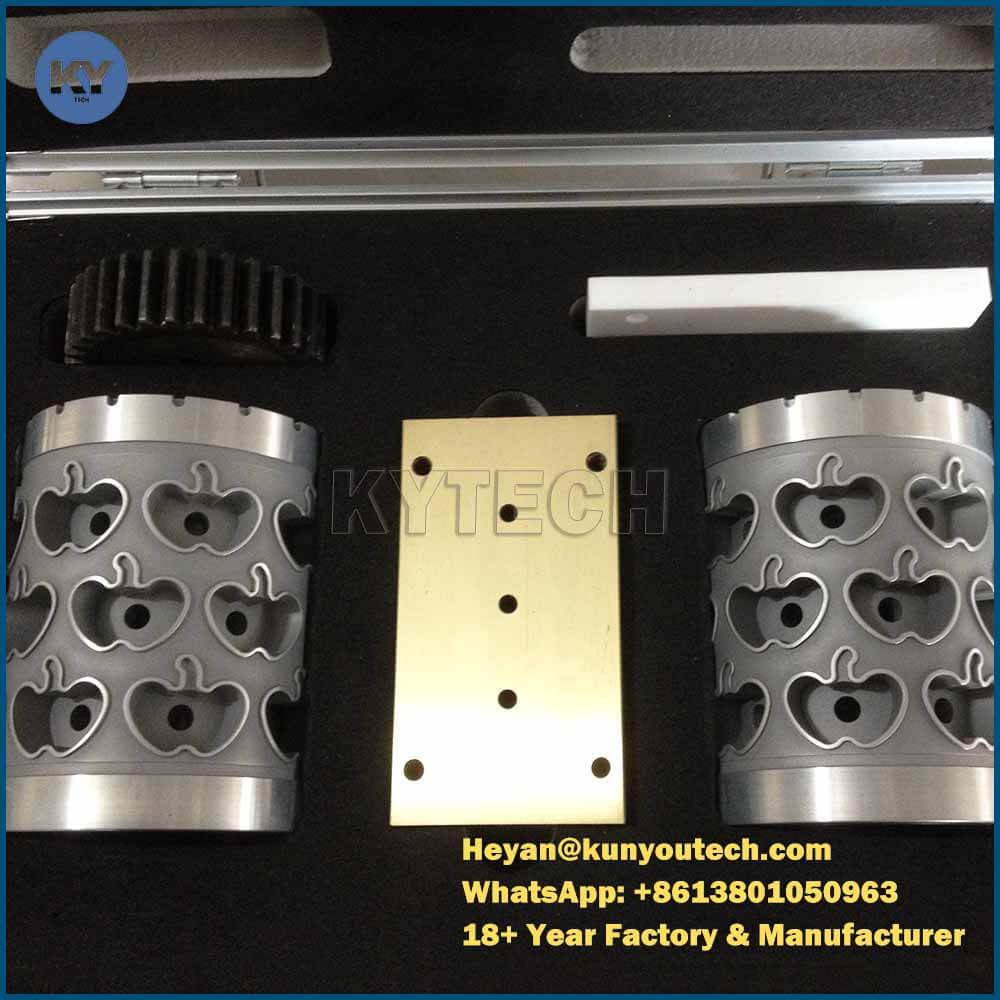

Die Roll Size Ф80X100mm

Capacity

22800 pcs/hour, 4r/min

Material

Stinless Steel

Application

Food, pharmaceutical,softgel making machine

Capsule shape

OV, OB,etc



Product Description

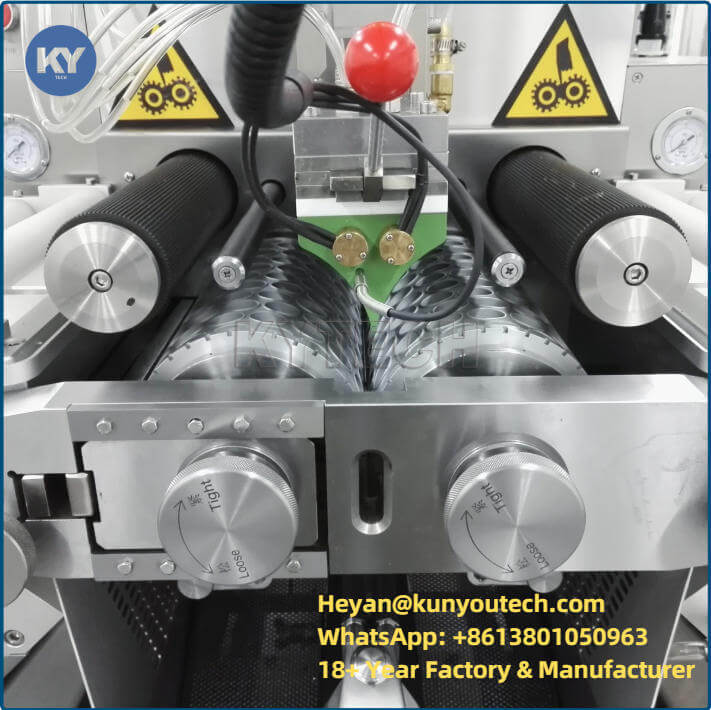

S403 R&D soft capsule making machine conform to the requirements of GMP standard. It is simple and efficient laboratory machine especially for R&D or small scale soft capsule production in laboratories and pharmaceutical researcging institutes.

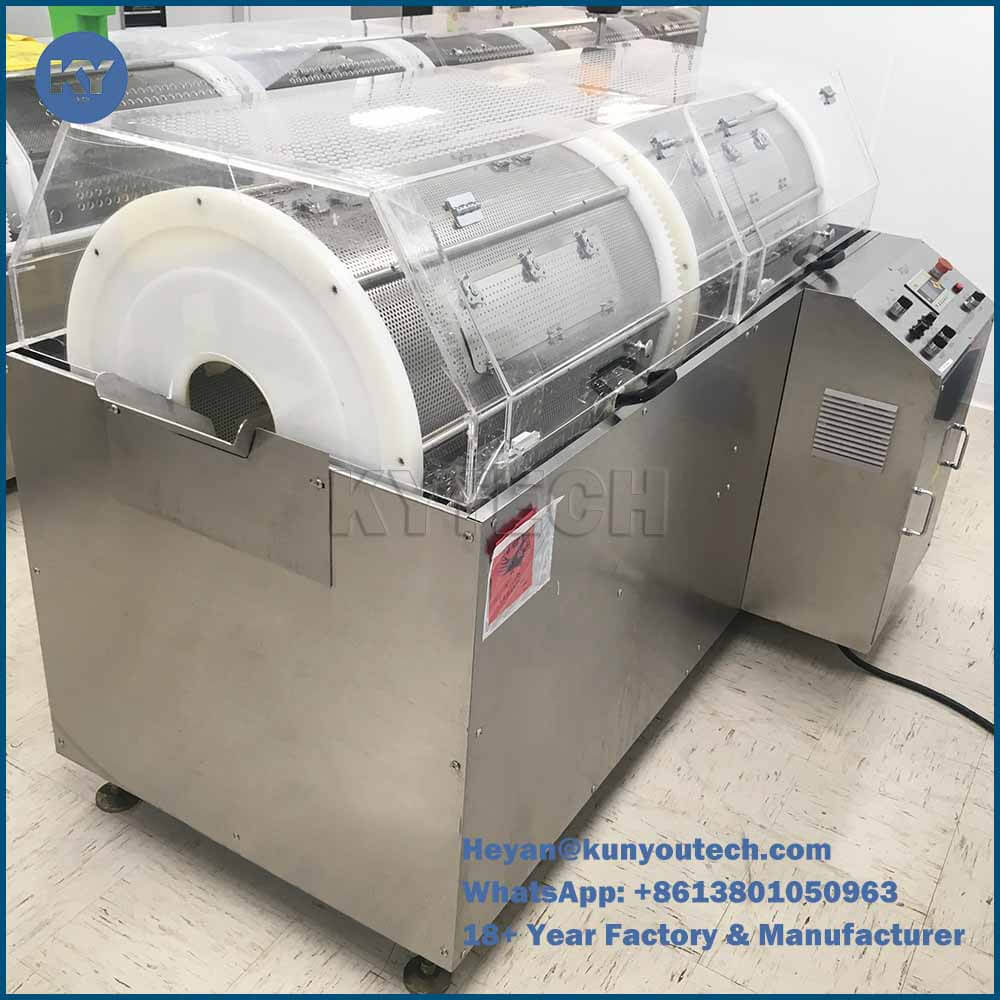

The whole set of the equipment is simple and efficient with small occupation. It includes the gelatin melting system, fill material system, soft capsule encapsulation machine and tumbler drying machine. All the material for the whole set of the equipment are well selected to meet the requirements of GMP, making it applicable for medical, food and cosmetic industries.

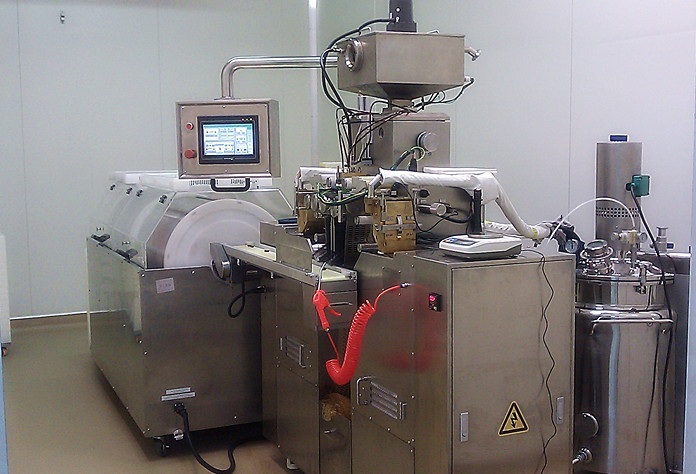

Mini Softgel Making Machine For Cosmetic And food Industry



Applications:


It's widely used in pharmaceutical industries, cosmetic and food industries.



Specification



Model

S403

Die roll size

Ф80X100mm

Die roll speed

0~5rpm

Overall dimension

1250×400×2300mm

weight

600kg

Power supply

380V/240V,50/60HZ

Power of the main motor

1.1kw

Power of the main machine

3kw





S403 R&D softgel encapsulation machine

Shape

Capsules/hour

2r/min

3r/min

4r/min

5#OV

12600

18900

25200

8#OV

11400

17100

22800

10#OV

8640

12960

17280

11#OB

7200

10800

14400

16#OB

6840

10260

13680

20#OB

6480

9720

12960

24#OB

6120

9180

12240

Paintball

7200

10800

14400

6#round

14280

21420

28560









































Competitive Advantage:



1. Filling Tolerance<±1.5%

2. Easy to operate and clean

3. Die roll speed:0~5rpm, steplessly adjustable

4. Small load difference

5. Gelatin ribbon micro lubrication system
