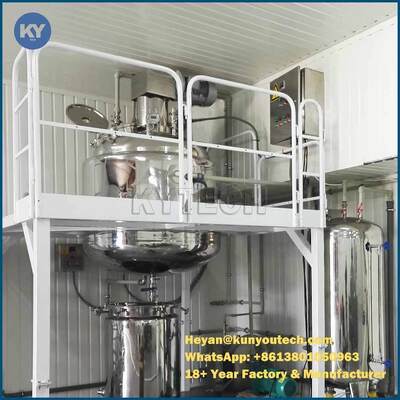

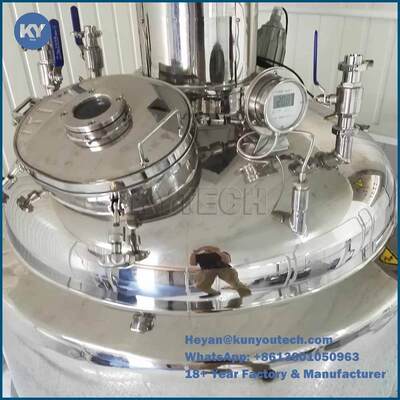

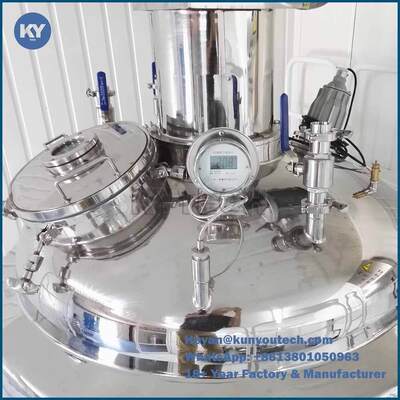

304 SUS Stainless Steel Storage Tanks Three Layers Of Water Bath Heating 450L

: Large Image : 304 SUS Stainless Steel Storage Tanks Three Layers Of Water Bath Heating 450L

Product Details:

Place of Origin:	China,Beijing
Brand Name:	Kunyou
Certification:	CE,ISO9001
Model Number:	450L

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wood cages
Delivery Time:	30 days
Payment Terms:	T/T， L/C
Supply Ability:	30 Set/Sets Per month

Contact Now

Detailed Product Description

304 SUS Gelatin Melting Tank / Three Layers Of Water Bath Heating / 450L

Quick Detail

Product Name	Gelatin Melting Tank	Heating type	Water-bath heating
Application	Paintball /Soft capsule manufacturers	Model	450L
Material	304 SUS/316SUS	Capacity	650L
Inspection Hole	can be as your requirement	Mixter	bottom/top

Product Description

The Series of gelatin reactor is the essential equipment in gelatin preparation.

The Capacity is from 450L, to 1000L

Main technical data

Vacuum degree in the vessel: 0.02-0.09 Mpa.

Working pressure in the vessel: 0.03-0.05 Mpa.

Examining Pressure in the vessel: 0.Gelatin Melting Tan3-0.4 Mpa.

Working pressure in the jacket: 0.03-0.098 Mpa

Working temperature in tank: 50-100 °C

Conveyor granule: 30 CP

Sealing parts and ring can used more than 3,000 hours continuously.

Insulating layer use super-fine glass cotton.

Inner vessel and insulation layer (covered layer) of the Tank, those sections exposed to raw material are made of 1Cr18Ni9Ti stainless steel.

Application

It’s mainly for softgel making and paintball making enterprises. Besides, the cosmetic manufacturer also needs this to make cosmetics, such as bath beads. And health products manufacturers also need this to make different softgels for the different needs.

Specification

Model	450L
Capacity(L)	650
Melting gelatin(L)	100-450
Heating area(M2)	3.2
Max degree of Vacuum(Mpa)	0.09
Max Temperature(℃)	-100
Motor Power (KW)	4
Stirring speed (r/min)	50
Dimension (mm)	Φ1210X1880
