10" High Speed Softgel Encapsulation Machine , Softgel Capsule Making Machines

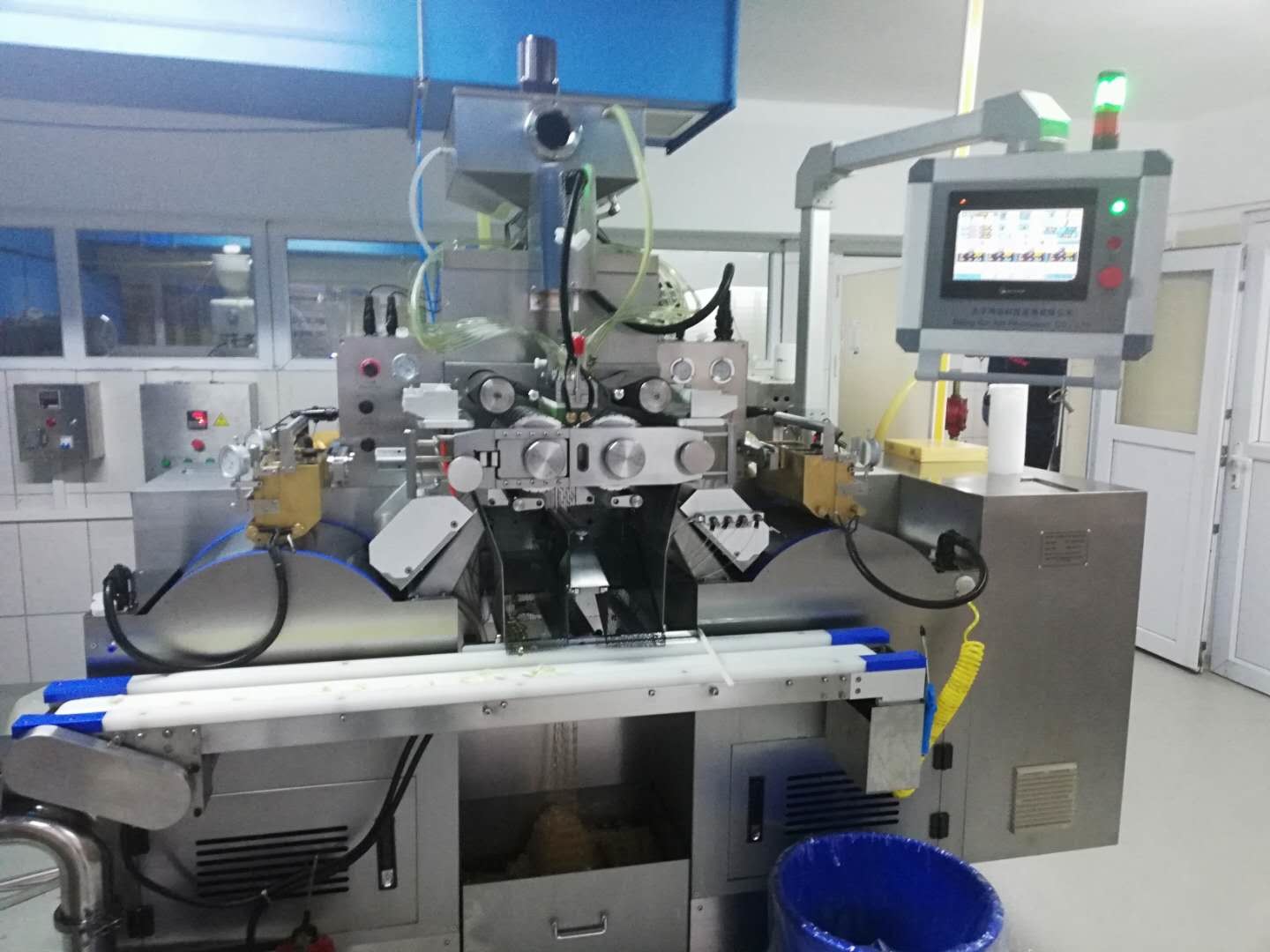

High speed soft gel encapsule machine in high efficiency S610

Product Description

Softgel encapsulation machine can quantificationally inject the oil,mixing suspenion and pasty mass into the capsule to form all kinds of softgel encapsulation with different size ,shape and color .Because of the merits store and take ,the softgel encapsulation is welcomed by more and more custoers.Owing to the high productivity,charging exacl,quality stablilization,high finished product rate,it is favoured by more and more manufactures and used in the fields of hte medicine ,health products,cosmetic and paintball and so on.

Specification

S610 roll type soft capsule’s key parts of the machine select Germany precision bearings. The whole machine’s mechanical parts adopt independent single adjustable lubrication, reducing mechanical wear and prolonging the time without any mistakes. The drug pump can run together with the die roll automatically and synchronously, it’s very convenient to adjust the spraying time.

S610 adopts a new cam mechanism, which relieved the reversing board manual synchronization process. There are two ways which use the cantilever to operate, large size touch screen and switch button to choose from. The control system has faults diagnosis function. It can realize remote diagnosis after the upgrade. New 8 type amorphous drying roll cage is charactered by variable frequency speed regulation and more reasonable structure. The cage can be disassembled without moving dryer. It’s easy to clean. There are material receiving discs under the roll cage, making S610 more in line with the requirements of GMP.

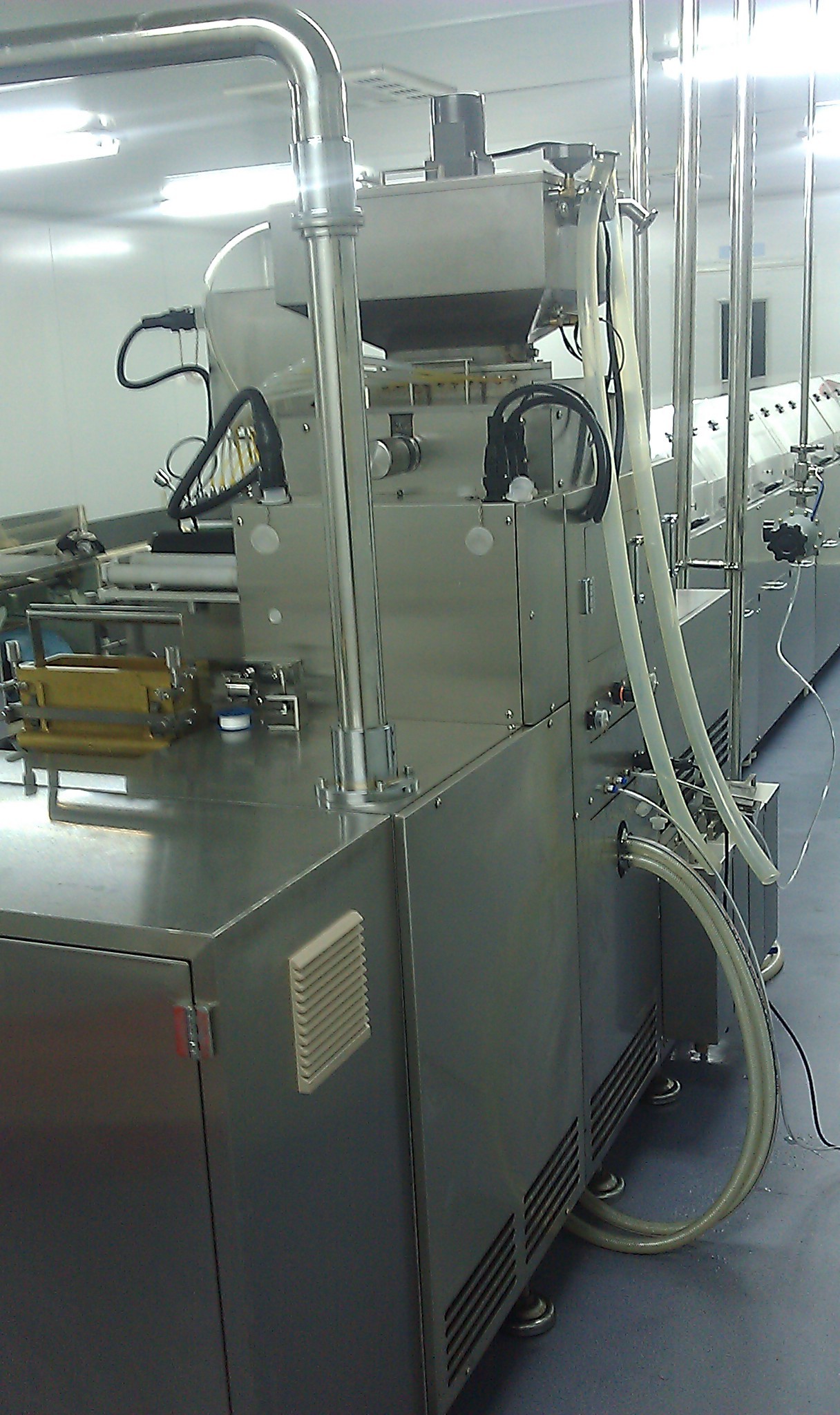

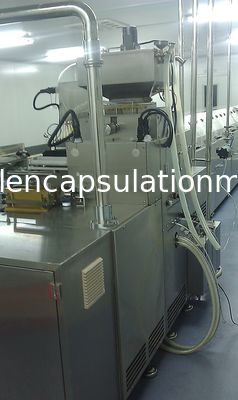

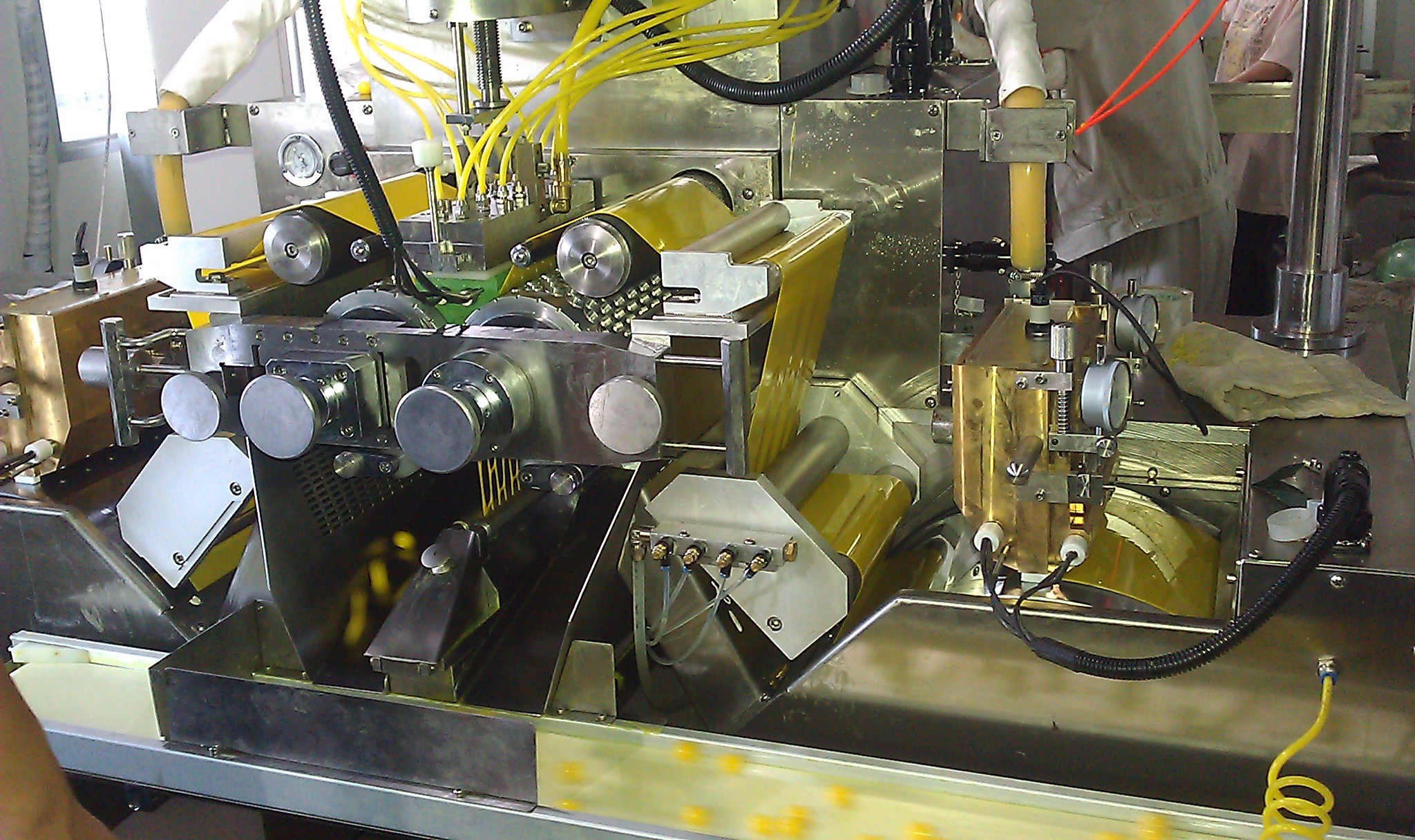

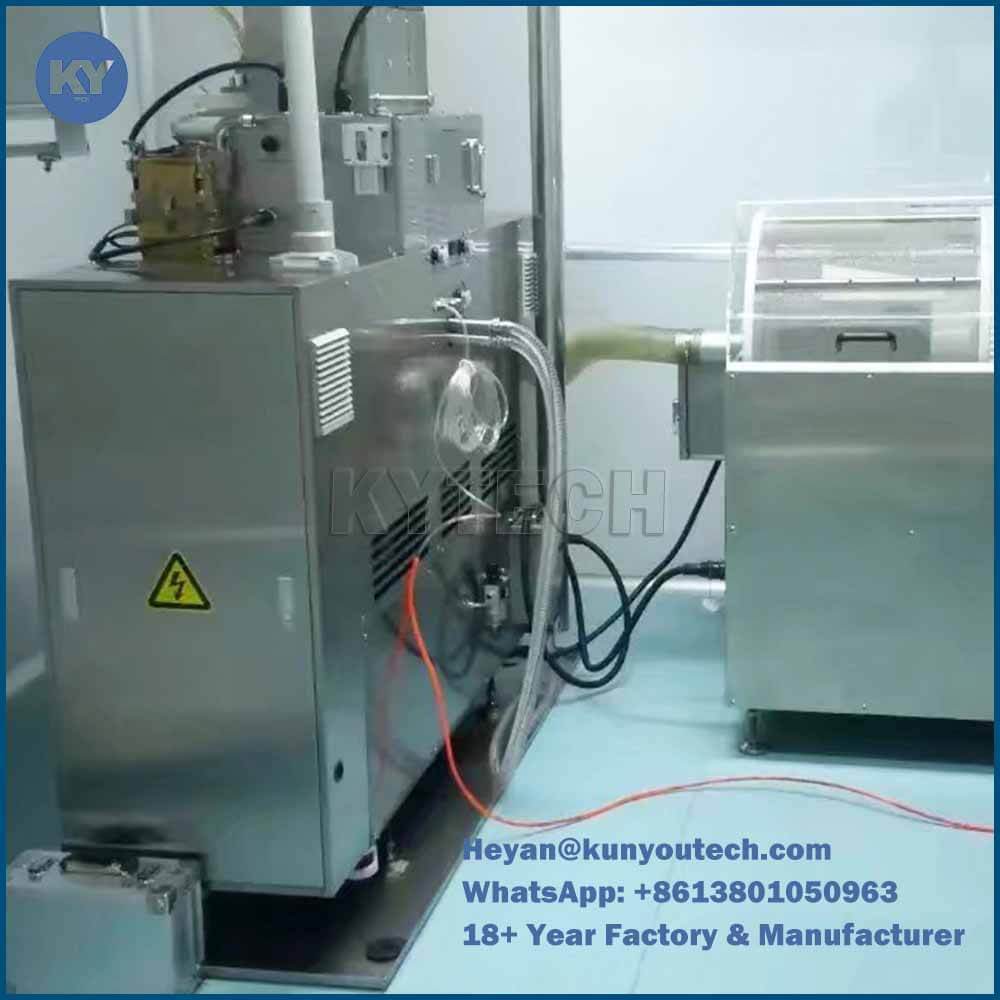

S610 roll type soft capsule automatic production line is used to press and inject the oil liquid, suspension liquid or paste quantitatively and encapsulated them in the gelatin, then producing different sizes and different shapes of the sealing softgels. The production line is mainly composed of main machine, tumbler dryer, fill material system and pneumatic theroms plastic barrels, etc.

Characteristics:

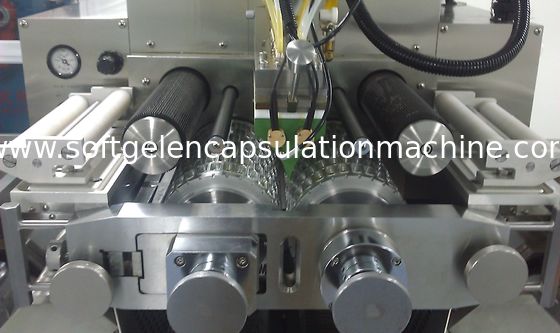

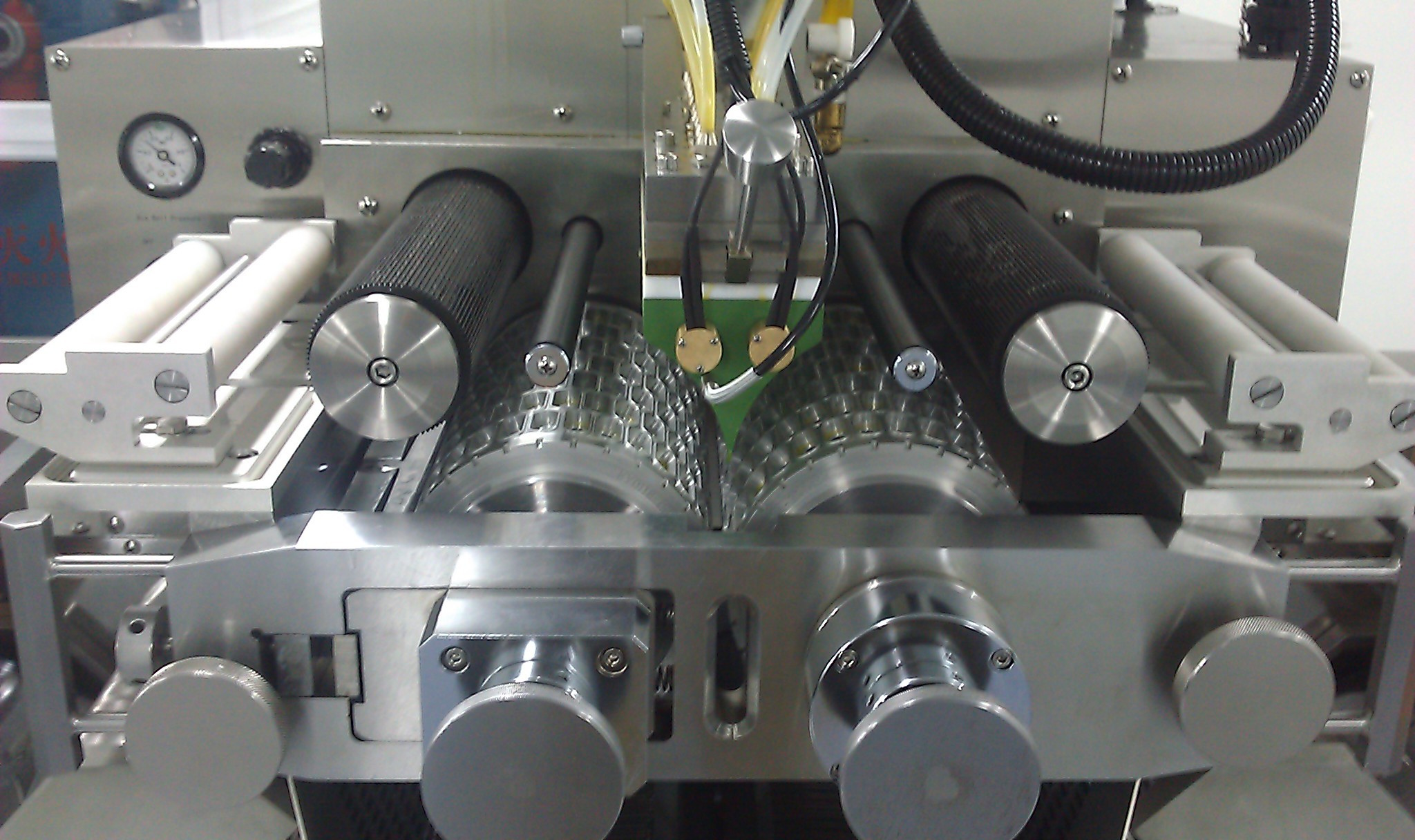

1. Pneumatic die press system, pneumatic wedge up and down, independent driven capsule stripper.

2. Important parts use aviation grade high wear-resisting material

3. Main shaft run out and parellelism within 0.02mm

4. All bearing use well know brand

5. Medicine pump dosing deviation less than 1.5%

6. Worm gear, gear and shaft adopt special material with high accuracy and long service life

7. Gelatin ribbon micro lubrication system

8.Main shaft, mangle roller, colling drum driven by independent motor, speed controlled viafrequency inverter

9.Precision PID temperature control of the medicine hopper, injection wedge and spreader box.

10.Medicine hopper adopts thermal insulation design.

11.PLC and touch screen control, with functions of failure diagnosis.

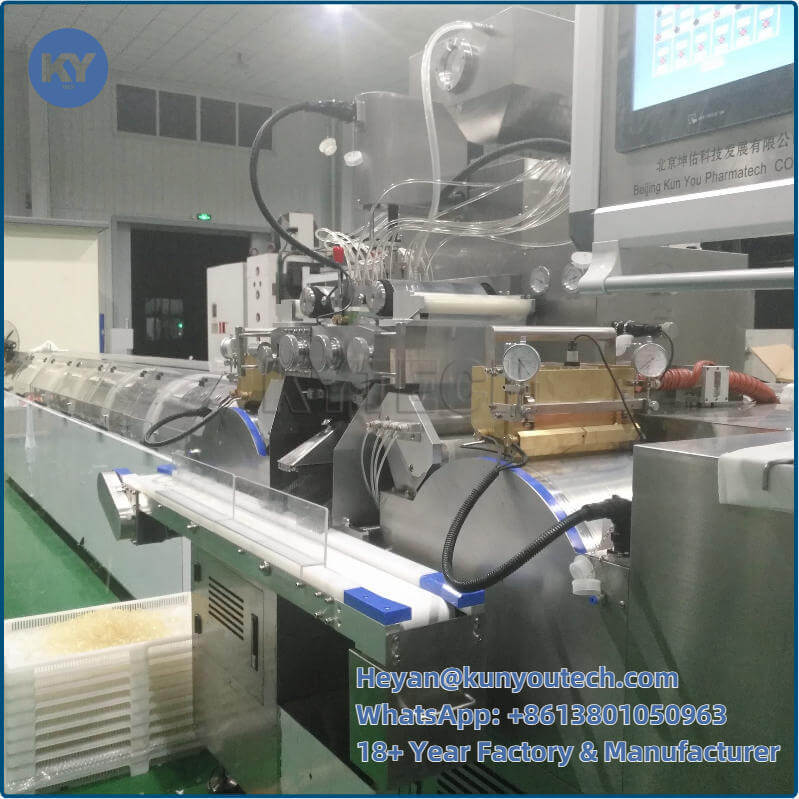

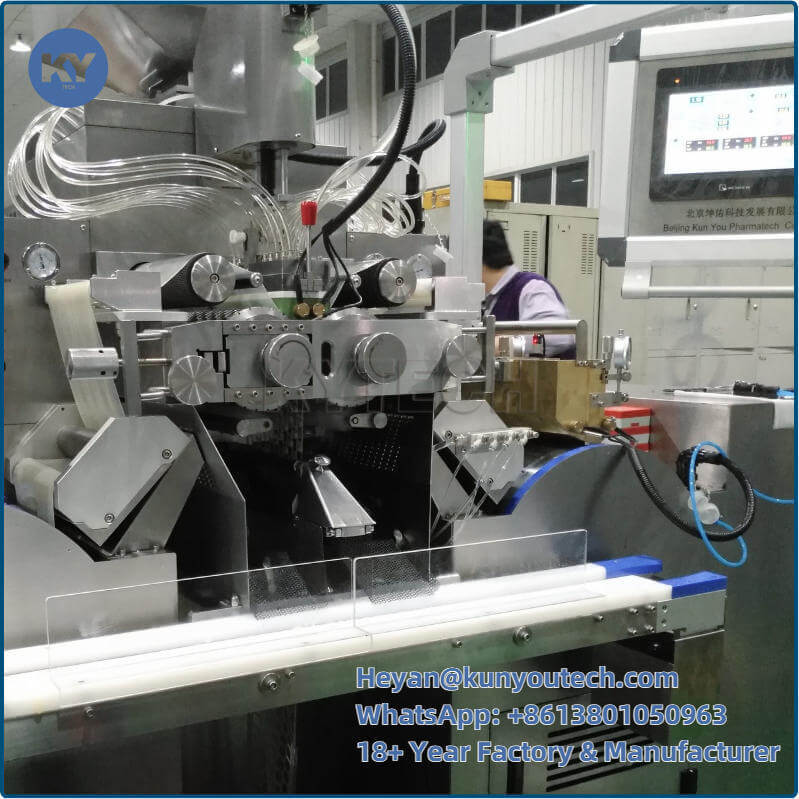

Factory
