Capsule Manufacturing Machine Three Layered Water Bathe Gelatin Service Tank

Capsule Manufacturing Machine Three Layered Water Bathe Gelatin Service Tank

    • Capsule Manufacturing Machine Three Layered Water Bathe Gelatin Service Tank
    • Capsule Manufacturing Machine Three Layered Water Bathe Gelatin Service Tank
    • Capsule Manufacturing Machine Three Layered Water Bathe Gelatin Service Tank
    • Capsule Manufacturing Machine Three Layered Water Bathe Gelatin Service Tank
    • Capsule Manufacturing Machine Three Layered Water Bathe Gelatin Service Tank
    • Capsule Manufacturing Machine Three Layered Water Bathe Gelatin Service Tank
  • Capsule Manufacturing Machine Three Layered Water Bathe Gelatin Service Tank

    Product Details:

    Place of Origin: China,Beijing
    Brand Name: Kunyou
    Certification: CE,ISO9001

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD 1-100,000 SET
    Packaging Details: Wood cages
    Delivery Time: 30 DAYS AFTER PAYMENT
    Payment Terms: T/T, L/C
    Supply Ability: 30SETS PER YEAR
    Contact Now
    Detailed Product Description
    MATERIAL: STAINLESS STELL
    High Light:

    stainless steel mixing vessels

    ,

    stainless mixing tank

    Gelatin service tank gelatin melting tank gelatin melter

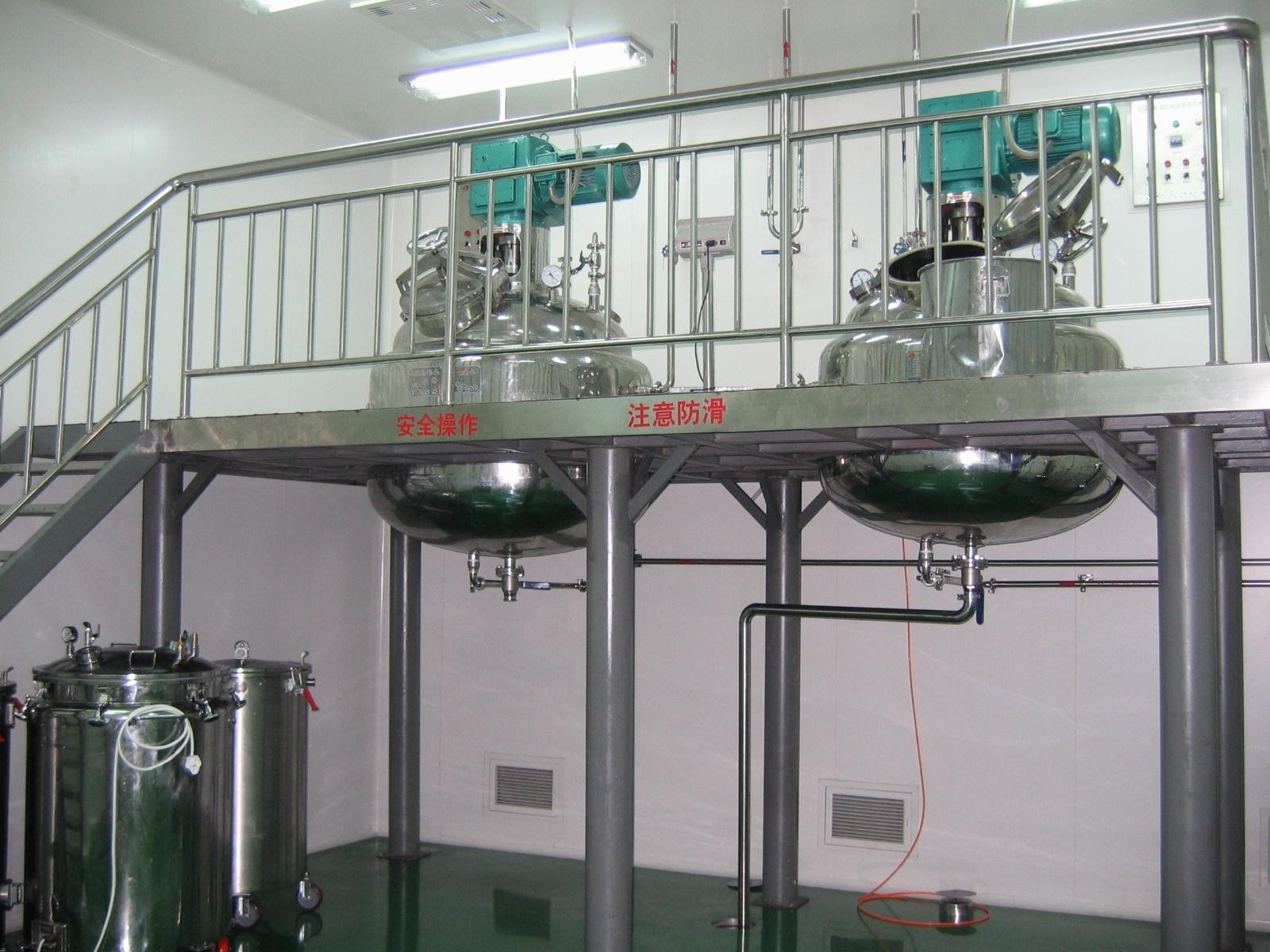

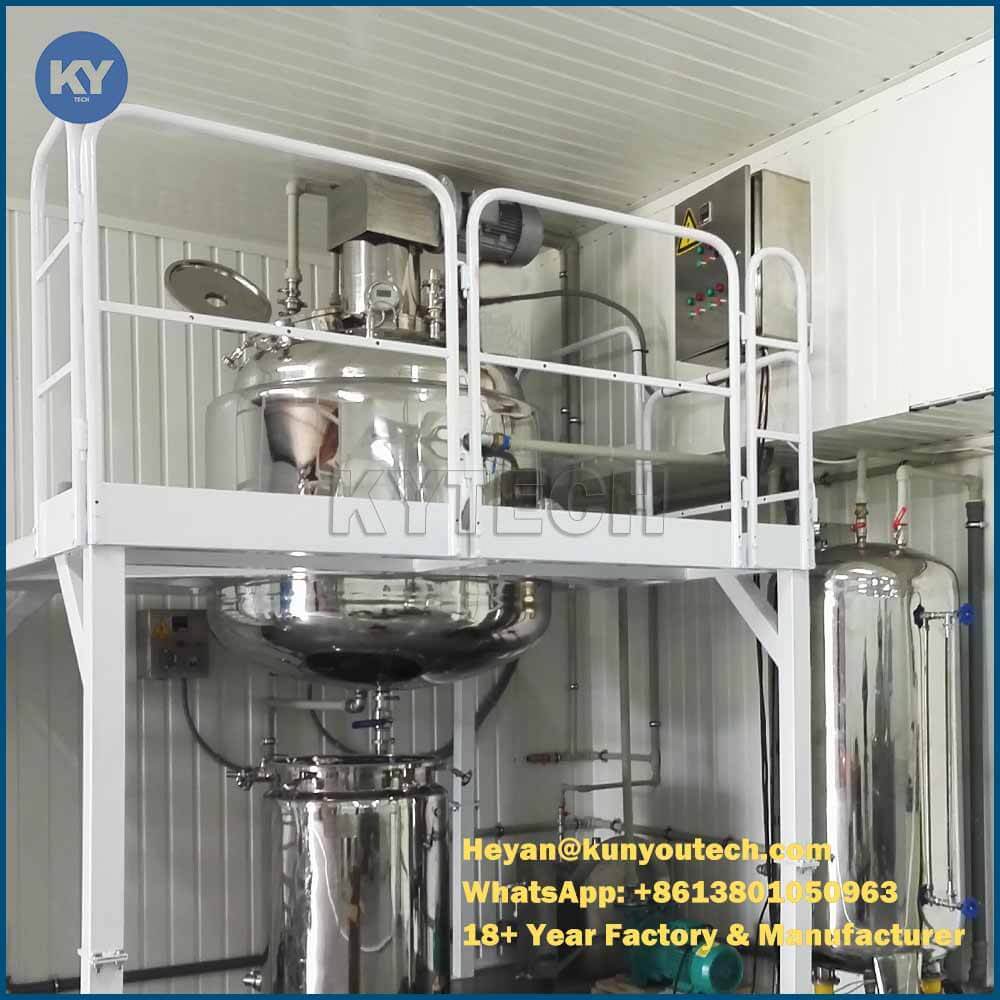

    Gelatin Melting tank



    The gelatin melting and service tank is used to melting the gelatin and keep the gelatin mass at a desired temperature and supply the gelatin to the encapsulation machine. We have both gravity feeding tank and pressure feeding tank. The plug and socket is IP65 grade make it easier to clean the tank.

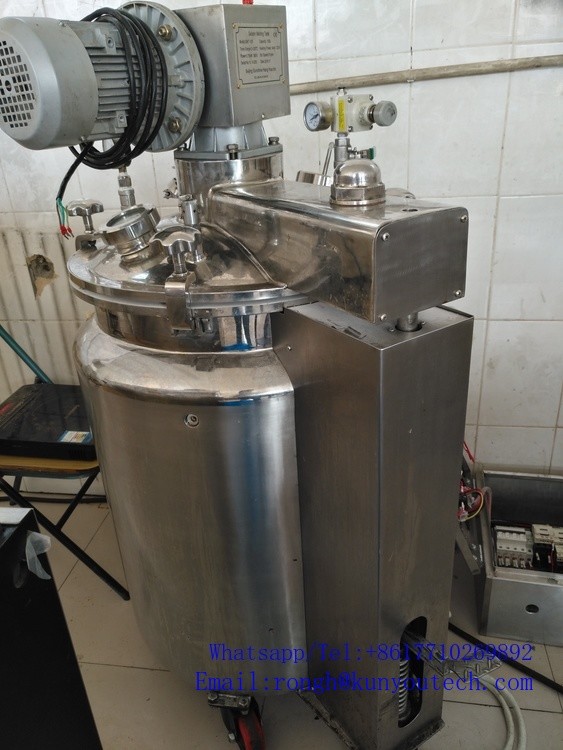

    Gelatin service tank

    The gelatin service tank is used to keep the gelatin mass at a desired temperature and supply the gelatin to the encapsulation machine. We have both gravity feeding tank and pressure feeding tank. The plug and socket is IP65 grade make it easier to clean the tank.



    Stationed gelatin melter



    Mounting Four feet support.on platform
    Structure Three layered water bathe
    Material SUS304.Medicine contacting partsSUS316
    Standard GB 150-1998 and GMP
    Max vacuum <-0.09MPa
    Opening View glass DN100.Man hole Φ450×Φ350
    Temperature sensor Bottom RTD sensor
    Power 380V/240V 50/60Hz 7.5Kw



    Product Description



    1.Water bath type gelatin tank is a special equipment for melting gelatin and production process.



    2.The gelatin melting tank has the advantage of compact structure, stable transmission and stable running performance.



    3.The mixing/stirring process is operated through connecting loop coupling and is composed of plurality of split agitator with stable transmission and better homogenization effect. The whole body of the tank is made of stainless steel.



    4.The body include three layers, including the tank liner, heating jacket and heat preservation layer.



    5.Heating the inner of the tank with the circulation hot water, it will be featured by fast heating, good thermal insulation performance, improving the quality of gelatin, accelerating the gelatin melting and shorten the melting time.



    6.The liner is closed totally with very good vacuum performance.



    7.The feeding mouth is convenient o assemble and repair. The whole tank is very smooth and bright with features of convenient cleaning, anti-corrosion and anti-acid, etc. Gelatin melting tank adopts stainless steel construction for its whole body.



    8.During its working process, the machine will suck moisture from inside of the tank, leaving the vacuum. All these are in accordance with the requirement of GMP. So the gelatin melting tank is an ideal equipment for the soft capsule pharmaceutical line.



    Detail

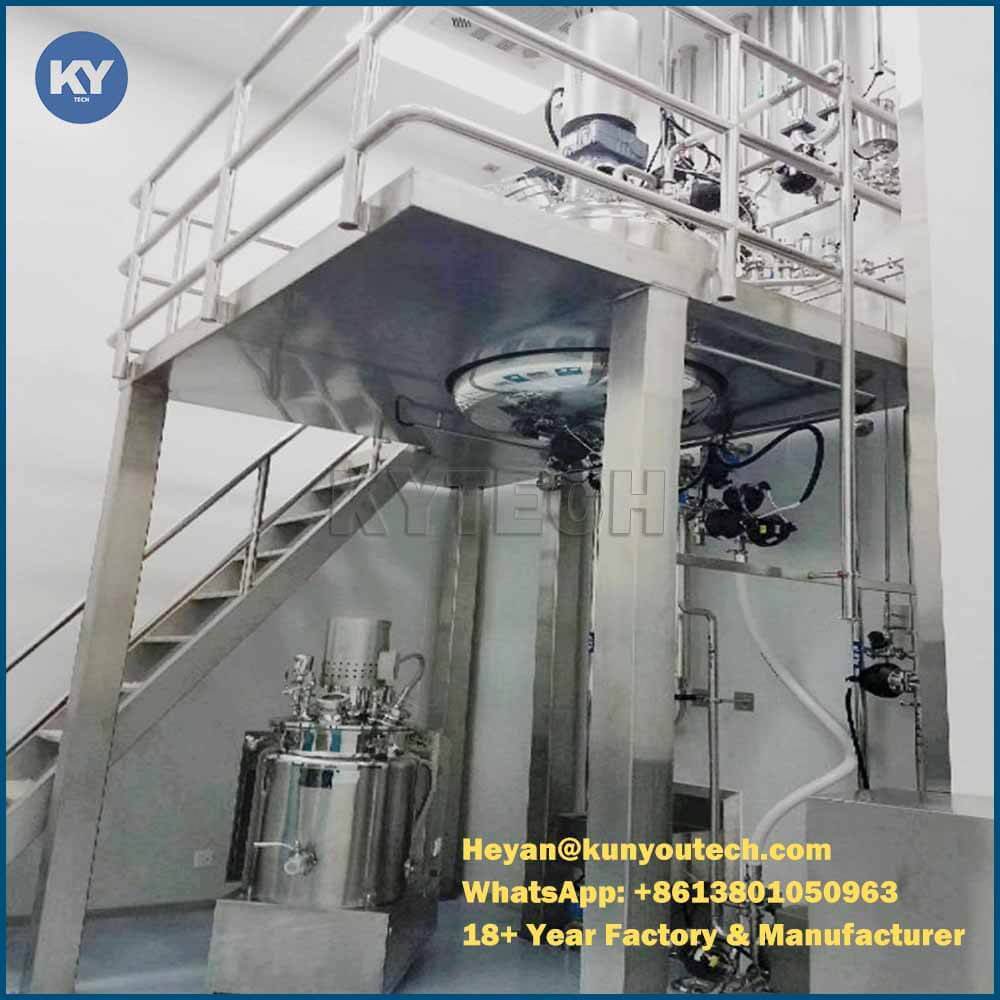

    Capsule Manufacturing Machine Three Layered Water Bathe Gelatin Service Tank 0Capsule Manufacturing Machine Three Layered Water Bathe Gelatin Service Tank 1

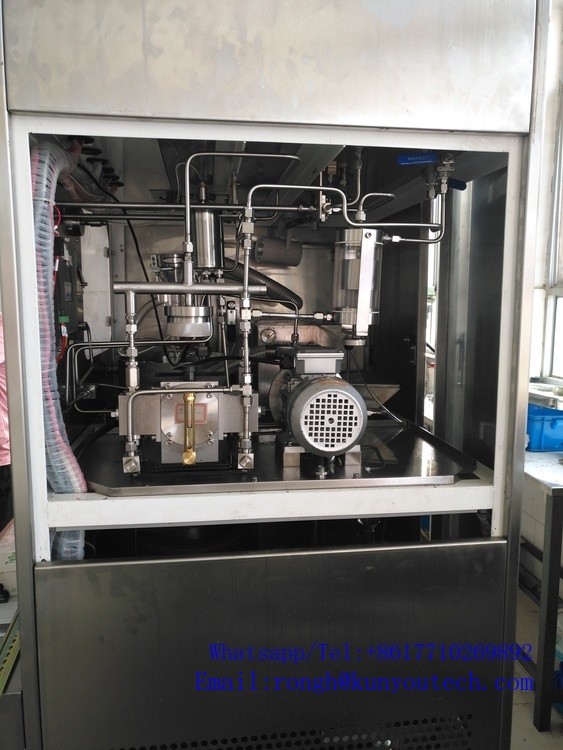

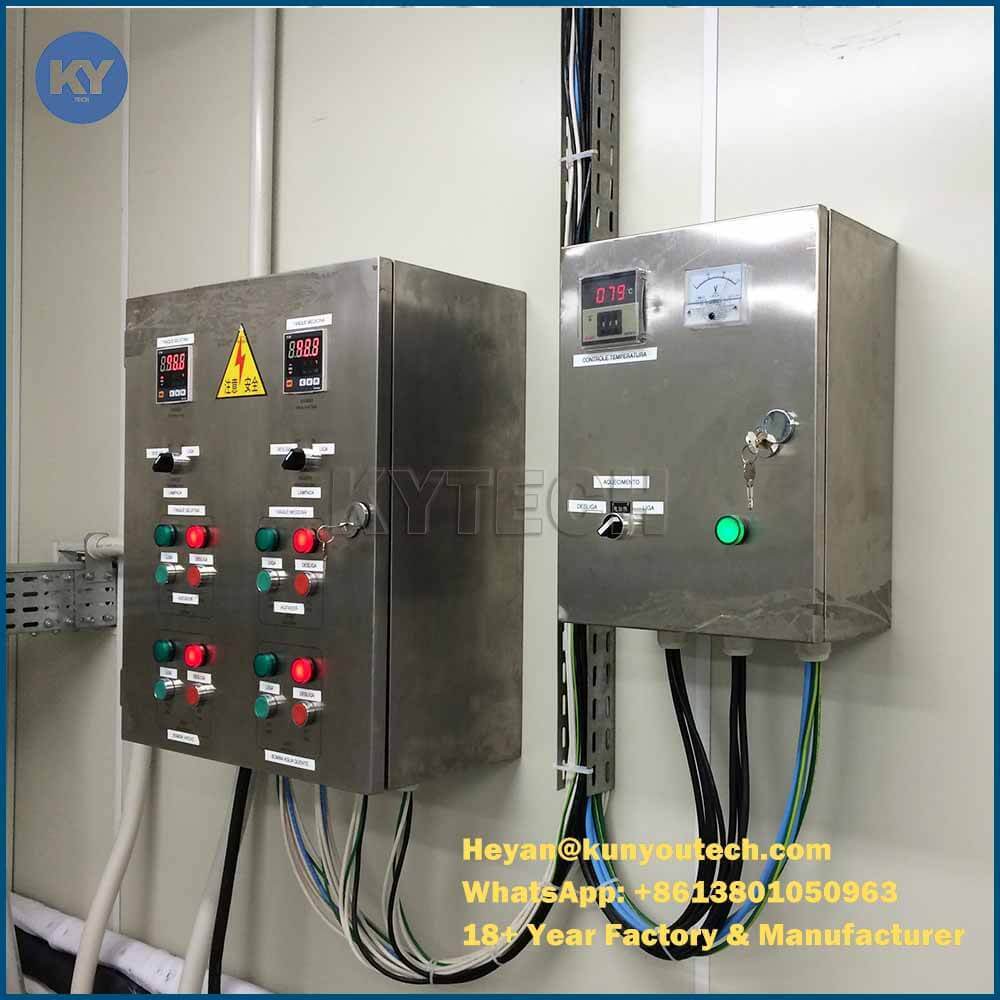

    Control system



    Capsule Manufacturing Machine Three Layered Water Bathe Gelatin Service Tank 2



    FAQ

    Q1:Are you factory or trading company?

    A: We are factory and manufacture.



    Q2: Where is your factory located? How can I visit your factory?

    A: We are located in Beijing, you can fly to Beijing airport or Nanyuan airport. Wecan pick you up from the airport or your hotel.Welcome to visit us!



    Q3:How to place my order?

    A: Just contact us via TraderManager, E-mail, Skype or telephone to confirm the product, make the deposit then we will start to manufacture.



    Q4 : What is the payment term?

    A: 30% T/T deposit and 70% T/T balance payment before shipping.



    Q5:How long is the delivery time?

    A: About 3-7 working days.
