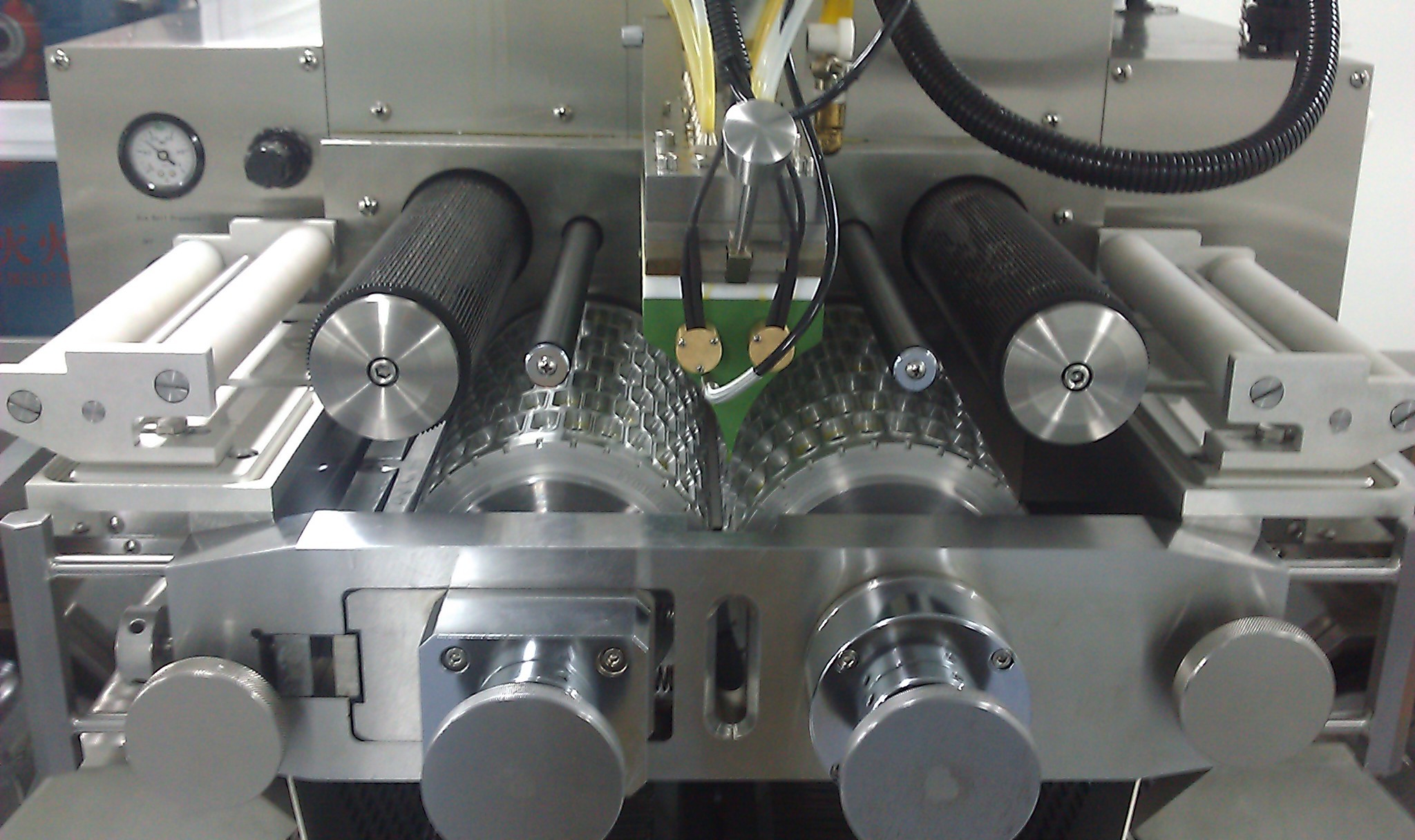

Large Scale Softgel Encapsulation Machine For oil filling into capsule

Large Scale Softgel Encapsulation Machine For oil filling into capsule

Large Scale Softgel Encapsulation Machine For oil filling  into capsule
video
Large Scale Softgel Encapsulation Machine For oil filling  into capsule
Product Details:
Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: S610
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Delivery Time: 60 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30 Set/Sets Per Year
Contact Now
Detailed Product Description
Application: Painball Production Line After-sales Service Provided: Engineers Available To Service Machinery Overseas
Warranty: More Than 5 Years Capacity: 15000-18000 Capsules/h(8# Oval
Name: Softgel Encapsulation Machine Material: Stainless Steel 316
High Light:

soft gelatin encapsulation machine

,

automatic capsule machine

Large Scale Softgel Production Line For Pharmaceutical Industry Use And Meet GMP Requirement

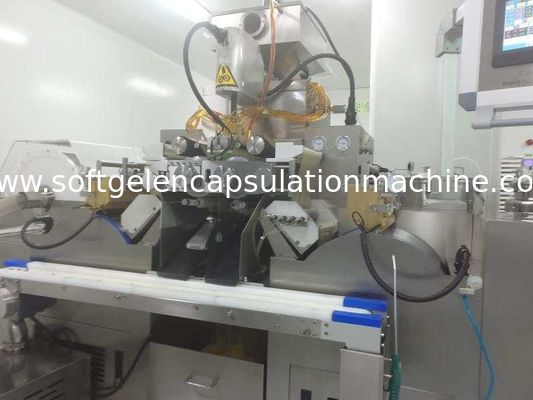

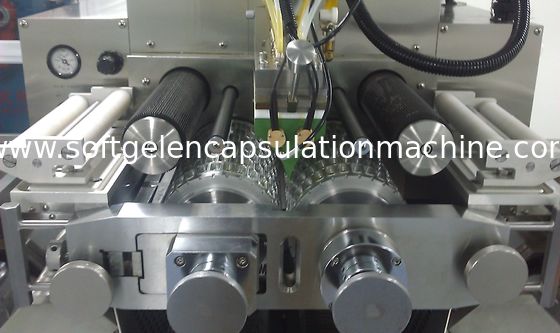

Large Scale Softgel Encapsulation Machine For oil filling  into capsule 0

Push-up system for Shut-off valve assembly during breaking the electric power.
Continue the same width of gelatin ribbon as changing the machine speed.

The  control panel on the top of the machine allows an operator to monitor all functions of the machine while running the machine instead of the separated control panel from
the machine.

The productivity can be changeable depending on the viscosity of filling material, room condition
& the worker’s skill.
The cavity of die roll can be changeable depending on the buyer’s sample





Quick Detail



Product Name

Large scale Softgel encapsulation machine

Driven Type

Electric

Capacity

120000pcs /hour, 8#OV

Dosage deviation

<±1.5%

Application

Food, pharmaceutical,softgel making machine

Control

PLC



Product Description



Soft Capsule Making Machine can quantificationally inject the oil, mixing suspension and pasty mass into the capsule to form all kinds of softgel encapsulation with different size, shape and color. Because of the merits of high speed disintegration, easy to oray, hard to oxygenation, easy to store. So soft capsule making machine is becoming more and more popular for customers. Due to high productivity, charging exactly, quality stabilization, high finished product rate, it is favored by more and more manufactures and applied in the fields of medicine, health products, sports paintball and cosmetic, etc.

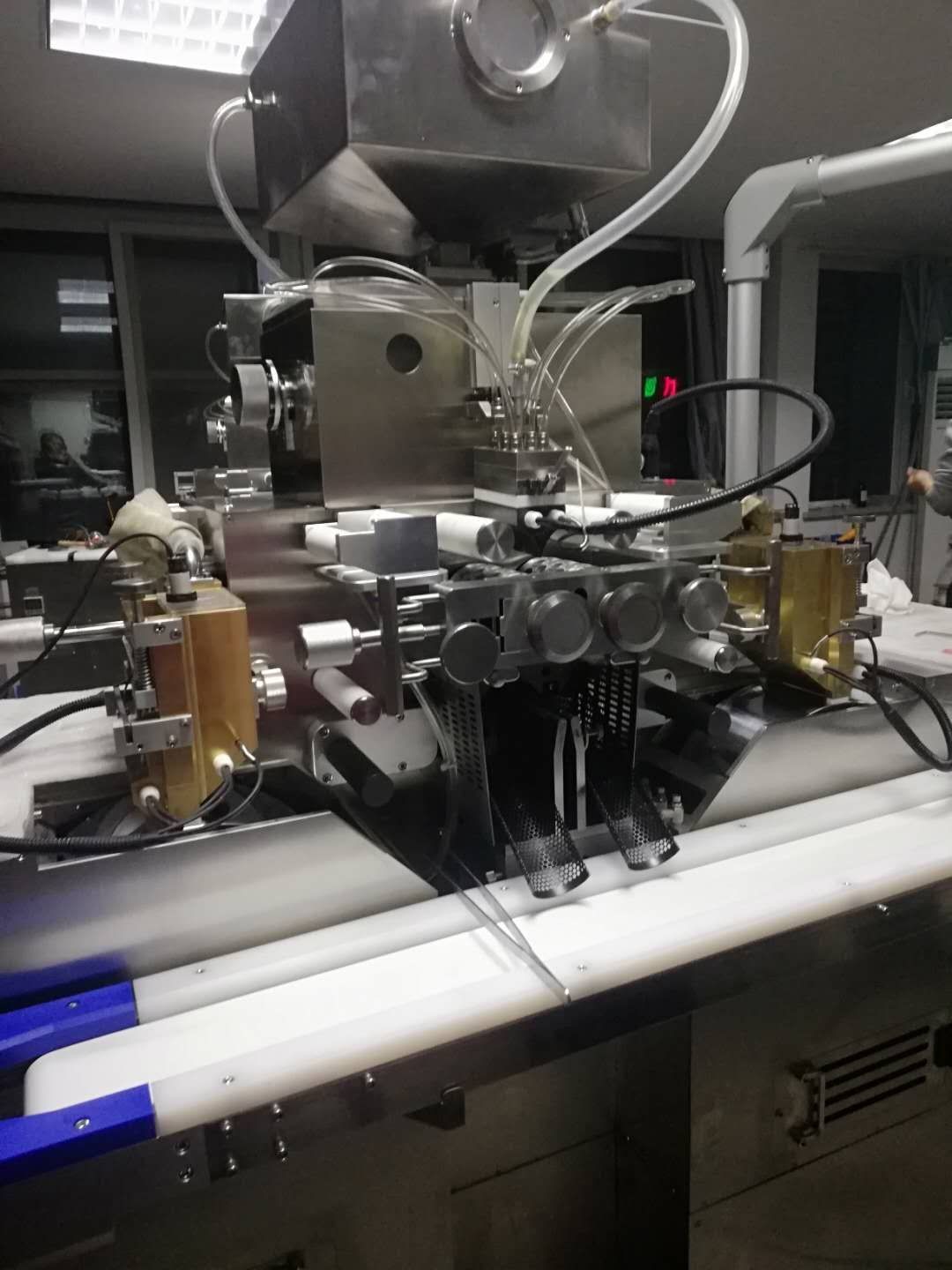

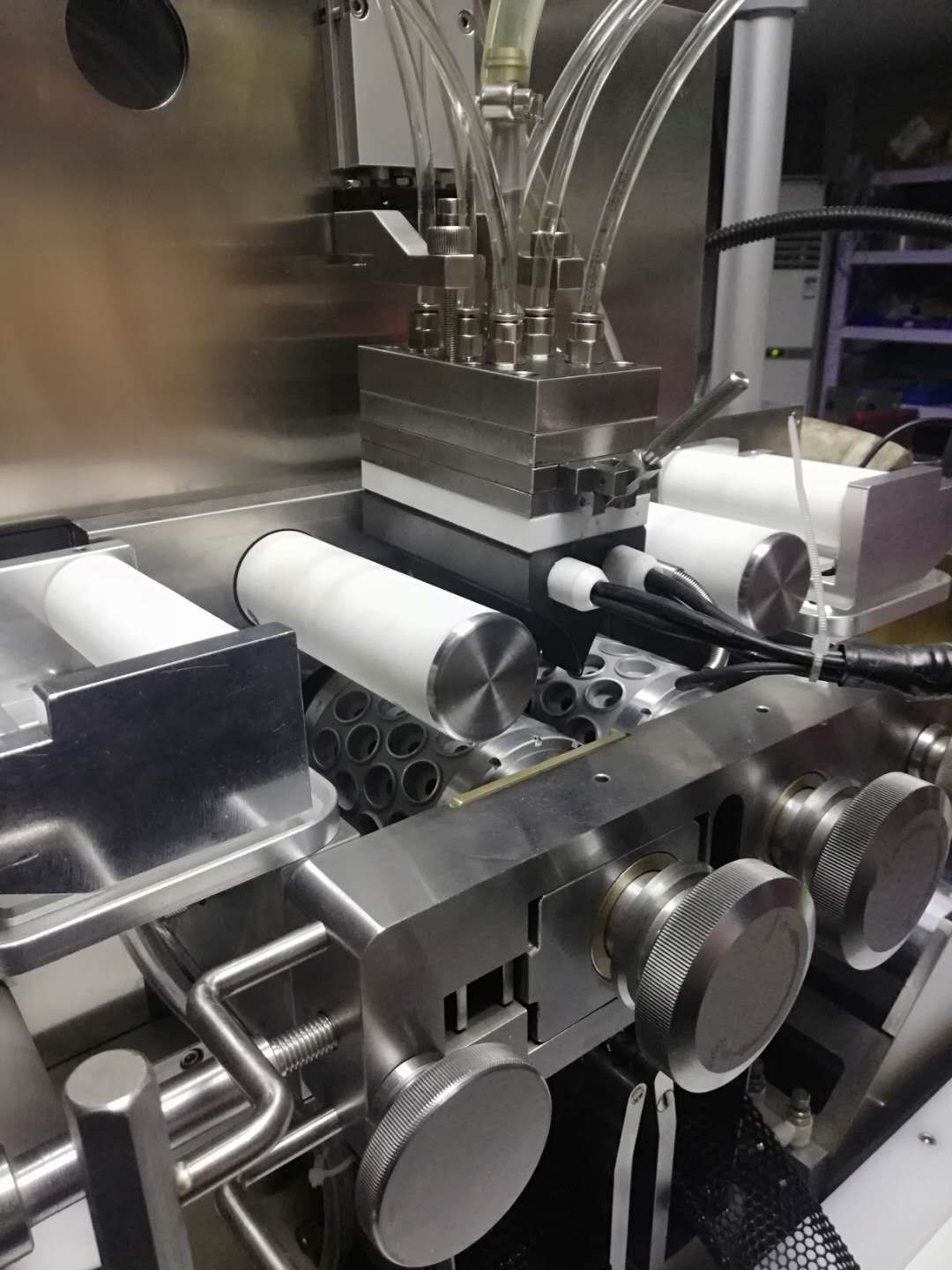

Large Scale Softgel Encapsulation Machine For oil filling  into capsule 1


Specification


Model

S610

Die roll size

150×250mm

Die roll speed

0~5rpm

Max plunging volume per stroke

0~2ml

Plunger numbers

20/24

Overall dimension

2050×1200×1850

Weight of main machine

1900kg

Power consumption

20 kw

Control mode

PLC+Touch Screen

output

8#OV115,440 pcs/hour



Competitive Advantages

1. Full automatic. easy to operate .
2. Siemens constrol system and famous brand electric parts.
3. Precisional machine & Hi-steady.
4. Best machine from China.
5. Conforming to GMP and  ul.
6.Servo   moter for gelatin spreader box
7. special desidn in the gear box .
8. Micro lub system, save oil and cost.
9.Easy to clean , no need to discharge the machine.
10. Technion traninng and installation.

Automatic Softgel Making Machine, Soft capsule Encapsulation Machine, Paintball Encapsulation Machine

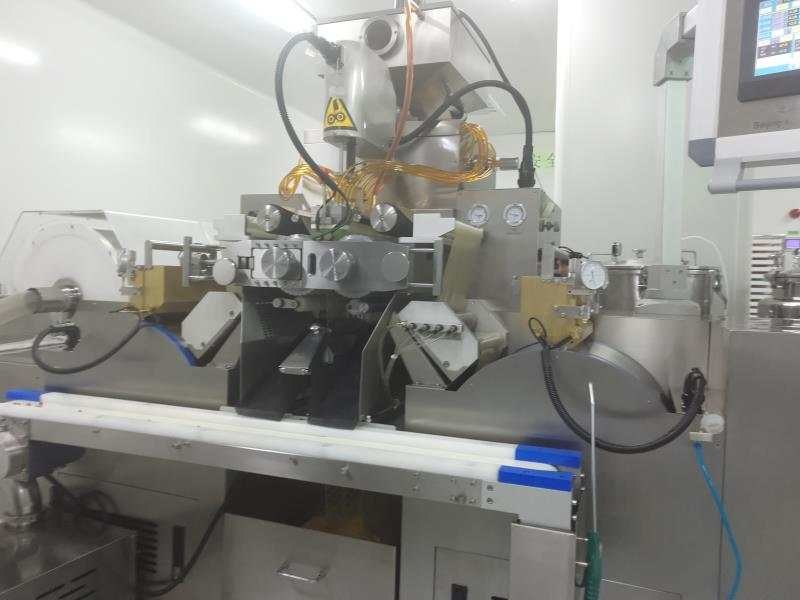

Large Scale Softgel Encapsulation Machine For oil filling  into capsule 2

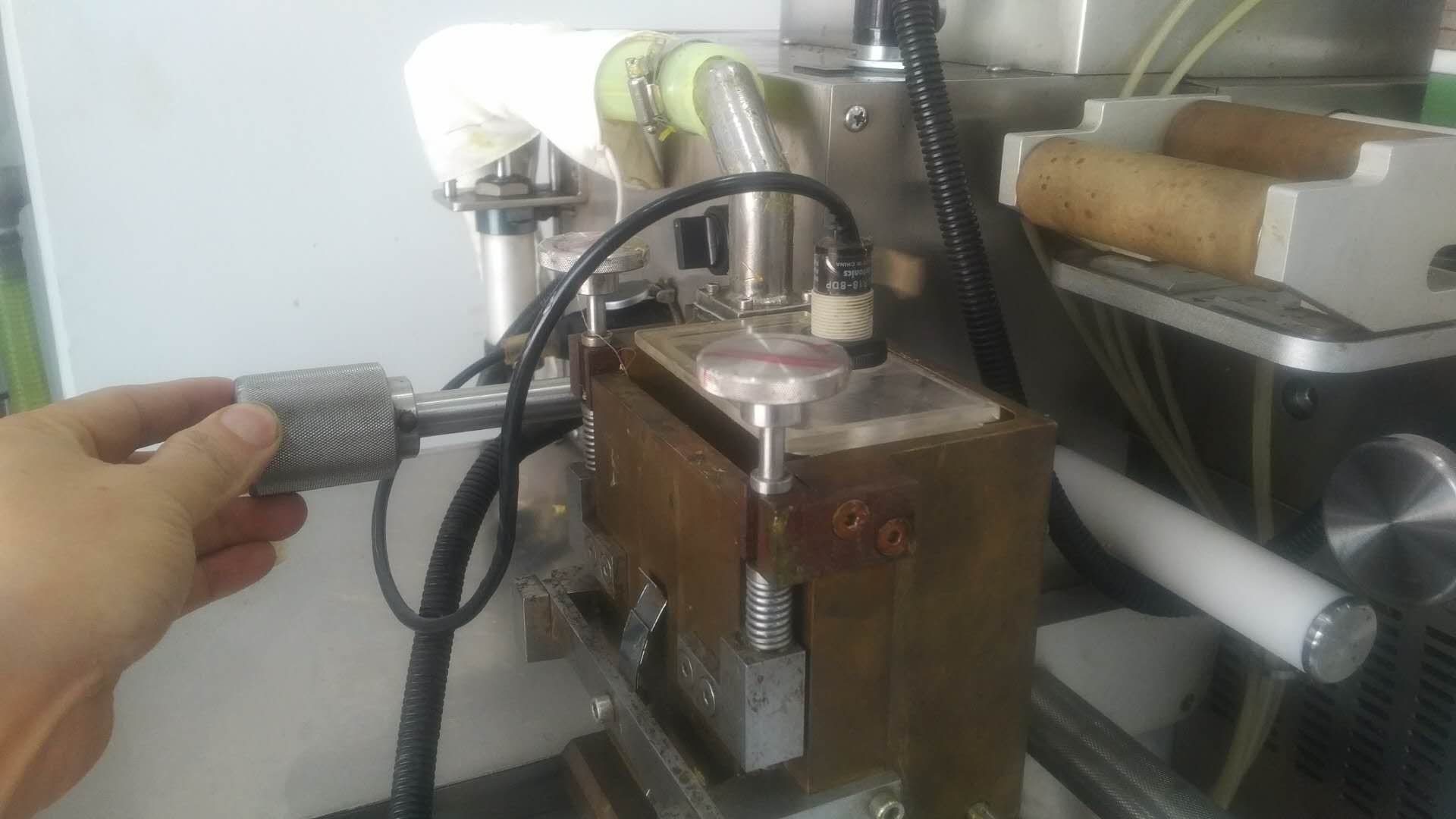

Large Scale Softgel Encapsulation Machine For oil filling  into capsule 3
