Big Scale Fish Oil Softgel Capsule Machine / Encapsulation Machine S610

Certification
Good quality Paintball Encapsulation Machine for sales
Good quality Paintball Encapsulation Machine for sales
I'm Online Chat Now

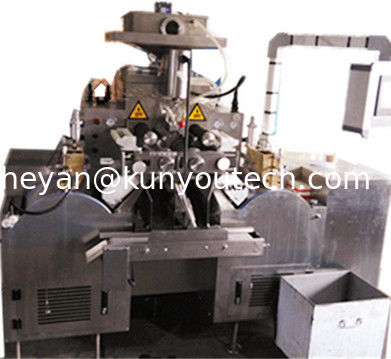

Big Scale Fish Oil Softgel Capsule Machine / Encapsulation Machine S610

China Big Scale Fish Oil Softgel Capsule Machine / Encapsulation Machine S610 supplier
Big Scale Fish Oil Softgel Capsule Machine / Encapsulation Machine S610 supplier Big Scale Fish Oil Softgel Capsule Machine / Encapsulation Machine S610 supplier Big Scale Fish Oil Softgel Capsule Machine / Encapsulation Machine S610 supplier Big Scale Fish Oil Softgel Capsule Machine / Encapsulation Machine S610 supplier Big Scale Fish Oil Softgel Capsule Machine / Encapsulation Machine S610 supplier

Large Image :  Big Scale Fish Oil Softgel Capsule Machine / Encapsulation Machine S610

Product Details:

Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: S610

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 100,000-30,000USD
Packaging Details: Wood cages
Delivery Time: 30-60 days
Payment Terms: T/T, L/C
Supply Ability: 10 sets Per month
Contact Now
Detailed Product Description
Name: Capsule Filling Machine Capacity: 120,000 Capsules Per Hour@4rpm
Die Roll: 150*250mm Power: 13.5

Big Scale Fish Oil Softgel Capsule Machine / Encapsulation Machine S610



Product Application


Soft Capsule Encapsulation Machine Product Description

Fish oil / Vitamin large scale soft capsule encapsulation machine’s mechanical parts adopt independent single adjustable lubrication, reducing mechanical wear and prolonging the time without any mistakes. The drug pump can run together with the capsule mould automatically and synchronously, it’s very convenient to adjust the spraying time.

And the control system has faults diagnosis function. It can realize remote diagnosis after the upgrade.

The cage can be disassembled without moving dryer. It’s easy to clean. There are material receiving discs under the roll cage, making S610 large softgel making machine more in line with the requirements of GMP.

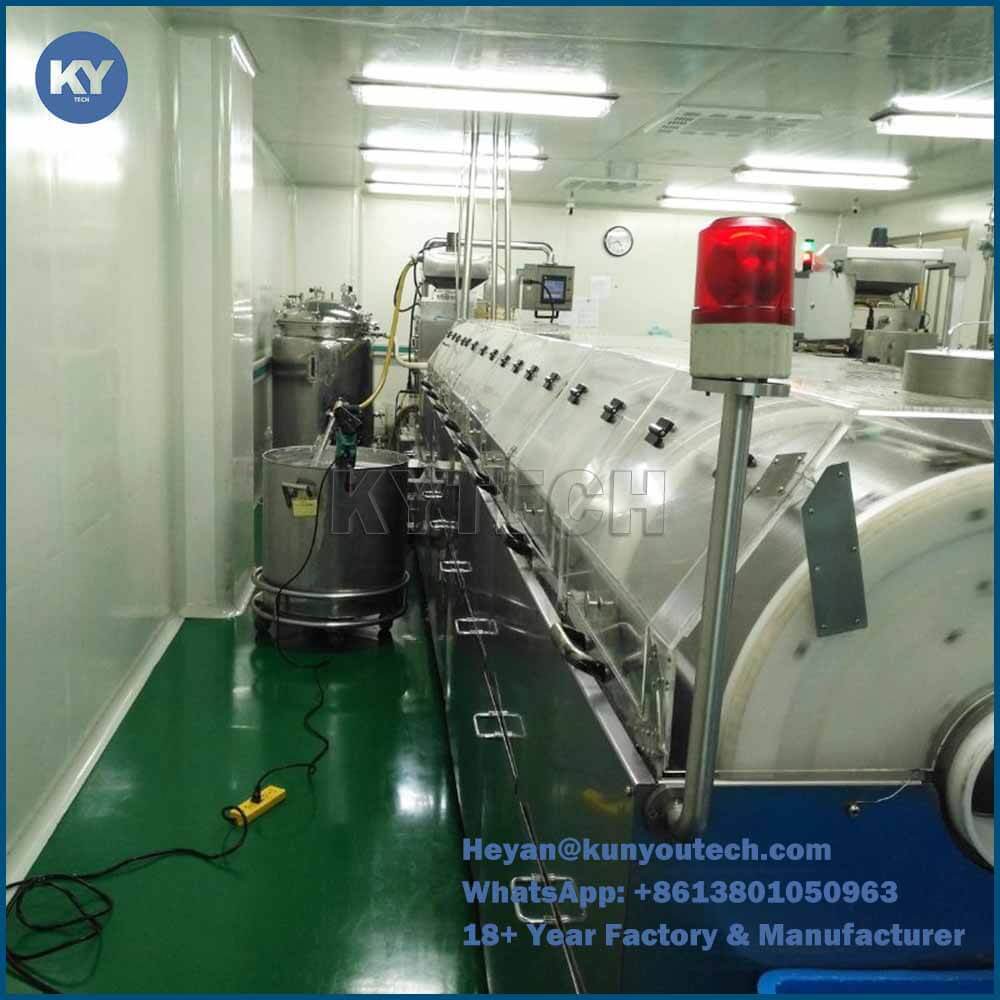

S610 roll type soft capsule automatic production line is used to press and inject the oil liquid, suspension liquid or paste quantitatively and encapsulated them in the gelatin, then producing different sizes and different shapes of the sealing softgels. The production line is mainly composed of main machine, tumbler dryer, fill material system and pneumatic theroms plastic barrels, etc.

Specifically speaking, it has the following characteristics:

Capsule brushes are driven by independent motor to prevent the gelatin stuck into the die roll cavity.

Separate lubrication system for medicine pump and die roll assembly.

Water cooled drum also have air blowers

PLC and touch screen control with self-trouble diagnostic.

High accuracy medicine pump. The diameter tolerance of the 20 plungers are less than 0.005mm.

Fish Oil Vitamin Large Scale Soft Capsule Encapsulation Machine

Our softgel making machine not only can produce soft capsule, such as fish oil, vitamin, but also can produce bath beads for cosmetic.


Fish Oil Vitamin Large Scale Soft Capsule Encapsulation Machine

SPECIFICATIONS FOR S610 Softgel Capsule Machine
S610

Model
Power
13.5KW

Die roll size

150×250mm


Capacity
12000capsule
8#OV@4rpm

Main performance parameters
Main performance parameters
Overall dimension

2050×1200×1850

Travel speed (max. & min.)
rpm
0-7
Weight
1900
kg
Control mode







Max plunging volume per stroke
2ml

Plungers Number
20

Control
PLC+Touch Screen

Big Scale Fish Oil Softgel Capsule Machine / Encapsulation Machine S610




Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Certifications




Detailed Images
Big Scale Fish Oil Softgel Capsule Machine / Encapsulation Machine S610

Machine Parts

Name:Micro Lubrication





Machine Parts

PU Conveyor

Can change easiler



Big Scale Fish Oil Softgel Capsule Machine / Encapsulation Machine S610

Machine Parts

Name: SS316 Hopper

Double Layer ,can be desiger as your requirement

Main Features

Name: Pump
Can be with Ti and other material coating ,As your requirement

Big Scale Fish Oil Softgel Capsule Machine / Encapsulation Machine S610
Our Service

Formula supplying
Factoy layout design
Spare parts manufacture

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Big Scale Fish Oil Softgel Capsule Machine / Encapsulation Machine S610
Packaging
Size
 Total about 45 cubic meters the wholes production line
Weight
7T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
