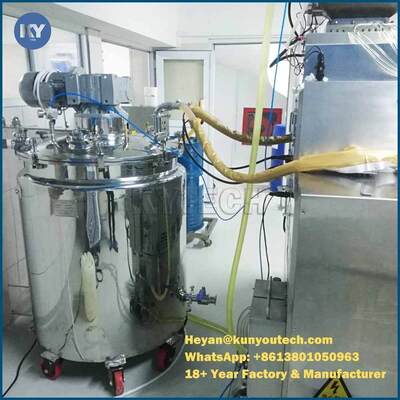

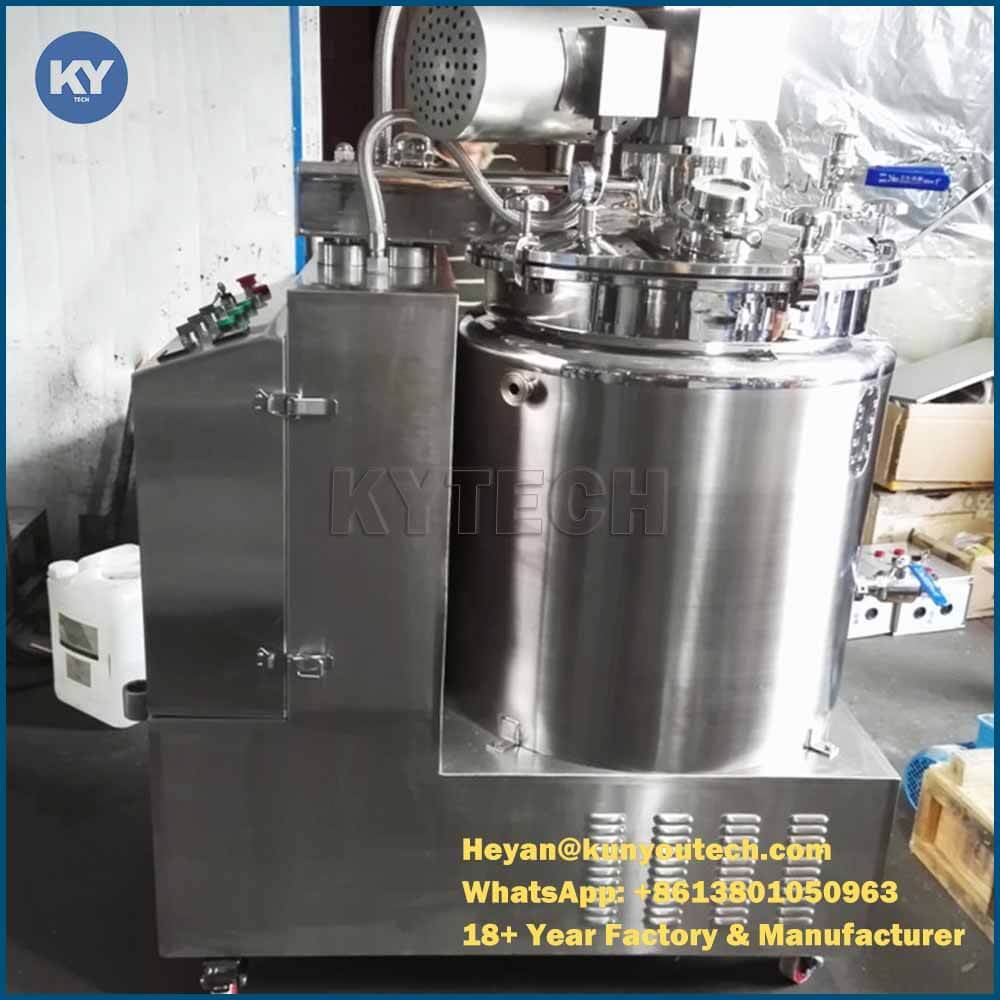

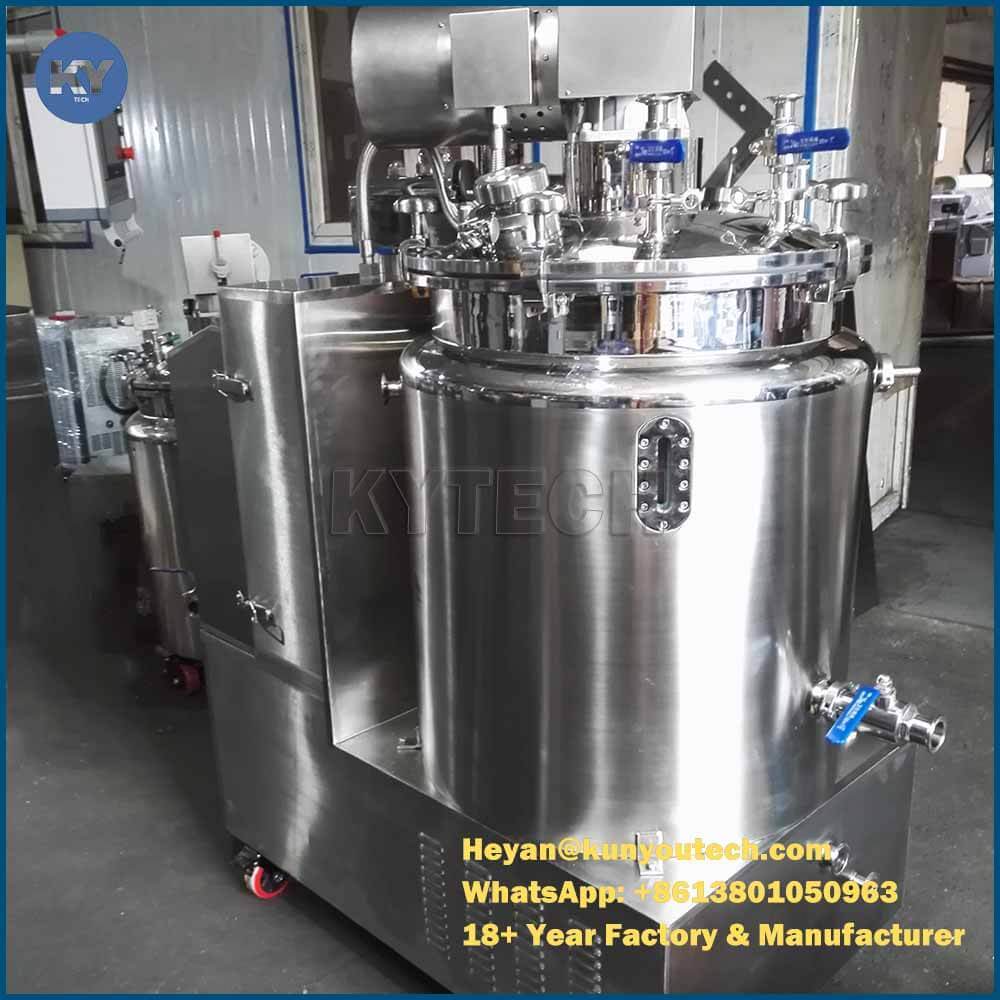

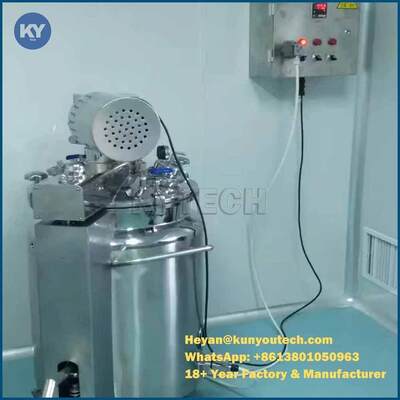

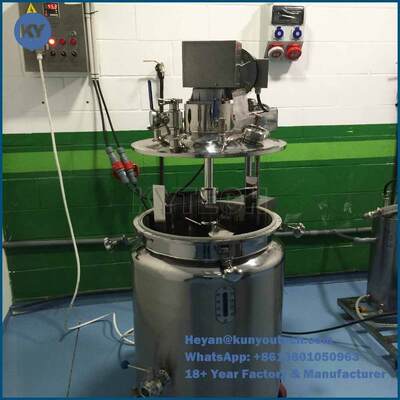

Industrial Jacketed Pressure Gelatin Melting Tank with stirrer 150l - With Auto Vacuum System

The gelatin melting and service tank is used to melting the gelatin and keep the gelatin mass at a desired temperature and supply the gelatin to the encapsulation machine. We have both gravity feeding tank and pressure feeding tank. The plug and socket is IP65 grade make it easier to clean the tank.

The gelatin service tank is used to keep the gelatin mass at a desired temperature and supply the gelatin to the encapsulation machine. We have both gravity feeding tank and pressure feeding tank. The plug and socket is IP65 grade make the tank easier to be cleaned. The gelatin service tank is used to keep the gelatin mass at a desired temperature and supply the gelatin to the encapsulation. We have both gravity feeding tank and pressure feeding tank. The plug and the socket is IP65 grade make the tank easier to be cleaned.

Structure: Three layered water bathe

Material: SUS304,Medicine contacting parts SUS316

Standard: GB150-1998 and GMP

Max vaccum: <-0.09 MPa

Oening : Gel inlet 160*130mm, View glass φ60mm

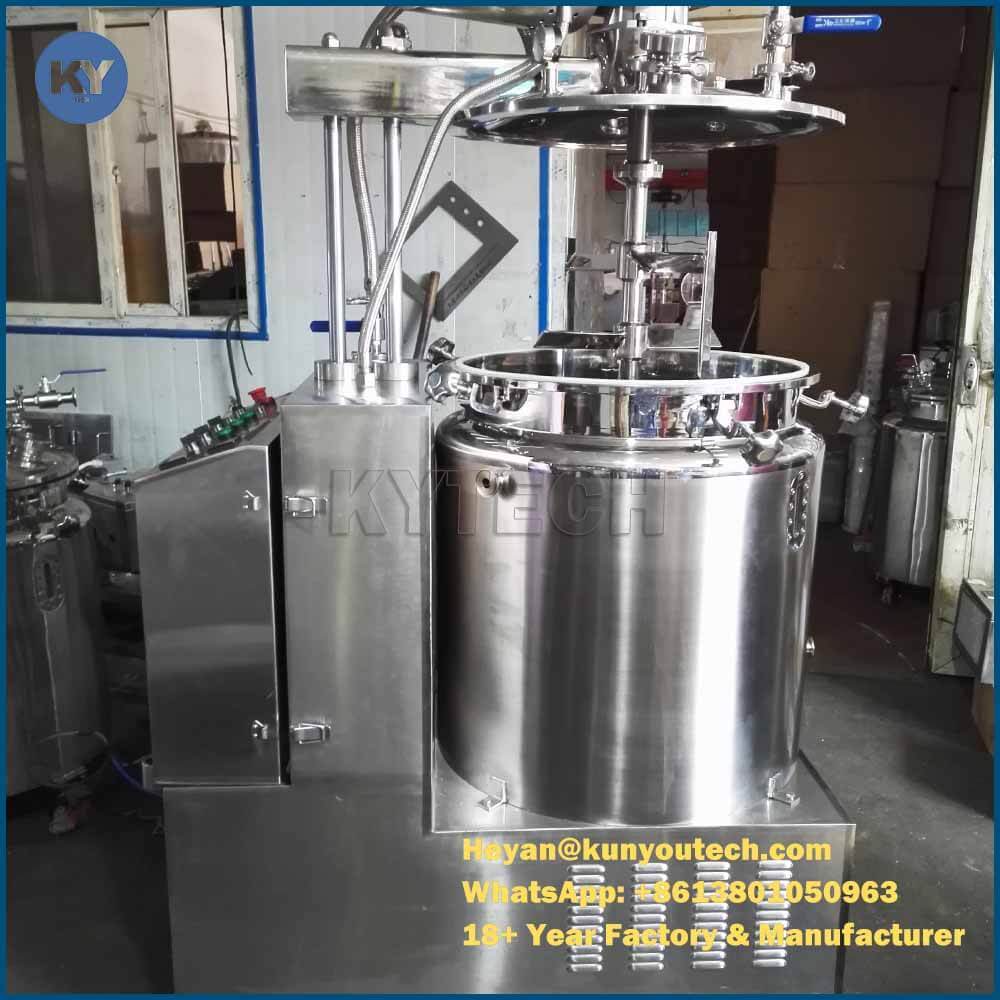

Hydraulic lift range: 500mm

Gelatin discharge: Upper outlet

Temperature sensor: bottom RTD sensor

Power: 380V/240V 50/60Hz 7.5kW

1. Water bath type gelatin tank is a special equipment for melting gelatin and production process.
2. The gelatin melting tank has the advantage of compact structure, stable transmission and stable running performance.
3. The mixing/stirring process is operated through connecting loop coupling and is composed of plurality of split agitator with stable transmission and better homogenization effect. The whole body of the tank is made of stainless steel.
4. The body include three layers, including the tank liner, heating jacket and heat preservation layer.
5. Heating the inner of the tank with the circulation hot water, it will be featured by fast heating, good thermal insulation performance, improving the quality of gelatin, accelerating the gelatin melting and shorten the melting time.
6. The liner is closed totally with very good vacuum performance.
7. The feeding mouth is convenient o assemble and repair. The whole tank is very smooth and bright with features of convenient cleaning, anti-corrosion and anti-acid, etc. Gelatin melting tank adopts stainless steel construction for its whole body.
8. During its working process, the machine will suck moisture from inside of the tank, leaving the vacuum. All these are in accordance with the requirement of GMP. So the gelatin melting tank is an ideal equipment for the soft capsule pharmaceutical line.
