Manufacture the best softgel capsule /paintball machine for you！
|Place of Origin:||China|
|Minimum Order Quantity:||1set|
|Packaging Details:||Wooden cages|
|Payment Terms:||L/C, T/T|
|Supply Ability:||30 set per month|

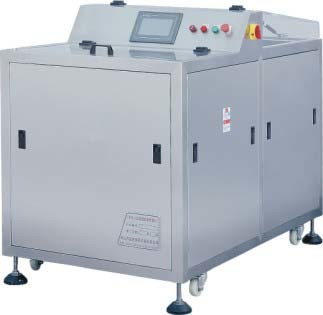

|Product Name:||Nut Bolt Screw Hardware Multi Vibration Plate Counting Packing Machine||Packing Speed:||40-230bags/min|
counting packing machine,
capsule inspection machine
FULLY Automatic High - Speed bottle unscrambler machine motor over load protection
1. With motor over load protection function;
2. Unscramble range: 10-500ml plastic bottle. Big volume of bottle storage silo, equipped with Mistubishi frequency convertor. Unscrambling speed 10-150 bottle/m adjustable. Accuracy over 99.9%, noise <70dB.
3. Electronically speed adjustment, photoelectrical control device automatically stop or continue transfer bottles when bottles crowd or lack in the downstream process.
4. Thanks for the big volume of bottle storage silo, do not need reload bottles in 30-60 minutes after loading. This unscramble has inverted bottle blow-out device, can blow the inverted bottles back into bottle storage silo.
5. It’s easy and quick for replacing size part, only need 5 minutes for trained worker. All the parts contacting with materials are made from 304 stainless steel, parts contacting with medicine are made from 316 stainless steel. Easy for clean and disinfection, no blind angle.
6. Enclosed construction, running stably.
|capacity (b/m)||bottle (ml)||Voltage/frequency||Tower||Air pressure||Size(mm)||Weight(kg)|
|Unscramble bottle machine||120||15–150||AC220V /50-60 Hz||300W||0.3–0.5 Mpa||1065*1600*1260||300|
|Swing several pieces filling machine||120||15–150||AC220V/50Hz||1.5kW||0.3–0.5 Mpa||2000*800*1600||600|
|Desiccant filling machine||120||15–150||AC220V/50Hz||260||Reel packaging materials (inner hole diameter/width) 300-350mm||1600*900*1600||300|
|Capping machine||120||15–150||AC220V/50Hz||1.5KW||Cap diameter 19-65mm||2600*700*1950||600|
|Aluminum foil sealing machine||180||15–150||AC220V/50Hz||2KW||Cap diameter15-60mm||400*700*1150||85|
|AC220V/50Hz||2KW||bottle height 30-150mm||
label length 25-240
label width 25-70
Put medicine into the top silo When it is working, adjusting the vibration feeder let the medicine in the silo gradually along with the vibration slot ,turning into the continuous strip line and drop into the landing, and then drop into the detection channel one by one.
It is adopted photoelectric effect theory, input the signal generated of the falling down for the medicine by using infrared ray dynamic scanning sensor into the high performance microprocessor (DSP).Counting function realized through electronic and mechanical coordination.
SL-30 equip with 8 channels of medicine falling into one outlet,SL-60 equip with 2 SET 8 channels of medicine falling into two separate outlet,SL-120 equip with 3 SET 8 channels of medicine falling into three separate outlet, let the filling set numbers medicine into the bottle.
|NO of channels||(SL-30)8 channels|
|Max produce speed||100/bottle, 10-40bottles/min|
|Tablet＇s specifications||diameter: 2.5-12mm, length:3-24mm|
|Height of bottle||40-240mm|
|Input power||220V 50Hz|
length of conveyor: 1700mm
2.1 Usage: suitable for soft capsules/ softgel, hard capsules, tablets, special-shaped tablets and other solid tablets.
2.3 Fastening structure, electrical control parts are sealed, avoiding drug powder affects the working life of electrical components.
2.4 Automatic detection,when no bottle or bottle fall down automatically shutdown.
2.5 Infrared scanning electric eye with function of automatic filling, and limit alarm and shutdown.
2.6 The Matrix type electric arrangement design make sure the detection channel open wide,which is also suitable for small size pills counting. Some counting machine from other factory have gap between the infrared receiving terminals, those gaps may cause the counting is not accurate.
2.7 60/120 machine adopts the automatic lifting system, other machine lifting by hand.
The original is casting vibration plate, While it is vibration plate instead of sliding in new design. It is much Faster, better stability. Using linear vibrating disc electromagnetic oscillation,so the vibration amplitude can be adjusted. With Higher speed to guarantee that the separating grains faster.
With DC vibrator, Capsule vibration is much stable, It can make the grain (including irregular tablets) move smoothly. Grain sliding orbits adopts two layers of ladder type and lengthened track, grain layer by layer walk down, The distance between grain and grain will be larger thus can avoid them overlaps.
It is with full set of original pneumatic components, especially using the electromagnetic valve island integration, to ensure the accuracy of bottling.Special valve cylinder, and solenoid valve control group and other supporting parts, all sealed, avoid drug dusts affect the use of electrical components, prolongs the service life, not easy to damage.
Two vacuum cleaner designing, dust suction holes (groove) on the left tail vibrator of as well as the begining of the tail which powder in it to collection and sucked out by a vacuum cleaner.
The vacuum tube according to aerodynamic principles of scientific design, can reduce the influence of dust.
By controlling the size and position of the wind inlet, air inlet, air volume, the dust is effectively sucked.
We can make various shape and size softgel mould or paintball die roll according to your requirements. Usually it will take about 6-7 days to make a new set of mould. One set of mould includes one pair of die roller, one injection wedge, one distribute plate and one timing gear. We make the mould with imported grade aircraft alloy. It's very durable.
We also provide the maintain service for you.
