2 Layers Big Air flow Encapsulation Tumbler Dryer TD2 and TD3

China 2 Layers Big Air flow Encapsulation Tumbler Dryer  TD2 and TD3 supplier
2 Layers Big Air flow Encapsulation Tumbler Dryer  TD2 and TD3 supplier 2 Layers Big Air flow Encapsulation Tumbler Dryer  TD2 and TD3 supplier 2 Layers Big Air flow Encapsulation Tumbler Dryer  TD2 and TD3 supplier 2 Layers Big Air flow Encapsulation Tumbler Dryer  TD2 and TD3 supplier

Large Image :  2 Layers Big Air flow Encapsulation Tumbler Dryer TD2 and TD3

Product Details:

Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: TD-3

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Delivery Time: 30-60 days
Payment Terms: T/T, L/C
Contact Now
Detailed Product Description
Material: SS316 Size Dia: 900
Size Length: 1010 Control: PLC
Brand: Kunyou Dry Material: Air

Double Layers Big Air flow Encapsulation Tumbler Dryer With Hydraulic lift syetem





Quick Detail



Product Name

 Softgel Tumble Drying Machine/ Tumble Dryer

Power consumption

0.75kw

Drying fan Motor(KW)

0.55KW

Basket per section

1

Application

Drying softgel/paintball or pills or fish oils,etc





2 Layers Big Air flow Encapsulation Tumbler Dryer  TD2 and TD3



Product Description



TD-3 Soft Capsule (Softgel) and paintball Tumble dryer is used to predry and initial shaping of soft capsule (softgel) and paintballs. TD-3 Soft Capsule (Softgel) and paintball Tumble dryer is the largest domestic drying tumble currently. Each section is provided with two large air blowers. The organic glass cover of TD-3 Soft Capsule (Softgel) and paintball Tumble dryer can be opened with safety protection. The standard configuration is 8 sections. Each section is equipped with an independent fan to make softgels and paintballs distribute evenly, thus making the drying effect much better. Each dryer can be easily removed and easy to clean, so it’s more in line with the requirements of GMP. Each dryer is equipped with electrostatic guiding device and safety production device. The operator can conveniently make the dryer stop just in the tumble dryer position.

Application



1. TD-3 Soft Capsule (Softgel) and paintball Tumble dryer is used to predry and initial shaping of soft capsule (softgel) and paintballs.
2. It’s for pharmaceutical enterprises, health care products, cosmetics and paintball production line.

2 Layers Big Air flow Encapsulation Tumbler Dryer  TD2 and TD3
Specification


Model

TD-3

Basket diameter(mm)

730

Basket length(mm)

1010

Weight (ton)

2ton

Drying fan(kw)

0.55

Motor Power(kw)

0.75

Basket per section

1



Competitive Advantage



1. The largest domestic drying tumbler druer.

2. Two large air blowers in each cage

3. Each cage can regulate speed separately

4. Safety protection device in the rotate of the basket and the material discharge.

5.Guide block and discharge place is made of plastic by mole casting ,capsule will not stack .

6.Net polished in ineer and outer face.

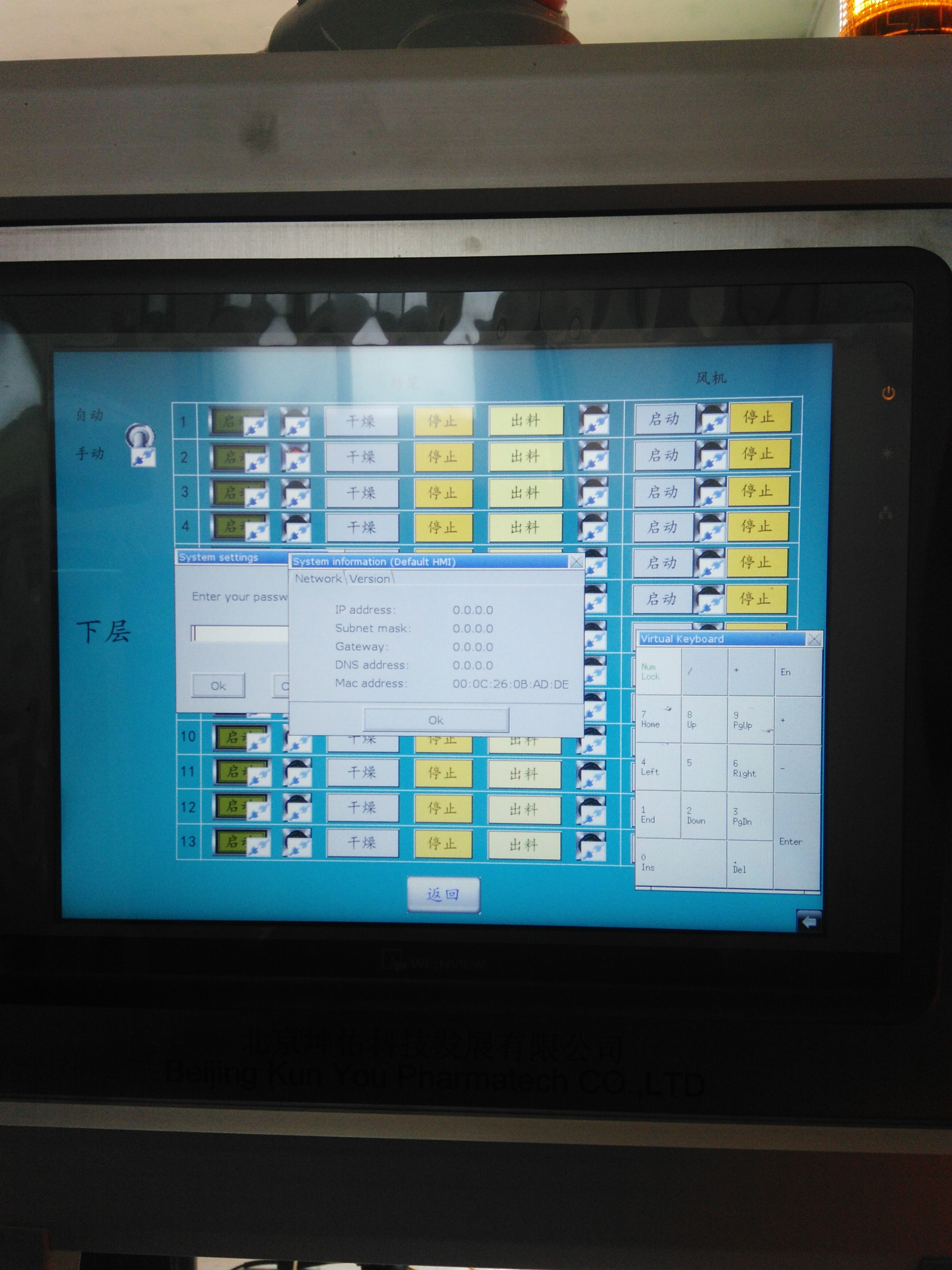

7.Touch screen can be control by PLC of main machine or the tumbler dryer seperately.

8.2 layer design, space saving ,with lift fork for the basket dischage.

9.Cover can be steel and PC.

10.size can be as your requirement.



drying tumbler for soft capsule, drying tumbler for paintballs, soft capsule dryer, paintball dryer, paintball drying machine, soft capsule /softgel drying machine
