High Precision Softgel Capsule Mold Tooling Paintball Die Roll Adjustable Rotate Speed

China High Precision Softgel Capsule Mold Tooling Paintball Die Roll Adjustable Rotate Speed supplier
High Precision Softgel Capsule Mold Tooling Paintball Die Roll Adjustable Rotate Speed supplier High Precision Softgel Capsule Mold Tooling Paintball Die Roll Adjustable Rotate Speed supplier High Precision Softgel Capsule Mold Tooling Paintball Die Roll Adjustable Rotate Speed supplier High Precision Softgel Capsule Mold Tooling Paintball Die Roll Adjustable Rotate Speed supplier High Precision Softgel Capsule Mold Tooling Paintball Die Roll Adjustable Rotate Speed supplier High Precision Softgel Capsule Mold Tooling Paintball Die Roll Adjustable Rotate Speed supplier

Large Image :  High Precision Softgel Capsule Mold Tooling Paintball Die Roll Adjustable Rotate Speed

Product Details:

Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: Ø150X250

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Delivery Time: 7-10 days
Payment Terms: T/T, L/C
Supply Ability: 10 Pairs per week
Contact Now
Detailed Product Description
Material: Copper / Aluminum Sitable: Painball / Soft Capsule
Size: Ø150X250 Rotate Speed: Adjustable
Shape: Round / Olive / Oblong /Special-shaped Capacity: 8#OV 108780 Cps / H

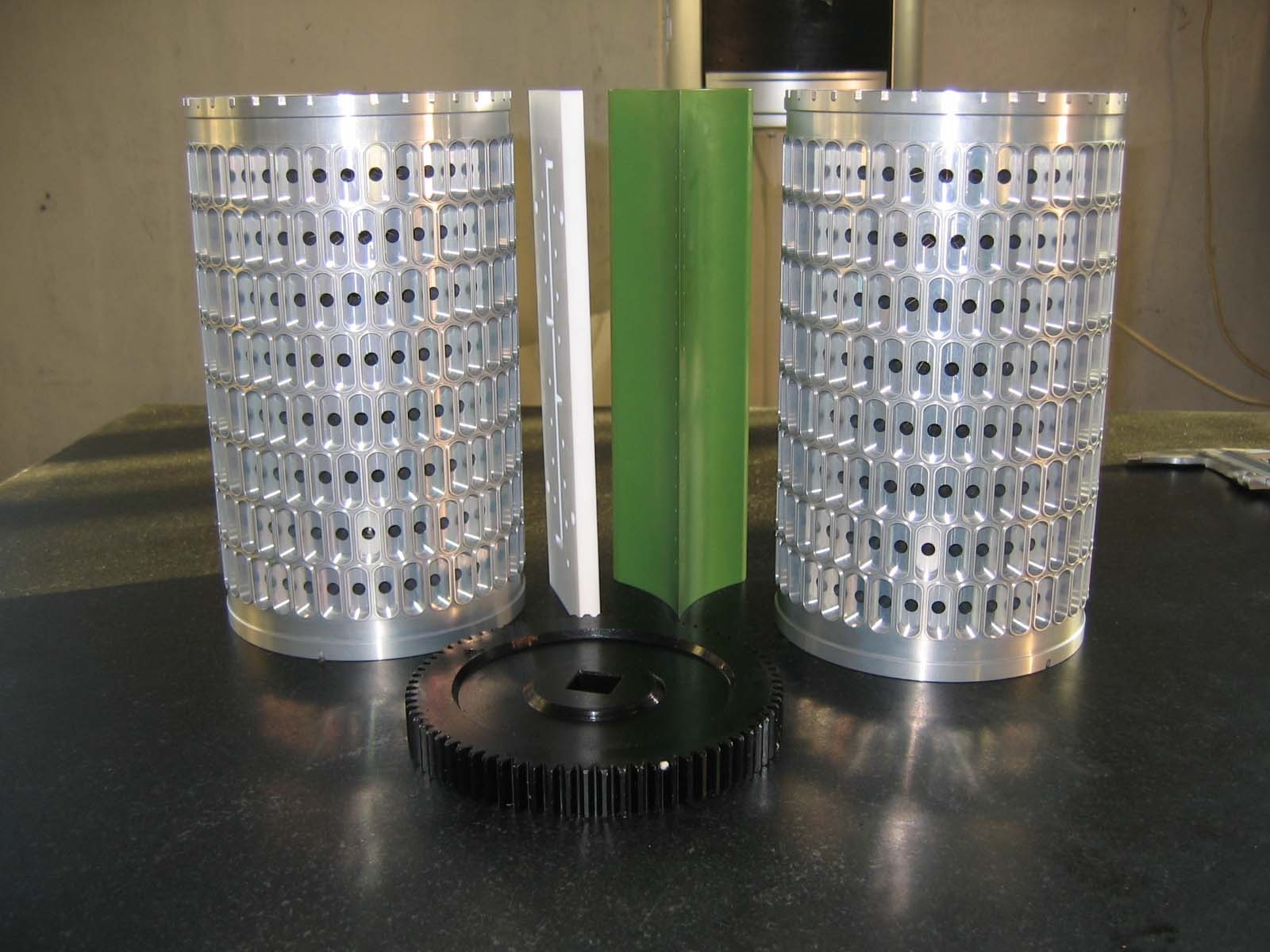

Aviation Aluminum Alloy Paintball Die Roll With Wedge Distribute Plate Timing Gear

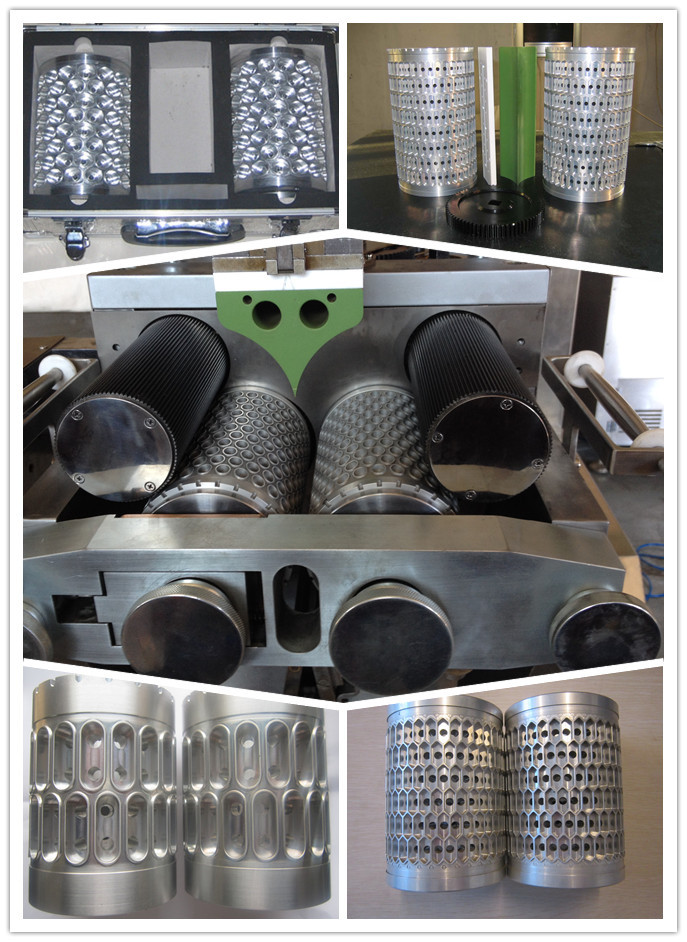

Ø 150 X 250mm Capsule Mold / Paintball Die Roll With Wedge , Distribute Plate & Gear





Quick Detail



Product Name

Large Die roll for softgel and paintball

Model

Ø 150 X 250

Place of Origin

Beijing, China(Main land)

Material

Aluminium alloy

Die roll Speed

0~5 rpm







Product Description

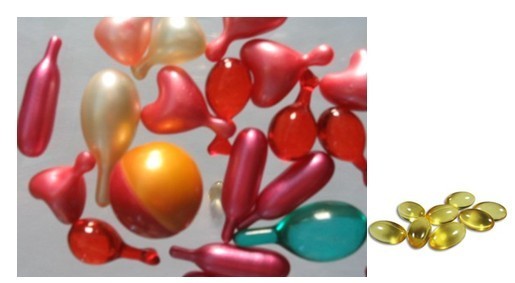

The paintball die rolls are widely used for paintball making enterprises and pharmaceutical enterprises. It can make round and beautiful paintballs according to customers’ requirements. The raw material of die roll is imported aircraft grade aluminium alloy which has very good strength and tension. Its tension degree can get to 570 MPa and 150 Brinell hardness. Using the imported aircraft grade aluminium alloy can significantly prolong the life of dies. Besides, users can largely reduce the using cost because there are usually four times to repair during its life cycle.



After processing these dies roll, technologists will make special surface treatment technology so as to further improve the mold surface hardness and corrosion resistance. In designing softgel die rolls, we strongly absorbed much experience from home and abroad to make better die rolls which can reduce the leakage and net rate and improve the stability of the soft capsule and paintball production.

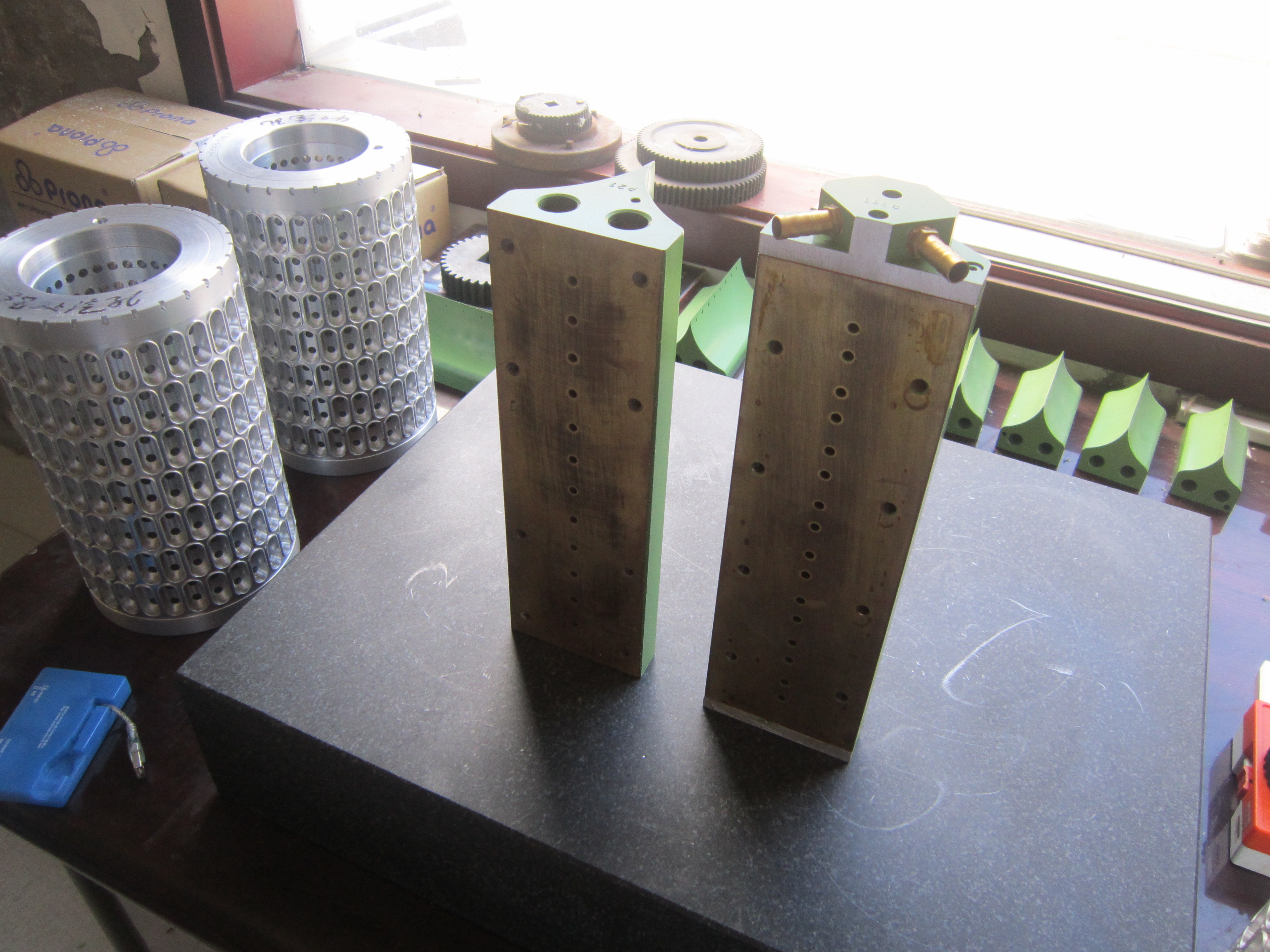

The material can be avation Al and Brass, the wedge can be with water heating and electric heating ,We also manufacturing the Al injection for the paintball production .



High Precision Softgel Capsule Mold Tooling Paintball Die Roll Adjustable Rotate Speed



Application



It’s widely used for softgel and paintball making enterprises and pharmaceutical enterprises, including cosmetic manufacturing company and health products manufacturing company and nutrition foods manufacturing.



Specification



Model

Ø150X250

Die roll diameter(mm)

Ø150

Die roll length(mm)

250

Die roll speed

0-5rpm

Plunger Qty.

20

Machine Overall Dimension(mm)

2050×1200×1850mm

Machine Weight(kg)

1900kg

Machine Power(kw)

20kw

Control

PLC.touch screen

High Precision Softgel Capsule Mold Tooling Paintball Die Roll Adjustable Rotate Speed

Competitive Advantage



1. Widely used for softgel and paintball making enterprises and pharmaceutical enterprises

2. The raw material is imported aircraft grade aluminium alloy
3.product: Metal: Aluminium, copperproduct: Metal: Aluminium, copper
4. product: Metal: Aluminium, copper
5. Make different die roll according to customers’ requirements
6. Softgel Capsules Making machine for laborotary and small scale production

Soft capsule die roll, softgel mold, softgel die  roller and paintball die roll, paintball mold.
Welcome to inquire!

High Precision Softgel Capsule Mold Tooling Paintball Die Roll Adjustable Rotate Speed
