Capsule Mold For Soft gelatin Encapsulation Machine

1 set
MOQ
Capsule Mold For Soft gelatin Encapsulation Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Highlight:

herbal capsule maker

,

plastic cover mold

Basic Infomation
Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: Ø 103X152
Payment & Shipping Terms
Packaging Details: Wood cages
Delivery Time: 7-10 days
Payment Terms: T/T, L/C
Supply Ability: 10 Pairs per week
Product Description
Capsule Mold For Soft gelatin Encapsulation Machine
Quick Detail
Product Name Medium Die roll for softgel and paintball Brand Name KUN YOU
Place of Origin Beijing, China(Main land) Material Aluminium alloy
Die roll Speed 0~5 rpm Model Ø 103X152
Product Description

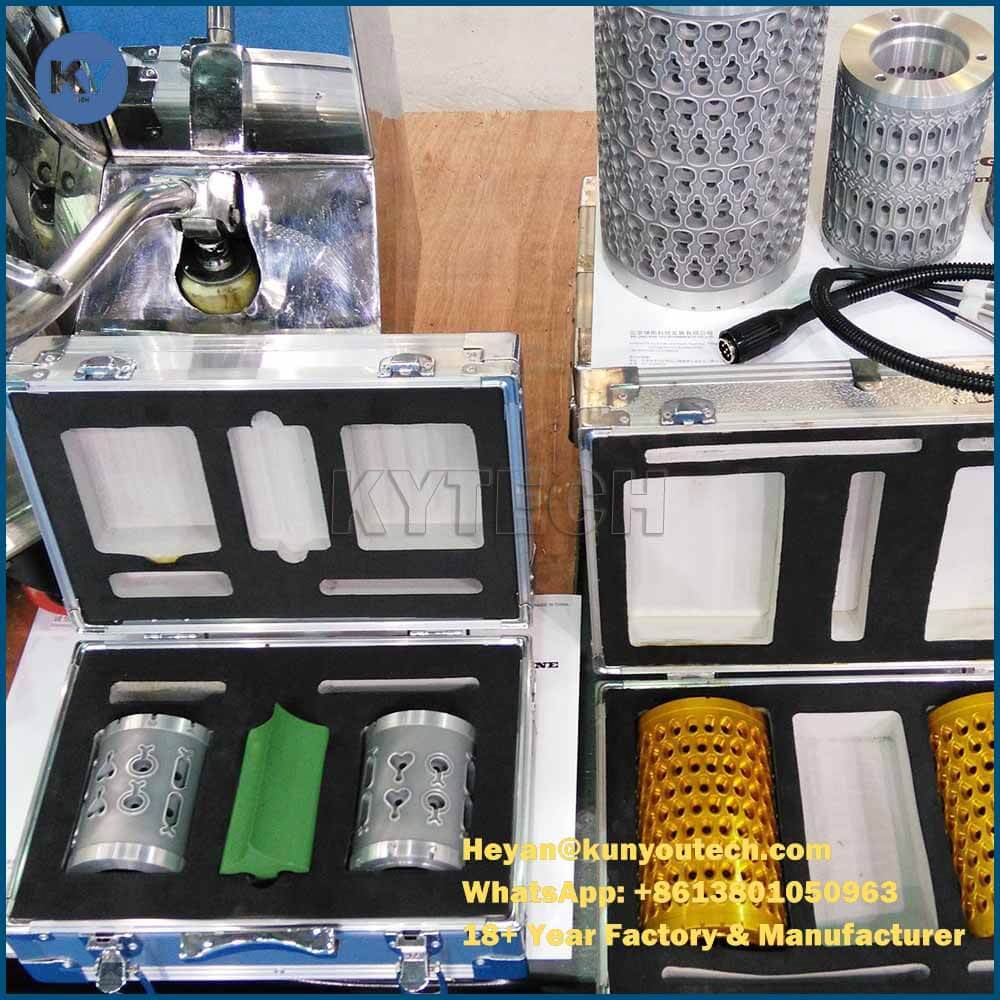

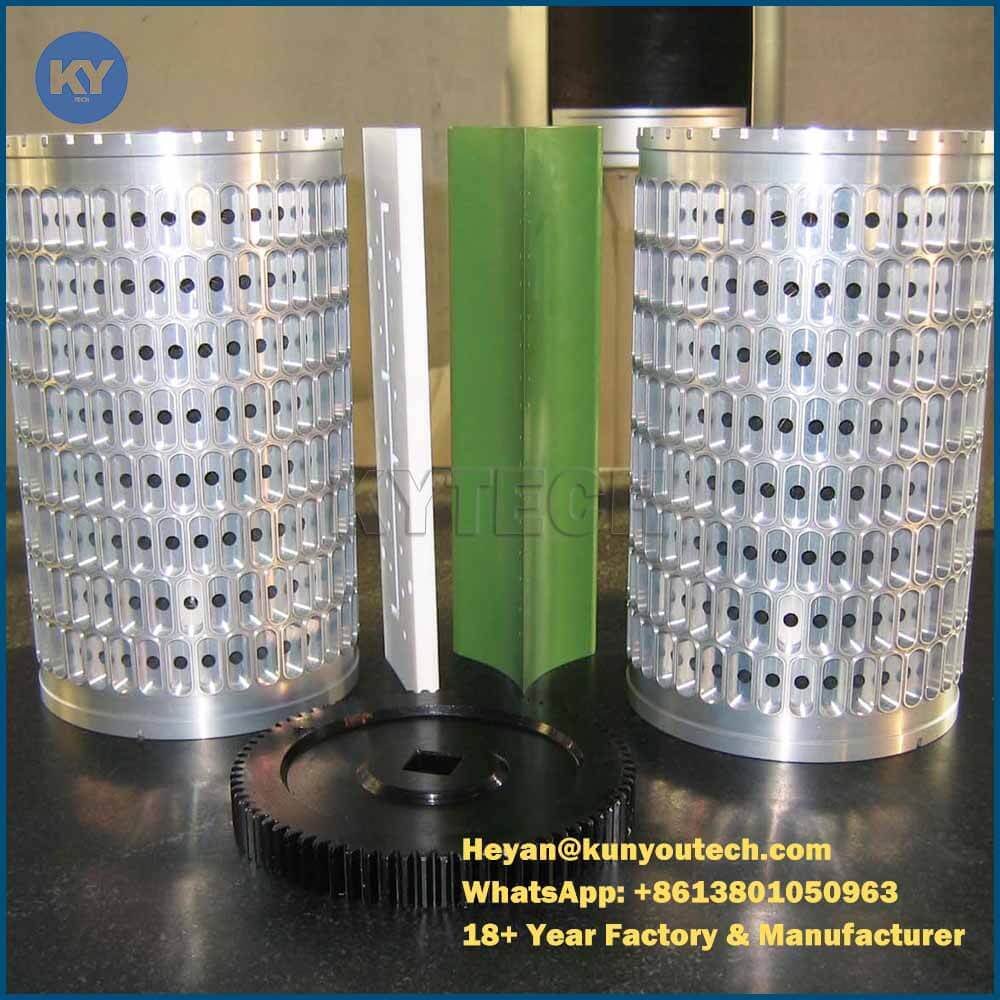

The soft capsules die roll are widely used in softgel making machines for softgel making enterprises and pharmaceutical enterprises. It can make various types of softgel and according to customers’ requirements. S406 Soft capsule die roll is used for S406 Soft capusle making machine which is suitalble for medium scale production. The raw material of die roll is imported aircraft grade aluminium alloy which has very good strength and tension. Its tension degree can get to 570 MPa and 150 Brinell hardness. Using the imported aircraft grade aluminium alloy can significantly prolong the life of dies. Besides, users can largely reduce the using cost because there are usually four times to repair during its life cycle. After processing these dies roll, technologists will make special surface treatment technology so as to further improve the mold surface hardness and corrosion resistance. In designing softgel die rolls, we strongly absorbed much experience from home and abroad to make better die rolls which can reduce the leakage and net rate and improve the stability of the soft capsule and paintball production.

Capsule Mold For Soft gelatin Encapsulation Machine 0

Specification
Model Ø 103X152
Die roll diameter(mm) Ø103
Die roll length(mm) 152
Die roll speed 0-5rpm
Plunger Qty. 10
Machine Overall Dimension 880×640×1900mm
Machine Weight(kg) 900kg
Machine Power(kw) 7kw
Control PLC.touch screen
Competitive Advantage
  • Widely used for softgel and paintball making enterprises and pharmaceutical enterprises
  • The raw material is imported aircraft grade aluminium alloy
  • Various types of softgel and round paintball
  • product: Metal: Aluminium, copper
  • Make different die roll according to customers’ requirements
  • Softgel Capsules Making machine for laborotary and small scale production

Soft capsule die roll, softgel mold, softgel die roller and paintball die roll, paintball mold. Welcome to inquire!
