Paintball Softgel Encapsulation Machine SS Material With Printer Low Energy Consumption

Paintball Softgel Encapsulation Machine SS Material With Printer Low Energy Consumption

    • Paintball Softgel Encapsulation Machine SS Material With Printer Low Energy Consumption
    • Paintball Softgel Encapsulation Machine SS Material With Printer Low Energy Consumption
  • Paintball Softgel Encapsulation Machine SS Material With Printer Low Energy Consumption

    Product Details:

    Place of Origin: China,Beijing
    Brand Name: Kunyou
    Certification: CE,ISO9001
    Model Number: S 403/S406/S610/S407

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: Wood cages
    Delivery Time: 30-90 days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 30 Set/Sets
    Contact Now
    Detailed Product Description
    Brand: Kunyou Service: Teachnion Avaliable
    Material: SS Warantee: 1 Year
    Die Toll: 4.6.10inches Electric: Seimens
    High Light:

    softgel encapsulation machine

    ,

    soft gel capsule machine


     Low Energy Consumption Electric Softgel Encapsulation Machine





    Quick Detail



    Product Name

    Softgel Encapsulation Machine

    Driven Type

    Electric

    Brand Name

    KUN YOU

    Material

    Stainless Steel

    Application

    Food, pharmaceutical,softgel making machine

    Capsule shape

    OV, OB,etc

     Paintball Softgel Encapsulation Machine SS Material With Printer Low Energy Consumption 0

    Production Description

    Our company is a professional supplier for softgel making machine and paintball making machine. Our softgel making machine is divided into three models, small model, medium model and large model. For small scale softgel production, our S403 R&D softgel making machine maybe fit for your requirements, it can produce about 20000 pcs softgels per hour. And S406 Softgel Encapsulation Machine is suitable for medium scale production, its production rate can get to 40000 pcs softgels per hour. The largest model, S610 Softgel Encapsulation Machine  can produce 120000 pcs softgels per hour. We provide the whole line of softgel making, including the gelatin melting system, fill material system, softgel encapsulation machine and softgel drying machine. All the machine is made of high quality stainless steel and spare parts from famous brands. And we adopt the gelatin ribbon micro lubrication system.


    Applications:

    It’s mainly for softgel and paintball making enterprises and pharmaceutical enterprises, especially for R&D department of laboratories, pharmaceutical factories in the universities and plant health products and Research Institutes.It also can suitable for cosmetic manufactures, such as bath beads and Collagen capsule.



    Specification


    Model

    S403

    S406

    S407

    S610

    Die roll diameter(mm)

    80

    103

    103

    150

    Die roll length(mm)

    100

    152

    172

    250

    Die roll speed

    0-5

    0-5

    0-7

    0-5

    Plunger Qty.

    6

    10

    12

    20

    Dimension

    1450×600×1350

    880×640×1900

    800×2200×2000

    2050×1200×1850

    Weight(kg)

    600

    900

    1200

    1900

    Power(kw)

    2kw

    7kw

    13kw

    20kw

    control

    PLC.touch screen


    Paintball Softgel Encapsulation Machine SS Material With Printer Low Energy Consumption 1




    Competitive Advantage:

    1. Small size, low energy consumption
    2. Easy to operate and clean
    3. High precision
    4. Small load difference
    5. Gelatin ribbon micro lubrication system
    6. Important parts use aviation grade high wear-resisting material



    Softgel making machine,Soft capsule making machine,Soft capsule encapsulation machine,Softgel machine,Soft capsule manufacturing machine,Softgel manufacturing machine,Softgel making equipment





    Big Volume Gelatin Melting Tank



    Paintball Softgel Encapsulation Machine SS Material With Printer Low Energy Consumption 2



    Specification



    Model 450L 600L 800L 1000L
    Capacity(L) 650 900 1120 1370
    Melting gelatin(L) 100-450 150-600 200-800 300-1000
    Heating area(M2) 3.2 4 4.8 5.5
    Max degree of Vacuum(Mpa) 0.09 0.09 0.09 0.09
    Max Temperature(°C) -100 -100 -100 -100
    Motor Power (KW) 4 5.5 7.5 7.5
    Stirring speed (r/min) 50 50 50 50
    Dimension (mm) Φ1210X1880 Φ1310X1980 Φ1410X2080 Φ1510X2130

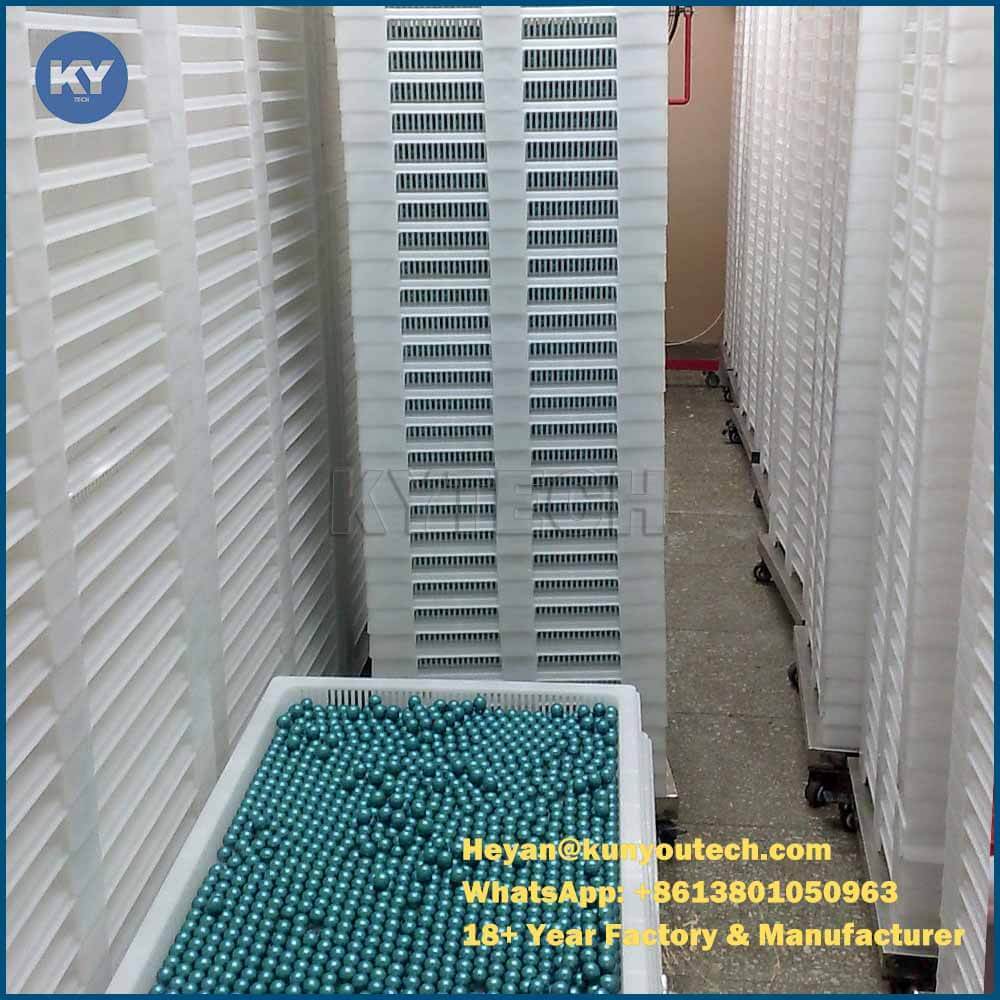

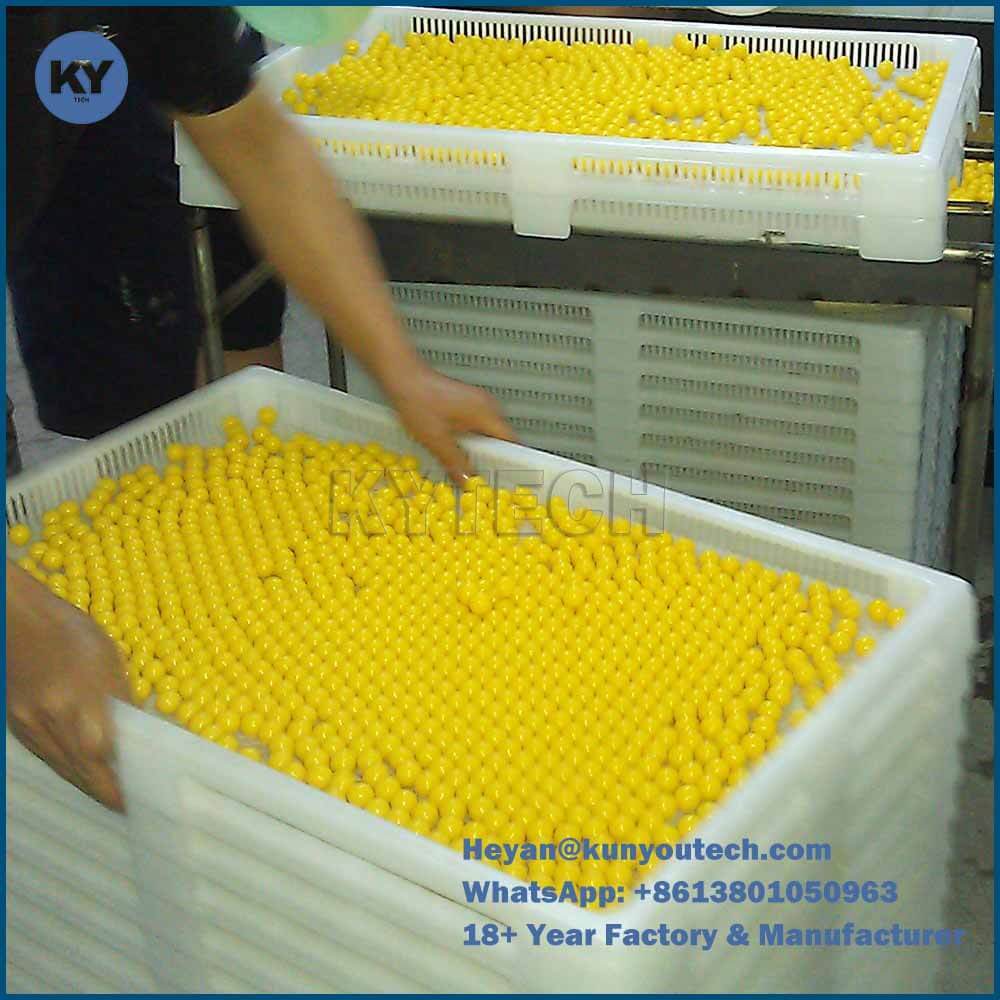

    Our company can also provide the complete line for softgel making and paintball making, softgel die roll and paintball die roll, plastic drying trays and trolley.

    Paintball Softgel Encapsulation Machine SS Material With Printer Low Energy Consumption 3



    FAQ

    Q1:Are you factory or trading company?

    A: We are factory and manufacture.



    Q2: Where is your factory located? How can I visit your factory?

    A: We are located in Beijing, you can fly to Beijing airport or Nanyuan airport. Wecan pick you up from the airport or your hotel.Welcome to visit us!



    Q3:How to place my order?

    A: Just contact us via TraderManager, E-mail, Skype or telephone to confirm the product, make the deposit then we will start to manufacture.



    Q4 : What is the payment term?

    A: 30% T/T deposit and 70% T/T balance payment before shipping.



    Q5:How long is the delivery time?

    A: About 3-7 working days.

    Paintball Softgel Encapsulation Machine SS Material With Printer Low Energy Consumption 4
