S403 Roll Type Soft Capsule Paintball Machine Automatic Production Line 4 Inch Die Roll

Certification
Good quality Paintball Encapsulation Machine for sales
Good quality Paintball Encapsulation Machine for sales
I'm Online Chat Now

S403 Roll Type Soft Capsule Paintball Machine Automatic Production Line 4 Inch Die Roll

China S403 Roll Type Soft Capsule Paintball Machine Automatic Production Line 4 Inch Die Roll supplier
S403 Roll Type Soft Capsule Paintball Machine Automatic Production Line 4 Inch Die Roll supplier S403 Roll Type Soft Capsule Paintball Machine Automatic Production Line 4 Inch Die Roll supplier S403 Roll Type Soft Capsule Paintball Machine Automatic Production Line 4 Inch Die Roll supplier S403 Roll Type Soft Capsule Paintball Machine Automatic Production Line 4 Inch Die Roll supplier

Large Image :  S403 Roll Type Soft Capsule Paintball Machine Automatic Production Line 4 Inch Die Roll

Product Details:

Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: S403PB

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Payment Terms: T/T, L/C
Contact Now
Detailed Product Description
Application: Paintball Production Type: Paintball Production Line
After-sales Service Provided: Engineers Available To Service Machinery Overseas Warranty: 1 Year
Product Name: Softgel Encapsulating Machine Control: PLC Control
State: New

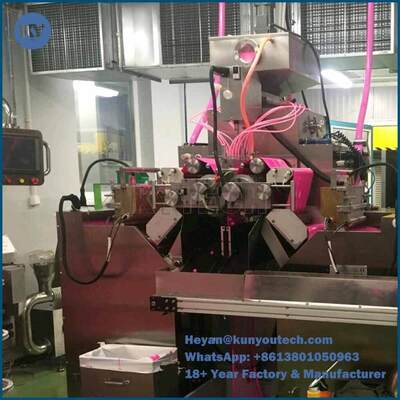

S403 Roll Type Soft Capsule Paintball Machine Automatic Production Line 4 Inch Die Roll

S403 Painball machine


Product Description

Product Application

S403 roll type soft capsule automatic production line is used to press and inject the oil liquid, suspension liquid or paste quantitatively and encapsulated them in the gelatin, then producing different sizes and different shapes of the sealing softgels.
The production line can be used for Vegetable gelatin capsule production with a little changes. We have helped many customers in USA ,Poland , Demark manufacturing the vegetable gelatin capsule successfully.
The production line is mainly composed of main machine, tumbler dryer, fill material system and pneumatic theroms plastic barrels, etc. This machine is the most popular model. It used normal scale production.


SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR
Engine
Engine model
Kw/rpm
15.5/4
Capacity
22800
@4rpm
Die Roll Size
φ80mm
100mm

Main performance parameters
Main performance parameters
2050×1200×1850
mms
Weight
900kg

Plunger numbers
10

Paitnball

7200
@2rpm

10800
@3rpm
Printer
Avaliable




S403 Roll Type Soft Capsule Paintball Machine Automatic Production Line 4 Inch Die Roll

Main Features

 Filling tolerance <±1.5%
 Maximum single plunger dosage- 2ml
 Die Roll Size — Ф80x100mm
 Die Roll Speed — 0~5rpm, stepless adjustable
 Main Motor Power— 0.75 kW
 Main Machine Power — 3kW
 Power — 3 Phase 220V/380V/415V,50Hz/60Hz
 Overall Dimensions(L x W x H) — 1650 x 800 x 2050mm


 Weight — 600kg
 The cooling drums are cooled by both water and air.

 Consumption of compressed air — 50NL/h
 Consumption of gelatin — 2.5L/h( at 3 rpm)
 Material consumption — 4.6L/h(at 3 rpm)


Detailed Images
S403 Roll Type Soft Capsule Paintball Machine Automatic Production Line 4 Inch Die Roll

Machine Parts

Name: Lubirication

 Lubrication oil consumption — 70g/h(Based on 3 rpm

Main Features

Name: Pump
Original: Germany
 Maximum single plunger dosage- 2ml
Dosage Devation <±1.5%

S403 Roll Type Soft Capsule Paintball Machine Automatic Production Line 4 Inch Die Roll


Machine Parts

Name: DieRoll
With wedge, distribution plate, etc.
Die rolls are made from aviation high hardness aluminum alloy, injection wedge made from copper and coated with PTFE, meet GMP requirement;


Main Features

Name: Electricity Part
Brand: Schineider
All the contactors, relays, breakers, switches and knobs are Schneider brand.
Control system adopts PLC control.




Packaging
Size
2050×1200×1850
Weight
900kg



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
