Automatic Paintball Encapsulation Machine Precise Control System 8000 - 32000 / H

Certification
Good quality Paintball Encapsulation Machine for sales
Good quality Paintball Encapsulation Machine for sales
I'm Online Chat Now

Automatic Paintball Encapsulation Machine Precise Control System 8000 - 32000 / H

China Automatic Paintball Encapsulation Machine Precise Control System 8000 - 32000 / H supplier
Automatic Paintball Encapsulation Machine Precise Control System 8000 - 32000 / H supplier Automatic Paintball Encapsulation Machine Precise Control System 8000 - 32000 / H supplier Automatic Paintball Encapsulation Machine Precise Control System 8000 - 32000 / H supplier

Large Image :  Automatic Paintball Encapsulation Machine Precise Control System 8000 - 32000 / H

Product Details:

Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Delivery Time: 30-90 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30 Set/Sets Per Year
Contact Now
Detailed Product Description
Application: Paintball Production Type: Filling Equipment
After-sales Service Provided: Engineers Available To Service Machinery Overseas Warranty: 1 Year
Product Name: Small Automatic Micro Fish Oil Paintball Softgel Encapsulation Machine Function: Making Soft Capsule
Power: AC380V 50Hz 9Kw Control: Full Automatic
Name: S610 Paintball Making Machine Soft Capsule Encapsulation Mahine: Stainlesss Steel SUS304
Usage: Softgel Encapsulation Machine





CS Paintball Automatic Encapsulation Machine / Precise Control System / 8000 - 32000 / H





Quick Detail



Control Mode

PLC+Touch Screen

Material

304 SUS

Application

CS Paintball Making

Certification

CE

Scale

Small/Medium/Large Scale Production

Capacity

32000pcs/hour Max



Product Description



Beijing Kun You Pharmatech Co., Ltd has three model Paintball Making Machine.

Paintball making machine is used for making different color paintballs for CS Real Man game.

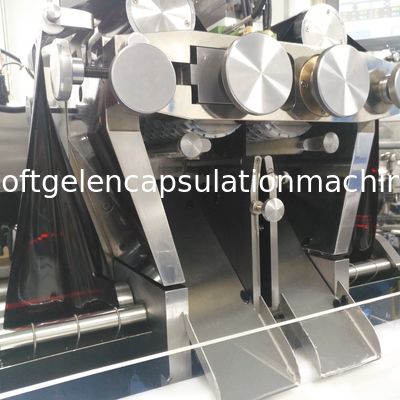

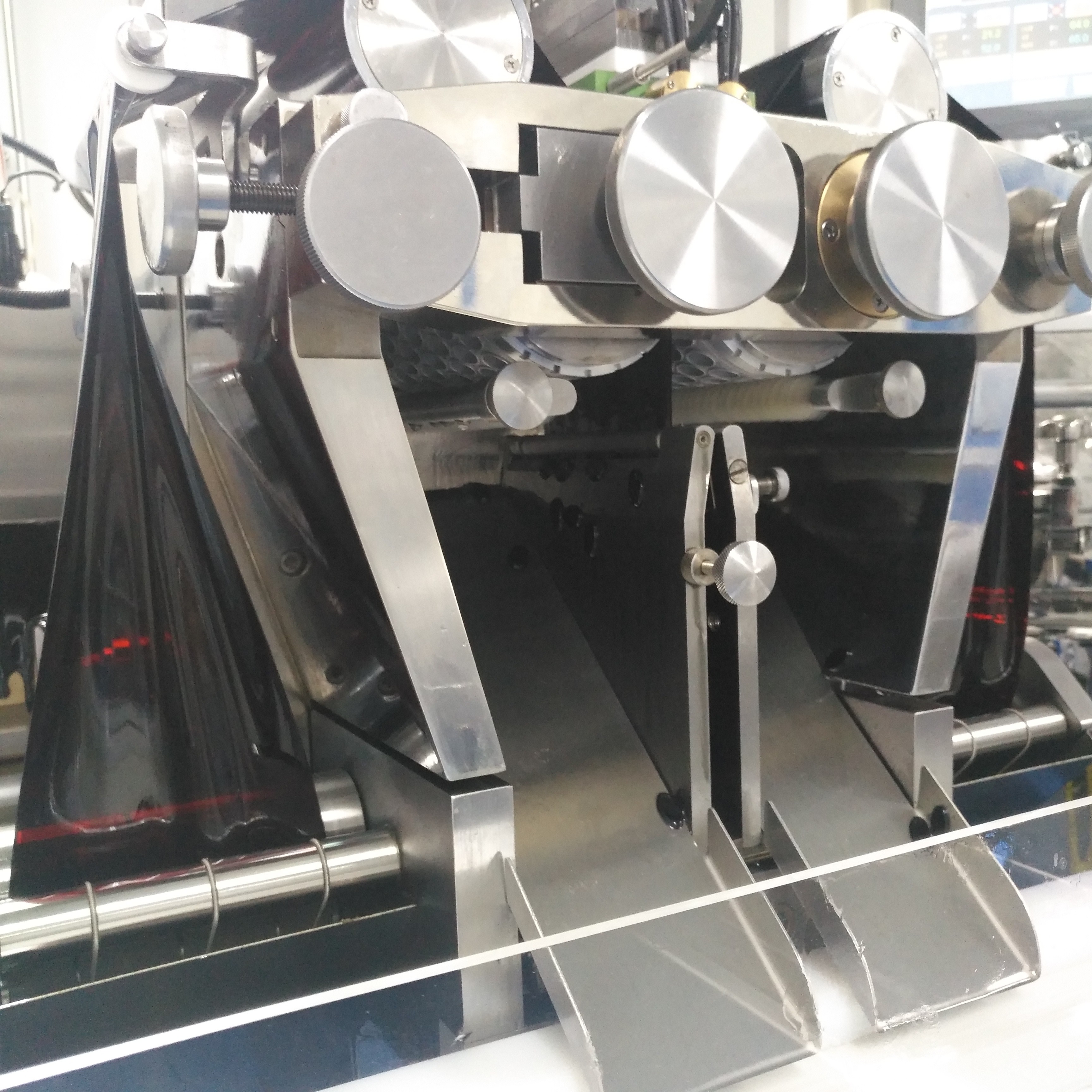

Automatic Paintball Encapsulation Machine Precise Control System 8000 - 32000 / H



Specification



Model

S403PB

S406PB

S610PB

Production Rate

8000pcs/hour

18000pcs/hour

32000pcs/hour

Consumption Power

3kw

7kw

20kw

Dimension(mm)

1100*600*800

880*640*1900

2050*1200*1850

Main Machine Weight(kg)

300kg

900kg

1900kg

Control Mode

PLC+Touch screen



Competitive Advantages



1. Small size, low energy consumption

2. Easy to operate and clean

3. High precision

4. Small load difference

5. Micro lubrication

6. High quality and intelligence control system, PLC true color touch screen technology adopted by the electronic control system. All electric parts use world brand parts, such as Siemens, Schneider.

7. The hopper can keep medicine temperature steady, more suit to fill suspension into the paintball.

8. Air-cooling system is adopted at the output of paintball, that make paintballs amazing

9.Professional PID temperature control technology is adopted on the machine, temperature of injector can be adjusted accurately. Improves ratio of finished products of paintball.

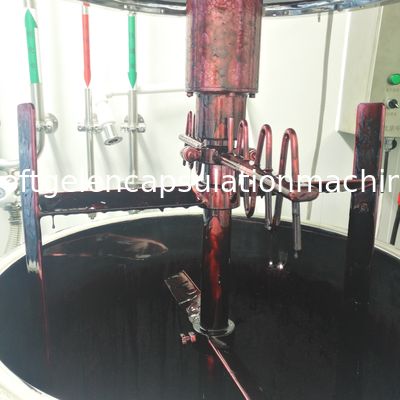

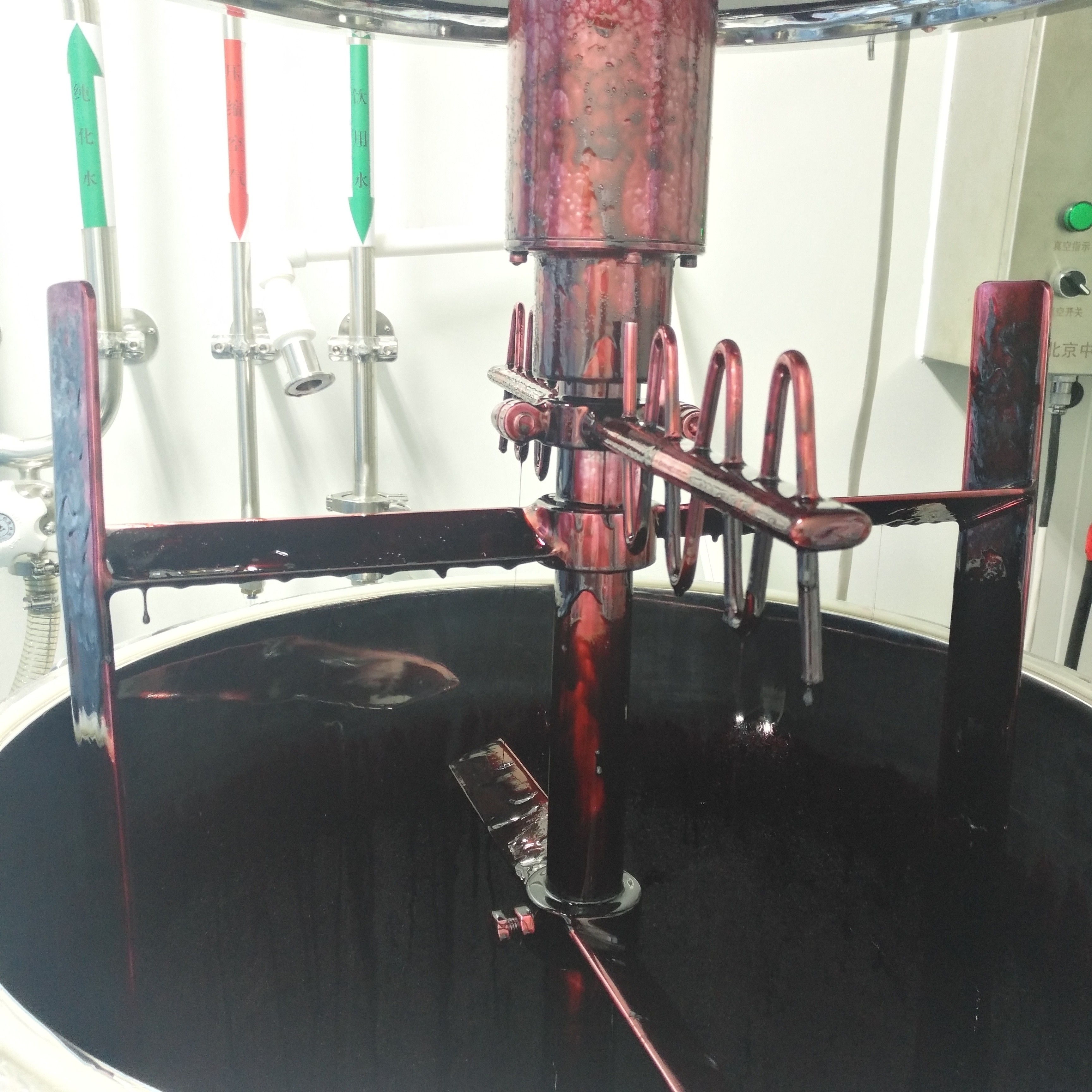

2. Gelatin Melting System



 Model of the gelatin melting tank

450L

600L

800L

1000L

 Capacity(L)

650

900

1120

1370

 Melting gelatin(L)

100-450

150-600

200-800

300-1000

 Heating area(M2)

3.2

4

4.8

5.5

 Max degree of Vacuum(Mpa)

0.09

0.09

0.09

0.09

 Max Temperature(℃)

-100

-100

-100

-100

 Motor Power (KW)

4

5.5

7.5

7.5

 Stirring speed (r/min)

50

50

50

50

 Dimension (mm)

Φ1210X1880

Φ1310X1980

Φ1410X2080

Φ1510X2130



Automatic Paintball Encapsulation Machine Precise Control System 8000 - 32000 / H

Automatic Paintball Encapsulation Machine Precise Control System 8000 - 32000 / H



3. Tumble drying machine



Model

TD-0

TD-1

TD-2

TD-3

TD-4

Basket diameter(mm)

420

580

580

730

526

Basket length(mm)

620

600

900

1010

282

Drying fan(kw)

0.25

0.32

0.32

0.55

2

Motor Power(kw)

0.2

0.4

0.4

0.75

1.5

Basket per section

1

2

2

1

6



Automatic Paintball Encapsulation Machine Precise Control System 8000 - 32000 / H



Paintball Encapsulation Machine, Paintball Making Machine,  Soft capsule and Paintball Encapsulation Machine.



FAQ

Q1:Are you factory or trading company?

A: We are factory and manufacture.



Q2: Where is your factory located? How can I visit your factory?

A: We are located in Beijing, you can fly to Beijing airport or Nanyuan airport. Wecan pick you up from the airport or your hotel.Welcome to visit us!



Q3:How to place my order?

A: Just contact us via TraderManager, E-mail, Skype or telephone to confirm the product, make the deposit then we will start to manufacture.



Q4 : What is the payment term?

A: 30% T/T deposit and 70% T/T balance payment before shipping.



Q5:How long is the delivery time?

A: About 35- 40 working days.
