15kg/H 3.5RPM Pharmaceutical Machinery For Liquid Capsule Filling

15kg/H 3.5RPM Pharmaceutical Machinery For Liquid Capsule Filling

15kg/H 3.5RPM Pharmaceutical Machinery For Liquid Capsule Filling
15kg/H 3.5RPM Pharmaceutical Machinery For Liquid Capsule Filling

Product Details:

Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: S610

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Delivery Time: 30-90 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30 Set/Sets Per Year
Contact Now
Detailed Product Description
Type: Filling Equipment Application: Liquid,Capsule
After-sales Service Provided: Engineers Available To Service Machinery Overseas Material: 304/316L Stainless Steel
Production Capacity: 15kg/h Speed: 3.5RPM (5RPM Option)
High Light:

15kg/h pharmaceutical machinery

,

15kg/h liquid capsule filling machine

,

3.5RPM pharmaceutical machinery





Precisional Electric Pharmaceutical Machine For Food / Softgel Making





Quick Detail



Product Name

Large scale Softgel encapsulation machine

Driven Type

Electric

Capacity

120000pcs /hour, 8#OV

Dosage deviation

<±1.5%

Application

Food, pharmaceutical,softgel making machine

Control

PLC



Product Description

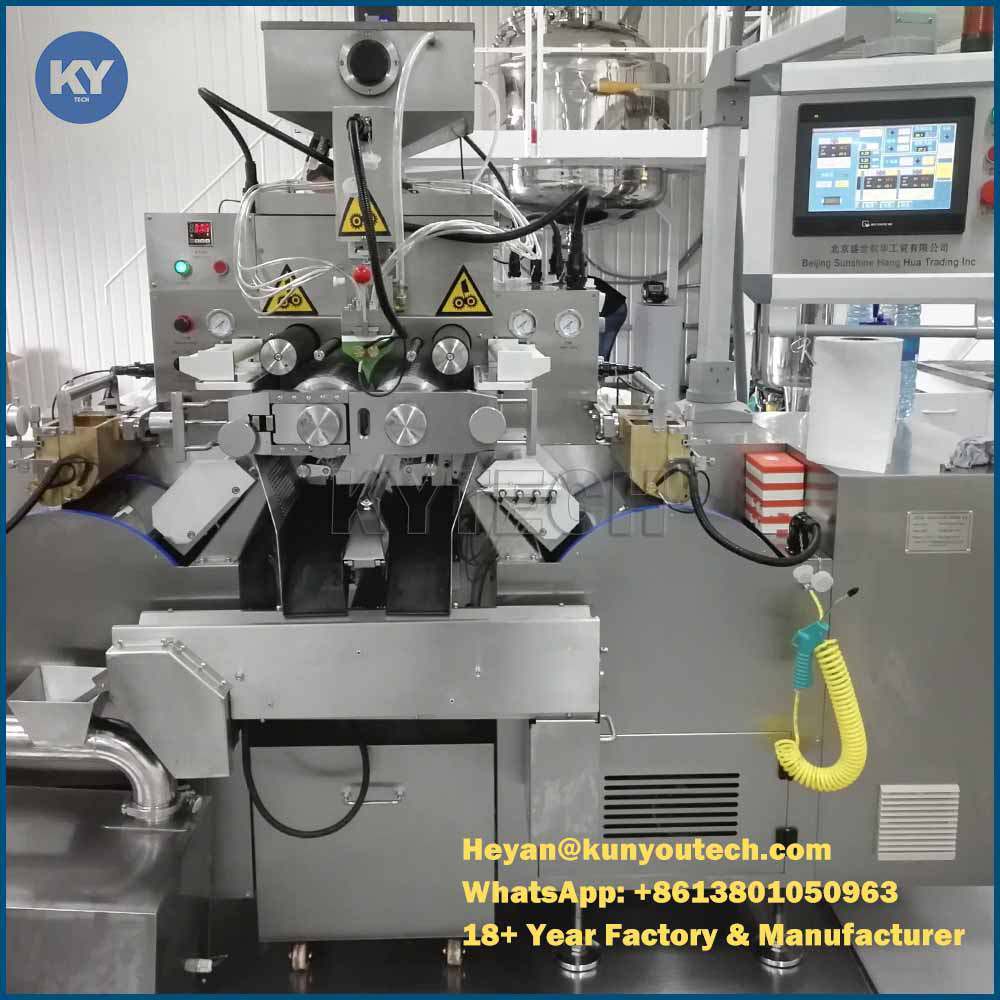

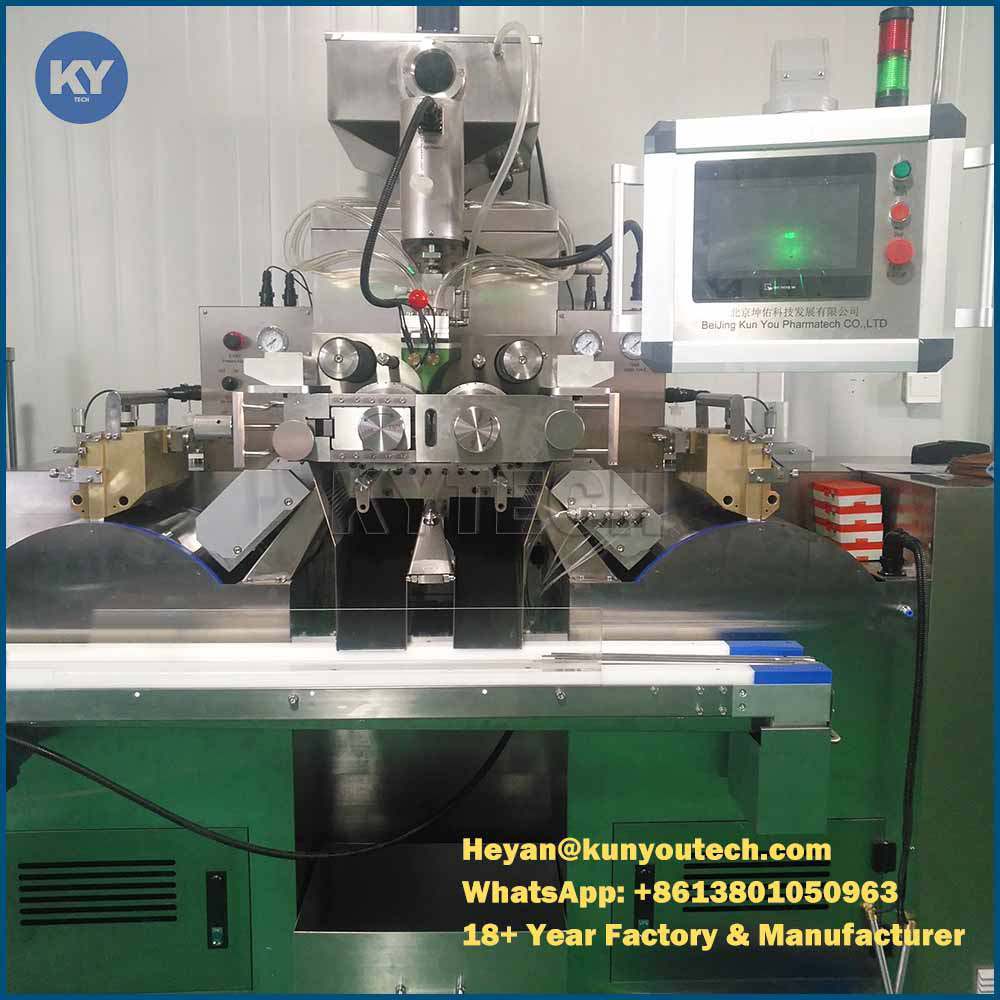

S610 soft capsule encapsulation machine is suitable for lage scale capsule production. Micro lubrication saves much cost for customers. This machine adopts advanced technology and good quality material.
Soft capsule encapsulation machine can be used to make all kinds of soft capsules: Oval, Oblong, Round, Tube,etc.


Specification


Model

S610

Die roll size

150×250mm

Die roll speed

0~5rpm

Max plunging volume per stroke

0~2ml

Plunger numbers

20/24

Overall dimension

2050×1200×1850

Weight of main machine

1900kg

Power consumption

20 kw

Control mode

PLC+Touch Screen

output

8#OV115,440 pcs/hour


15kg/H 3.5RPM Pharmaceutical Machinery For Liquid Capsule Filling 0
Competitive Advantages

1. Full automatic.
2. Siemens constrol system.
3. Precisional machine & Hi-steady.
4. Best machine from China.
5. Conforming to GMP.

Automatic Softgel Making Machine, Soft capsule Encapsulation Machine, Paintball Encapsulation Machine


15kg/H 3.5RPM Pharmaceutical Machinery For Liquid Capsule Filling 1

15kg/H 3.5RPM Pharmaceutical Machinery For Liquid Capsule Filling 2

15kg/H 3.5RPM Pharmaceutical Machinery For Liquid Capsule Filling 3

Product Description


Our company is the first in China to export paintball equipment to North America which is capable of making tournament grade paintball, still the biggest paintball machine maker in China. Compared with the softgel machine, the paintball making need better machine accuracy, the drive transmission system is also precisely improved. The ancillaries are also modified correspondingly. The hopper and spreader box adopt level switch, making the level control more precise. Besides, the injection wedge, spreader box and hopper adopt the design of precise PID temperature control . The micro lubrication system largely reduce the consumption of paraffin oil.


Detail;
IMG_20170401_1656096-TD4_

Softgel making machine,Soft capsule making machine,Soft capsule encapsulation machine,Softgel machine,Soft capsule manufacturing machine


What is the specifications of Automatic Soft'gel encapsulation machine ?

Model S610 soft-capsule production line is a new generation of rolling-mold water-cooled soft-capsule line optimally designed and finely manufactured on the basis of foreign latest technology.



Its main technical specifications reach the international advanced level and conform to standard GMP.



Model S610 soft-capsule production line consists of the gelatin-melting pot, thermal-insulated gelatin-storage pot, electrical control panel, main machine conveyor, setting-drying rotary-cage, ruptured-gel recovery unit, and colloid mill. It works under the following principles.



The oily or gelatin-insoluble liquids, pastes, or plasters (e.g. extract form Chinese Medicine Herbs) are injected into between two rolling gelatin skins in a given quantity, cut, and then formed through two rolling molds into various-shaped soft-capsules, such as egg-shape, fish-shape, cylindrical shape ball-shape and calabash. These products are widely used in many industries such as medicine, cosmetics, health goods and pesticides.



This production line offers the following ten merits:



1 The water-cooled models eliminate the dust contamination resulted from the air-cooling.



2 In comparison with 6-inch model the optimized rolling-models increase the output by 30%-40% and meanwhile remarkably enhance the utilization ratio of gelatin.



3 The gelatin is pneumatically conveyed from the thermal-insulated gelatin-storage pot through the ground, which improves the production environment.



4 The food-grade conveyance belt produced by Lexno Corporation (USA) (FDA an approved) is used for conveyance of capsule, which is non-toxic, non-sticky, and easily washable.



5 The setting-drying rotary cage is made of stainless steel expanded sheet, which is free of dead corners and easily washable. An oil pan is placed under the rotary cage to ensure a working environment free of oil drops.



6 All the electric elements are imported from famous manufacturers and have stable performances.



7 In production of low-dosage products, the accompanied 10-station and 14-station injection rod fully utilizes the width of molds and enhances the gelatin-utilization ratio and output.



8 The optimal-designed injector extends the range of consistency of medicine solution.



9 The improved capsule-peeling unit minimizes the probability of wrapping of the waste gelatin skin onto the gelatin-peeling rod.



10 Except that the injector, the spreading box and the rolling-mold conveyance belt are made of special materials, the parts contacting with medicine are made of 304 or 316 superior stainless steel and absolutely conform to standard GMP.


11. High quality and intelligence control system, PLC true color touch screen technology adopted by the electronic control system. All electric parts use world brand parts, such as Siemens, Schneider.


12 The hopper can keep medicine temperature steady, more suit to fill suspension into the paintball.

13 Air-cooling system is adopted at the output of paintball, that make paintballs amazing

14 Professional PID temperature control technology is adopted on the machine, temperature of injector can be adjusted accurately. Improves ratio of finished products of paintball.

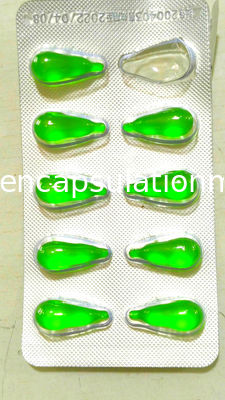

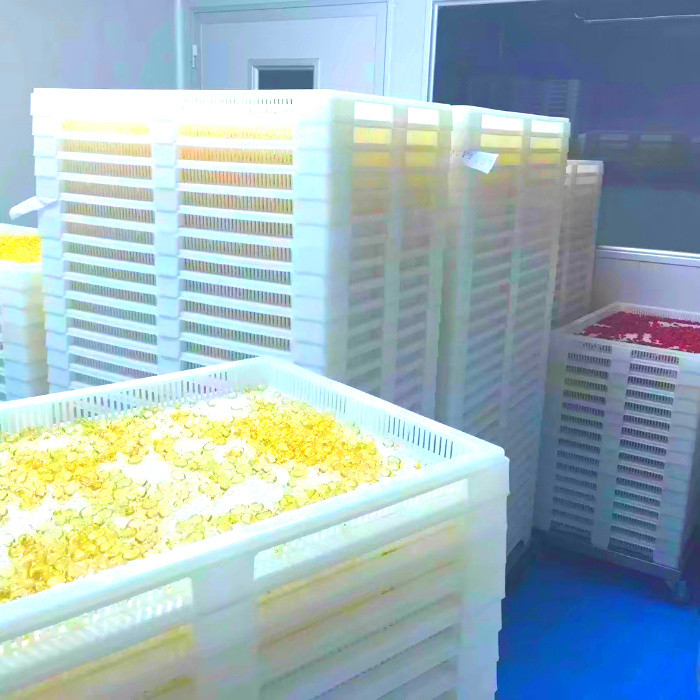

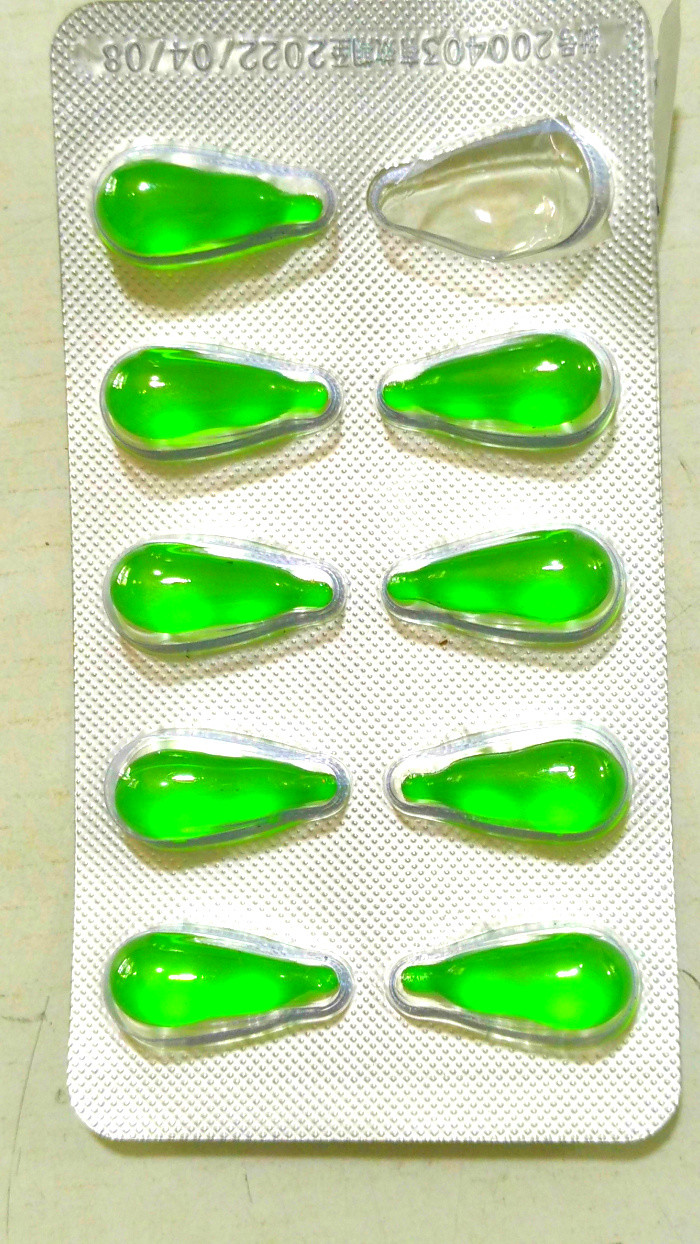

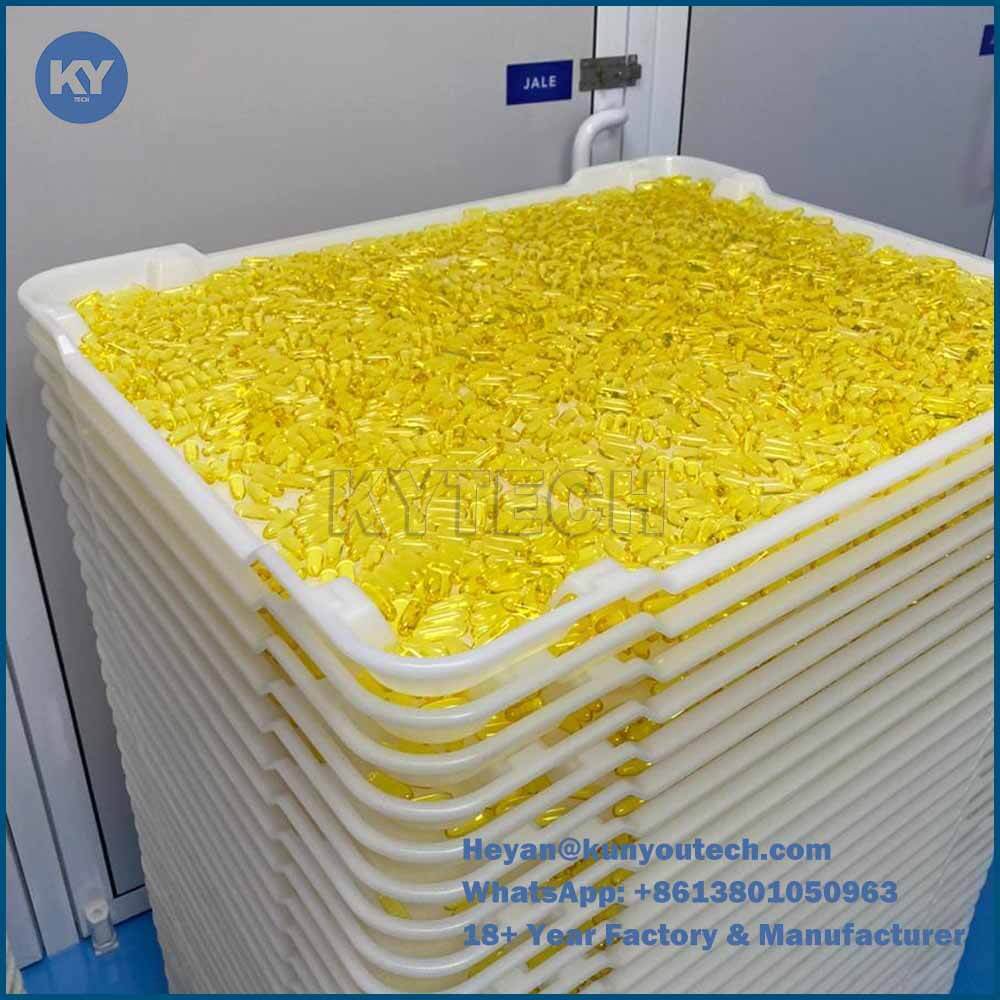

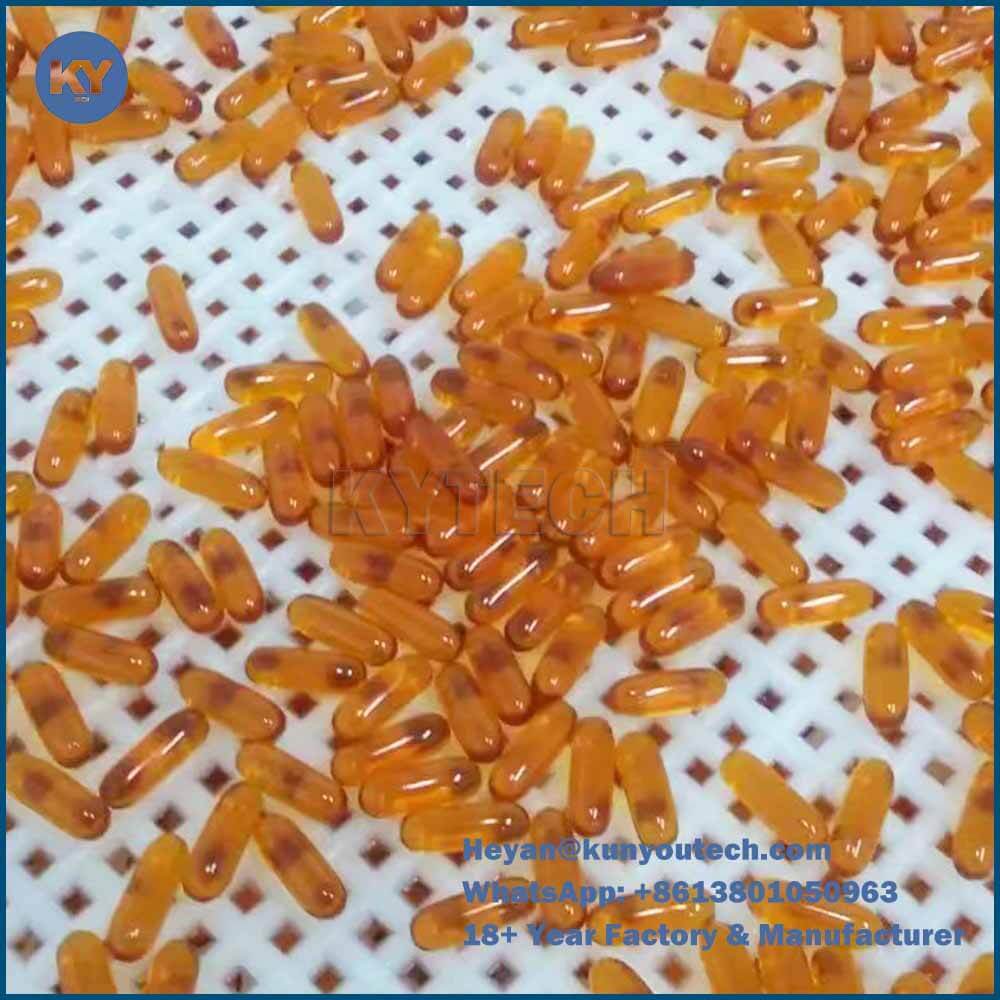

Product samples.

15kg/H 3.5RPM Pharmaceutical Machinery For Liquid Capsule Filling 6




Packaging & Shipping


15kg/H 3.5RPM Pharmaceutical Machinery For Liquid Capsule Filling 7Ship

Shipment by sea by veneer boxes
