Liquid filling Softgel Encapsulation Equipment factory Pharmaceutical With PLC Control

Liquid filling Softgel Encapsulation Equipment factory Pharmaceutical With PLC Control

  • Liquid filling Softgel Encapsulation Equipment  factory Pharmaceutical With PLC Control
  • Liquid filling Softgel Encapsulation Equipment  factory Pharmaceutical With PLC Control
  • Liquid filling Softgel Encapsulation Equipment  factory Pharmaceutical With PLC Control
  • Liquid filling Softgel Encapsulation Equipment  factory Pharmaceutical With PLC Control
Liquid filling Softgel Encapsulation Equipment  factory Pharmaceutical With PLC Control
Product Details:
Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: S610
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Delivery Time: 30-90 days
Payment Terms: T/T, L/C
Supply Ability: 30 Set/Sets Per Year
Contact Now
Detailed Product Description
Material: SS316 Capacity: 100,000
Warranty: 1 Year Control: PLC+touch Screen
Electeic: Seimens Service: Teachion Avaliable
High Light:

soft gelatin encapsulation machine

,

pharma packaging machinery





Full Automatic Softgel Encapsulation Equipment Pharmaceutical With PLC Control

Liquid filling Softgel Encapsulation Equipment  factory Pharmaceutical With PLC Control 0


Competitive Advantages

1. Full automatic.
2. Siemens constrol system.
3. Precisional machine & Hi-steady.
4. Best machine from China.
5. Conforming to GMP.


Liquid filling Softgel Encapsulation Equipment  factory Pharmaceutical With PLC Control 1

Quick Detail



Product Name

Large scale Softgel Making machine

Driven Type

Electric

Capacity

120000pcs /hour, 8#OV

Dosage deviation

<±1.5%

Application

Food, pharmaceutical,softgel making machine

Control

PLC



Product Description



KUN YOU S610 fully automatic softgel making machine is a new generation of soft gelatin encapsulation machine. The machine is integrated the latest global encapsulation technology and our gelatin encapsulation experience. The new softgel encapsulation manufacturing facility features leading technology, simple but beautiful appearance. Advanced technology and reliable performance provide high effective operation and save user's operational cost.


It includes the following features:



1. Computer control the plunger pump, improve the precision of medicine injection volume, and save more medicine and material cost.



2. Bigger cam drive plunger pump, can provide stronger to plunger pump. That make the machine can inject widely high viscosity of raw material, such as Suspension, Propolis (Bee glue), Soft phospholipids, Liquid calcium and Herbal suspension.



3. Friendly human-computer interface, easy to operated. The simulated running of machine. The data can be set via touch screem, and easy to realizes network monitoring, statistics and reports output.

4. High quality and intelligence control system, PLC true color touch screen technology adopted by the electronic control system. All electric parts use world brand parts, such as Siemens, Schneider

5. Speed of each gelatin film drum and main axis can be adjusted respectively by respectively invertor; that is controlled by operator according to actually requirement.

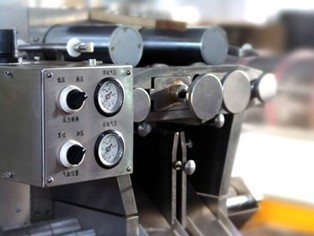

6. The opening of gelatin box is controlled accurately, the gauge showed gelatin film thickness. Easy to control the thickness.

7. Automatic controlled water-cooling system is adopted for the cooling of gelatin film, which is more safety and more reliable.

8. Air-cooling system is adopted at the output of softgelcapsule, that make softgel capsule more beautiful.

9. Insulation hopper, can keep medicine temperature steady, more suit to fill suspension into the softgel capsules.

10.Wedge Medicine injection into pocket Inject medicine into capsule pocket by pump pressure New designed Teflon coating Wedge Optional between heater cartridge or water heating design Electric Heater Wedge (Water Circulation Wedge is buyer’s option)

Specification


Model

S610

Die roll size

150×250mm

Die roll speed

0~5rpm

Max plunging volume per stroke

0~2ml

Plunger numbers

20/24

Overall dimension

2050×1200×1850

Weight of main machine

1900kg

Power consumption

20 kw

Control mode

PLC+Touch Screen

output

8#OV115,440 pcs/hour




Automatic Softgel Making Machine, Soft capsule Encapsulation Machine, Paintball Encapsulation Machine

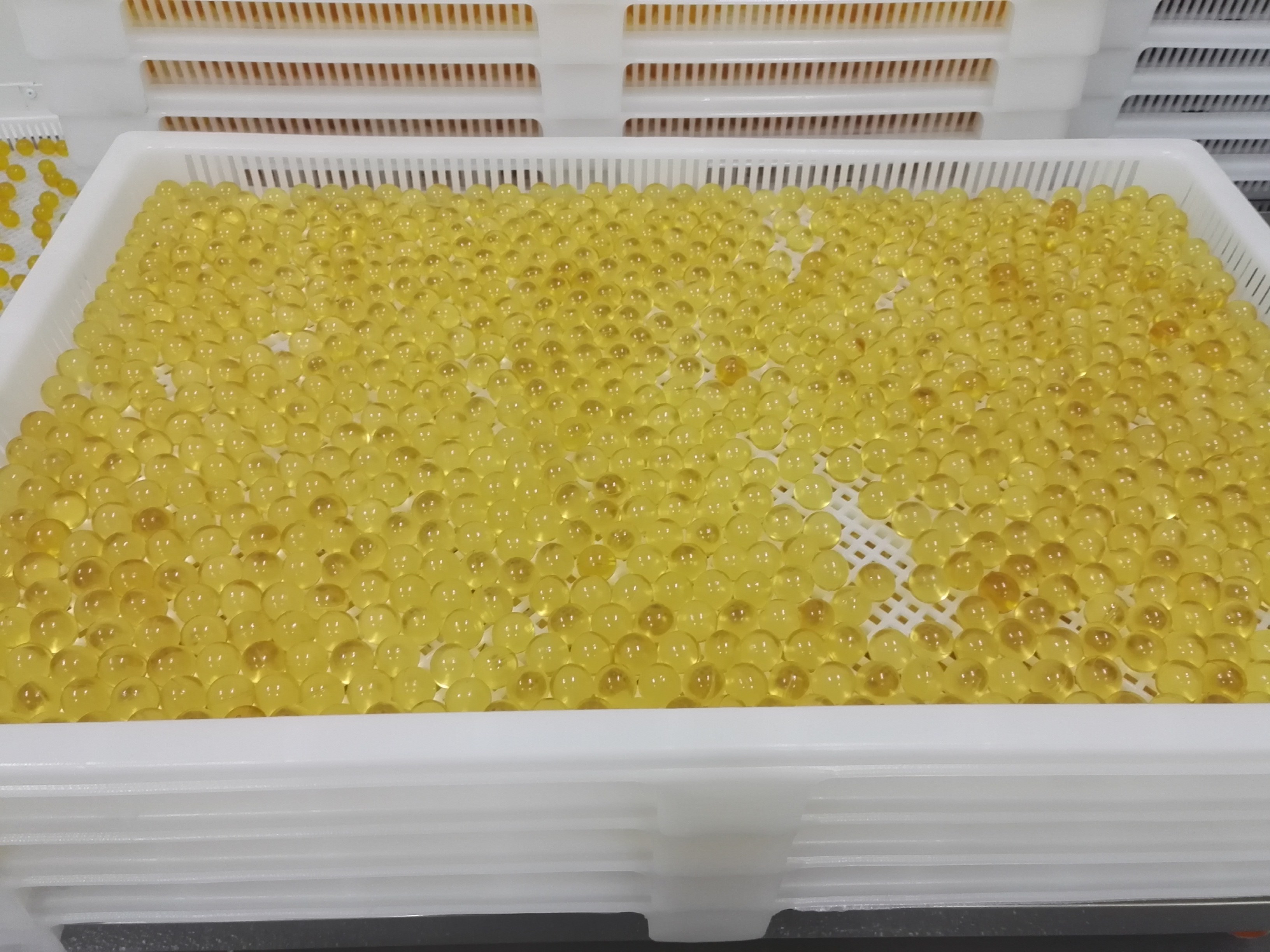

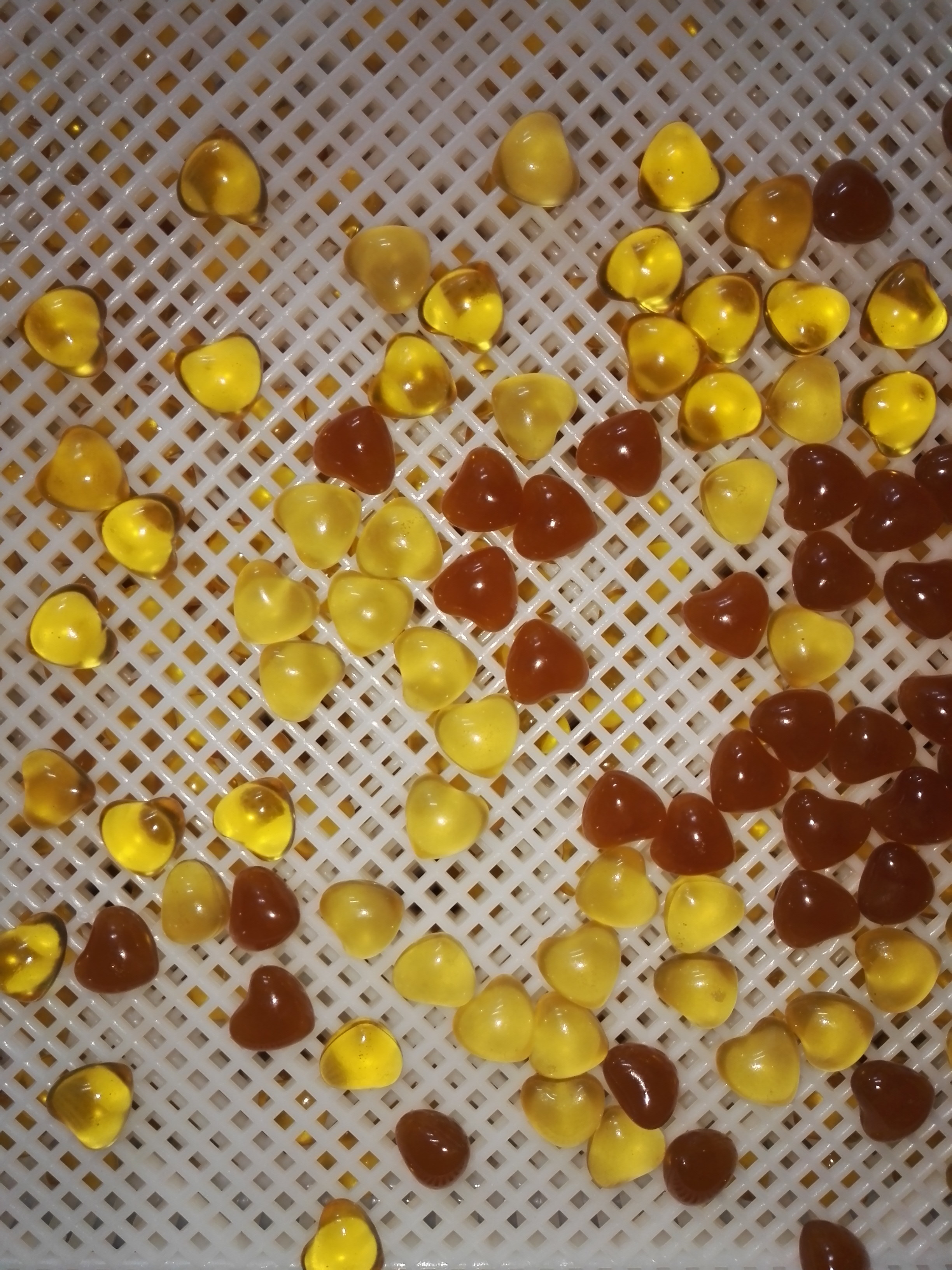

Liquid filling Softgel Encapsulation Equipment  factory Pharmaceutical With PLC Control 2Liquid filling Softgel Encapsulation Equipment  factory Pharmaceutical With PLC Control 3Product Show
Liquid filling Softgel Encapsulation Equipment  factory Pharmaceutical With PLC Control 4
