Quick Detail
|
Product Name
|
Soft capsule Gelatin Storage Tank
|
Brand Name
|
KUN YOU
|
|
Function
|
Storing gelatin and keeping temperature
|
Material
|
304 SUS
|
|
Gelatin Supply
|
Pressure Air / Gravity
|
Capacity
|
300L
|
Product Description

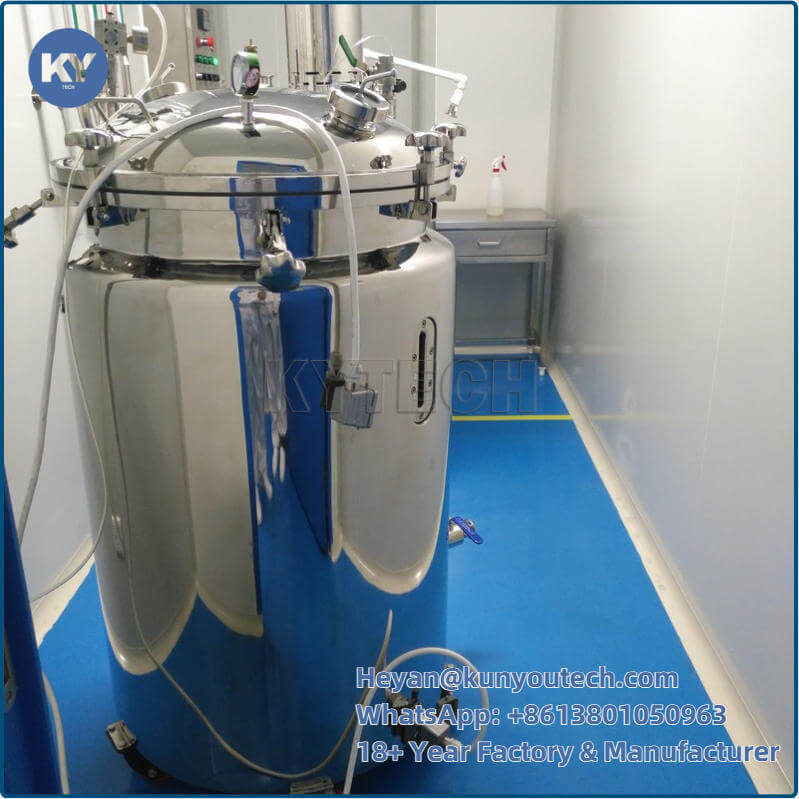

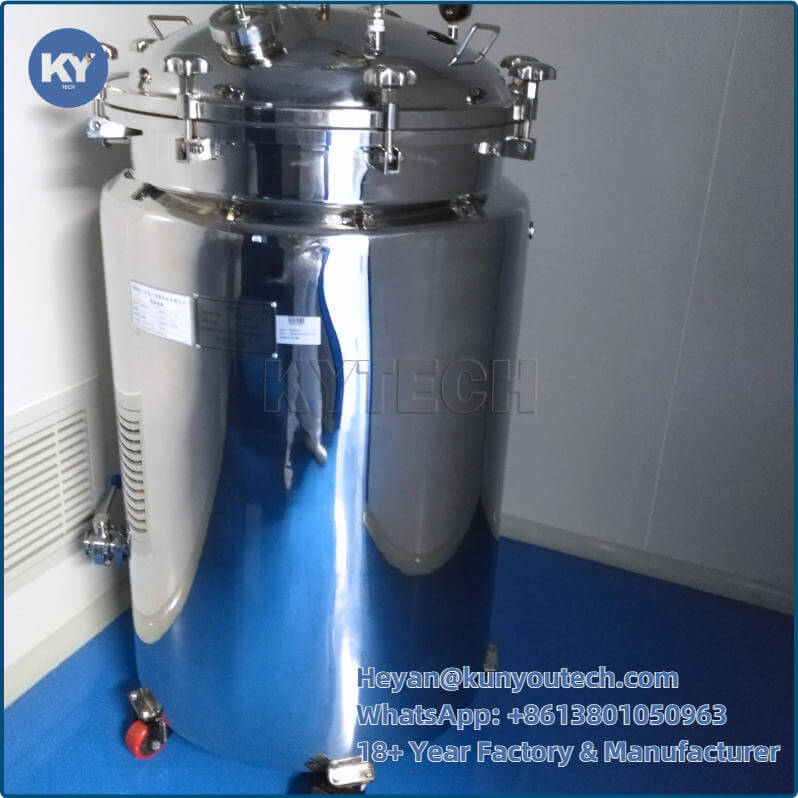

Gelatin service tank has temperature controlled device, adopts water heating, so the temperature of the material inside the gelatin service tank can be controlled precisely.
Gelatin service tank is used to keep temperature of gelatin liquid and is used to transfer gelatin from melting tank to encapsulation machine. This use compressed air to supply gelatin for the encapsulation machine. Gelatin service tank / gelatin receiver tank is operated through the intelligent temperature control of water bath, heating three layer jackets stainless steel storage tank.The inside of tank can withstand a certain degree of positive pressure. The tank itself comes with temperature control and display unit, so it has the advantage of simple operation and high control precision. On the top of the tank is provided with the gas joint, pressure gauge and safety valve. The ground material supply can be realized through the pressure control, making work more safe and reliable. The tank body is divided into three layers: the heating water jacket is between the inner layer and the middle layer; high-tech temperature keeping material is between the middle layer and outer layer.
The air inlet is installed on the gelatin service tank, and also pressure gauge and safe valve, so the gelatin can be impressed out of the tank by pressed air.
The tank has the following features:
This equipment is made of the stainless steel, which strictly comply with the requirement of GMP.
The tank is equipped with the temperature control device and precisely control the liquid temperature through water bath heating.
There are gas connector, pressure gauge and safety valve on the lid of the gelatin tank. Thus realizing the medicine supply to the ground through the pressure control, making the operation safe and reliable.
The discharge bottom is applied with structure of being convenient to disassemble and clean.
Application
It’s widely used for pharmaceutical, dairy foods and fine chemical industry. It’s usually used together with the paintball or soft capsule encapsulation machine to manufacture beautiful paintballs or soft capsules.
Specification
|
Model
|
300L
|
|
Dimension (mm)
|
Ф800×1400
|
|
Capacity(L)
|
300
|
|
Motor power (kw)
|
4
|
|
Temperature control
|
PID
|
|
Gelatin supply
|
Pressure Air/ Gravity
|
Competitive Advantage
1.Temperature controlled
2. It’s convenient to open and move
3. Keeping temperature
4. Water heated with precision temperature control.
5. For soft capsule machine and paintball machine
6. Stainless steel storage tank
7. used in pharmaceutical, dairy foods and fine chemical industry
8. Conforming to the requirements of GMP
Gelatin Holding Tank, Gelain Storage Tank, Gelatin Storage Barrel for Soft capsule and Paintball Making.
