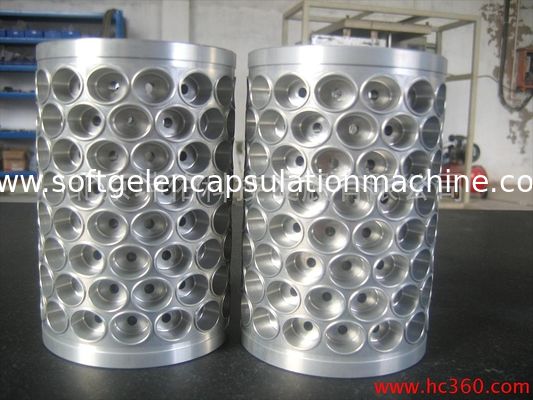

Various Shape and Size Round Paintball Die Roll / Capsule Mold with surface tratment

Various Shape and Size Round Paintball Die Roll / Capsule Mold with surface tratment

Various Shape and Size Round Paintball Die Roll / Capsule Mold with surface tratment
video
Various Shape and Size Round Paintball Die Roll / Capsule Mold with surface tratment
Product Details:
Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: Ø103X152
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Delivery Time: 7-10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 Pairs per week
Contact Now
Detailed Product Description
Product Material: Aluminium Runner: Hot Runner\ Cold Runner
Cavity: 2-72 Cavity Design Software: CAD,Solidworks
Product Name: Liquid Silicone Mold Making Rubber For Compression Surface Treatment: Matt
Application: Softgel Capsule Machine
High Light:

capsules making machine

,

plastic cover mold





Round Paintball Die Roll / Capsule Mold





Quick Detail



Product Name

Medium Die roll for softgel and paintball

Brand Name

KUN YOU

Place of Origin

Beijing, China(Main land)

Material

Aluminium alloy

Die roll Speed

0~5 rpm









Product Description



The paintball die roll is widely used in paintball making machines for paintball makers and pharmaceutical enterprises. It can make round paintballs according to customers’ requirements. S406PB paintball die roll is used for S406 Soft capusle making machine which is suitalble for medium scale production. The raw material of die roll is imported aircraft grade aluminium alloy which has very good strength and tension. Its tension degree can get to 570 MPa and 150 Brinell hardness. Using the imported aircraft grade aluminium alloy can significantly prolong the life of dies. Besides, users can largely reduce the using cost because there are usually four times to repair during its life cycle. After processing these dies roll, technologists will make special surface treatment technology so as to further improve the mold surface hardness and corrosion resistance. In designing softgel die rolls, we strongly absorbed much experience from home and abroad to make better die rolls which can reduce the leakage and net rate and improve the stability of the soft capsule and paintball production.

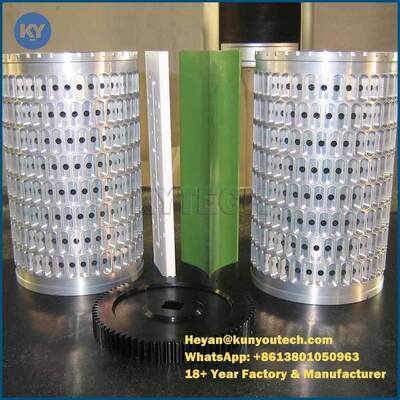

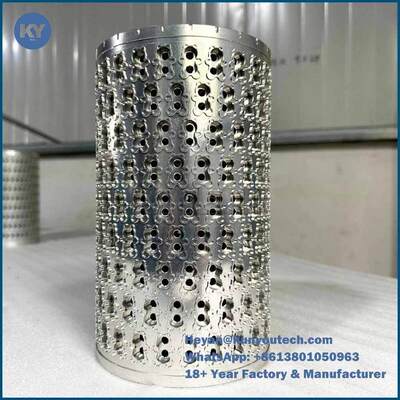

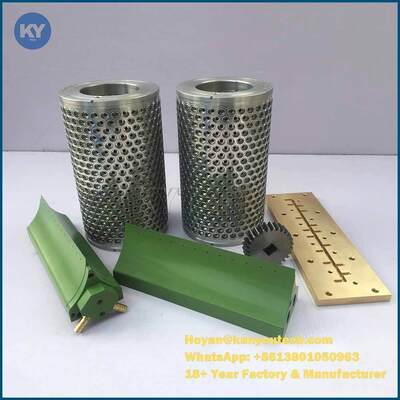

Various Shape and Size Round Paintball Die Roll / Capsule Mold with surface tratment 0



Specification



Model

Ø103X152

Die roll diameter(mm)

Ø103

Die roll length(mm)

152

Die roll speed

0-5rpm

Plunger Qty.

10

Machine Overall Dimension

880×640×1900mm

Machine Weight(kg)

900kg

Machine Power(kw)

7kw

Control

PLC.touch screen





Competitive Advantage



1. Widely used for softgel and paintball making enterprises and pharmaceutical enterprises

2. The raw material is imported aircraft grade aluminium alloy
3. Various types of softgel and round paintball
4. product: Metal: Aluminium, copper
5. Make different die roll according to customers’ requirements
6. Softgel Capsules Making machine for laborotary and small scale production

Soft capsule die roll, softgel mold, softgel die  roller and paintball die roll, paintball mold.
Welcome to inquire!

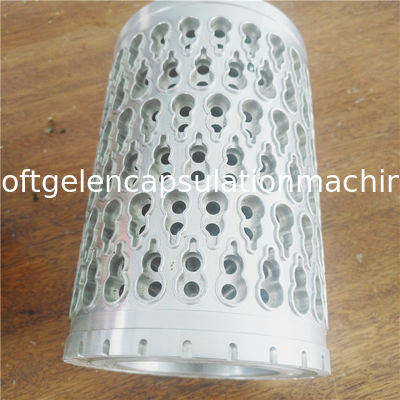

Various Shape and Size Round Paintball Die Roll / Capsule Mold with surface tratment 1

Various Shape and Size Round Paintball Die Roll / Capsule Mold with surface tratment 2

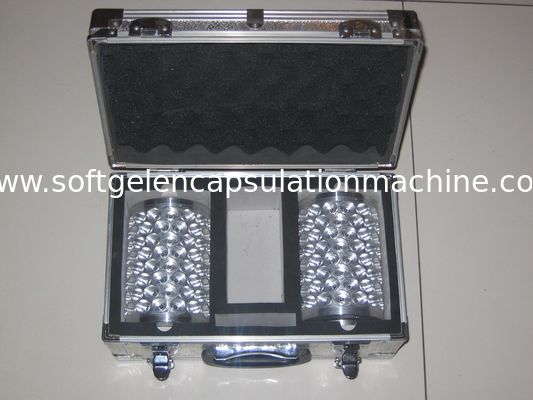

Various Shape and Size Round Paintball Die Roll / Capsule Mold with surface tratment 3
