304 SUS CS Paintball Encapsulation Machine For Sprots / Amusement

: Large Image : 304 SUS CS Paintball Encapsulation Machine For Sprots / Amusement

Product Details:

Place of Origin:	China,Beijing
Brand Name:	Kunyou
Certification:	CE,ISO9001
Model Number:	S406PB

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wood cages
Delivery Time:	20-60 days
Payment Terms:	T/T， L/C
Supply Ability:	30 Set/Sets Per Year

Contact Now

Detailed Product Description

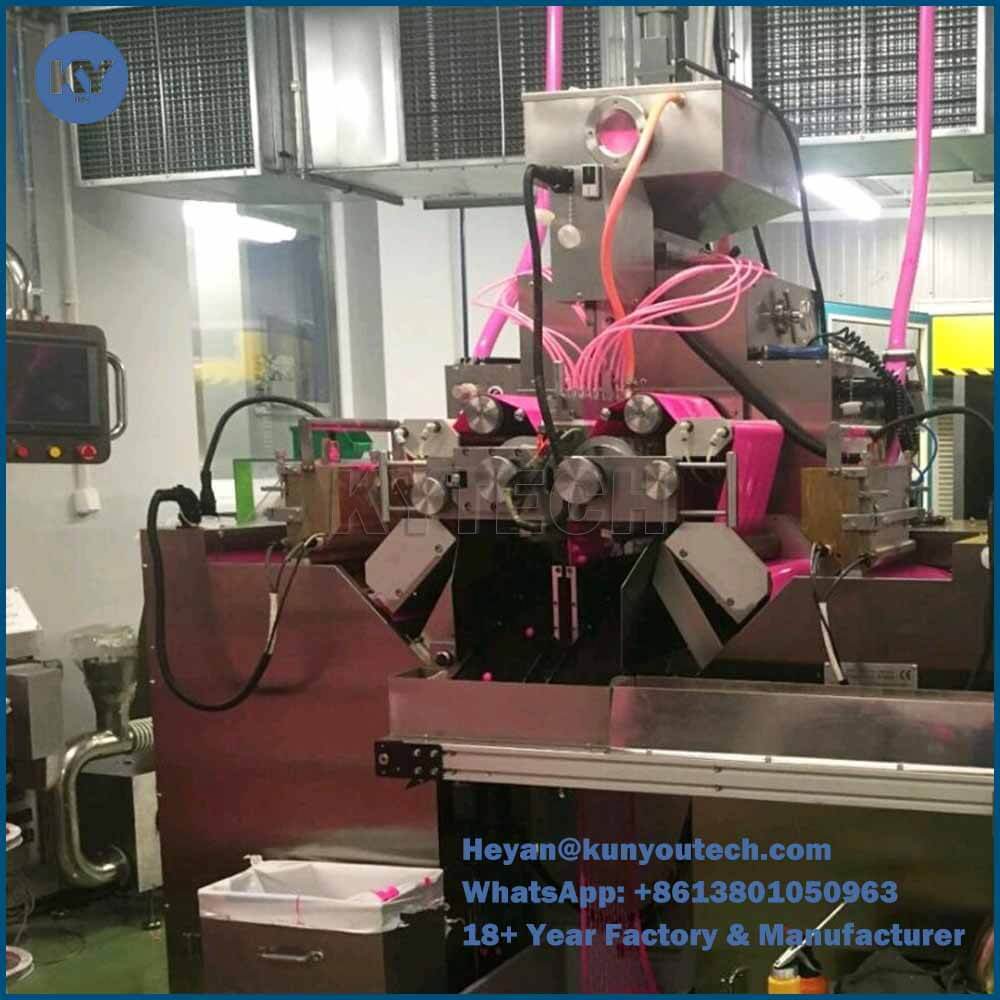

304 SUS CS Paintball Encapsulation Machine For Sprots / Amusement

Quick Detail

Dimension	880X640X1900mm	Material	304 SUS
Port	FOB Tianjin	Power Consumption	7kw
Scale	Medium Scale Production	Capacity	18000pcs/hour

Product Description

Our company is the first supplier in China to export paintball equipment to North America which is capable of making tournament grade paintball, still the biggest paintball machine maker in China. Compared with the softgel machine, the paintball making need better machine accuracy, the drive transmission system is also percisionly improved. The ancillay are also modified correspondingly. The hopper and spreader box adopt level switch, making the level control more precise. Besides, the injection wedge, spreader box and hopper adopt the design of precise PID temperature control . The micro lubrication system largely reduce the consumption of paraffin oil.

S406 paintball Encapsulation Machine considers the need and the biggest benefits of customers as start point, combining advantages of foreign equipment and requirements of customers. S406 Paintball Encapsulation Machine’s die roll is 152 mm long. The die roll’s rotation rate can be regulated within 0 to 5 rpm, so users can choose the most appropriate speed according to different materials and process parameters. S406 Paintball Encapsulation Machine improves the bearing spindle supporting way of die roll, thus making the spindle more accuracy and much easier to repair. In addition, the machine further improves the machining precision. More helical gears are used in the process of gear moving, which improve the gear coincidence degree and transmission stability. The split structure of cooling fan reduces the thermal effect to the pressure pill. Besides, gelatin barrel is added with wheel which can be moved more conveniently and easily. The machine is provided with stirring or insulation optional hopper, using ground automatic feeding method. The paintball machine’s oil roller is made of stainless steel material, so it’s more in line with the requirements of GMP.

Specification

Model	S406PB
Die roll diameter	Ф103mm
Die roll length	152mm
Die roll speed	0~5rpm
Plunger numbers	10
dimension	880X640X1900mm
weight	900kg
Power consumption	7 kw
Control mode	PLC+HMI Switch/buttons
Output rate	18000pcs/hour

Competitive Advantages

1. Good stability

2. Adjustable rotation rate during 0-5rpm

3. Easy to operate and clean, conforming to GMP

4. Compact and beautiful

5. It can be assembled or disassembled with single hand

6. Big air flow

7. Reduce the oil consumption

8. The cable plug has good waterproof and oil proof function

9. High technical loading capacity

10. High precision

11. Easy to move and operate

12. Drum design to prevent gelatin wrinkling and sideship

13. Professional PID temperature control technology is adopted on the machine, temperature of injector can be adjusted accurately. Improves ratio of finished products of paintball.

Paintball Making Equipment, Paintball Manufacturing Line, Various Model Die Roll For Soft capsule and Paintball and All kinds of spare parts for softgel making machine and paintball making machine. Professional Technicians and years of operation, welcome to inquire!
