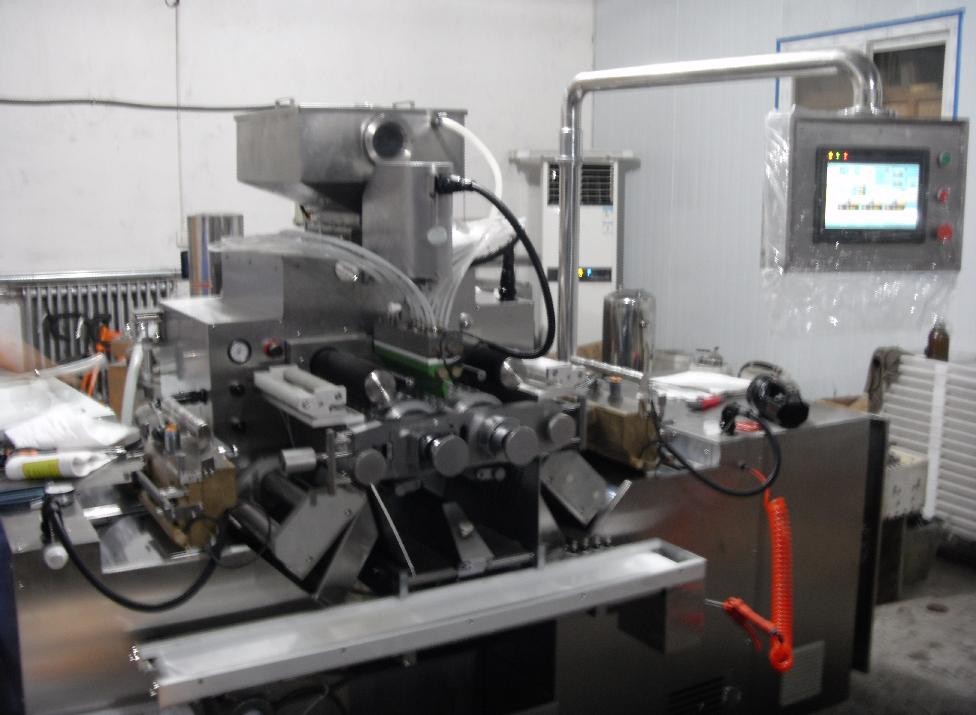

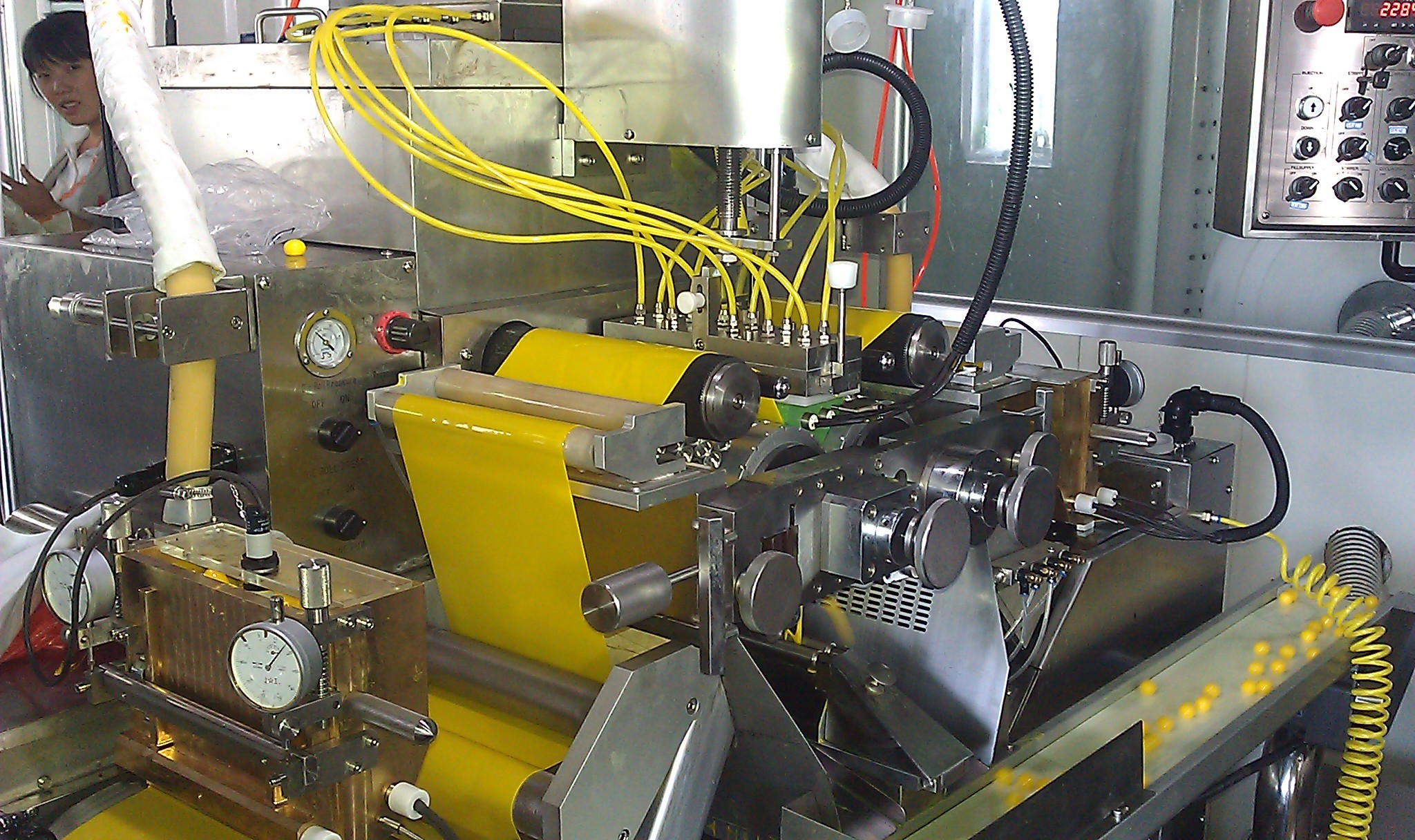

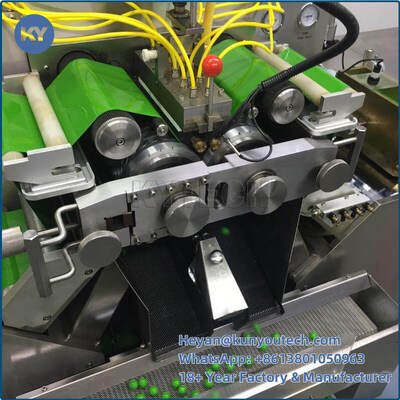

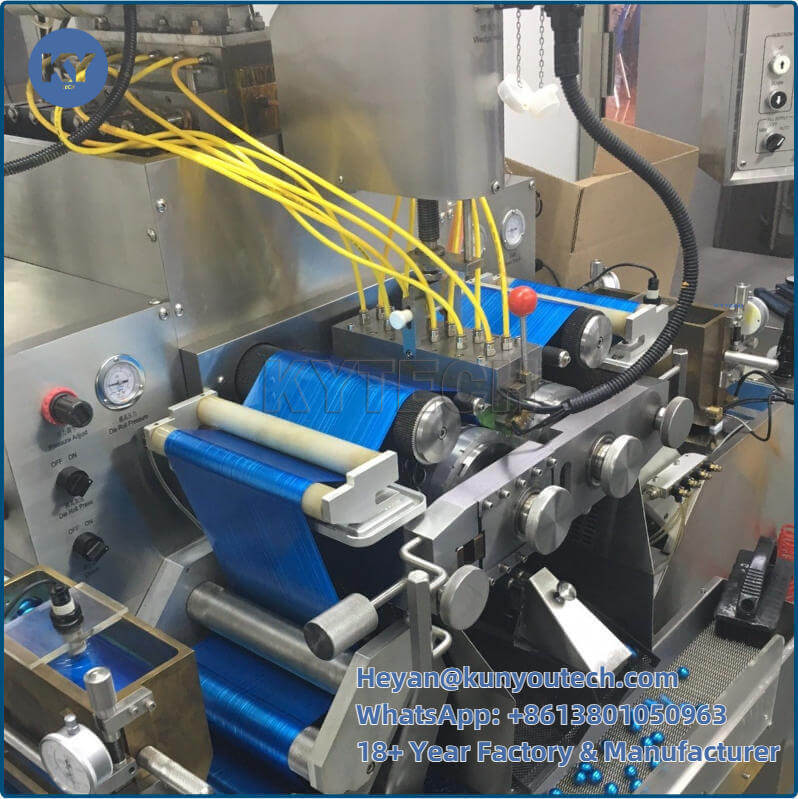

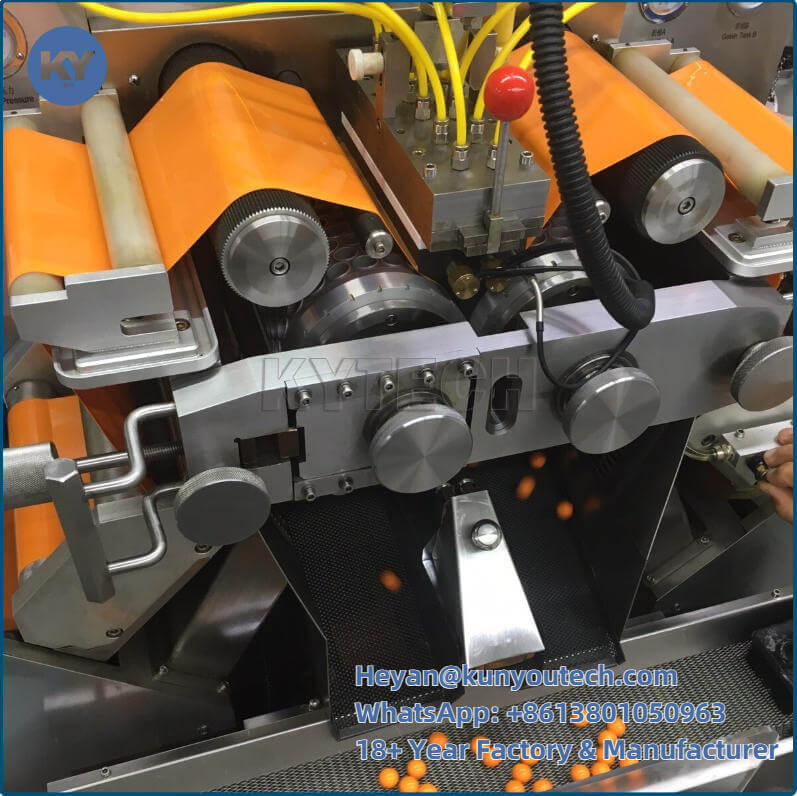

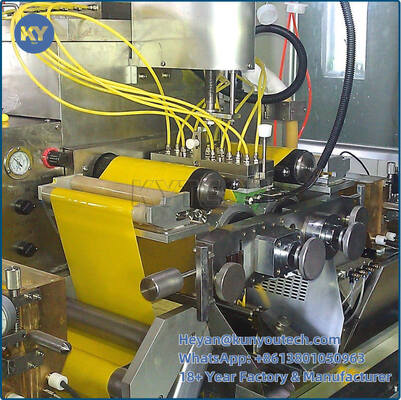

Stainless Steel Paintball Encapsulation Machine Large Scale Paintball Production LIne
Quick Detail
|
Pump Type |
20/24 Plungers |
Control Mode |
PLC+Touch Screen |
|
Certification |
CE |
Power Consumption |
20 kw |
|
Weight |
1900kg |
Capacity |
32000pcs/hour |
Product Description

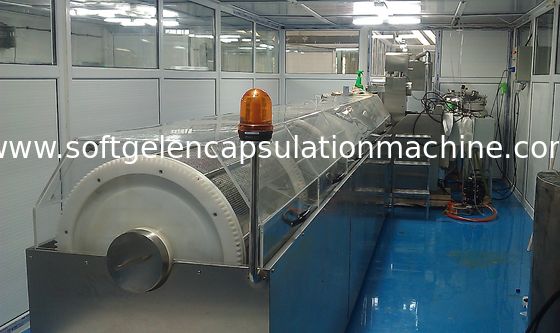

S610PB Paintball Encapsulation Machine’s components are mainly from Germany. The whole machine’s mechanical parts adopt independent single adjustable lubrication, reducing mechanical wear and prolonging the time without any mistakes. There are two ways which use the cantilever to operate, large size touch screen and switch button to choose from. The control system has faults diagnosis function. It can realize remote diagnosis after the upgrade. New 8 type amorphous drying roll cage is featured by variable frequency speed regulation and more reasonable structure. The cage can be disassembled without moving dryer. It’s easy to clean. There are material receiving discs under the roll cage, making S610 more in line with the requirements of GMP.
Specification
|
Model |
S610PB |
|

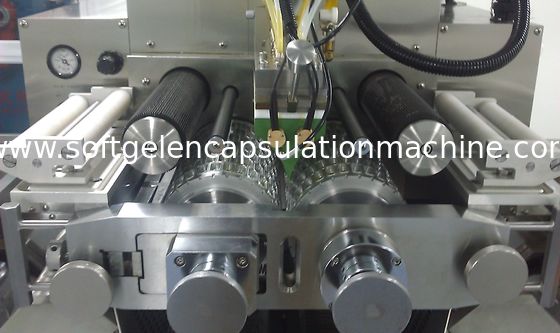

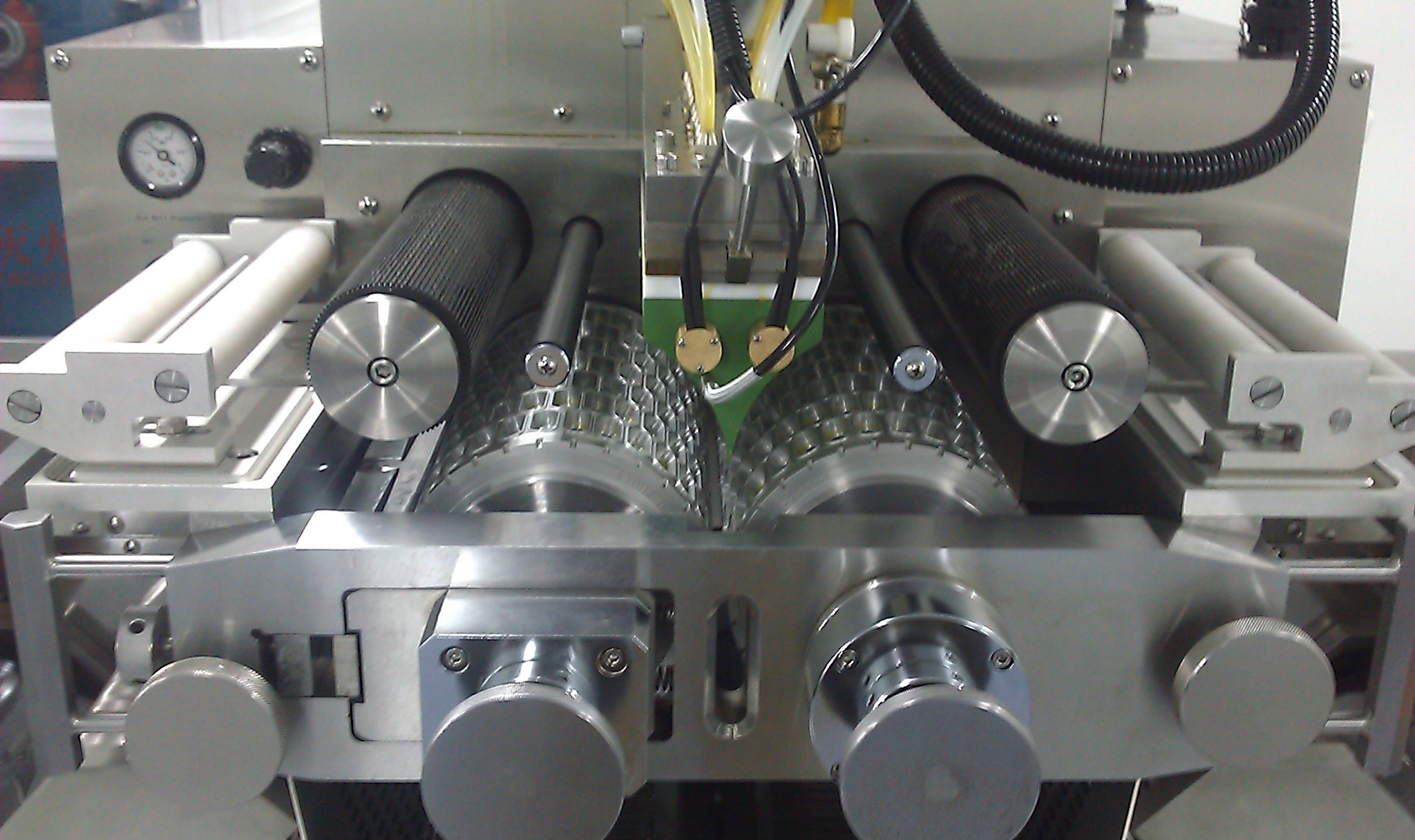

Die roll size |
150×250mm |
|
Die roll speed |
0~5rpm |
|
Max plunging volume per stroke |
0~2ml |
|
Plunger numbers |
20/24 |
|
Overall dimension |
2050×1200×1850 |
|
Weight of main machine |
1900kg |
|
Power consumption |
20kw |
|
Control mode |
PLC+Touch Screen |
Competitive Advantage
Paintball making machine and softgel making machine and all kinds of spare parts for both machine.
