PLC + HMI Switch Automatic Pharma Packaging Machinery Softgel / Cosmetics

PLC + HMI Switch Automatic Pharma Packaging Machinery Softgel / Cosmetics

    • PLC + HMI Switch Automatic Pharma Packaging Machinery Softgel / Cosmetics
    • PLC + HMI Switch Automatic Pharma Packaging Machinery Softgel / Cosmetics
    • PLC + HMI Switch Automatic Pharma Packaging Machinery Softgel / Cosmetics
    • PLC + HMI Switch Automatic Pharma Packaging Machinery Softgel / Cosmetics
    • PLC + HMI Switch Automatic Pharma Packaging Machinery Softgel / Cosmetics
  • PLC + HMI Switch Automatic Pharma Packaging Machinery Softgel / Cosmetics

    Product Details:

    Place of Origin: China,Beijing
    Brand Name: Kunyou
    Certification: CE,ISO9001
    Model Number: S406

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: Wood cages
    Delivery Time: 20-60 days
    Payment Terms: T/T, L/C
    Supply Ability: 30 Set/Sets
    Contact Now
    Detailed Product Description
    High Light:

    soft gelatin encapsulation machine

    ,

    pharma packaging machinery

    PLC + HMI Switch Automatic Pharma Packaging Machinery Softgel / Cosmetics





    Quick Detail



    Control

    PLC+HMI Switch/buttons

    Driven Type

    Electric

    Capacity

    43470pcs /hour, 8#OV

    Control Mode

    Full Automatic

    Application

    Food, pharmaceutical, fish oil making

    Capsule shape

    OV, OB,etc



    PLC + HMI Switch Automatic Pharma Packaging Machinery Softgel / Cosmetics 0



    Product Description

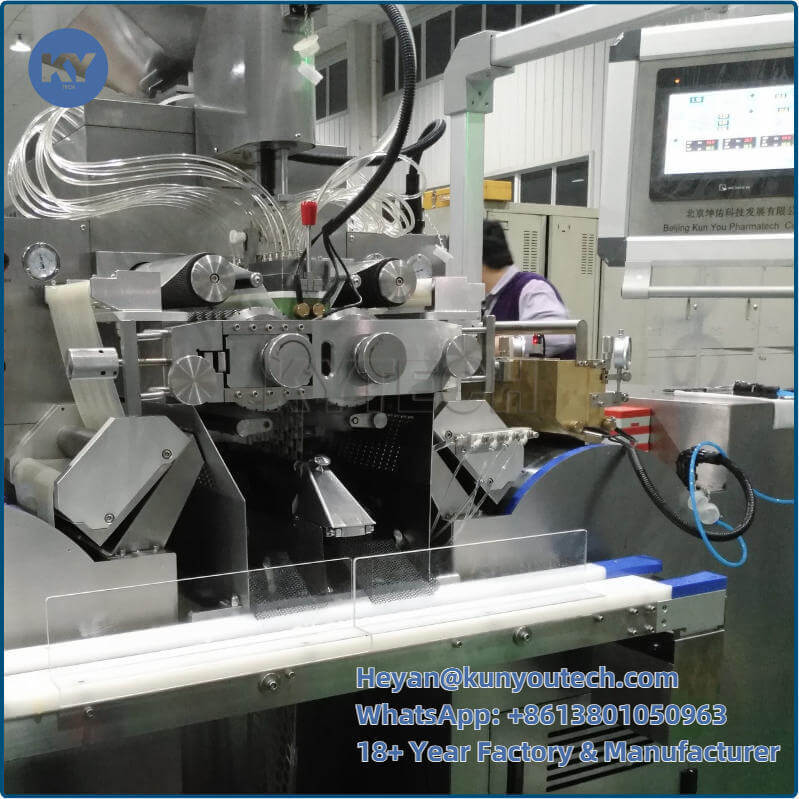

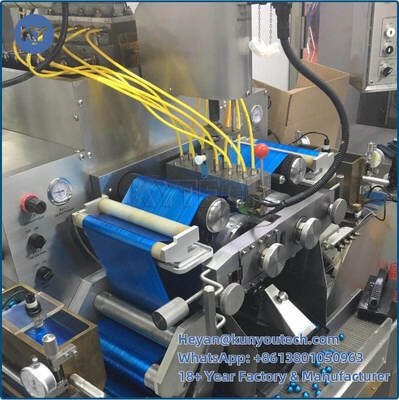

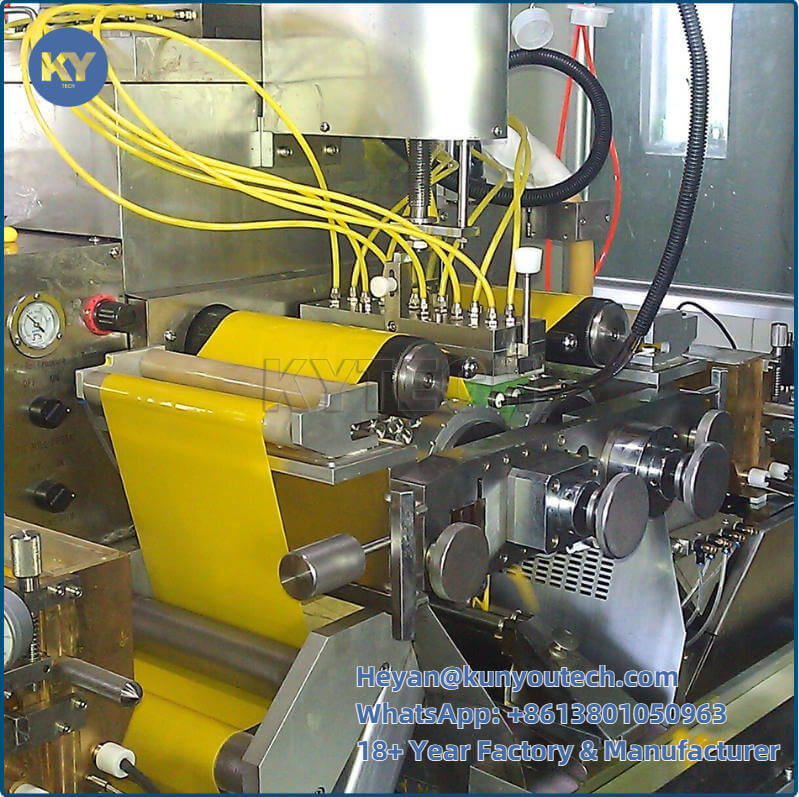

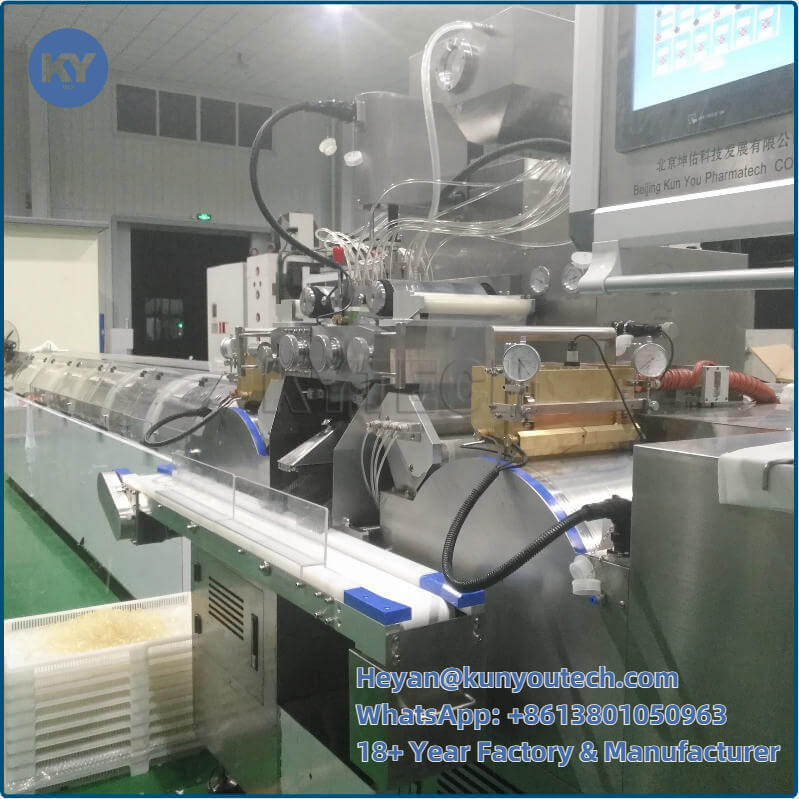

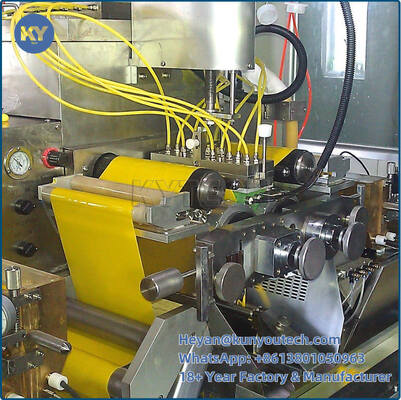

    S406 soft capsule filling machine is suitable for medium scale production. Soft capsule making machine is used for making soft capsules, such as fish oil soft capsules, Vitamin E soft, Omega-3 and food capsules, etc.



    Soft capsule making machine abosorbs advanced technologies at home and abroad, based on a combination of soft capsule production process and the characteristics of the use advanced technology and high quality materials to meet the GMP requirements of well-designed.

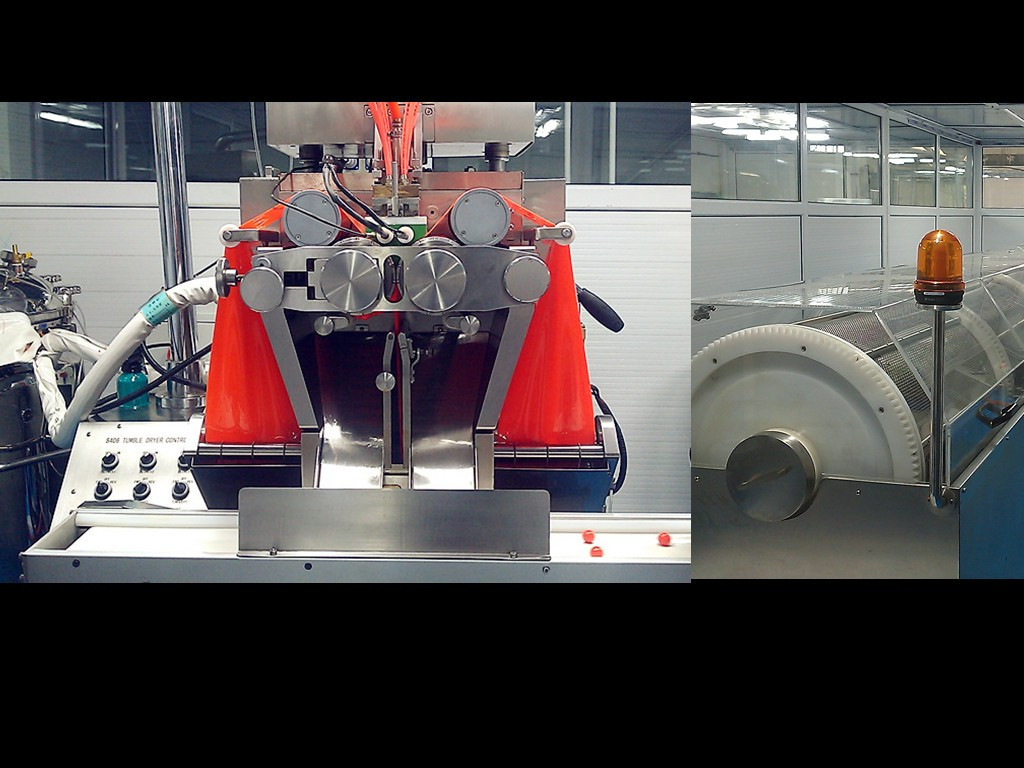

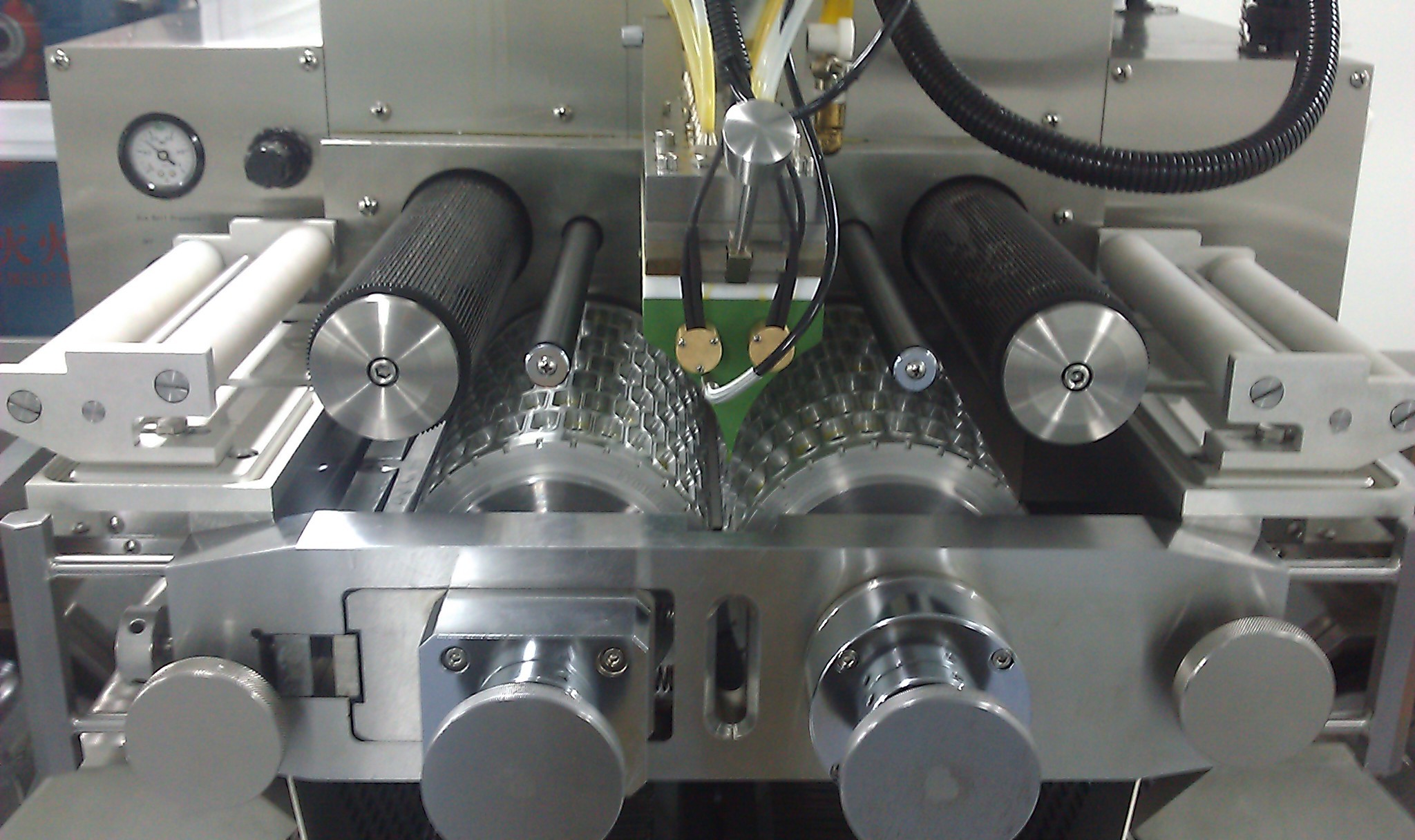

    Capsule making machine consist of soft capsule machine, sol pot, mould (die roll), capsule conveyor, tumbler dryer, cooling air machine, vacuum pump, drying tray, vacuum mixing barrel and electrical control system and other ancillary equipment.



    This machine can be applied to all kinds of drugs, food, cosmetics, oils and hydrophobic substances in the quantitative suspension or paste injection pressure and encapsulated in gelatin membrane, the formation of various sizes in sealing the soft capsules.





    Specification



    Model

    S406

    Die roll diameter

    Ф103mm

    Die roll length

    152mm

    Die roll speed

    0~5rpm

    Plunger numbers

    10

    Dosage tolerance

    ± 2%

    dimension

    880X640X1900mm

    weight

    900kg

    Power consumption

    7kw

    Control mode

    PLC+HMI Switch/buttons

    Output rate

    8#OV 43470 pcs/hour







    Competitve Advantages



    1. Good stability

    2. Adjustable rotation rate during 0-5rpm

    3. Easy to operate and clean, conforming to GMP

    4. Compact and beautiful

    5. It can be assembled or disassembled with single hand

    6. Big air flow

    7. Reduce the oil consumption





    PLC + HMI Switch Automatic Pharma Packaging Machinery Softgel / Cosmetics 1
