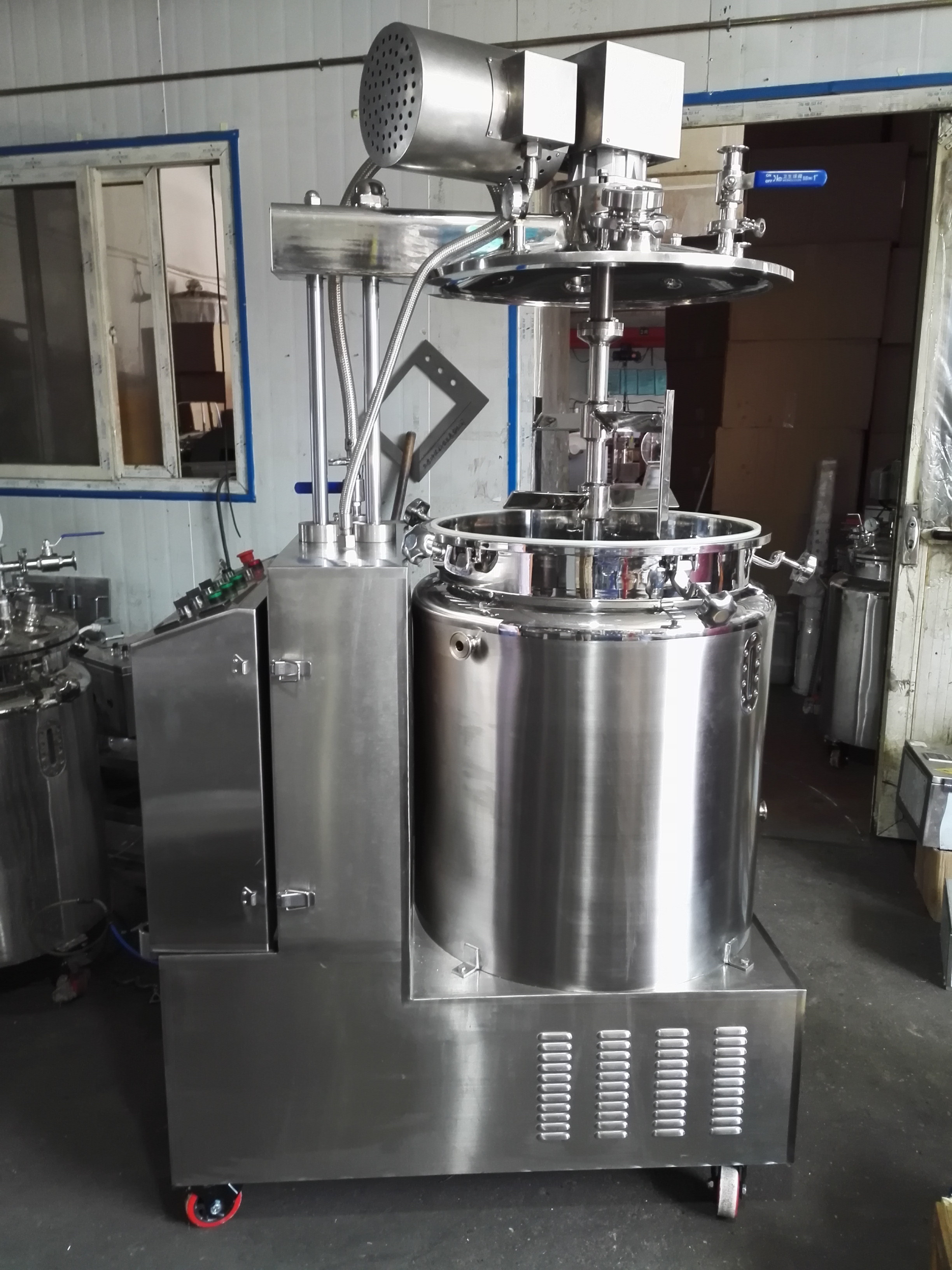

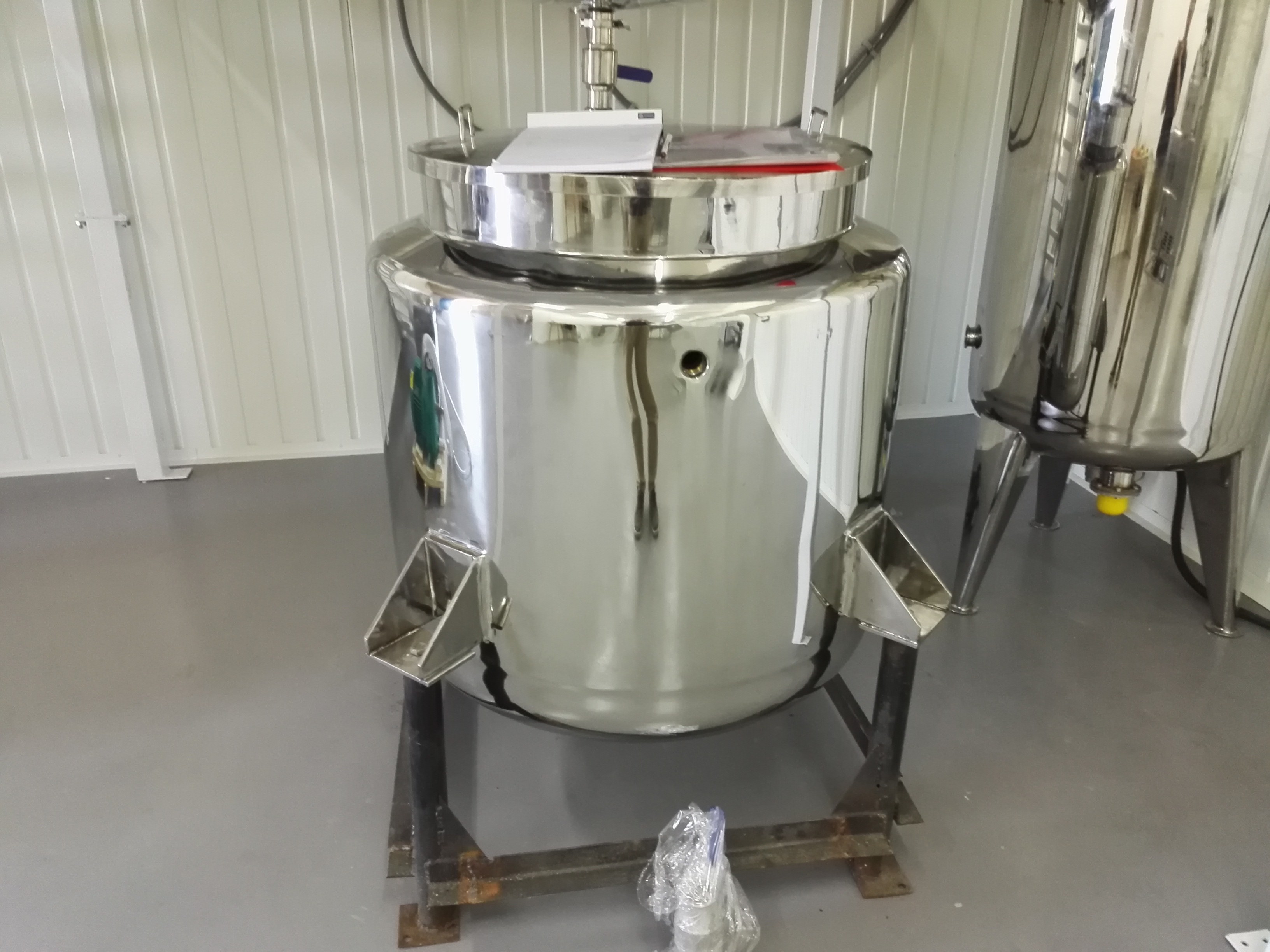

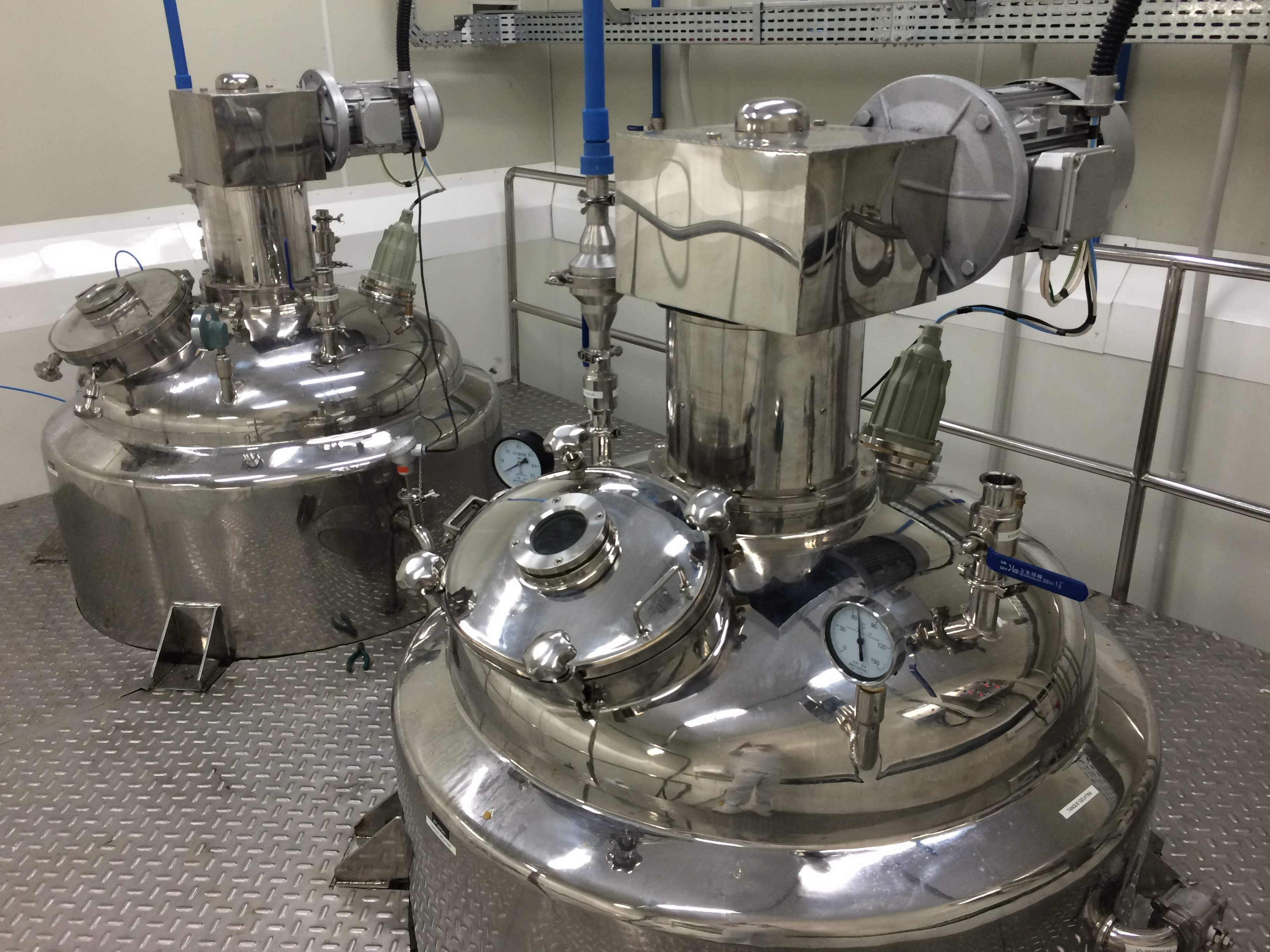

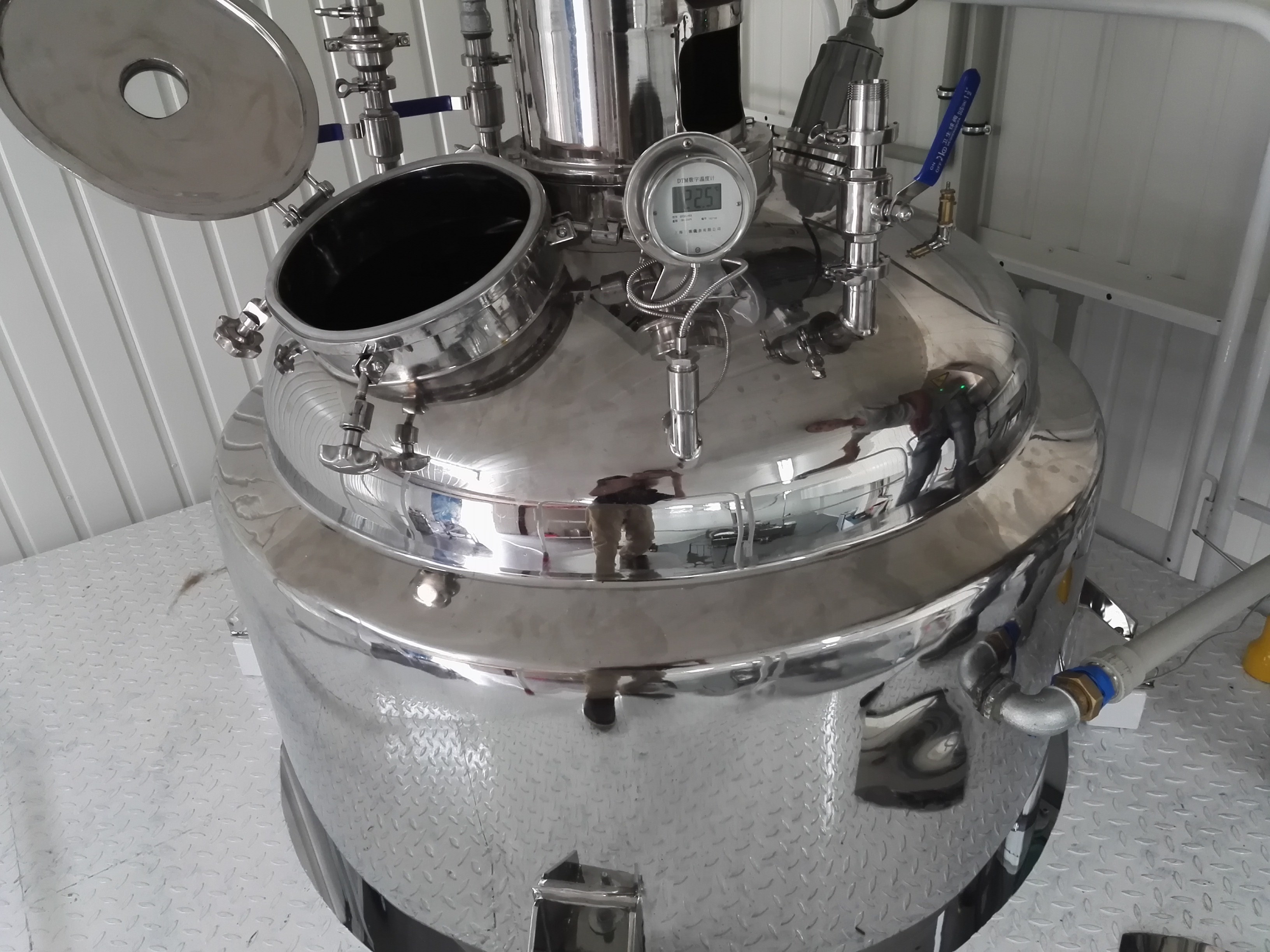

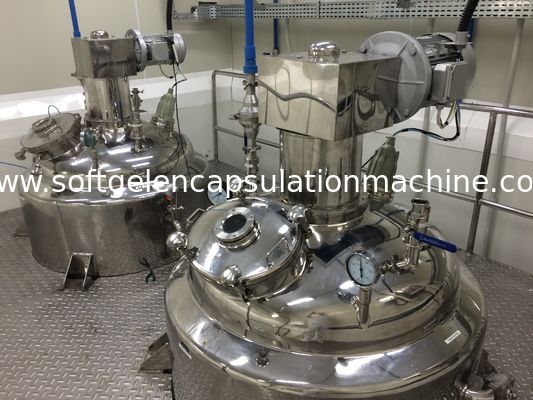

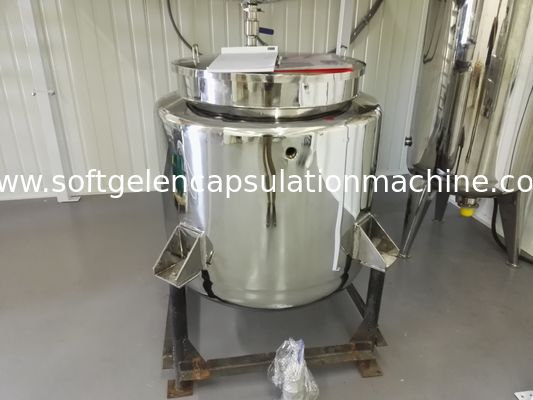

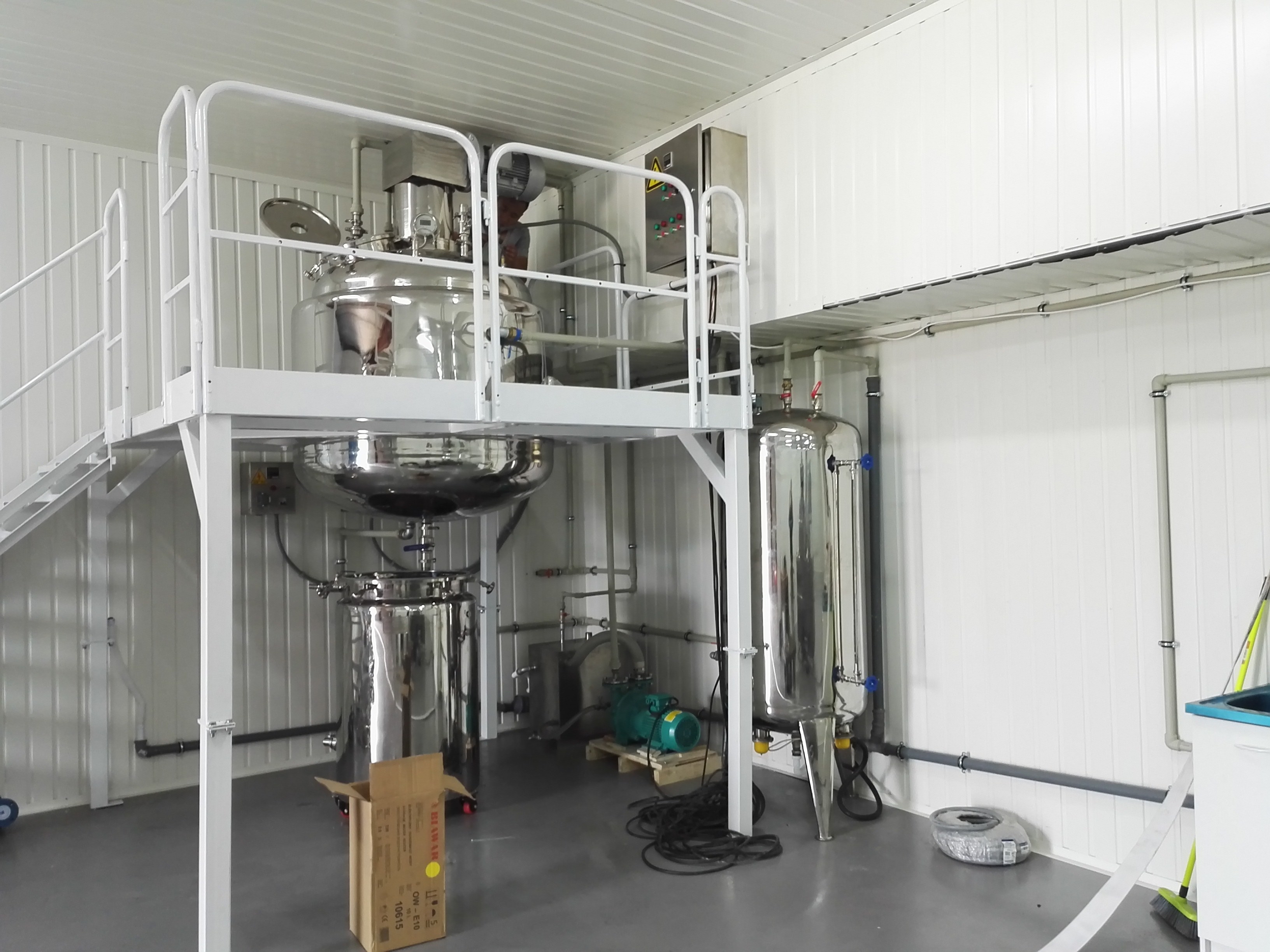

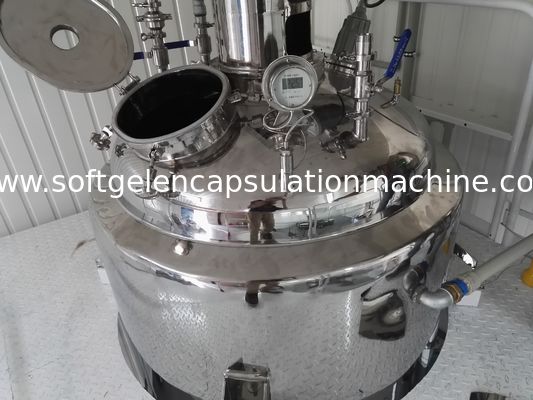

Water Bath Heating Gelatin Melting Tank

Water Bath Heating Gelatin Melting Tank

  • Water Bath Heating Gelatin Melting Tank
  • Water Bath Heating Gelatin Melting Tank
  • Water Bath Heating Gelatin Melting Tank
  • Water Bath Heating Gelatin Melting Tank
  • Water Bath Heating Gelatin Melting Tank
  • Water Bath Heating Gelatin Melting Tank
Water Bath Heating Gelatin Melting Tank
Product Details:
Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: GMT
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Payment Terms: T/T, L/C
Contact Now
Detailed Product Description
Name: Gealting Melting Tank Production: Liquid And Gel
Mixer: Avaliable Capacity: 300-1500L
Heating: Tem Conservation Warranty: 1 Year
High Light:

304 SUS Gelatin Melting Tank

,

450L Gelatin Melting Tank





304 SUS Gelatin Melting Tank / Three Layers Of Water Bath Heating / 450L





Quick Detail



Product Name Gelatin Melting Tank Heating type Water-bath heating
Application Paintball /Soft capsule manufacturers Model 450L
Material 304 SUS Capacity 650L



Product Description



The Series of gelatin reactor is the essential equipment in gelatin preparation.

The Capacity is from 450L, to 1000L

Main technical data
Vacuum degree in the vessel: 0.02-0.09 Mpa.
Working pressure in the vessel: 0.03-0.05 Mpa.
Examining Pressure in the vessel: 0.Gelatin Melting Tan3-0.4 Mpa.
Working pressure in the jacket: 0.03-0.098 Mpa
Working temperature in tank: 50-100 °C
Conveyor granule: 30 CP
Sealing parts and ring can used more than 3,000 hours continuously.
Insulating layer use super-fine glass cotton.
Inner vessel and insulation layer (covered layer) of the Tank, those sections exposed to raw material are made of 1Cr18Ni9Ti stainless steel.


Application



It’s mainly for softgel making and paintball making enterprises. Besides, the cosmetic manufacturer also needs this to make cosmetics, such as bath beads. And health products manufacturers also need this to make different softgels for the different needs.



Specification



Model 450L
Capacity(L) 650
Melting gelatin(L) 100-450
Heating area(M2) 3.2
Max degree of Vacuum(Mpa) 0.09
Max Temperature(℃) -100
Motor Power (KW) 4
Stirring speed (r/min) 50
Dimension (mm) Φ1210X1880



Competitive Advantage



1. Stainless steel construction, multi-layer stirrer.

2. Soft capsule gelatin melting tank, heated by circulated hot water.
3. Water sealed vacuum pump is adopted.
4. Designed with three stainless steel interlayer it, helps for accurate control of the temperature of medicine liquid.
5. It’s convenient in installation and cleaning.
6.Typically designed paddle ensure agitating quickly and mixing uniformly.

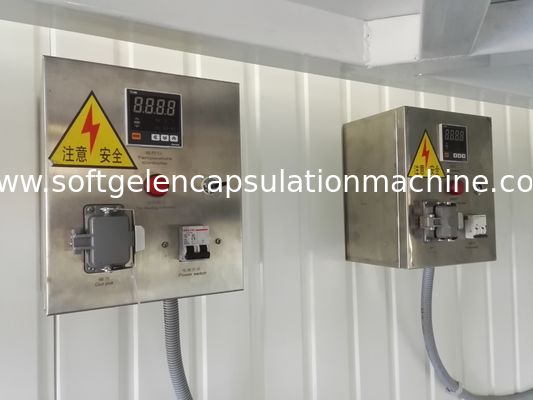

7.Contral part use electrcity from Germeny
Softgel Gelatin Melting Tank, Gelatin Service Tank, Paintball Gelatin Melting Tank
