10" inch Automatic Paintball Encapsulation Machine For Making Pharmaceutical Softgel / Capsule
Quick Detail
Dimension(mm) |
2250×900×2300mm |
Power consumption |
7kw |
Pump type |
10 plungers |
Dosage Tolerance |
± 2% |
Advantage |
With economic price and lower using cost |
Packing Material |
Gelatin |
Product Description

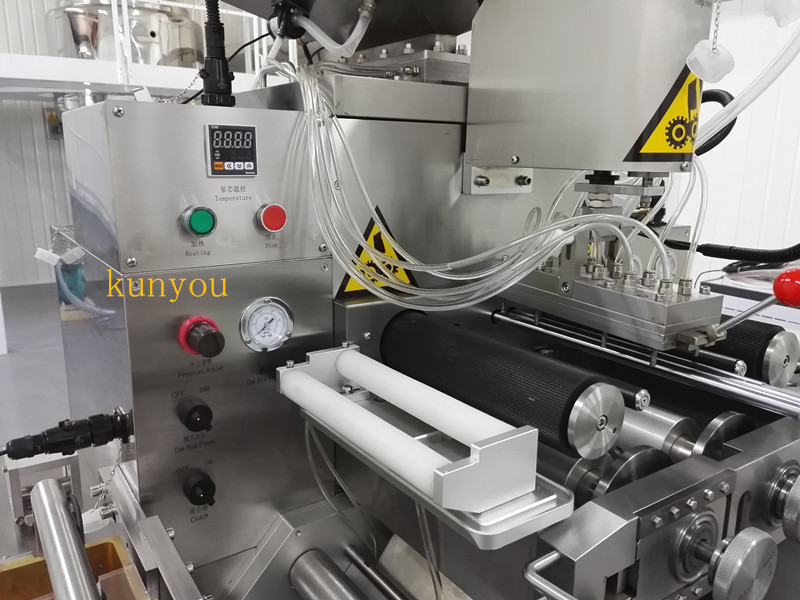

S403 Softgel Automatic Encapsulation Machine is specially designed for R&D department of laboratories and pharmaceutical factories. The softgel manufacturing line is mainly including the main machine(Encapsulation System), Gelatin melting and service tank, Mixing tank and then drying system.
Gelatin Melting
Water bath type gelatin tank is a special equipment for melting gelatin and production process. The gelatin melting tank has the advantage of compact structure, stable transmission and stable running performance. The mixing/stirring process is operated through connecting loop coupling and is composed of plurality of split agitator with stable transmission and better homogenization effect. The whole body of the tank is made of stainless steel. The body include three layers, including the tank liner, heating jacket and heat preservation layer. Heating the inner of the tank with the circulation hot water, it will be featured by fast heating, good thermal insulation performance, improving the quality of gelatin, accelerating the gelatin melting and shorten the melting time. The liner is closed totally with very good vacuum performance. The feeding mouth is convenient o assemble and repair. The whole tank is very smooth and bright with features of convenient cleaning, anti-corrosion and anti-acid, etc. Gelatin melting tank adopts stainless steel construction for its whole body. During its working process, the machine will suck moisture from inside of the tank, leaving the vacuum. All these are in accordance with the requirement of GMP. So the gelatin melting tank is an ideal equipment for the soft capsule pharmaceutical line.
Drying System
TD-2 Soft Capsule (Softgel) and paintball Tumble dryer is used to predry and initial shaping of soft capsule (softgel) and paintballs. Each section can be of variable frequency of speed regulation. There should be two tumble dryers at least, we call it one group. In other words, your making machine should be equipped with one group of tumble dryer(two sections) at least. Each section is equipped with an independent fan to make softgels and paintballs distribute evenly, thus making the drying effect much better. Each dryer can be easily removed and easy to clean, it’s more in line with the requirements of GMP. Each dryer is equipped with electrostatic guiding device and safety production device. The operator can conveniently make the dryer stop just in the tumble dryer position. TD2 has advanced structure and stable material, making its drying effect much better than other models of domestic and Korean machine.
Application
Model |
S403 |
Die roll size |
Ф80X100mm |
Die roll speed |
0~5rpm |
Overall dimension |
1250×400×2300mm |
weight |
600kg |
Power supply |
380V/240V,50/60HZ |
Power of the main motor |
1.1kw |
Power of the main machine |
3kw |
S610 Softgel Encapsulation Machine |
|||
Shape |
Capsules/hour |
||
2r/min |
3r/min |
4r/min |
|
5#OV |
48000 |
72900 |
90200 |
8#OV |
44400 |
68100 |
94800 |
10#OV |
32640 |
48960 |
68280 |
11#OB |
30000 |
41800 |
56400 |
16#OB |
28040 |
14160 |
13680 |
20#OB |
25480 |
36720 |
49960 |
24#OB |
24120 |
37180 |
48240 |
Paintball |
30000 |
|
|
|
Model |
450L |
600L |
800L |
1000L |
Capacity(L) |
650 |
900 |
1120 |
1370 |
Melting gelatin(L) |
100-450 |
150-600 |
200-800 |
300-1000 |
Heating area(M2) |
3.2 |
4 |
4.8 |
5.5 |
Max degree of Vacuum(Mpa) |
0.09 |
0.09 |
0.09 |
0.09 |
Max Temperature(℃) |
-100 |
-100 |
-100 |
-100 |
Motor Power (KW) |
4 |
5.5 |
7.5 |
7.5 |
Stirring speed (r/min) |
50 |
50 |
50 |
50 |
Dimension (mm) |
Φ1210X1880 |
Φ1310X1980 |
Φ1410X2080 |
Φ1510X2130 |
Model |
TD-2 |
Basket diameter(mm) |
580 |
Basket length(mm) |
900 |
Weight(ton) |
1.5t |
Drying fan(kw) |
0.32 |
Motor Power(kw) |
0.4 |
Basket per section |
2 |
