Stainless Steel Paintball Encapsulation Machine Large Scale Paintball Production LIne

China Stainless Steel Paintball Encapsulation Machine Large Scale Paintball Production LIne supplier
Stainless Steel Paintball Encapsulation Machine Large Scale Paintball Production LIne supplier Stainless Steel Paintball Encapsulation Machine Large Scale Paintball Production LIne supplier Stainless Steel Paintball Encapsulation Machine Large Scale Paintball Production LIne supplier Stainless Steel Paintball Encapsulation Machine Large Scale Paintball Production LIne supplier Stainless Steel Paintball Encapsulation Machine Large Scale Paintball Production LIne supplier

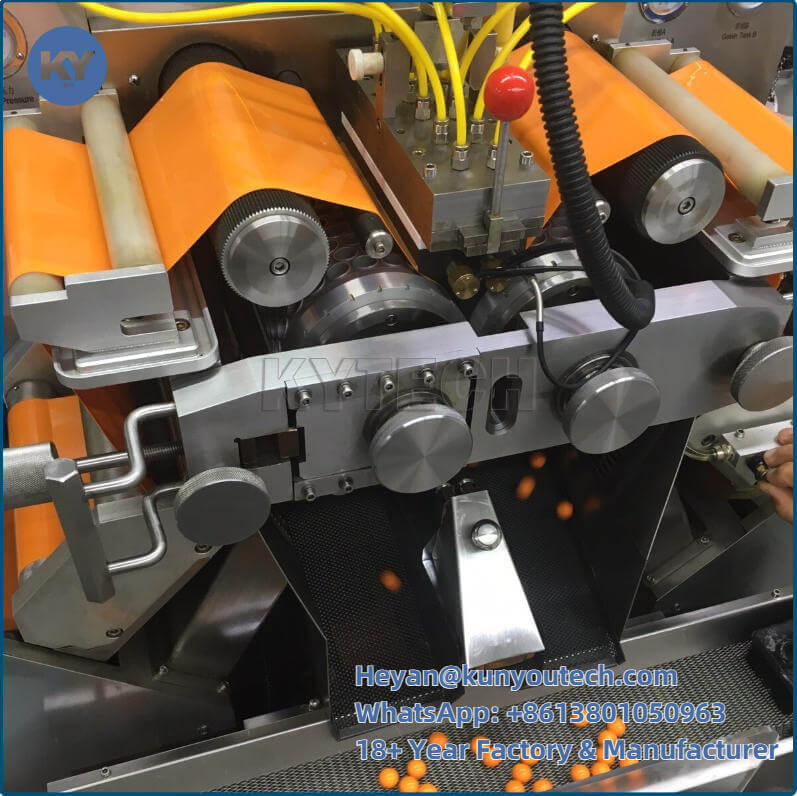

Large Image :  Stainless Steel Paintball Encapsulation Machine Large Scale Paintball Production LIne

Product Details:

Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: S610PB

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Delivery Time: 30-90 days
Payment Terms: T/T, L/C
Supply Ability: 15 Set/Sets per year
Contact Now
Detailed Product Description



Stainless Steel Paintball Encapsulation Machine Large Scale Paintball Production LIne



 Quick Detail



Pump Type

20/24 Plungers

Control Mode

PLC+Touch Screen

Certification

CE

Power Consumption

20 kw

Weight

1900kg

Capacity

32000pcs/hour


Product Description

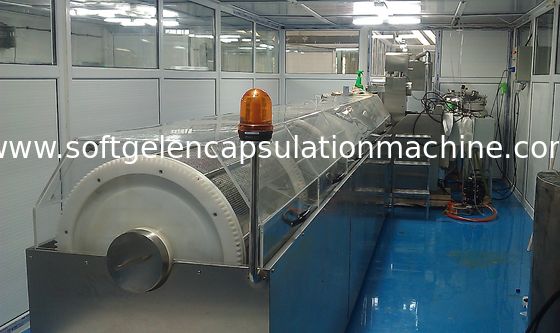

S610PB Paintball Encapsulation Machine’s components are mainly from Germany. The whole machine’s mechanical parts adopt independent single adjustable lubrication, reducing mechanical wear and prolonging the time without any mistakes. There are two ways which use the cantilever to operate, large size touch screen and switch button to choose from. The control system has faults diagnosis function. It can realize remote diagnosis after the upgrade. New 8 type amorphous drying roll cage is featured by variable frequency speed regulation and more reasonable structure. The cage can be disassembled without moving dryer. It’s easy to clean. There are material receiving discs under the roll cage, making S610 more in line with the requirements of GMP.

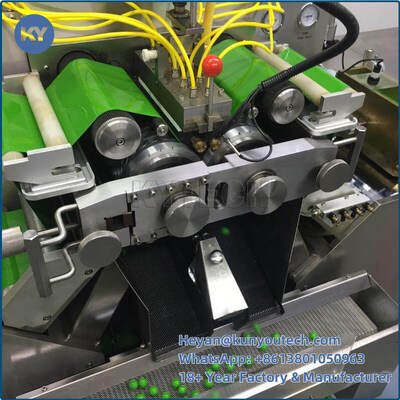

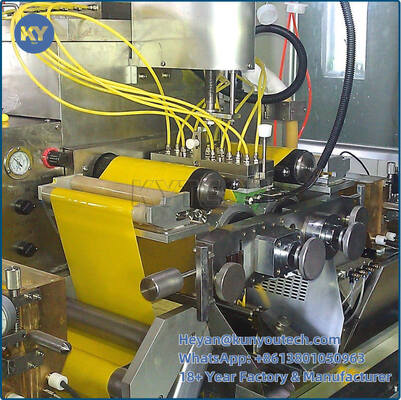

Stainless Steel Paintball Encapsulation Machine Large Scale Paintball Production LIne


Specification


Model

S610PB

Die roll size

150×250mm

Die roll speed

0~5rpm

Max plunging volume per stroke

0~2ml

Plunger numbers

20/24

Overall dimension

2050×1200×1850

Weight of main machine

1900kg

Power consumption

20kw

Control mode

PLC+Touch Screen



Competitive Advantage


1. Improve the efficiency of production largely

2. Compact and beautiful

3. Reduce the oil consumption

4. Save money for users

5. Low noise, run more smoothly

6. The cable plug has good waterproof and oil proof function

7.Easy to move and operate

8.High technical loading capacity


Paintball making machine and softgel making machine and all kinds of spare parts for both machine.
