KUN YOU Pharmatech Co.,LTD.

 Manufacture the best softgel capsule /paintball machine for you!

Home ProductsCounting And Packing Machine

Softgel Counting And Packing Machine

Softgel Counting And Packing Machine

  • Softgel Counting And Packing Machine
  • Softgel Counting And Packing Machine
  • Softgel Counting And Packing Machine
  • Softgel Counting And Packing Machine
Softgel Counting And Packing Machine
Product Details:
Place of Origin: China
Brand Name: Kunyou
Certification: CE
Model Number: SL30
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Veneer cages
Delivery Time: 35 days
Payment Terms: L/C, T/T, D/P, D/P, Western Union
Supply Ability: 30 set per mon
Contact Now
Detailed Product Description
Material: SS304 Filling Material: Paintball
Capacity: 10bag/min Bag: 500 Paintball
Warranty: 1 Year Brand: Kunyou
High Light:

Softgel Counting And Packing Machine


Paintball Counting Packing Machine

Softgel Counting and packingSL30 Machine for the capsule ,tablet

Beijing Kun You Pharmatech Co., Ltd. devotes itself to manufacture softgel encapsulation line, tumble dryer, softgel mould, softgel sorting machine, softgel auxiliary equipment, paintball production line, and related technique R&D.

We also accumulated rich experience of softgel encapsulation technique. We have many sets of high-precision CNC and auxiliary equipments, and our professional design, technology, production and service personnel, enable us to produce high performance equipment, mould and top quality service. We are not only a equipment and mould supplier, but also a turn-key solution and formula provider.Easpcially in veggie gel capsule.

Kun You is keeping good cooperation relationship with companies from USA,Swissland, Germany, Canada, Russia, Mexcio, Vietnam, Turkey, Brasil, India, etc., in the meantime, our products and service have been exported to those regions too.


1. Production Line Parameter

Max. Production Speed Bottle Size Voltage/Power Air Consumption Total Length Operator
40-50 bottle/minute 10-500 ml 220v/8.5+ kw 0.9 m3/h 10.8+ m 3-4 person


  • Fixed installation location of machine: Solid preparation department

·Usage: suitable for granule, pellets, hard capsules, soft capsules, tablets (tablets, sugar coated tablets, round tablet, and special-shaped tablets) and other solid products or food which is suitable for counting.

Operating Conditions:

Environment Temperature(℃): 21±3

Relative Humidity: 45%-65%

Power Supply: AC220V, 50HZ

Measurement Accuracy: beyond national standard

Operating Noise: ≤65Db

All Chinese operation menu, easy to learn, easy to operate.

Adopt country’s most advanced DSP digital display control system: high speed, wide range of application. .

The key components using original components from Europe and America or Japan.

Perfect quality assurance system.

Timely and thoughtful after sales service system.

Electric wire cable supporting in line with the requirements of GMP / air line slot, and the whole line in a workshop is connected with centralized power supply and air supply.

  1. 2. Power Source Standard and Parameter of Each Machine
Machine Name Model Weight Air Pressure Mpa Air Consumption m3/h Dimension mm Power Consumption
High Speed Bottle Unscrambler BPM-120 150Kg / 0.1 1065×1510×1065 220V/50HZ/500W
High Speed Desiccant Inserter DIM-120 250Kg   0.18 1100×500×1500 220V/50HZ/500W
Electronic Counting and bottling Machine ECB-12 360Kg 0.4 0.2 1600×900×1700 220V/50HZ/600W
High Speed Capping Machine CAP-120 500Kg / 0.2 2400×1100×1950 220V/50HZ/1750W
Automatic Induction Sealing Machine ISM-120 260Kg / / 1600×950×1250 220V/50HZ/3000W
Servo Labeling Machine LM-120 250Kg   0.1 2000×900×1150 220V/50HZ/1500W

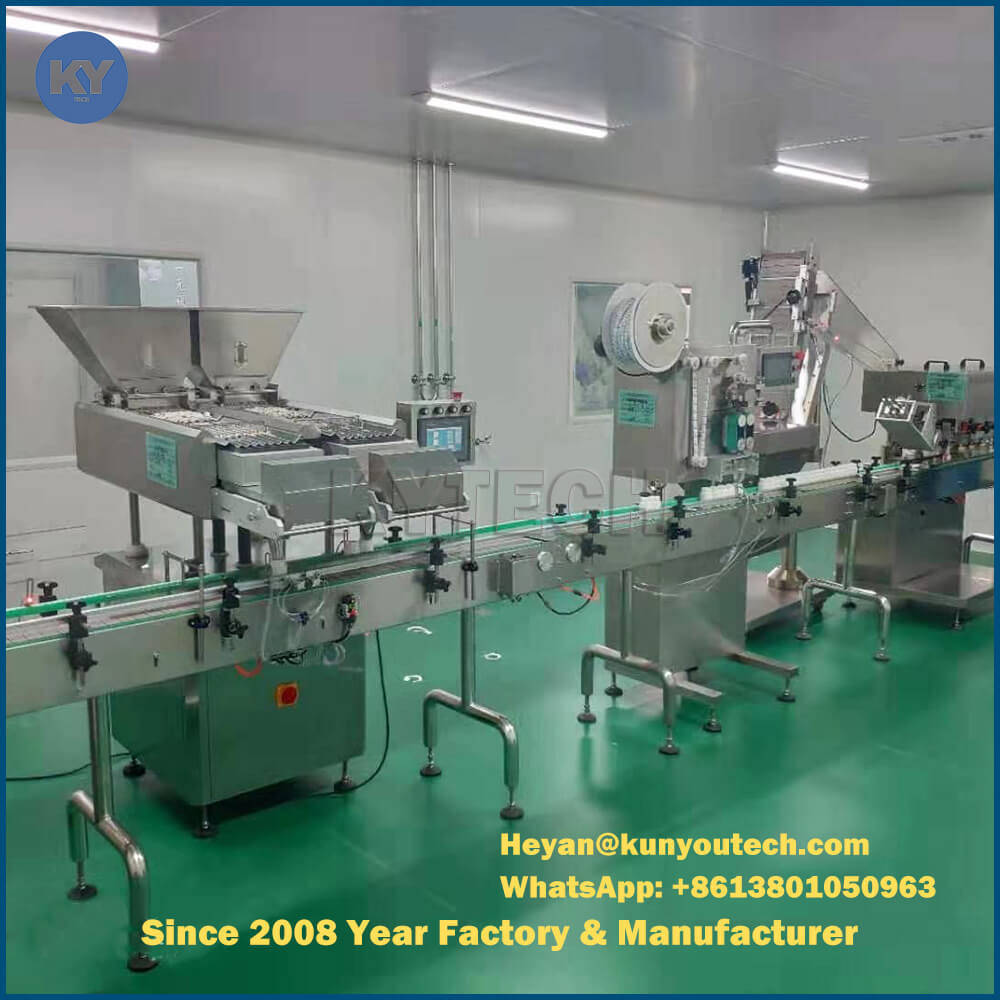

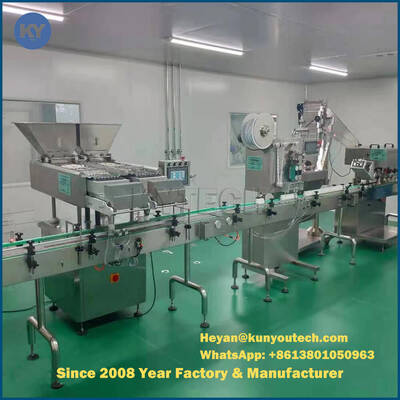

Softgel Capsule Counting and Bottling Machine Line For Pharmaceutical Manufacturer

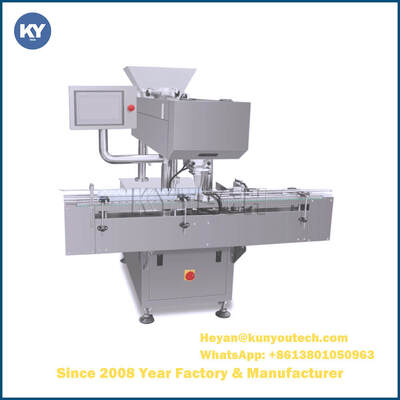

Softgel Counting And Packing Machine 1

Technical data


NO of channels (SL-30)8 channels
Max produce speed 100/bottle, 10-40bottles/min
Tablet's specifications diameter: 2.5-12mm, length:3-24mm
Bottle’s diameter 20-100mm
Height of bottle 40-240mm
Input power 220V 50Hz
Capacity 1.1Kw
Air supply 0.3m³/mi
Outer dimension


length of conveyor: 1700mm

Weight 300kg


1 Usage: suitable for soft capsules/ softgel, hard capsules, tablets, special-shaped tablets and other solid tablets.

2 According with the GMP standard, the part contact with medicine adopt AISI 304,306 stainless steel.

3 Fastening structure, electrical control parts are sealed, avoiding drug powder affects the working life of electrical components.

4 Automatic detection,when no bottle or bottle fall down automatically shutdown.

5 Infrared scanning electric eye with function of automatic filling, and limit alarm and shutdown.

6 The Matrix type electric arrangement design make sure the detection channel open wide,which is also suitable for small size pills counting. Some counting machine from other factory have gap between the infrared receiving terminals, those gaps may cause the counting is not accurate.

7 60/120 machine adopts the automatic lifting system, other machine lifting by hand.

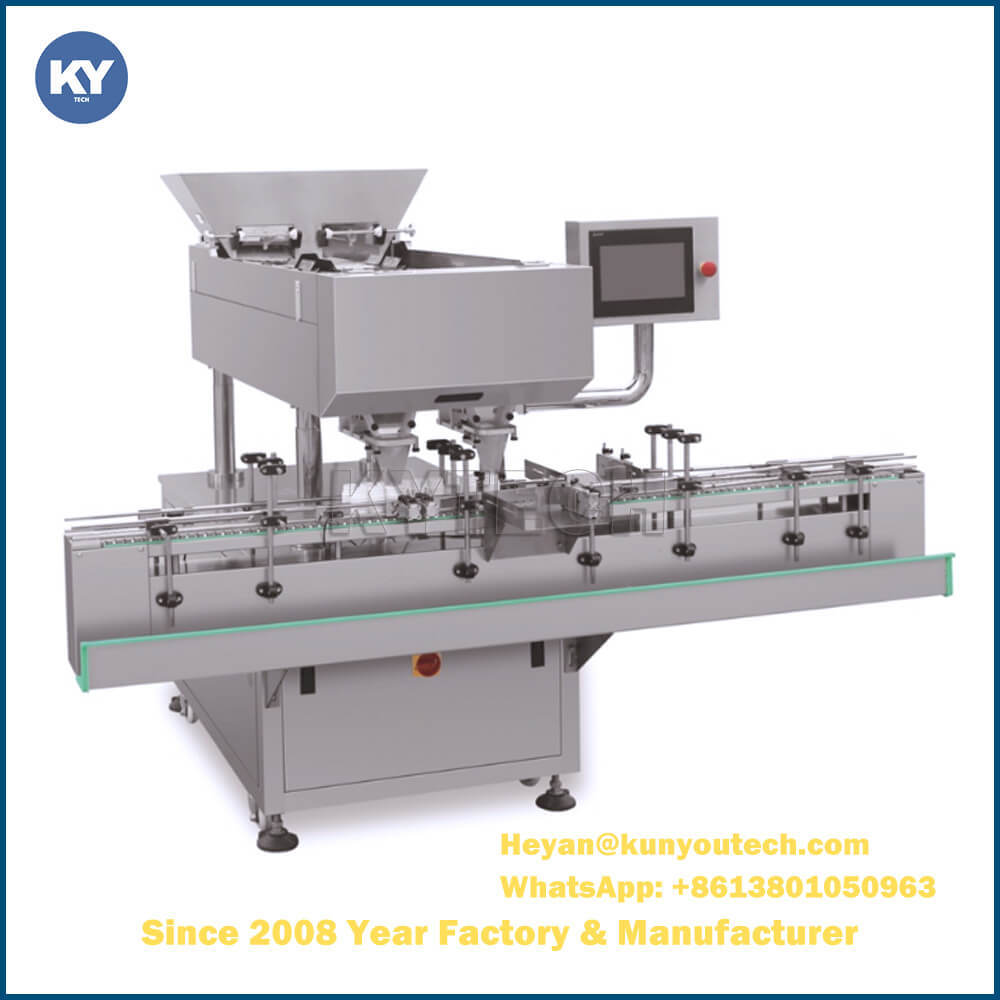

Softgel Counting And Packing Machine 2

Feeding mechanism:

The original is casting vibration plate, While it is vibration plate instead of sliding in new design. It is much Faster, better stability. Using linear vibrating disc electromagnetic oscillation,so the vibration amplitude can be adjusted. With Higher speed to guarantee that the separating grains faster.

With DC vibrator, Capsule vibration is much stable, It can make the grain (including irregular tablets) move smoothly. Grain sliding orbits adopts two layers of ladder type and lengthened track, grain layer by layer walk down, The distance between grain and grain will be larger thus can avoid them overlaps.

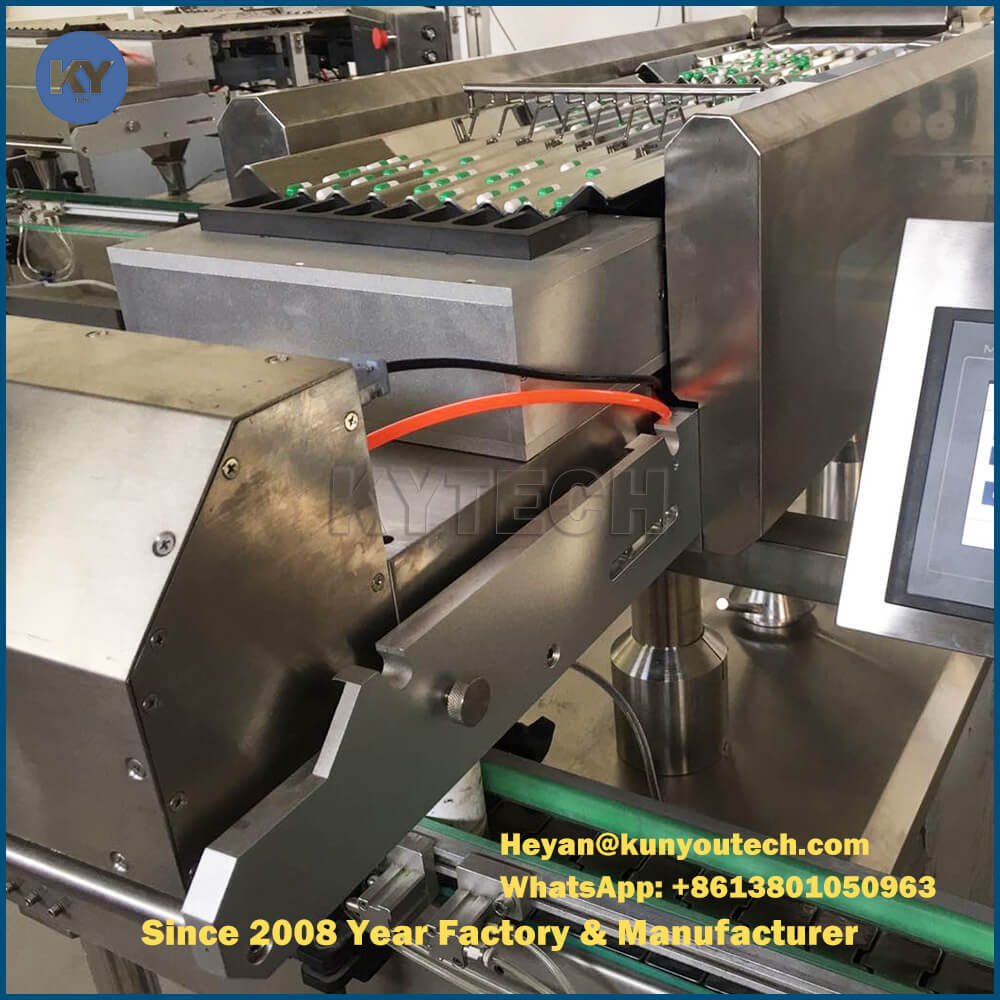

Counting device

It is with full set of original pneumatic components, especially using the electromagnetic valve island integration, to ensure the accuracy of bottling.Special valve cylinder, and solenoid valve control group and other supporting parts, all sealed, avoid drug dusts affect the use of electrical components, prolongs the service life, not easy to damage.

Specially designing suction device

Two vacuum cleaner designing, dust suction holes (groove) on the left tail vibrator of as well as the begining of the tail which powder in it to collection and sucked out by a vacuum cleaner.

The vacuum tube according to aerodynamic principles of scientific design, can reduce the influence of dust.

By controlling the size and position of the wind inlet, air inlet, air volume, the dust is effectively sucked.

Softgel Counting And Packing Machine 3



Q1:Are you factory or trading company?

A: We are factory and manufacture.


Q2: Where is your factory located? How can I visit your factory?

A: We are located in Beijing, you can fly to Beijing airport or Nanyuan airport. Wecan pick you up from the airport or your hotel.Welcome to visit us!


Q3:How to place my order?

A: Just contact us via TraderManager, E-mail, Skype or telephone to confirm the product, make the deposit then we will start to manufacture.


Q4 : What is the payment term?

A: 30% T/T deposit and 70% T/T balance payment before shipping.


Q5:How long is the delivery time?

A: About 35- 40 working days.
