Small Paintball Die Roll Capsule Mold For 10" / 12" Softgel Encapsulation Machine

Small Paintball Die Roll Capsule Mold For 10" / 12" Softgel Encapsulation Machine

Small Paintball Die Roll Capsule Mold For 10" / 12" Softgel Encapsulation Machine
video
Small Paintball Die Roll Capsule Mold For 10" / 12" Softgel Encapsulation Machine
Product Details:
Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: Ø 150X250
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Delivery Time: 7-10 days
Payment Terms: T/T, L/C, Western Union, Western Union
Supply Ability: 10 Pairs per week
Contact Now
Detailed Product Description
Material: AL Or Cu Size: 4,6,8,10,12 Inch
Shipment: Fedex And DHL Manufacture: CNC Center
Time: 3-5days Brand: KY
Useage: Capsule Paintball
High Light:

herbal capsule maker

,

plastic cover mold

0.68" and 0.5" paintball Die Roll Tooling for 10" and 12" softgel encapsulation machine





Quick Detail



Product Name

Large Die roll for softgel and paintball

Certification

CE

Place of Origin

Beijing, China(Main land)

Material

Aluminium alloy

Die roll Speed

0~5 rpm







Product Description



The soft capsules die roll are widely used in softgel making machines for softgel making enterprises and pharmaceutical enterprises. It can make various types of softgel and according to customers’ requirements. S406 Soft capsule die roll is used for S406 Soft capusle making machine which is suitalble for medium scale production. The raw material of die roll is imported aircraft grade aluminium alloy which has very good strength and tension. Its tension degree can get to 570 MPa and 150 Brinell hardness. Using the imported aircraft grade aluminium alloy can significantly prolong the life of dies. Besides, users can largely reduce the using cost because there are usually four times to repair during its life cycle. After processing these dies roll, technologists will make special surface treatment technology so as to further improve the mold surface hardness and corrosion resistance. In designing softgel die rolls, we strongly absorbed much experience from home and abroad to make better die rolls which can reduce the leakage and net rate and improve the stability of the soft capsule and paintball production.

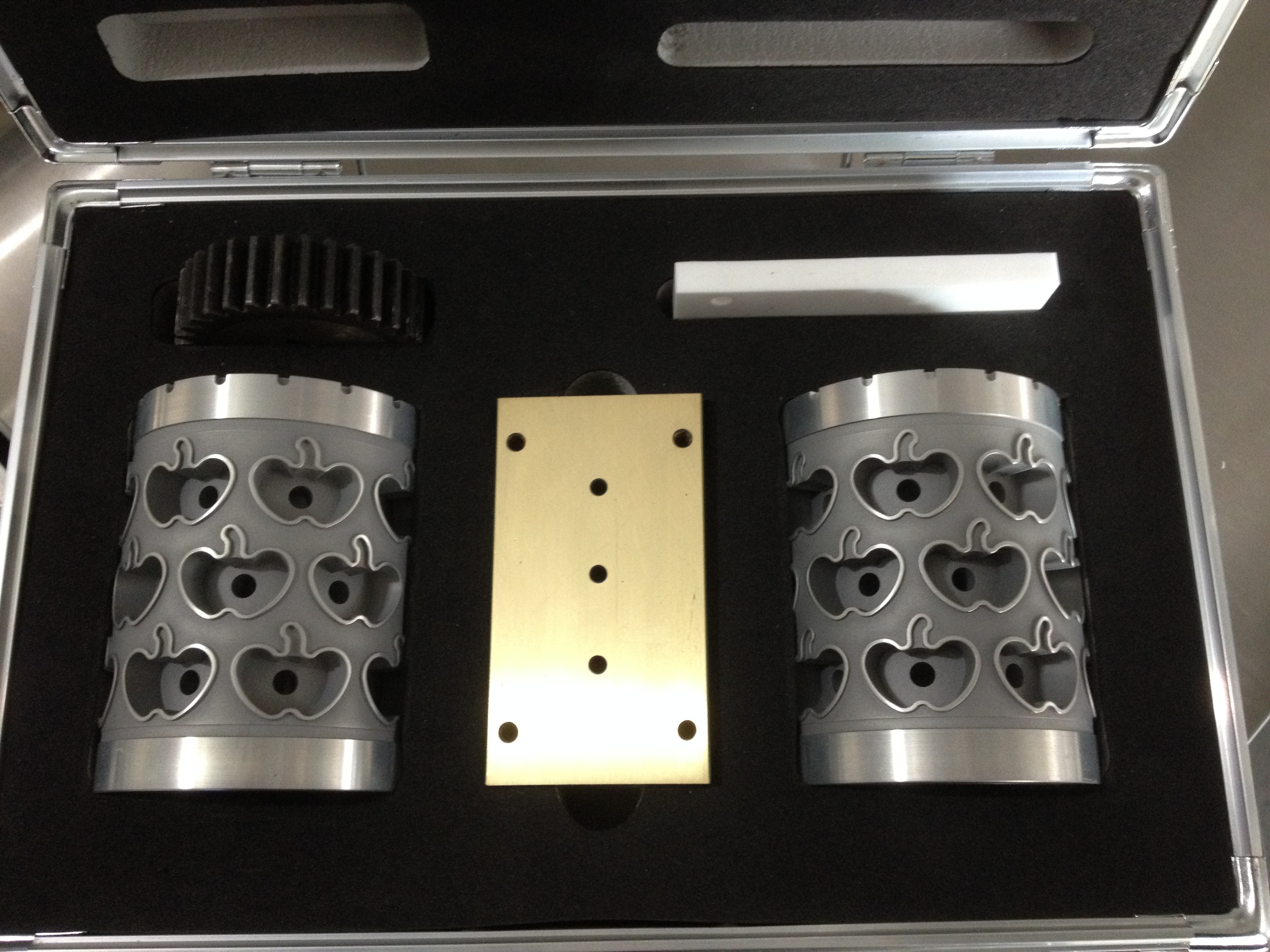

Small Paintball Die Roll Capsule Mold For 10" / 12" Softgel Encapsulation Machine 0



Application

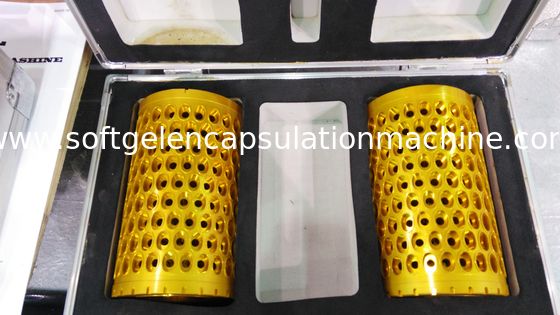

Small Paintball Die Roll Capsule Mold For 10" / 12" Softgel Encapsulation Machine 1

It’s widely used for softgel and paintball making enterprises and pharmaceutical enterprises, including cosmetic manufacturing company and health products manufacturing company and nutrition foods manufacturing.

Specification

Our Machine Model No. Die Roll Size
S403 Ф 80*L100 mm
S406 Ф103*L152 mm
S407 Ф103*L172 mm
S610 Ф150*L250 mm



We can do the die roll as your requirement ,just provide us your machine model,we can send you usually in 1-2 week.

Competitive Advantage

1. Widely used for softgel and paintball making enterprises and pharmaceutical enterprises

2. The raw material is imported aircraft grade aluminium alloy
3. Various types of softgel and round paintball
4. product: Metal: Aluminium, copper
5. Make different die roll according to customers’ requirements
6. Softgel Capsules Making machine for laborotary and small scale production
7.CNC working center manufacture
8. Bottom and side injection design for various material
9.Logo can be as your requirement
10.Each brand machine avaliable
11.Payment can be as paypal and west union or other payment as your convinient

Soft capsule die roll, softgel mold, softgel die  roller and paintball die roll, paintball mold.
Welcome to inquire!

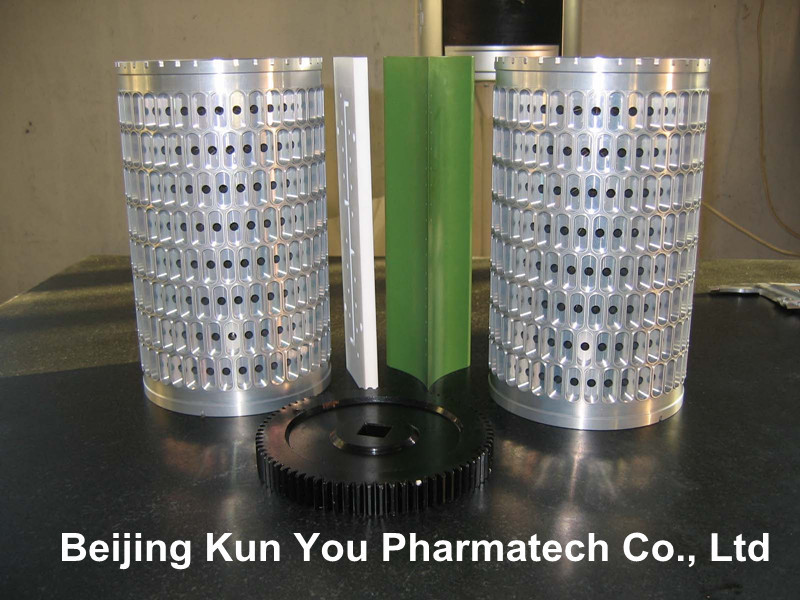

Small Paintball Die Roll Capsule Mold For 10" / 12" Softgel Encapsulation Machine 2
