Electric Softgel Paintball Encapsulation Machine High Efficiency Large Scale
Paintball Production Line Description

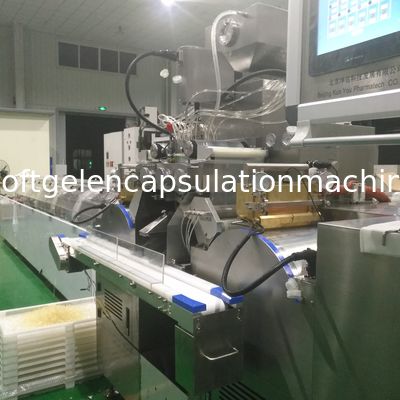

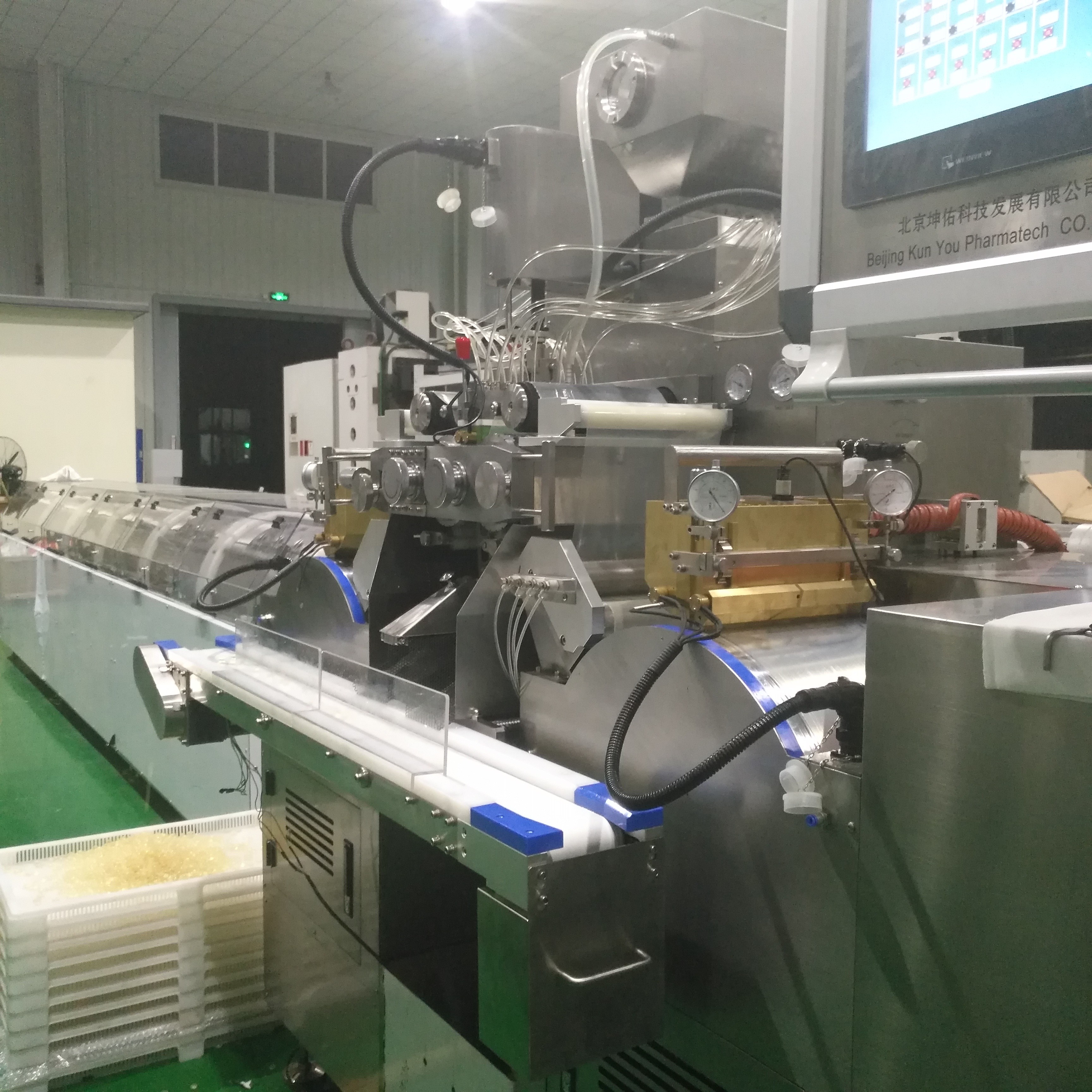

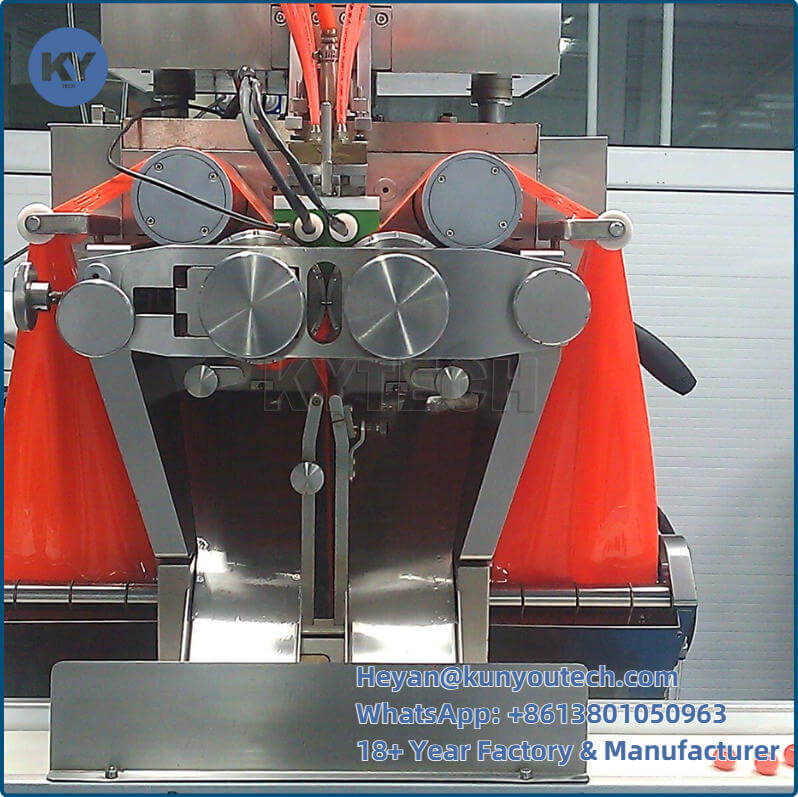

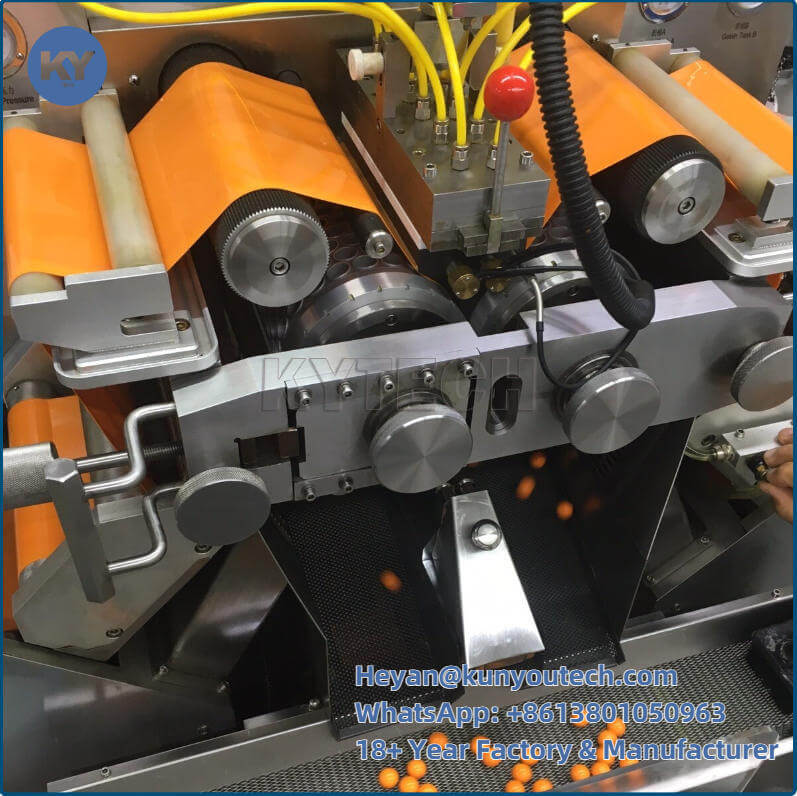

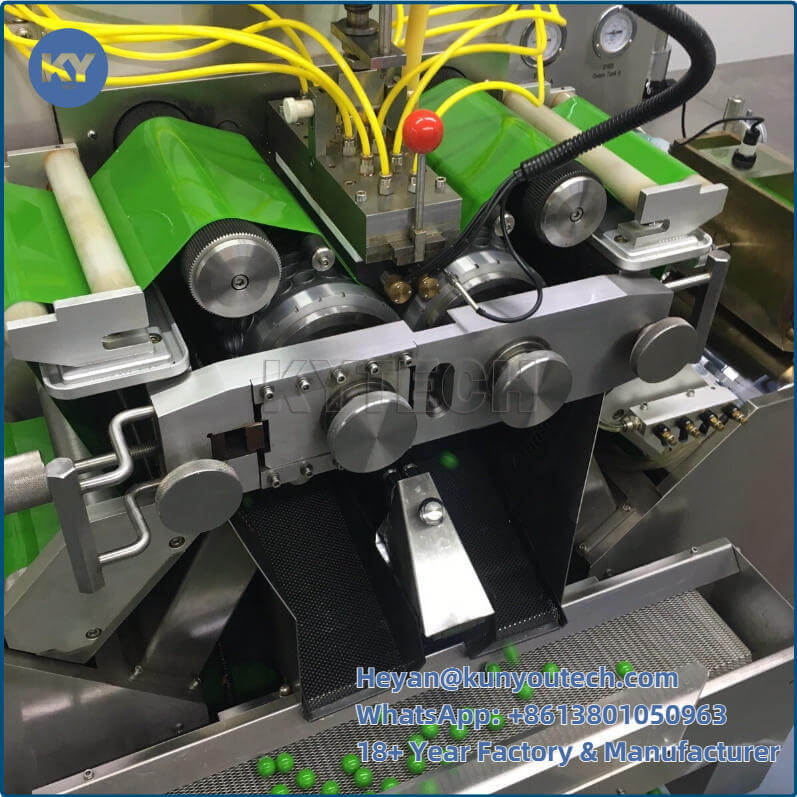

S610 paintball encapsultion machine ( soft capsule encapsulation machine, soft capsule machine, paintball machine). Die roll diameter is 150 mm, die roll length is 250 mm. The whole machine's mechanical parts adopt independent single adjustable lubrication, reducing mechanical wear and prolonging the time without any mistakes.
Dosage deviation:<+1.5%
Gelatin ribbon lubrication: paraffin oil or fractionated coconut oil, less than 1kg in 8 hours. Solvent free.
Major bearing made in Germany.
Capsule brushes are driven by independent motor to prevent the gelatin stuck into the die roll cavity.
Separate lubrication system for medicine pump and die roll assembly.
Water cooled drum also have air blowers
PLC and touch screen control with self-trouble diagnostic.
Automatic medicine supply. The system can even alarm when the fill material tank is empty.

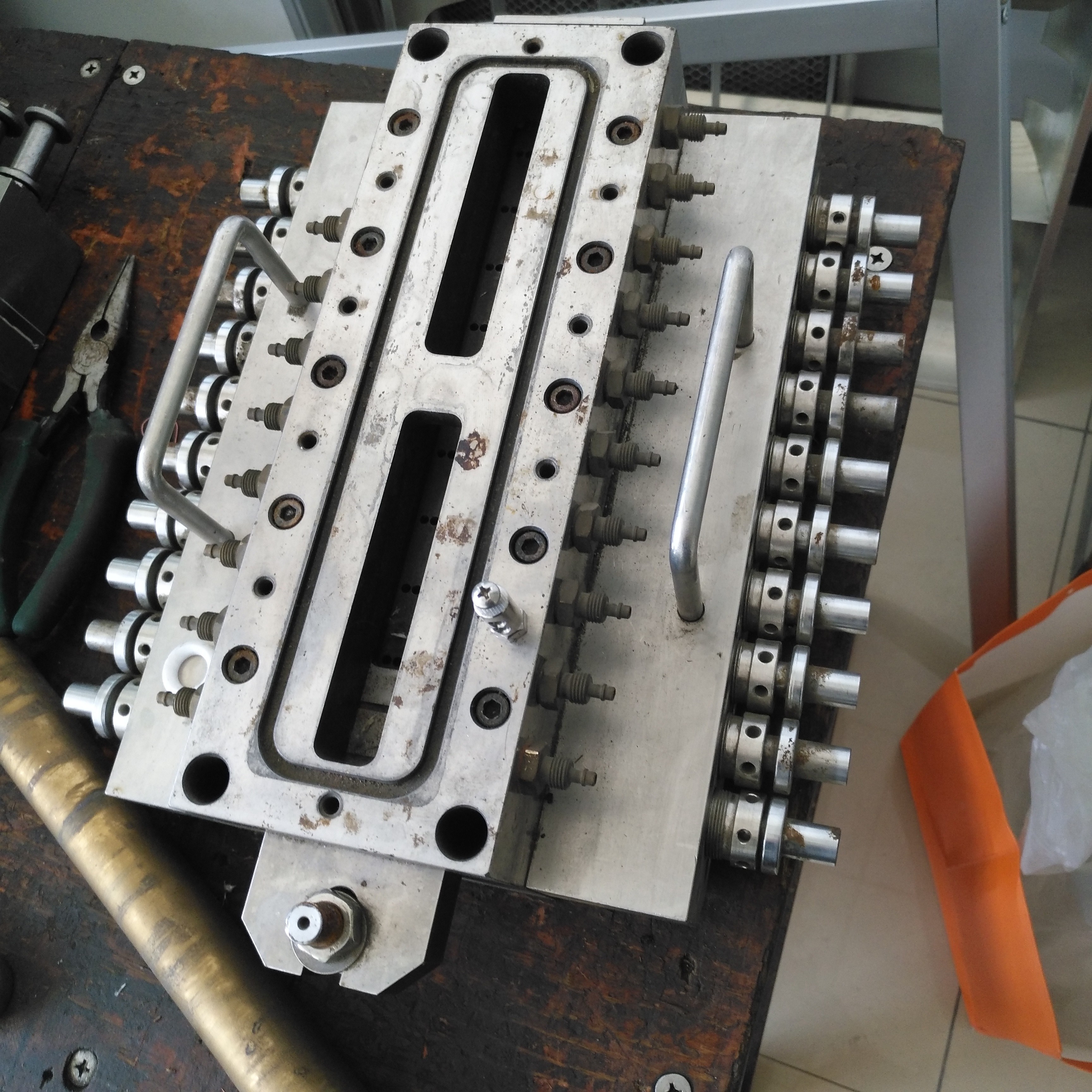

High accuracy medicine pump. The diameter tolerance of the 20 plungers are less than 0.005mm.
| Model | S610 |
| Die roll size | 150×250mm |
| Die roll speed | 0~5rpm |
| Max plunging volume per stroke | 0~3ml |
| Plunger numbers | 20/24 |
| Overall dimension | 2050×1200×1850 |
| Weight of main machine | 1900kg |
| Power consumption | 13.5kw |
| Control mode | PLC+Touch Screen |
| output capacity | 32000 pcs/hour |
Packing&Shipping
We pack the whole machine with wooden case and pack the softgel die roll and paintball die roll with standard boxes.
We ship the whole line of macine by ocean through the freight agent.
Our services
We not only provide the whole paintball & softgel making machine line, but also can provide the factory design for you. In terms of the after-service, we will be responsible for such services as belows: maintenance, parts supplying, technical support.
Company Information
Beijing KUN YOU Pharmatech Co., Ltd., which is established in 2008, has been focusing on designing, manufacturing and selling pharmaceutical machinery, food machinery and paintball machinery.
KUN YOU Pharmatech provides various models of Softgel Encapsulation Machines (soft capsule encapsulation machine,paintball machine, soft gelatin capsule machine), such as S406 with 6" dies, the medium size S407 with 7.5" dies and the latest and largest S610 with 10"dies. Here, you can find whatever paintballs and soft capsules that you need. Welcome to Beijing KUN YOU Pharmatech Co., Ltd. We look forward to cooperating with you!
Abiding by all efforts for customers’ success and customer first principle, Beijing KUN YOU Pharmatech Co., Ltd. provide top quality products and services. We provide tooling and spare parts for all kinds of softgel main machines. We provide state of the art die rolls for all kinds of softgel machines. We not only offer our clients production equipment and tooling soft capsule, but the complete solution of soft capsule production.
After more than ten years of unremitting efforts, our continuing research and cooperation with many domestic and foreign pharmaceutical factory, plant health products and paintball production factory, not only enable us to make a lot of technical innovation in soft capsule equipment, but also to accumulate rich experience in the production process of soft capsule. After years of great efforts and cooperation with world wide pharmaceutical companies, neutraceutical companies and paintball companies, numerous of improvements were made. We also have rich experience in softgel formulation and manufacturing process. We have three sets of high accuracy CNC milling machine, together with lathe, grinding machine, EDM machine, wire cutting machine, we can make state-of-the-art equipments and softgel die roll.
If you are interested in our products, please feel free to contact us. Welcome!
