Professional Herbal Capsule Maker Aluminum Alloy Die Roll Mold For Softgel Encapsulation Machine

1 set
MOQ
USD 1-10000 per set
Price
Professional Herbal Capsule Maker Aluminum Alloy Die Roll Mold For Softgel Encapsulation Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Shape: OV OB
Product Material: Aluminium
Mould Life: 250000-300000shots
Runner: 0-5rpm
Cavity: 2-72 Cavity
Design Software: Solidworks
Product Name: Liquid Silicone Mold Making Rubber For Compression
Lead Time: 10days For Molds
Hardness: 45-49
Application: Capsule Filling Machine
High Light:

herbal capsule maker

,

plastic cover mold

Basic Infomation
Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: 6-28#
Payment & Shipping Terms
Packaging Details: Wood cages
Delivery Time: 1 week
Payment Terms: T/T, L/C
Supply Ability: 10000 sets per year
Product Description

Die Roll Mold for Softgel Encapsulation with varies capacity series

Specifications



Aluminum alloy Soft capsule Die Roll for making softgel and paintballs


Specification



Model Ø150X250mm
Die roll diameter(mm) 150
Die roll length(mm) 250
Die roll speed 0-5
Machine Weight(kg)25 kg
Other Size 103*152mm
Other Size

250*300mm

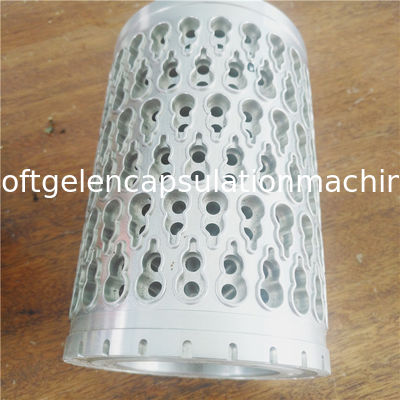

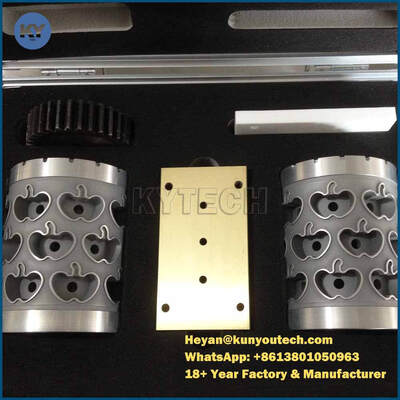

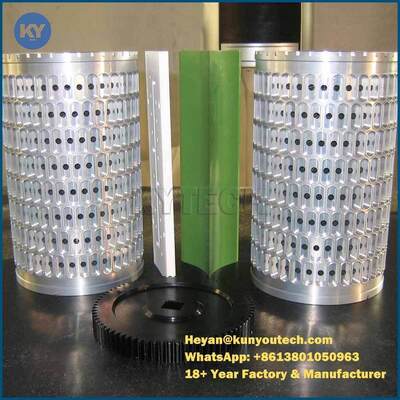

Soft capsule Die Roll Product Description



The soft capsule die roll and paintball mold are widely used in soft capsules and paintball making machines for softgel / soft capsules and paintball making enterprises and pharmaceutical enterprises. It can make various types of softgel and round paintball according to customers’ requirements. The raw material of mold is imported aircraft grade aluminium alloy which has very good strength and tension. Its tension degree can get to 570 MPa and 150 Brinell hardness.



Using the imported aircraft grade aluminium alloy can significantly prolong the life of die roll. Besides, users can largely reduce the using cost because there are usually four times to repair during its life cycle. After processing these die roll / mold, technologists will make special surface treatment technology so as to further improve the mold surface hardness and corrosion resistance. In designing softgel die rolls, we strongly absorbed much experience from home and abroad to make better die rolls which can reduce the leakage and net rate and improve the stability of the soft capsule and paintball production.

Professional Herbal Capsule Maker Aluminum Alloy Die Roll Mold For Softgel Encapsulation Machine 0

Professional Herbal Capsule Maker Aluminum Alloy Die Roll Mold For Softgel Encapsulation Machine 1

Competitive Advantage



1. Widely used for softgel and paintball making enterprises and pharmaceutical enterprises

2. The raw material is imported aircraft grade aluminium alloy
3. Various types of softgel and round paintball
4. product: Metal: Aluminium, copper
5. Make different die roll according to customers’ requirements
6. Softgel Capsules Making machine for laborotary and small scale production
