18000P 7KW Paintball Production Line With PLC And Touch Screen
Quick Detail
|
Dimension
|
880X640X1900mm
|
Material
|
304316 SUS
|
|
Port
|
FOB Tianjin
|
Power Consumption
|
7kw
|
|
Scale
|
Medium Scale Production
|
Capacity
|
18000pcs/hour
|
Product Description
Our company is the first in China to export paintball equipment to North America which is capable of making tournament grade paintball, still the biggest paintball machine maker in China.
Compared with the softgel machine, the paintball making need better machine accuracy, the drive transmission system is also percisionly improved. The ancillay are also modified correspondingly. The hopper and spreader box adopt level switch, making the level control more precise. Besides, the injection wedge, spreader box and hopper adopt the design of precise PID temperature control . The micro lubrication system largely reduce the consumption of paraffin oil.

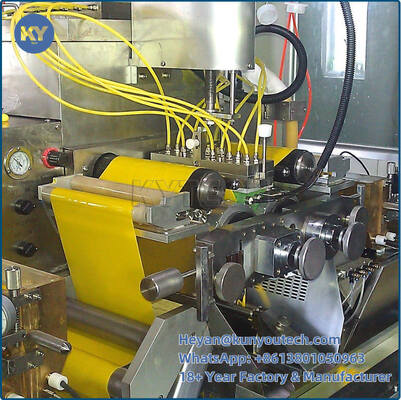

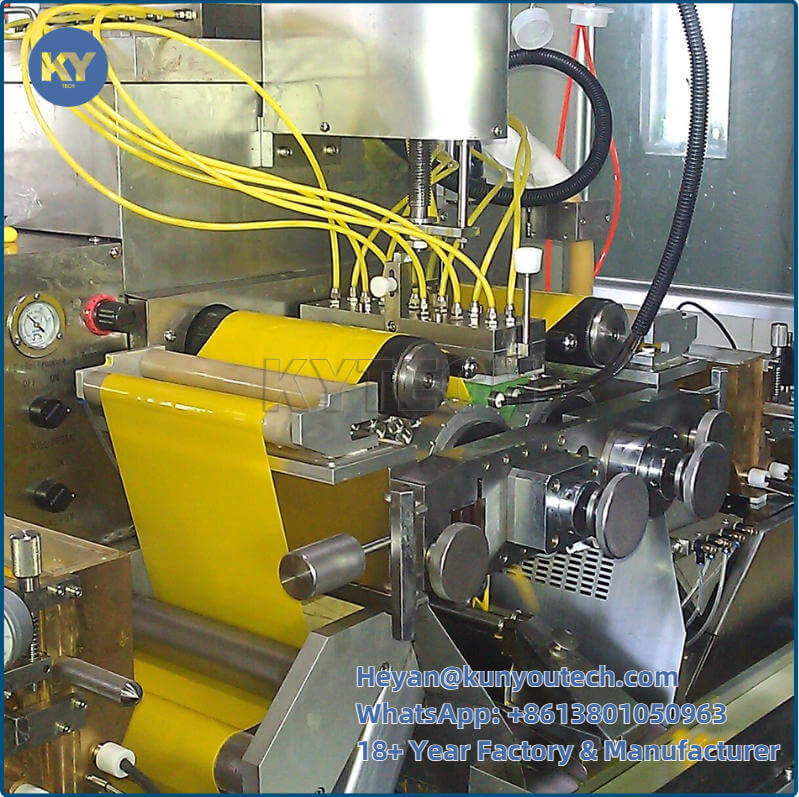

S406PB paintball Encapsulation Machine considers the need and the biggest benefits of customers as start point, combining advantages of foreign equipment and requirements of customers. S406 Paintball Encapsulation Machine’s die roll is 152 mm long. S407 machine die roll with 172mms in length. The die roll’s rotation rate can be regulated within 0 to 7rpm, so users can choose the most appropriate speed according to different materials and process parameters.
S406 Paintball Encapsulation Machine improves the bearing spindle supporting way of die roll, thus making the spindle more accuracy and much easier to repair. In addition, the machine further improves the machining precision. More helical gears are used in the process of gear moving, which improve the gear coincidence degree and transmission stability. The split structure of cooling fan reduces the thermal effect to the pressure pill. Besides, gelatin barrel is added with wheel which can be moved more conveniently and easily. The machine is provided with stirring or insulation optional hopper, using ground automatic feeding method. The paintball machine’s oil roller is made of stainless steel material, so it’s more in line with the requirements of GMP.
Specification
|
Model
|
S406PB/s407pb
|
|
Die roll diameter
|
Ф103mm
|
|
Die roll length
|
152mm/172mm
|
|
Die roll speed
|
0~7rpm
|
|
Plunger numbers
|
10
|
|
dimension
|
880X640X1900mm
|
|
weight
|
900kg
|
|
Power consumption
|
7 kw
|
|
Control mode
|
PLC+HMI Switch/buttons
|
|
Output rate
|
18000-20000pcs/hour
|
Competitive Advantages
1. Adjustable rotation rate during 0-7rpm
2. Easy to operate and clean, conforming to GMP
3. It can be assembled or disassembled with single hand,PLC touch screen
4. Big air flow
5. Reduce the oil consumption
6. The cable plug has good waterproof and oil proof function
7. High technical loading capacity
8. Drum design to prevent gelatin wrinkling and sideship
9. Professional PID temperature control technology is adopted on the machine, temperature of injector can be adjusted accurately. Improves ratio of finished products of paintball.
Paintball Making Equipment, Paintball Manufacturing Line, Various Model Die Roll For Soft capsule and Paintball and All kinds of spare parts for softgel making machine and paintball making machine. Professional Technicians and years of operation, welcome to inquire!
FAQ
Q1:Are you factory or trading company?
A: We are factory and manufacture.
Q2: Where is your factory located? How can I visit your factory?
A: We are located in Beijing, you can fly to Beijing airport or Nanyuan airport. Wecan pick you up from the airport or your hotel. Welcome to visit us!
Q3:How to place my order?
A: Just contact us via TraderManager, E-mail, Skype or telephone to confirm the product, make the deposit then we will start to manufacture.
Q4 : What is the payment term?
A: 30% T/T deposit and 70% T/T balance payment before shipping.
Q5:How long is the delivery time?
A: About 35- 40 working days.
