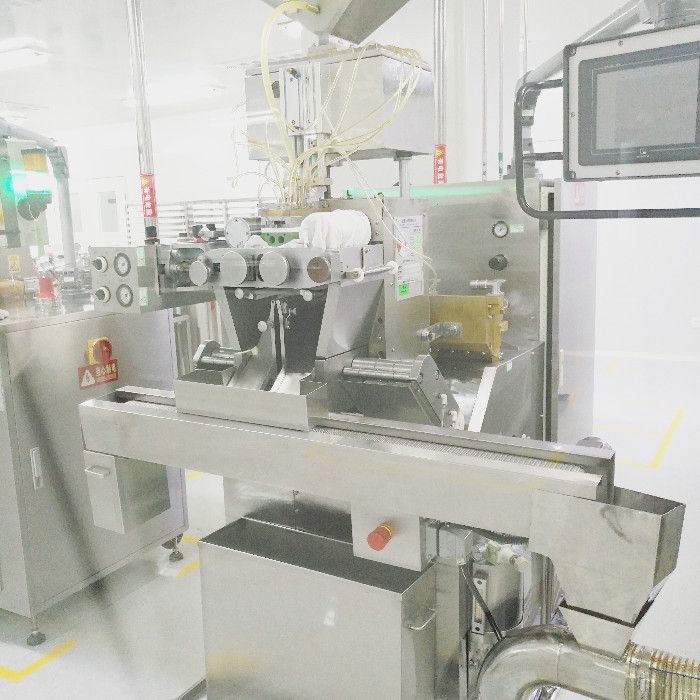

304 SUS Paintball Automatic Encapsulation Machine
Quick Detail
|
Control Mode |
PLC+Touch Screen |
Material |
304 SUS |
|
Application |
CS Paintball Making |
Certification |
CE |
|
Scale |
Small/Medium/Large Scale Production |
Capacity |
32000pcs/hour Max |
Product Description
Beijing Kun You Pharmatech Co., Ltd has three model Paintball Making Machine.
Specification
|
Model |
S403PB |
S406PB |
S610PB |
|
Production Rate |
8000pcs/hour |
18000pcs/hour |
32000pcs/hour |
|
Consumption Power |
3kw |
7kw |
20kw |
|
Dimension(mm) |
1100*600*800 |
880*640*1900 |
2050*1200*1850 |
|
Main Machine Weight(kg) |
300kg |
900kg |
1900kg |
|
Control Mode |
PLC+Touch screen |
||
Competitive Advantages
1. Small size, low energy consumption
2. Easy to operate and clean
3. High precision
4. Small load difference
5. Micro lubrication
6. High quality and intelligence control system, PLC true color touch screen technology adopted by the electronic control system. All electric parts use world brand parts, such as Siemens, Schneider.
7. The hopper can keep medicine temperature steady, more suit to fill suspension into the paintball.
8. Air-cooling system is adopted at the output of paintball, that make paintballs amazing
9.Professional PID temperature control technology is adopted on the machine, temperature of injector can be adjusted accurately. Improves ratio of finished products of paintball.
2. Gelatin Melting System
|
Model of the gelatin melting tank |
450L |
600L |
800L |
1000L |
|
Capacity(L) |
650 |
900 |
1120 |
1370 |
|
Melting gelatin(L) |
100-450 |
150-600 |
200-800 |
300-1000 |
|
Heating area(M2) |
3.2 |
4 |
4.8 |
5.5 |
|
Max degree of Vacuum(Mpa) |
0.09 |
0.09 |
0.09 |
0.09 |
|
Max Temperature(℃) |
-100 |
-100 |
-100 |
-100 |
|
Motor Power (KW) |
4 |
5.5 |
7.5 |
7.5 |
|
Stirring speed (r/min) |
50 |
50 |
50 |
50 |
|
Dimension (mm) |
Φ1210X1880 |
Φ1310X1980 |
Φ1410X2080 |
Φ1510X2130 |
3. Tumble drying machine
|
Model |
TD-0 |
TD-1 |
TD-2 |
TD-3 |
TD-4 |
|
Basket diameter(mm) |
420 |
580 |
580 |
730 |
526 |
|
Basket length(mm) |
620 |
600 |
900 |
1010 |
282 |
|
Drying fan(kw) |
0.25 |
0.32 |
0.32 |
0.55 |
2 |
|
Motor Power(kw) |
0.2 |
0.4 |
0.4 |
0.75 |
1.5 |
|
Basket per section |
1 |
2 |
2 |
1 |
6 |
