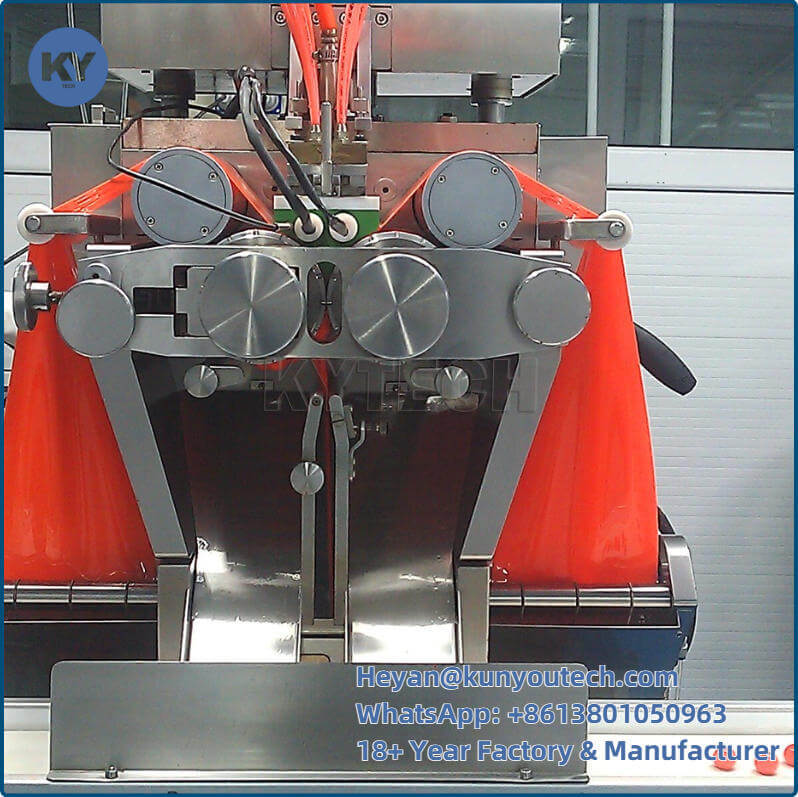

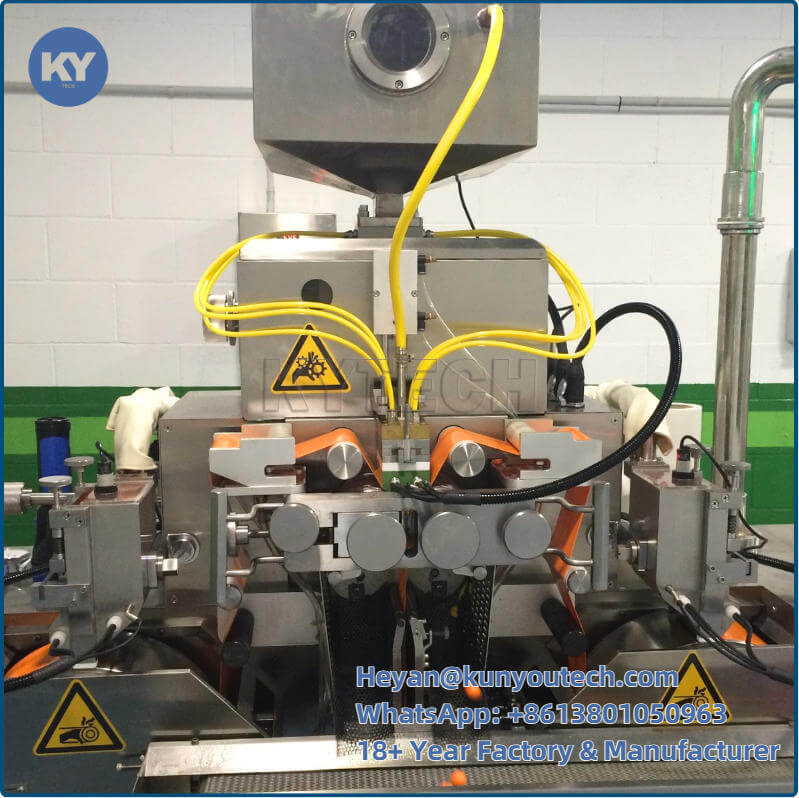

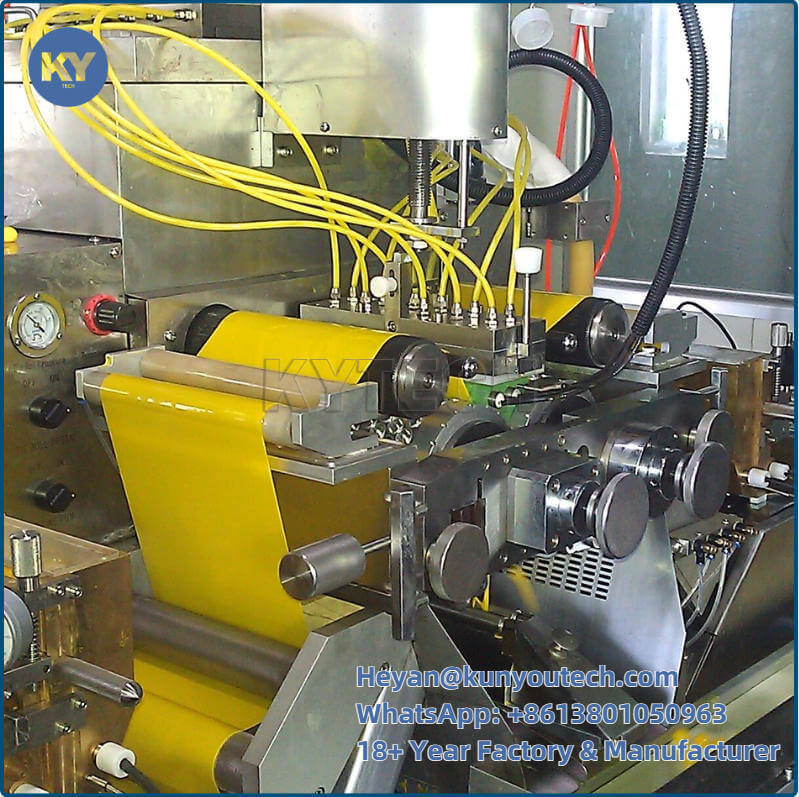

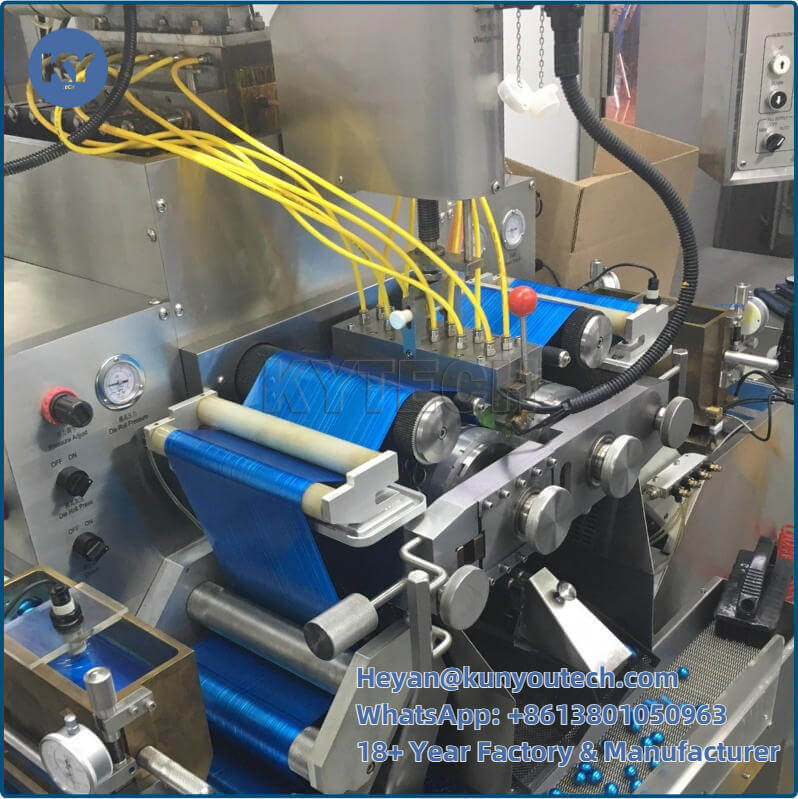

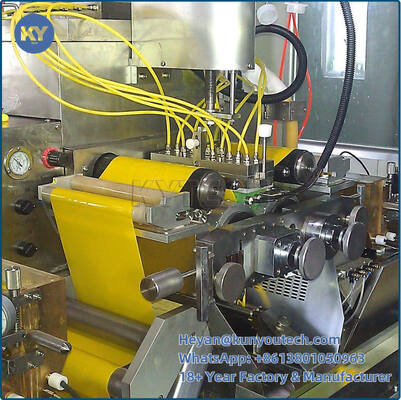

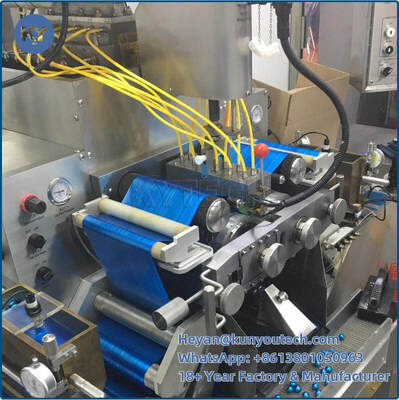

Soft Gelatin 10 Inch Paintball Encapsulation Machine for CS games

Paintball Encapsulation Machine S610

Paintball Encapsulation Machine

• Die Roll Speed 0-5 rpm
• Die Roll Dimension 150(Dia.)× 250(Length)mm
• Number of Plungers 24 (12 on each side) Specially Designed for Paintball
• Diameter Deviation of The 24 Plungers Less than 0.005mm.
• Dosage Deviation <±1.5%
• Dimension L×W×H =2050×1200×1850 mm
• Weight Approx. 2000kg
• Power Consumption 16 kW (Max.) ,
• Power Supply 3 Phase, 220V/380v/440V, 50Hz/60Hz optional
• Pressure Air 0.6MPa
• Gelatin Ribbon Lubrication Paraffin oil or equivalent, less than 1kg in 8 hours.
• Capsule Washing Not neccessary , Solvent Free.
• Major Bearings Made in Germany
• Separate Lubrication System for Medicine Pump and Die Roll Assembly.
• Water Cooled Drum Also Have Air Blowers .
• Automatic Medicine Supply The system can even alarm when the fill material tank is empty.

Large Scale Soft Gelatin Encapsulation Machine For Pharmaceutical Industry Use And Meet GMP Requirement

Characteristics

Product Description

Soft Capsule Making Machine can quantificationally inject the oil, mixing suspension and pasty mass into the capsule to form all kinds of softgel encapsulation with different size, shape and color. Because of the merits of high speed disintegration, easy to oray, hard to oxygenation, easy to store. So soft capsule making machine is becoming more and more popular for customers. Due to high productivity, charging exactly, quality stabilization, high finished product rate, it is favored by more and more manufactures and applied in the fields of medicine, health products, sports paintball and cosmetic, etc.

Specification
