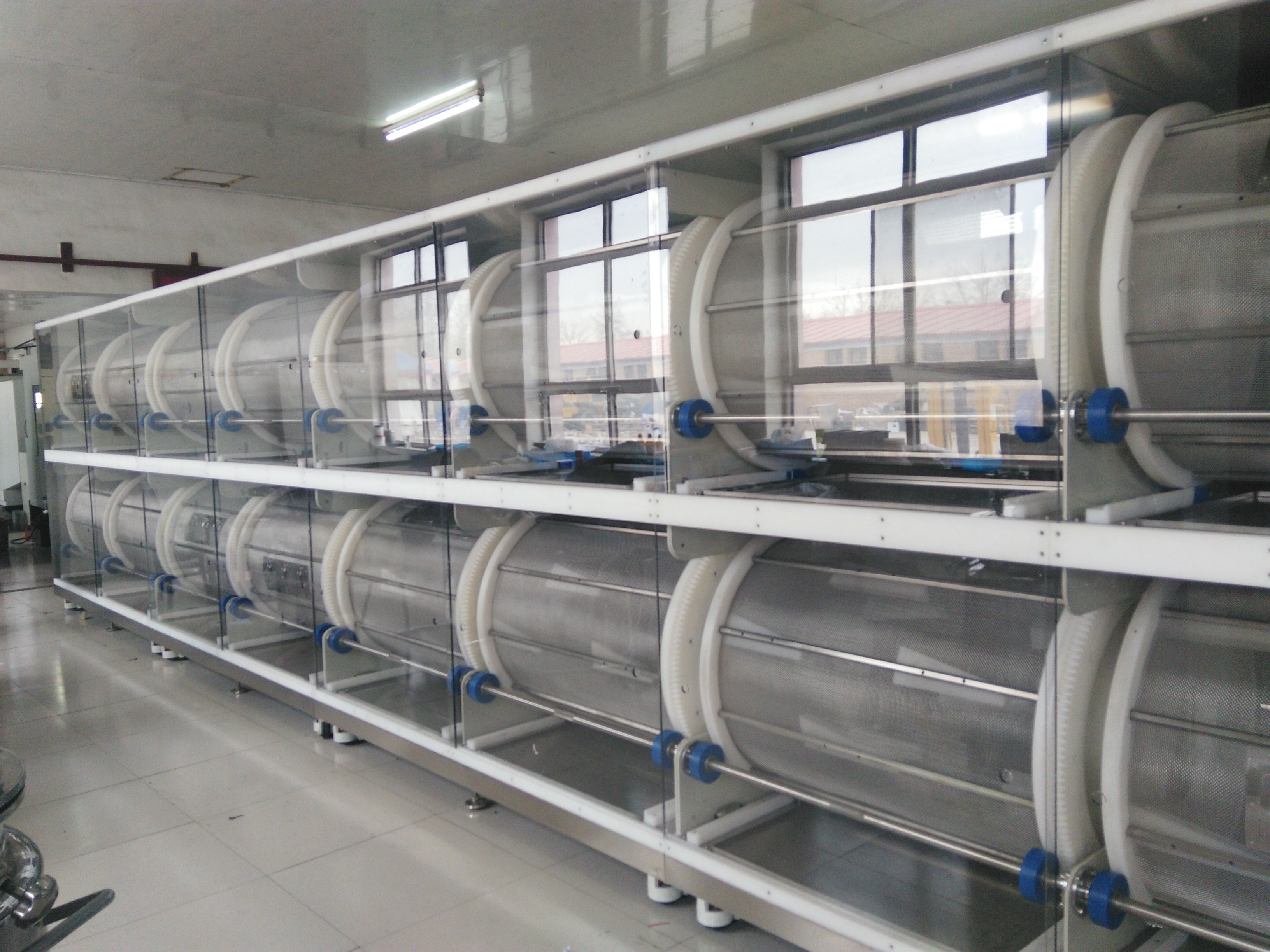

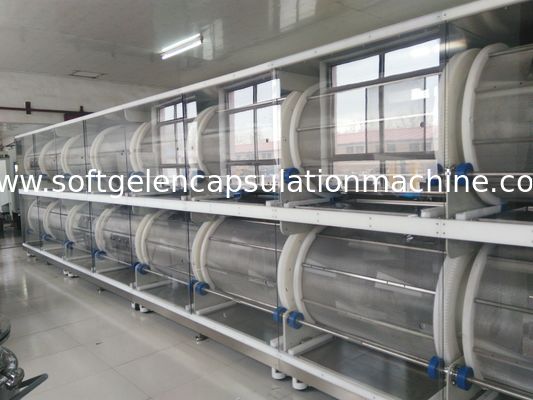

SS316 Double Layers Encapsulation Tumbler Dryer

SS316 Double Layers Encapsulation Tumbler Dryer

SS316 Double Layers Encapsulation Tumbler Dryer
video
SS316 Double Layers Encapsulation Tumbler Dryer
Product Details:
Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: TD-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Delivery Time: 30-60 days
Payment Terms: T/T, L/C
Contact Now
Detailed Product Description
Material: SS316 Size Dia: 900
Size Length: 1010 Control: PLC
Brand: Kunyou Dry Material: Air
High Light:

encapsulation tumbler dryer

,

encapsulation tumble dryer

,

tumbler encapsulation dryer



Double Layers Big Air flow Encapsulation Tumbler Dryer With Hydraulic lift syetem





Quick Detail



Product Name

 Softgel Tumble Drying Machine/ Tumble Dryer

Power consumption

0.75kw

Drying fan Motor(KW)

0.55KW2



Application

Drying softgel/paintball or pills or fish oils,etc





TD3 Double Floors Tumble Dryer

Model TD-3Two Floors Tumble Dryer is designed by investigation and analysis of actual production situation from numerous soft capsule manufacturers home and abroad,combining the large scale production characteristics of soft capsule drying. It is fully complicated with GMP requirements and the entire equipment is simple and practicable, artistic and elegant.

Each section is individually set up with forward and reverse adjustment driven and blower,each section could be used separately or combine several section as a whole unit.The capsules will be remained in the current cage for drying when forward switch adjustment,and the capsules would be conveyed to the next cage or driven out when reverse switch adjustment.

It is mainly used for drying of softgel capsules production line.Meanwhile,it could also be applied to granular materials dynamic drying in Pharmaceutical,Food and Chemical industries.

Main Features:

* Special Side-cut air blowing system makes the cages with the uniform air blow to fasten the drying speed.

* Non-oil lubrication structure is adopted for the rotating cage of the dryer to avoid the pollution
of lubricant thoroughly. The whole machine will be kept clean during the production process.

* The cages adopts the latest structure design to guarantee the dependability of material
conveying in multi-cages operation.

* The precise design and manufacturing guarantee that no influence to other cages running when disassemble any of the cage from the multi-cages.

* The loading tray is set up in each cage to make the workshop floor tidy and clean and also
reduce the waste of finished products.

* Each dryer can be separately moved and fast combing, it shortened the machine's maintenance time and reduced the operator's labor strength.

Technical Parameter(Each Section):

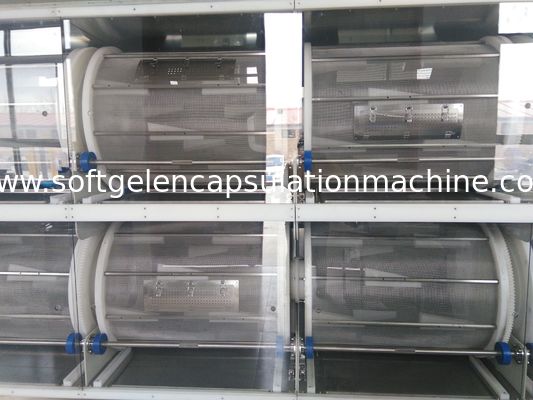

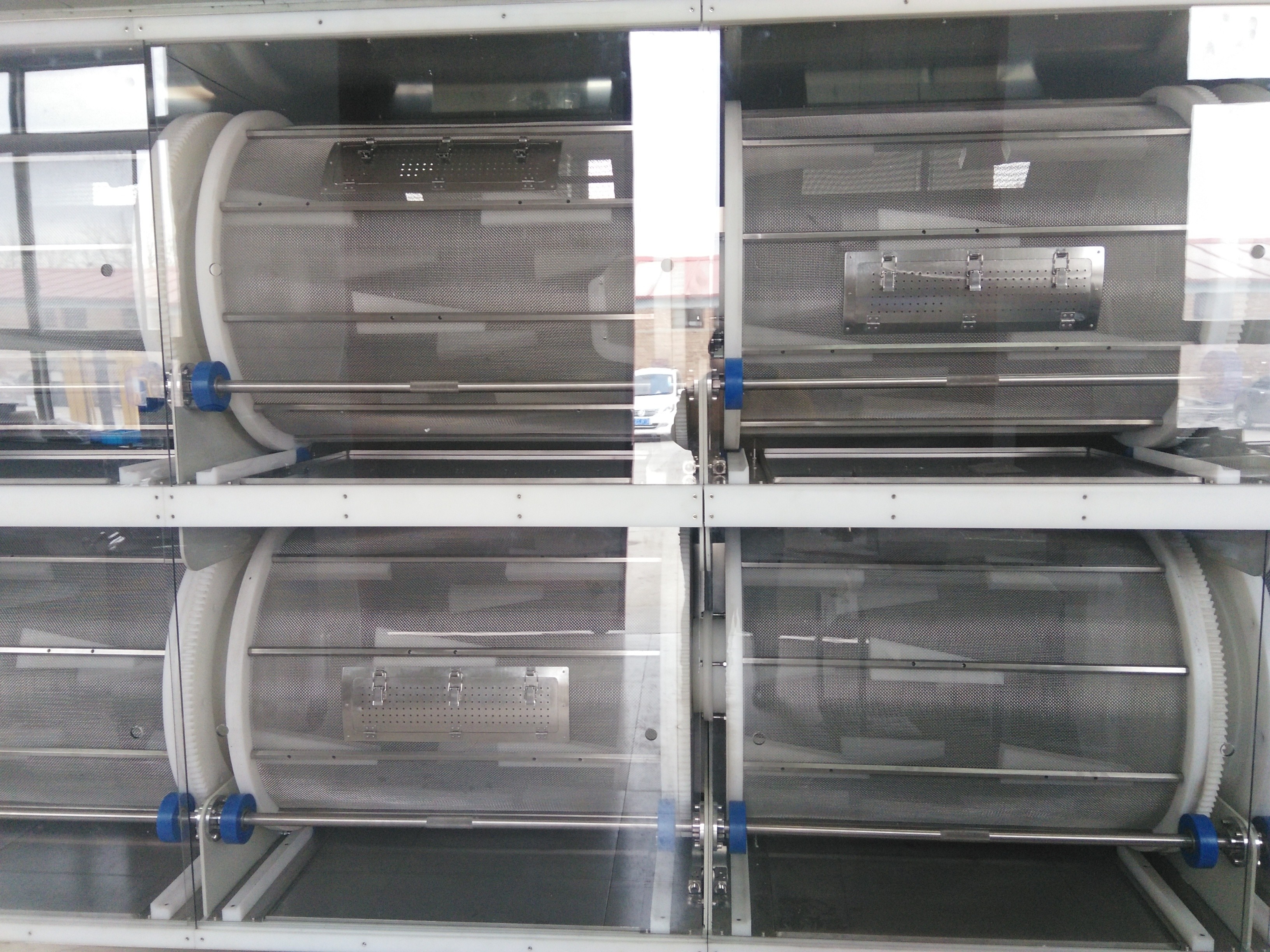

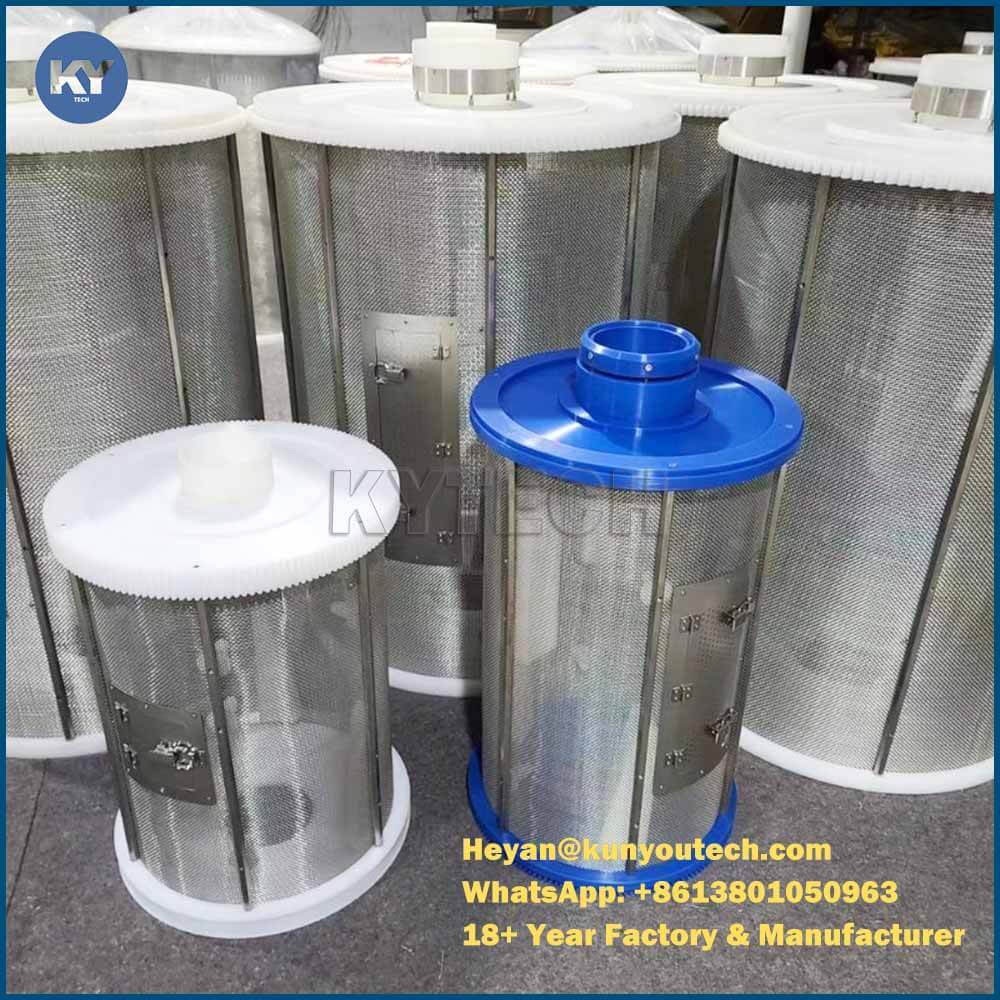

Size of rotating cage
φ730×1010mm
Rotation rate of rotating cage
31rpm
Power
AC380V 50Hz 2.2kW
Wound rate of fan of each basket
2*50m3/min
External size
1040×780×1850mm
Cage quantity of each section
2



Product Description



TD-3 Soft Capsule (Softgel) and paintball Tumble dryer is used to predry and initial shaping of soft capsule (softgel) and paintballs. TD-3 Soft Capsule (Softgel) and paintball Tumble dryer is the largest domestic drying tumble currently. Each section is provided with two large air blowers. The organic glass cover of TD-3 Soft Capsule (Softgel) and paintball Tumble dryer can be opened with safety protection. The standard configuration is 8 sections. Each section is equipped with an independent fan to make softgels and paintballs distribute evenly, thus making the drying effect much better. Each dryer can be easily removed and easy to clean, so it’s more in line with the requirements of GMP. Each dryer is equipped with electrostatic guiding device and safety production device. The operator can conveniently make the dryer stop just in the tumble dryer position.

Application



1. TD-3 Soft Capsule (Softgel) and paintball Tumble dryer is used to predry and initial shaping of soft capsule (softgel) and paintballs.
2. It’s for pharmaceutical enterprises, health care products, cosmetics and paintball production line.

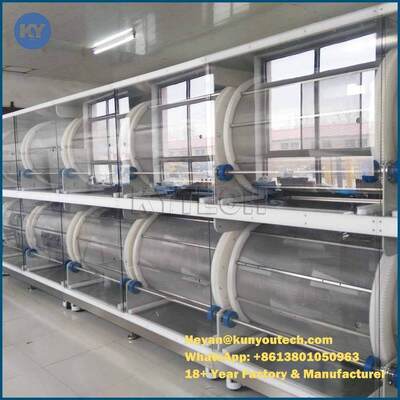

SS316 Double Layers Encapsulation Tumbler Dryer 0



Competitive Advantage



1. The largest domestic drying tumble dryer.

2. Two large air blowers in each cage, with 2 fans each basket

3. Each cage can regulate speed separately

4. Safety protection device in the rotate of the basket and the material discharge.

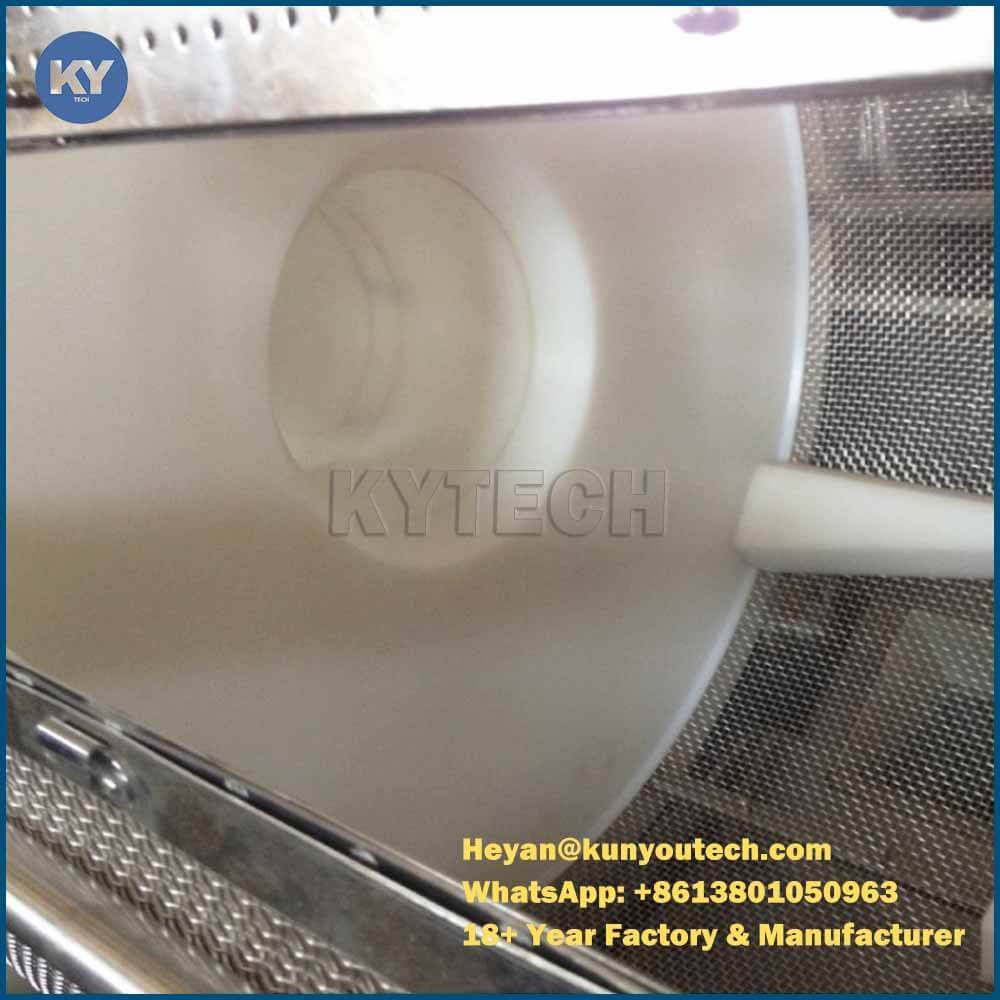

5.Guide block and discharge place is made of plastic by mole casting ,capsule will not stack .

6.Net polished in ineer and outer face.

7.Touch screen can be control by PLC of main machine or the tumbler dryer seperately.

8.2 layer design, space saving ,with lift fork for the basket dischage.

9.Cover can be steel and PC.

10.size can be as your requirement.



drying tumbler for soft capsule, drying tumbler for paintballs, soft capsule dryer, paintball dryer, paintball drying machine, soft capsule /softgel drying machine
