Multi Cavity Capsule Mold 103x152 150x250 Die Roller For Softgel Encapsulation Machine

Multi Cavity Capsule Mold 103x152 150x250 Die Roller For Softgel Encapsulation Machine

  • Multi Cavity Capsule Mold 103x152 150x250 Die Roller For Softgel Encapsulation Machine
  • Multi Cavity Capsule Mold 103x152 150x250 Die Roller For Softgel Encapsulation Machine
  • Multi Cavity Capsule Mold 103x152 150x250 Die Roller For Softgel Encapsulation Machine
  • Multi Cavity Capsule Mold 103x152 150x250 Die Roller For Softgel Encapsulation Machine
Multi Cavity Capsule Mold 103x152 150x250 Die Roller For Softgel Encapsulation Machine
Product Details:
Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: Ø103X152
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Delivery Time: 7-10 days
Payment Terms: T/T, L/C, Western Union,,MoneyGram
Supply Ability: 10 Pairs per week
Contact Now
Detailed Product Description
Shaping Mode: Plastic Injection Mould Product Material: Copper,Aluminium,Multiple Materials
Cavity: Multi Design Software: PROE,UG,CAD,Solidworks
Product Name: Liquid Silicone Mold Making Rubber For Compression Surface Treatment: Anodized
Lead Time: 10 Days For Molds
High Light:

multi cavity capsule mold

,

softgel encapsulation machine capsule mold

,

softgel machine capsule mold



Capsule Mold / Die Rolls For Soft gelatin Encapsulation Machine For Oval , Oblong Softgel



Quick Detail



Product Name

Medium Die roll for softgel and paintball

Brand Name

KUN YOU

Place of Origin

Beijing, China(Main land)

Material

Aluminium alloy

Die roll Speed

0~5 rpm

Model

Ø 103X152

Multi Cavity Capsule Mold 103x152 150x250 Die Roller For Softgel Encapsulation Machine 0



Product Description

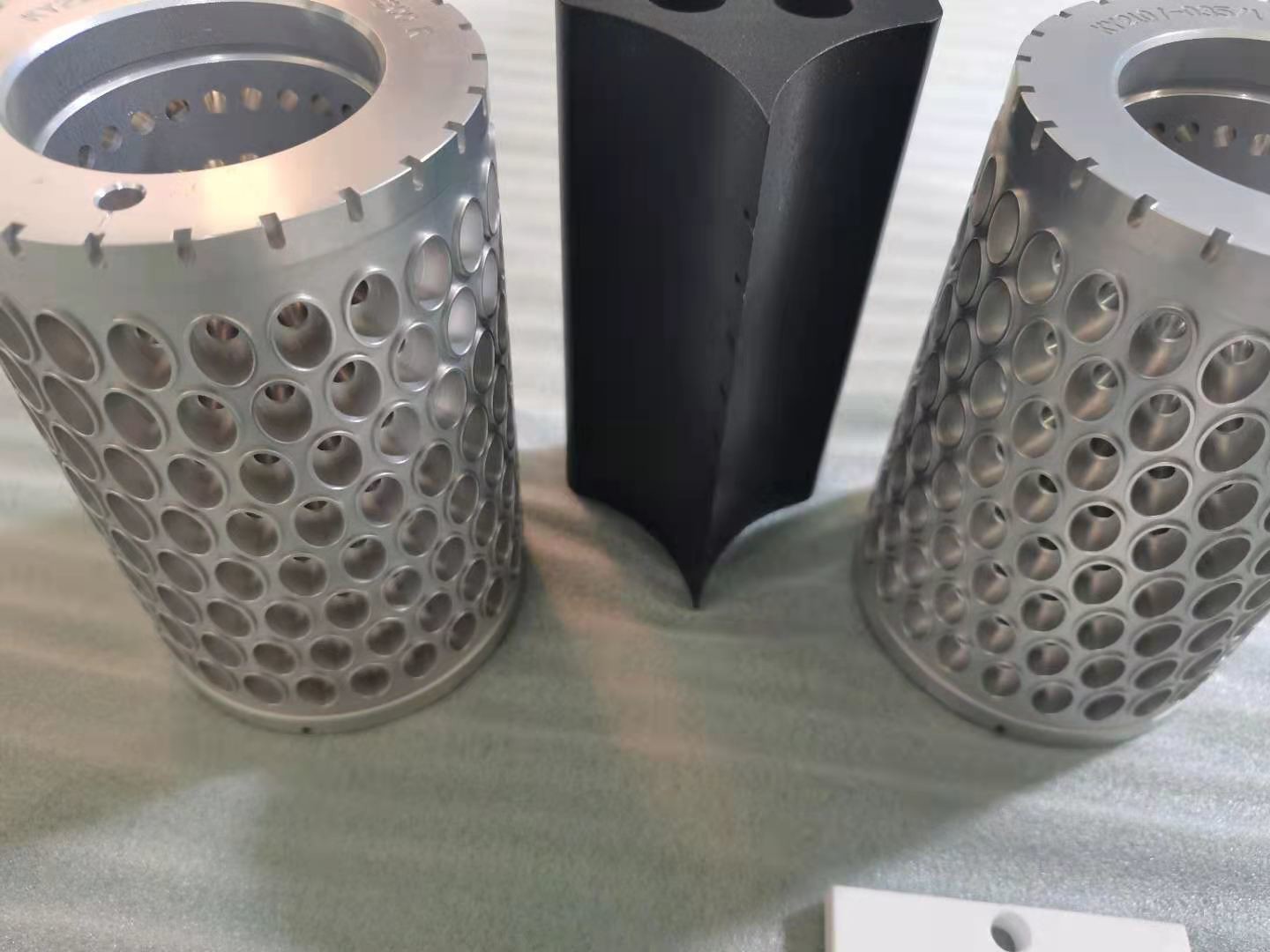

The soft capsules die roll are widely used in softgel making machines for softgel making enterprises and pharmaceutical enterprises. It can make various types of softgel and according to customers’ requirements. S406 Soft capsule die roll is used for S406 Soft capusle making machine which is suitalble for medium scale production. The raw material of die roll is imported aircraft grade aluminium alloy which has very good strength and tension. Its tension degree can get to 570 MPa and 150 Brinell hardness. Using the imported aircraft grade aluminium alloy can significantly prolong the life of dies. Besides, users can largely reduce the using cost because there are usually four times to repair during its life cycle. After processing these dies roll, technologists will make special surface treatment technology so as to further improve the mold surface hardness and corrosion resistance. In designing softgel die rolls, we strongly absorbed much experience from home and abroad to make better die rolls which can reduce the leakage and net rate and improve the stability of the soft capsule and paintball production.

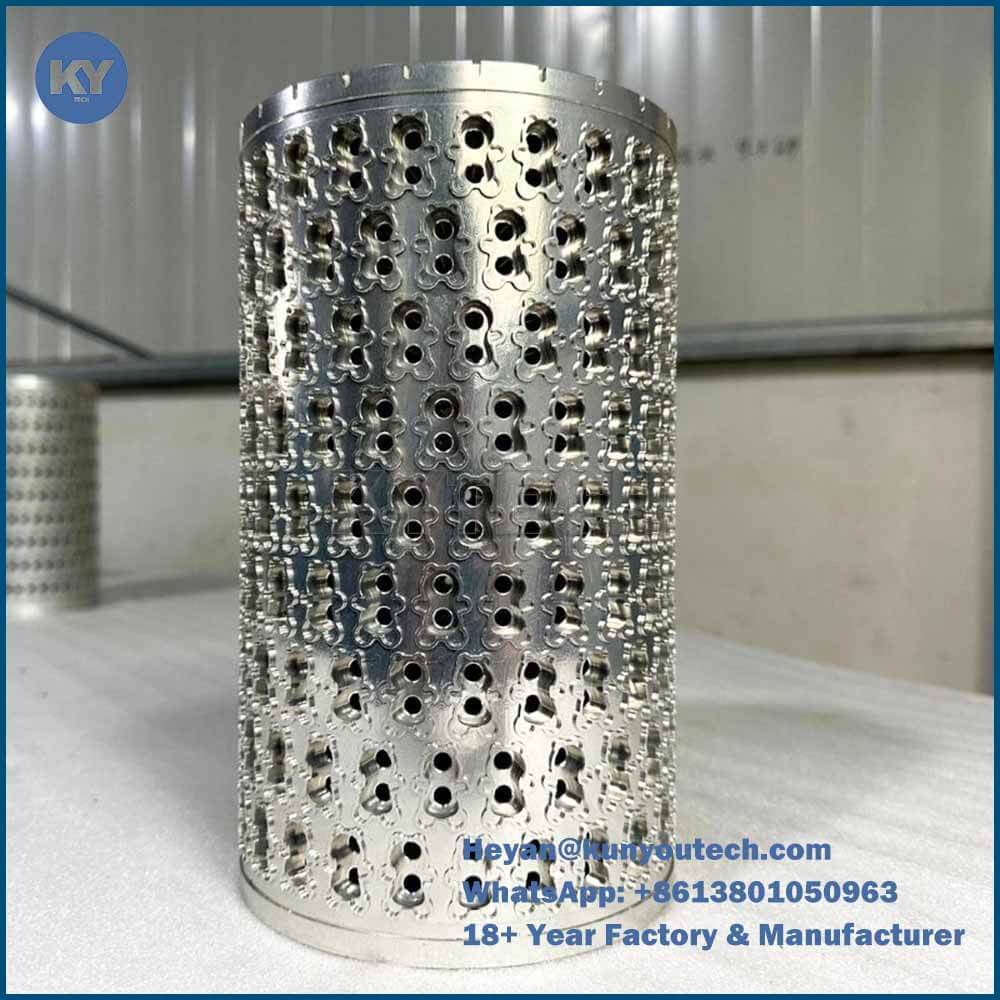

Multi Cavity Capsule Mold 103x152 150x250 Die Roller For Softgel Encapsulation Machine 1





Specification



Model

Ø 103X152

Die roll diameter(mm)

Ø103*172

Die roll length(mm)

Ø80*100

Die roll Size

Ø150*250

300mm

Ø200*300





Competitive Advantage



1. Widely used for softgel and paintball making enterprises and pharmaceutical enterprises

2. The raw material is imported aircraft grade aluminium alloy
3. Various types of softgel and round paintball
4. product: Metal: Aluminium, copper
5. Make different die roll according to customers’ requirements
6. Softgel Capsules Making machine for laborotary and small scale production

Soft capsule die roll, softgel mold, softgel die  roller and paintball die roll, paintball mold.
Welcome to inquire!

Softgel Die Roller


The shape and sizes of the die roller decides the appearance and filling quantity of the soft capsules.Because of different gelatin liquid properties and different drying process will causes the drying shrinkage ratio to be inconsistent, the overall dimension of the finished soft capsules is different from the die roller cavities geometric dimensions will be the normal phenomenon.

We can design the die roller according to the soft capsule samples and basic process parameters provided by users. It can get the realistic effect of the finished products of the soft capsules.

Die Roller Cavity No. Information


Shape


No.
Cavity No.s
HSR-60
HSR-100
HSR-150
HSR-180
HSR-200
HSR-250
HSR-300


Oblong
8
32
60
130
175
200
400
480
10
30
48
125
150
175
380
456
20
14
28
88
115
144
245
315


Oval
6
42
70
189
243
297
518
666
8
28
70
161
207
240
490
595
10
26
52
154
192
230
448
528
14
24
48
120
140
171
360
420
16
24
48
120
140
160
330
390


Tube
8
16
32
104
140
168
336
420
10
16
32
104
130
156
312
390



Multi Cavity Capsule Mold 103x152 150x250 Die Roller For Softgel Encapsulation Machine 2

Note:

Calculation of Capacity per hour:Cavity No.s X Die Roller speed X60 min=Capacity per hour



COMMON SOFTGEL SHAPES&FILLING QUANTITY

ROUND
NO.
1.5
2
3
6
7
8
10
36
40
MINIMS
1.5
2
3
6
7
8
10
36
40
mL
0.092
0.123
0.185
0.37
0.431
0.493
0.616
2.218
2.464
OBLONG
NO.
4
5
6
8
10
11
14
16
20
MINIMS
4
5
6
8
10
11
14
16
20
mL
0.246
0.308
0.37
0.493
0.616
0.678
0.863
0.986
1.232
OVAL
NO.
1.5
2
3
4
5
6
8
10
32
MINIMS
1.5
2
3
4
5
6
8
10
32
mL
0.092
0.123
0.185
0.246
0.308
0.37
0.493
0.616
1.972
TUBE
NO.
5
5.5
6
8
9
9.5
10
18
20
MINIMS
5
5.5
6
8
9
9.5
10
18
20
mL
0.308
0.339
0.37
0.493
0.555
0.585
0.616
1.109
1.232
DRIP
NO.
5
6
8
10
12
15
20
24.5
30
MINIMS
5
6
8
10
12
15
20
24.5
30
mL
0.308
0.37
0.493
0.616
0.739
0.924
1.232
1.509
1.848
CALABSH
NO.
4
5
5.5
6
6.5
8
10
12
15
MINIMS
4
5
5.5
6
6.5
8
10
12
15
mL
0.246
0.308
0.339
0.37
0.4
0.493
0.616
0.739
0.924
GOLDFISH
NO.
10
12
14
15
16
18
19
20
25
MINIMS
10
12
14
15
16
18
19
20
25
mL
0.616
0.739
0.863
0.924
0.986
1.109
1.17
1.232
1.54
FLAGON
NO.
6
7
7.5
8
8.5
9
10
12
15
MINIMS
6
7
7.5
8
8.5
9
10
12
15
mL
0.37
0.431
0.462
0.493
0.524
0.555
0.616
0.739
0.924
FISH
NO.
4
5
6
7
7.5
8
9
10
12
MINIMS
4
5
6
7
7.5
8
9
10
12
ML
0.246
0.308
0.37
0.431
0.462
0.493
0.555
0.616
0.739
AUBBRGINE
NO.
5
6
6.5
7.5
8
9
10
12
39
MINIMS
5
6
6.5
7.5
8
9
10
12
39
mL
0.308
0.37
0.4
0.462
0.493
0.555
0.616
0.739
2.402
Our Company

1.8000m2 Modern Equipment Manufacturing Center Fully owned

2.20 Years softgel industry experience since 1998

3.DMG ( CTX 1250 TC)Turning-Milling compound machining center from Germany

4.Professional RD platform

5.China Aviation Technology Background RD Team



Company Information

Beijing Kun You Pharmatech Co., Ltd. devotes itself to manufacture softgel encapsulation line, tumble dryer, softgel mould, softgel sorting machine, softgel auxiliary equipment, paintball production line, and related technique R&D.

We also accumulated rich experience of softgel encapsulation technique. We have many sets of high-precision CNC and auxiliary equipments, and our professional design, technology, production and service personnel, enable us to produce high performance equipment, mould and top quality service. We are not only a equipment and mould supplier, but also a turn-key solution and formula provider.Easpcially in veggie gel capsule.

Kun You is keeping good cooperation relationship with companies from USA,Swissland, Germany, Canada, Russia, Mexcio, Vietnam, Turkey, Brasil, India, etc., in the meantime, our products and service have been exported to those regions too.
